Name: Захранване NZXT C1200, 1200W, Active PFC, 80 Plus Gold, 135 mm вентилатор
Brand: NZXT
SKU: PWRPCNZXTPA2G1BBEU
Price: 172.46 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

NZXT C1200

Tech Specs

Output Connectors

24-pin ATX power: 1
4+4-pin CPU power: 1
8-pin CPU Cable: 1
6+2-pin PCIe power: 2
16-pin (12+4) 12VHPWR PCIe Cable: 1
SATA power: 8
Peripherals: 4

Cable Specs

24-pin ATX power: 600 mm, Nylon sleeving
4+4-pin CPU power: 700 mm, Nylon sleeving
8-Pin CPU Power Cable: 700mm, Nylon sleeving
6+2-pin PCIe power: 650 + 150 mm, Nylon sleeving
16-Pin (12+4) 12VHPWR PCIe Cable: 650mm, Nylon sleeving
SATA power:500 + 150 mm
Peripherals:500 + 150 mm

AC Input Rating

100 - 240Vac:14A-7A 50Hz-60Hz

DC Output Rating

+3.3V and +5V:22A (120W)
+12V:100A (1200W)
-12V:0.3A (3.6W)
5Vsb:3A (15W)
Total:1200W

Operation

PF Correction:Active @0.96
MTBF:100,000 hours
Temperature:0 - 50 °C (derating from 100% to 80% from 40 °C to 50 °C)

Energy Efficiency

Rating:80 Plus Gold
20% loading:90.97% @115Vac
50% loading:91.55% @115Vac
100% loading:88.51% @115Vac

Fan Specs

Dimensions:135 x 135 x 25 mm
Speed:0-2300 ± 10% RPM
Airflow:93.02 CFM (Tpy.)
Noise:44.5 dBA max
Bearing:Fluid Dynamic Bearing (FDB)

General

Dimensions:150 x 150 x 86mm
Material(s):Steel, PCB and Plastic
Compliance Standard:ATX12V v3.0 / EPS12V v2.92
Regulation & Certification:cTUV-SUDus / CUL (UL60950/62368-1) / TUV / (EN60950/62368-1) / CB/ (IEC 950/62368-1) / CCC / CEC /BSMI / RCM / EAC / CE / LVD / UKCA

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.

Виж още Захранвания Настолни компютри NZXT
Виж всички Захранвания Настолни компютри в категорията

Технически характеристики

Изходна мощност:	1200 W
Модулен блок:	Да
Форм фактор:	ATX

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

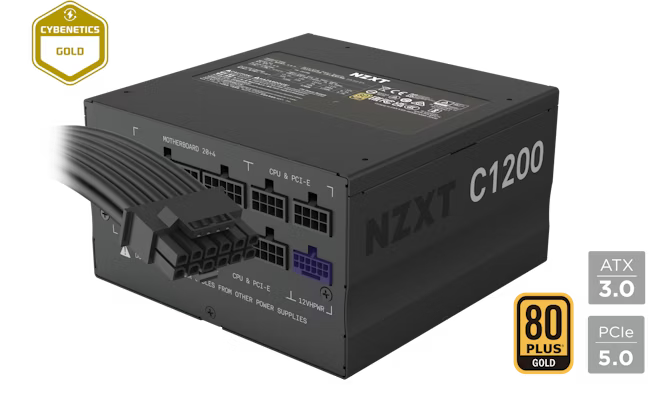

Next-Gen Power Provides up to 600W of power to PCIe 5.0 GPUs, such as the NVIDIA GeForce RTX 4090 - over a single 16-pin connector.

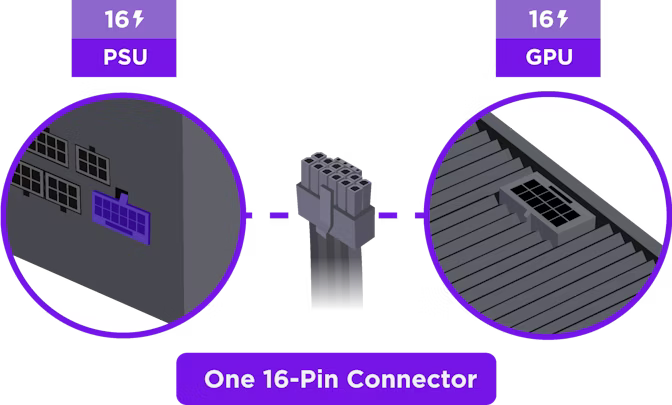

Single Cable Connection Featuring a single 16-pin connection cable—perfect for 40 Series cards. Installation is easier, safer, and less likely to damage parts without requiring any bulky adapters.
High-Quality Components Constructed with all Japanese 105C-rated capacitors for the highest standard in performance, reliability, and longevity.

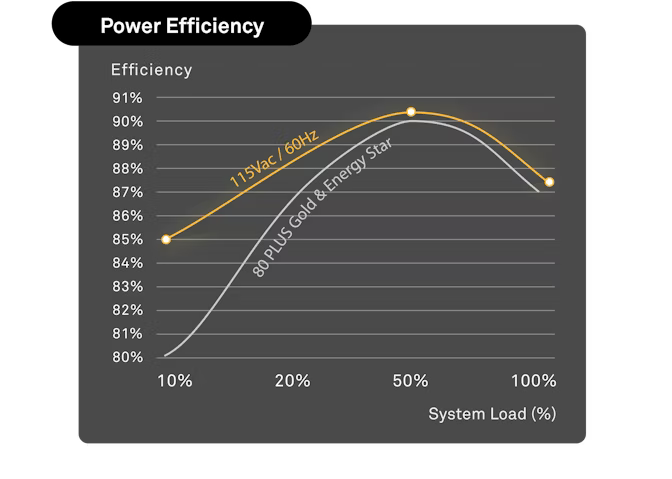

Elite Efficiency With over 90% efficiency at 50% load, the C1200 reduces energy usage to lower monthly costs and extend your PC's lifespan. No wasted energy - it only draws the power your system needs.

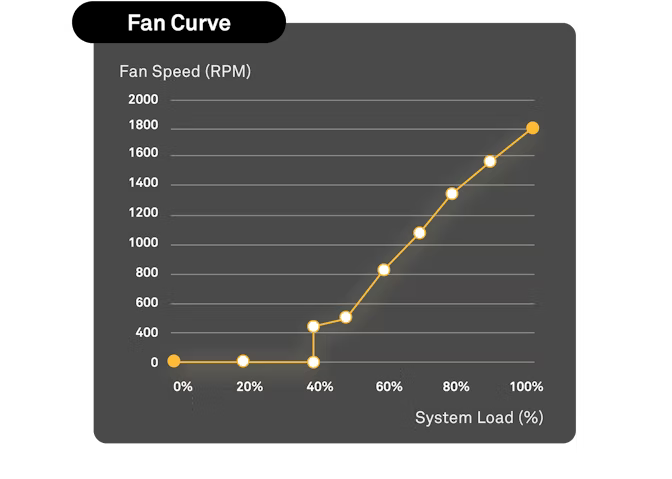

Silent Operation The 135mm PWM fan with a fluid dynamic bearing runs quietly, even at high loads. Zero Fan Mode shuts it off for total silence when under 40% load.
