be quiet! Dark Power 14 1200W BP021EU
Икона нов продукт
Назадbe quiet! Dark Power 14 1200W BP021EUbe quiet! Dark Power 14 1200W BP021EUbe quiet! Dark Power 14 1200W BP021EUbe quiet! Dark Power 14 1200W BP021EUНапред

Захранване be quiet! Dark Power 14, 1200W, Active PFC, 80 Plus Titanium, 135mm вентилатор

id 301030 Код: PWRPCBEQUIETBP021EU

588.04 лв

/

300.66 €

ОписаниеХарактеристикиРевюта / ВъпросиВземи на изплащане

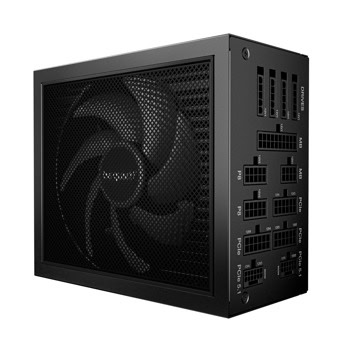

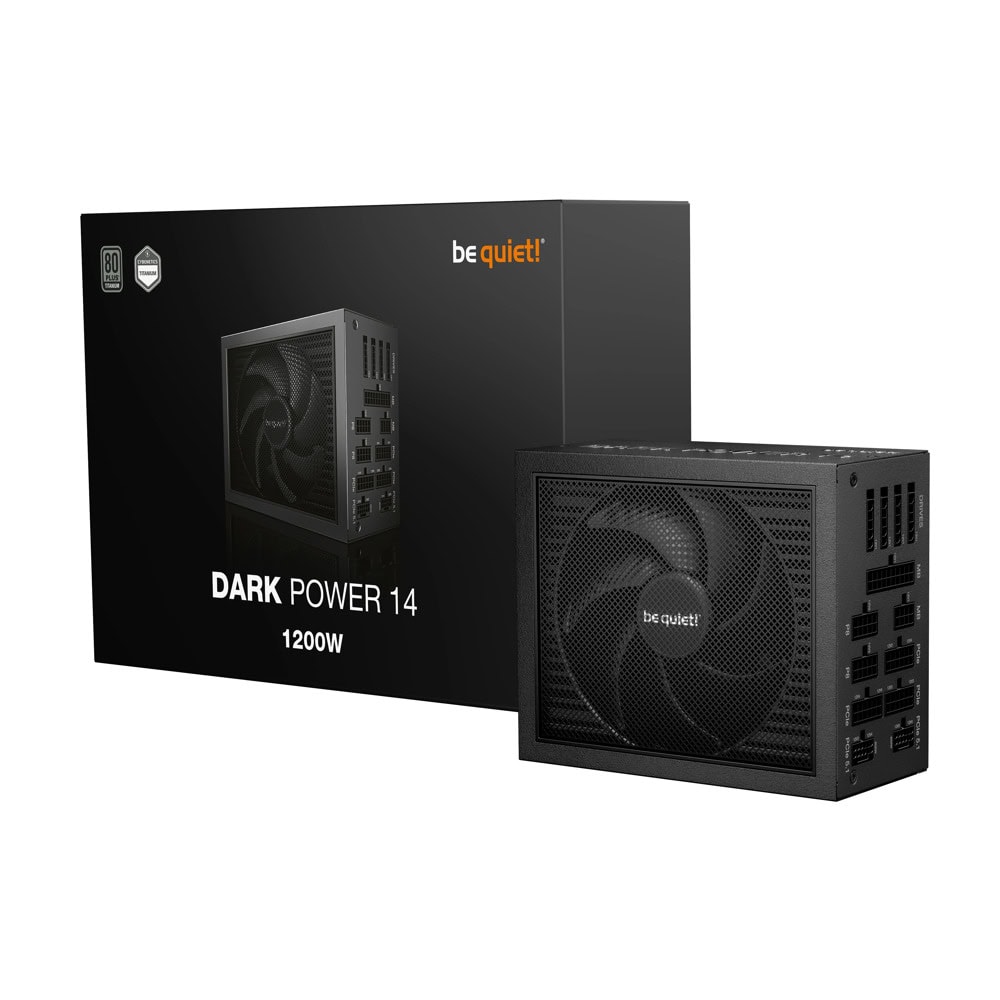

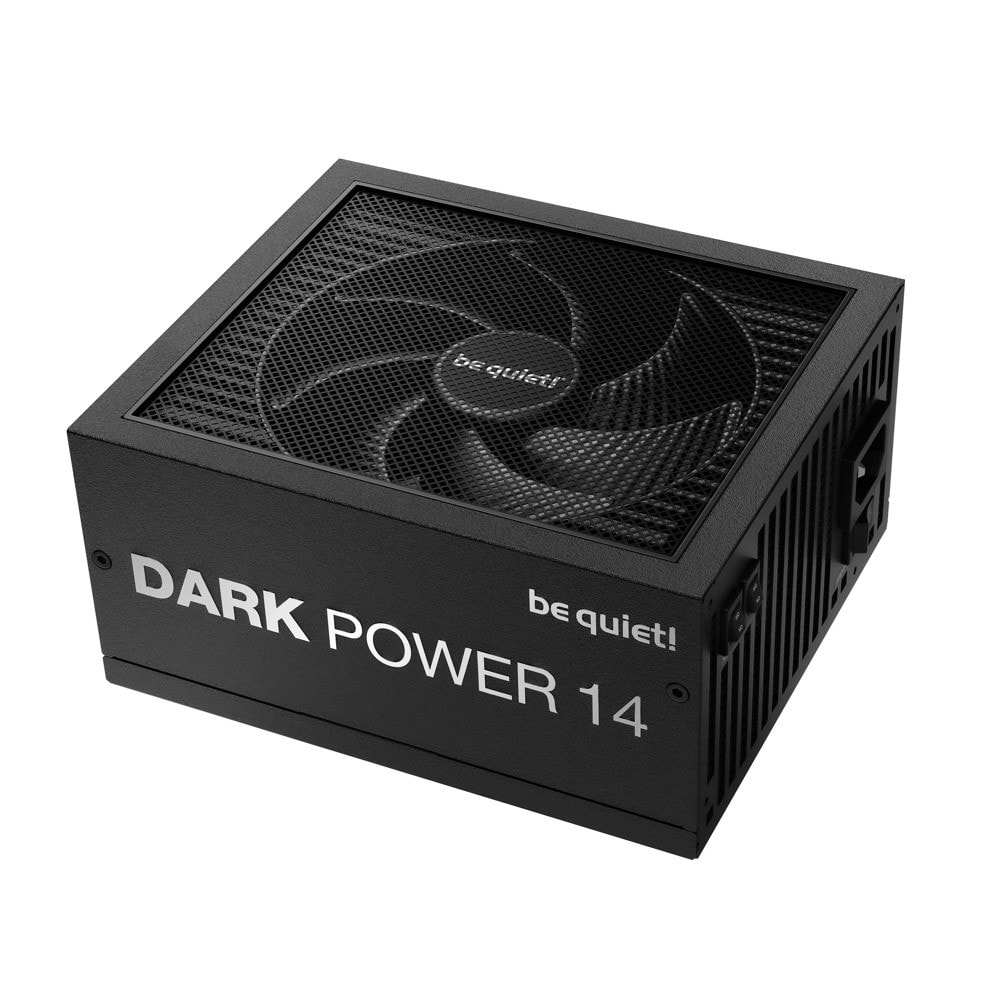

be quiet! Dark Power 14



PUSH THE BUTTON!

Switch effortlessly between active and semi-passive cooling

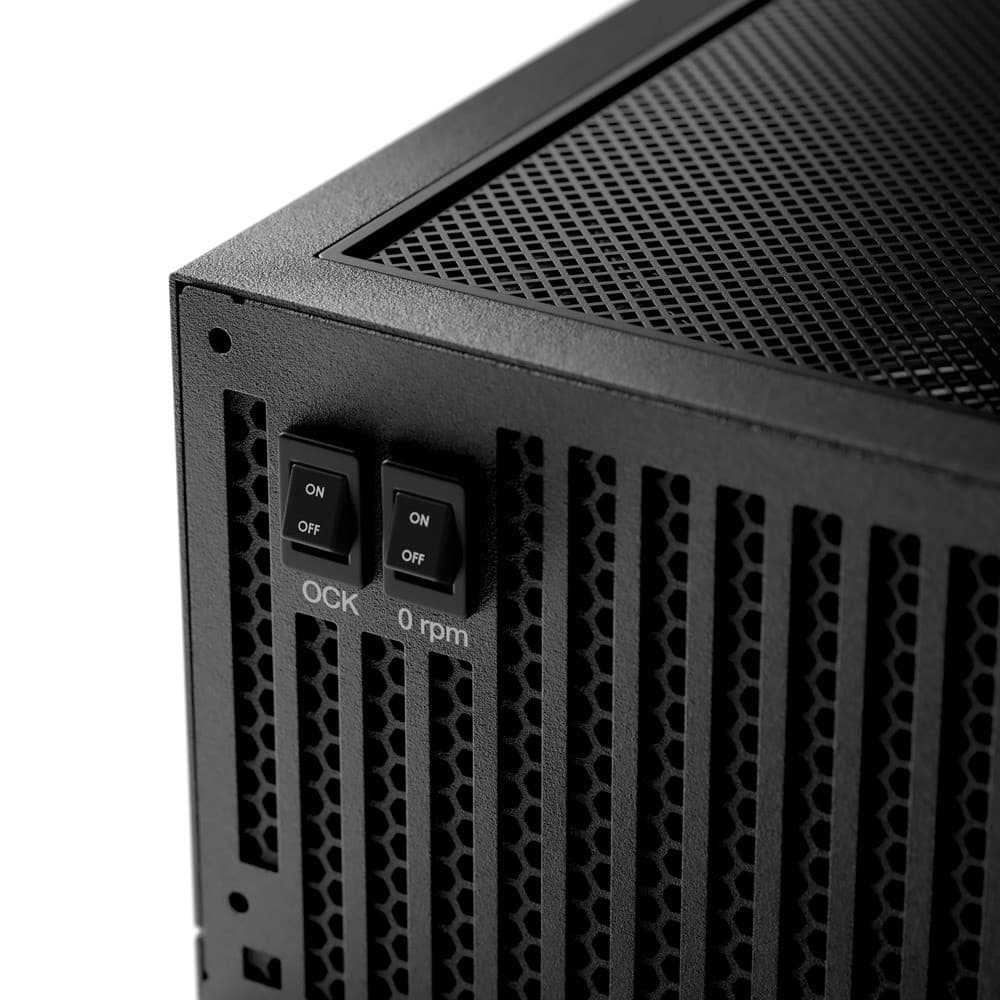

A button on the rear of the power supply allows switching between a balanced active cooling mode, where the Silent Wings fan spins all the time, or a semi-passive mode, where the fan does not spin under low load and only starts when additional cooling is required for more demanding operations. A post-ventilation setting keeps the fan spinning after cooling down for a short period of 2–5 minutes to prevent frequent and noisy starts and stops.

HEAT SINK AND INTEGRATED SILENT WINGS

Simply fan-tastic

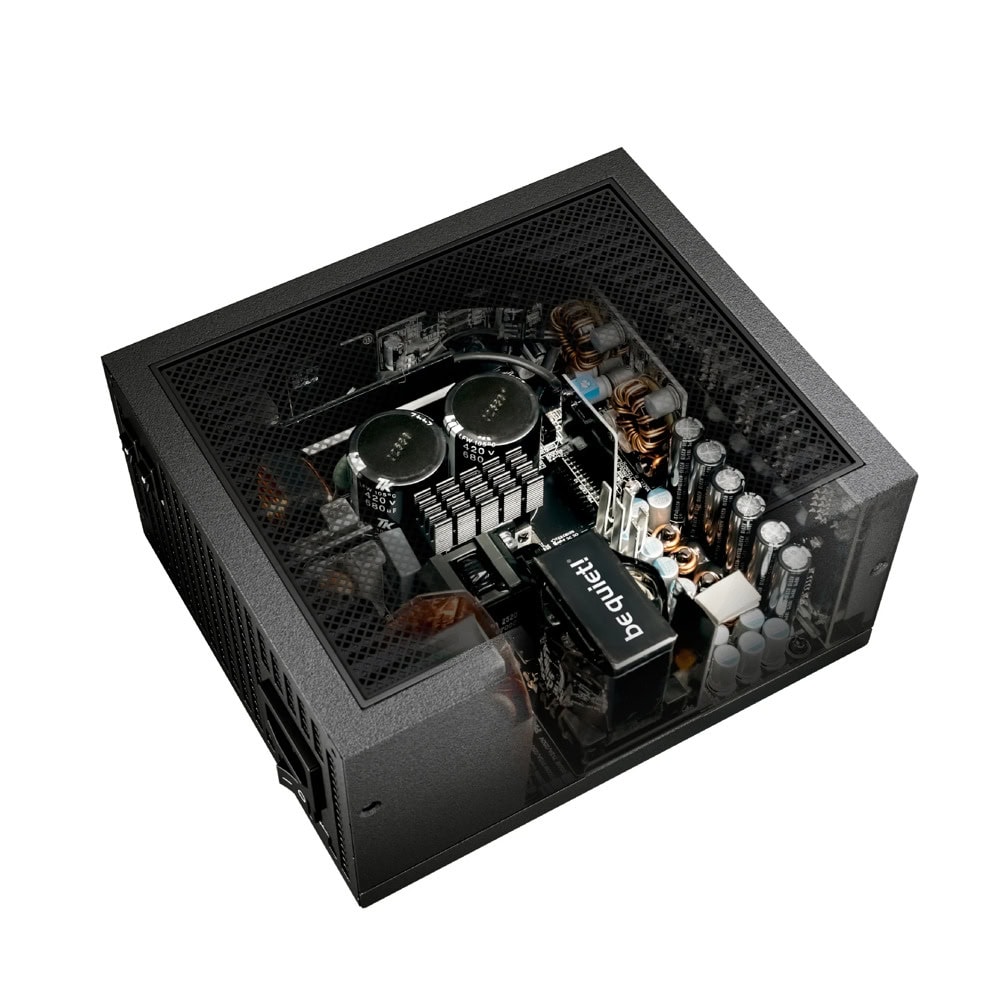

A large heat sink connects to the parts of the power supply that need the most cooling and dissipates a large portion of the heat. Even though a Titanium efficiency power supply does not generate as much heat, active cooling is required to prevent overheating issues under high load. Nothing less than the very best fan of be quiet! cools Dark Power 14 1200W. Being integrated directly into the heat sink, this high-end fan is immune to vibrations and sits unshakably. A 6-pole fan motor and fluid-dynamic bearing ultimately make for exceptionally long lifetime and minimal power consumption.

READY FOR OVERCLOCKING

Maximum strength

Dark Power 14 1200W is particularly suitable for overclocking. With the simple push of a button, it is possible to manually switch between multi-rail and single-rail mode. This gives full overclocking control between the default four 12V-rail mode and the alternative massive single-rail operation.

PEAK TECHNOLOGY

Higher efficiency and lower ripple noise

Dark Power 14 1200W is state-of-the-art technology. With an Active Rectifier and full bridge LLC Technology it offers some of the most advanced technologies available, resulting in higher efficiency, better regulation and lower ripple noise for an incomparably stable operation.

105°C CAPACITORS FROM JAPAN

Just the best

Each component in Dark Power 14 1200W is carefully selected. That is why we have exclusively used high-quality Japanese capacitors for this PSU. They are rated to 105°C, ensure stability, reliability, and a long operating life.

PERFECTLY MODULAR

As all things should be

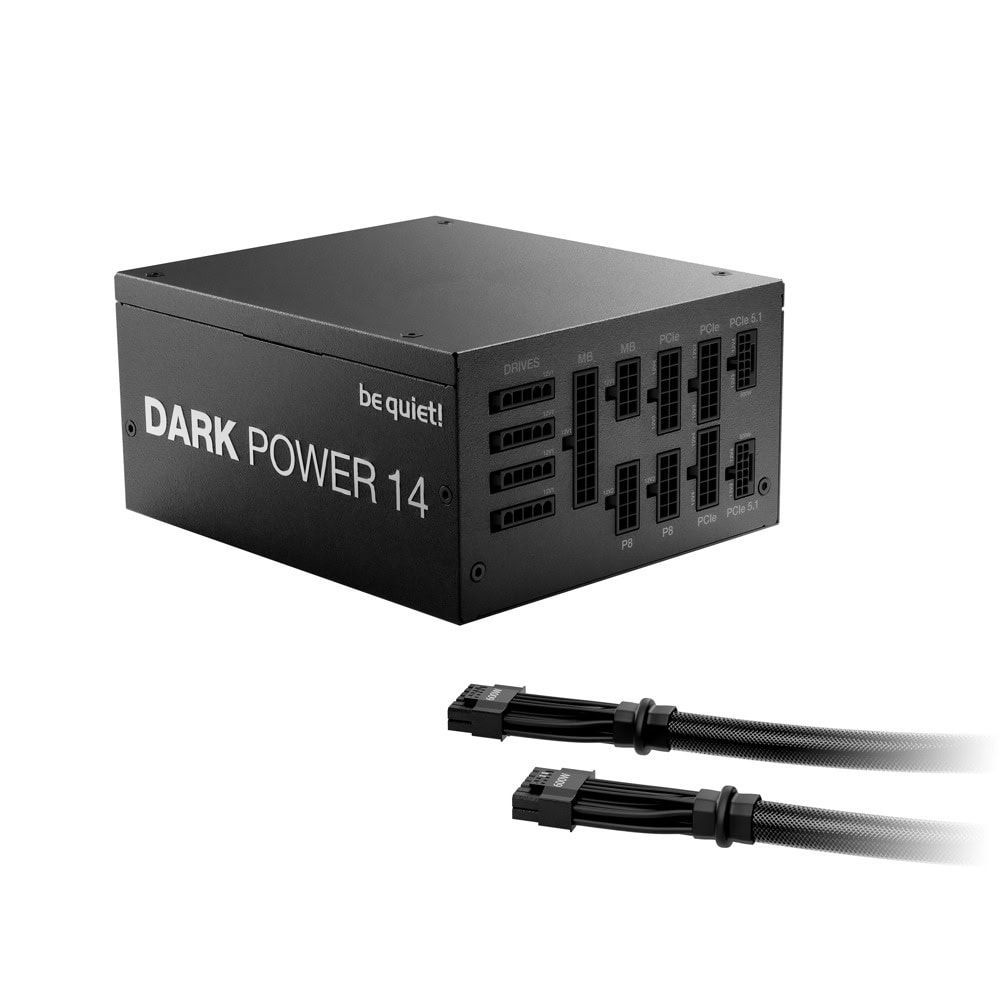

Modular, sleeved cables measuring up to 120cm in length simplify component installation and reduce annoying clutter. This results in increased airflow and improved cooling in even the largest PC cases.



Technical data



General data

ModelDARK POWER 14 | 1200 W
Continuous power (W)1200
Peak power (W)1300
Form factorATX 3.1
Form factor EPS 12VVersion 2.92
TopologyFull bridge + LLC + SR + DC/DC
Digitally controlledYes
Voltage (Vac)100 - 240
Frequency (Hz)50 - 60
Input current (A)7
Power factor at 100% load>0.98
Modern standbyYes
Power consumption in standby (W)<0.15
Average life time (h / 25°C)>100,000
Operating temperature up to (°C)40



Efficiency

80 PLUS certificationTitanium
Cybenetics ETA-
Efficiency (%) at 230V, 2% load75.3
Efficiency (%) at 230V, 10% load92.2
Efficiency (%) at 230V, 20% load94.8
Efficiency (%) at 230V, 50% load95.4
Efficiency (%) at 230V, 100% load93.1



Fan and cooling technology

Cybenetics LAMBDAA+
FanSilent Wings
Fan size (mm)135
Bearing technologyFDB
Motor technology6-pole fan motor
Max. fan speed (rpm)2100
dB(A) at 10% load8
dB(A) at 20% load8
dB(A) at 50% load8.3
dB(A) at 100% load21.1



Output

Multi-rail operation (12V rails)1
12V single rail operation-
Overclocking keyYes
+3.3V (A)25
+5V (A)24
+12V1 (A)33
+12V2 (A)33
+12V3 (A)45
+12V4 (A)45
+12V5 (A)N/A
+12V6 (A)N/A
-12V (A)0.5
+5Vsb (A)3
Max. combined power 12V (W)1200
Max. combined power 12V-2x6 (W)600
Max. combined power 3.3V + 5V (W)120
Hold-up time at 100% load (ms)-
Hold-up time at 80% load (ms)19.5
Power good signal (ms)100 - 150



Cables and connectors

Modular cablesYes
Sleeved cablesYes
Flat cablesYes
Maximum cable length (cm)105
Cable length to motherboard (cm)60
No. of cables11
ATX-Motherboard (20+4-pin)1
P4+4 (CPU)1
P8 (CPU)1
P4 (CPU)-
12V-2x6 cables2
PCI-e 6+2-pin (GPU)4
PCI-e 6-pin (GPU)-
SATA13
PATA2
FDD (Floppy)-



Protection

OTP (over temperature protection)Yes
OCP (over current protection)Yes
OPP (over power protection)Yes
SCP (short circuit protection)Yes
OVP (over Voltage protection)Yes
UVP (under Voltage protection)Yes
SIP (Surge & Inrush protection)Yes



Safety certification

BSMI-
CBYes
CCC-
CEYes
cRUus-
cTUVusYes
CUYes
FCCYes
RCM-
TÜVYes
UKCAYes
IRAM-



Environmental directives

Energy Star9.0
ErPYes
WEEEYes
RoHSYes
TrimanYes



Casing

Dimensions without cable (L x W x H), (mm)175 x 150 x 86
Weight (kg)2.3
ColorBlack
