Захранване ASRock Phantom Gaming, 1000W, Active PFC, 80 Plus Gold, 135mm вентилатор

ASRock Phantom Gaming

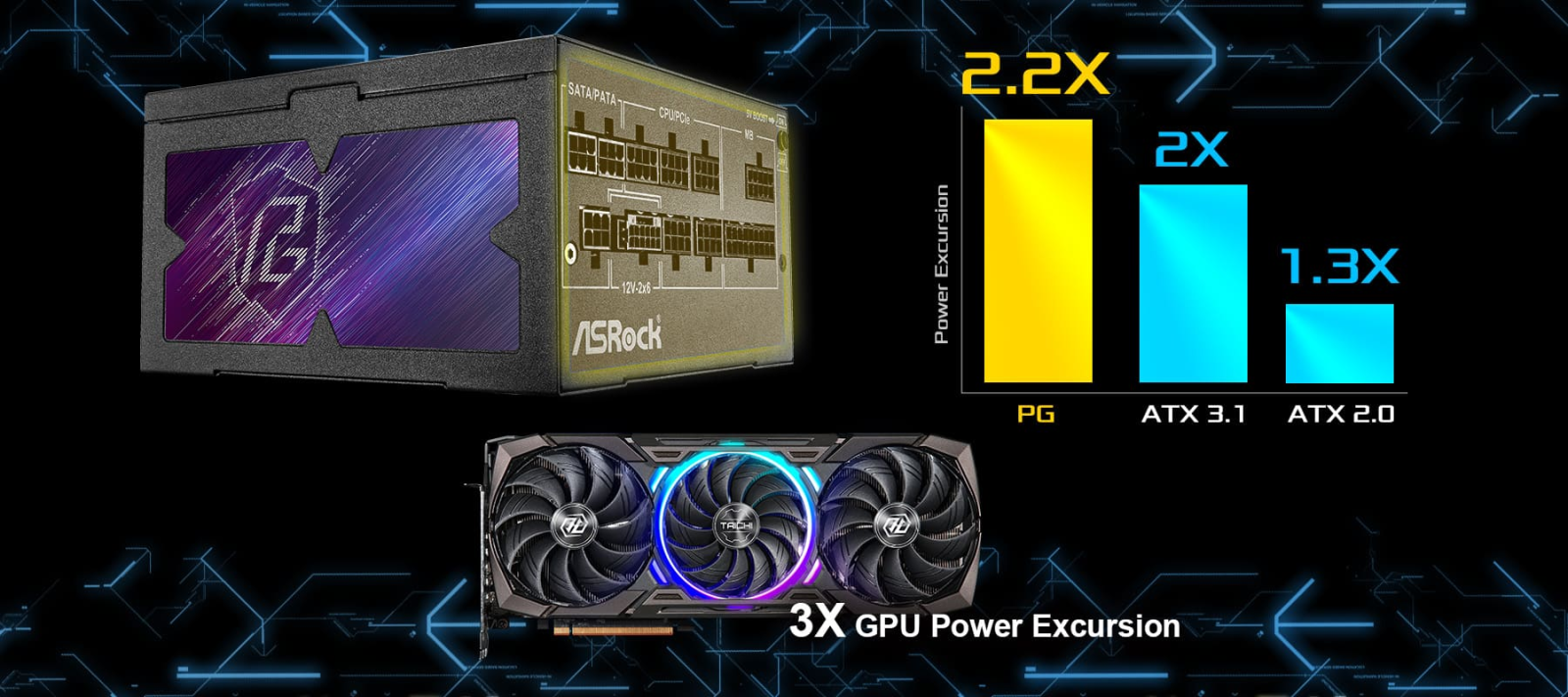

Powerful future
Be ready for ATX 3.1 & PCIe 5.1
The ASRock Phantom Gaming series power supply supports both current and future standards, fully compliant with ATX12V V3.1 and PCIe Gen 5.1. Ideal for both current systems and future builds, this power supplies can handle up to 220% power excursion and respond swiftly to power spikes, ensuring reliable, safe power for your components.

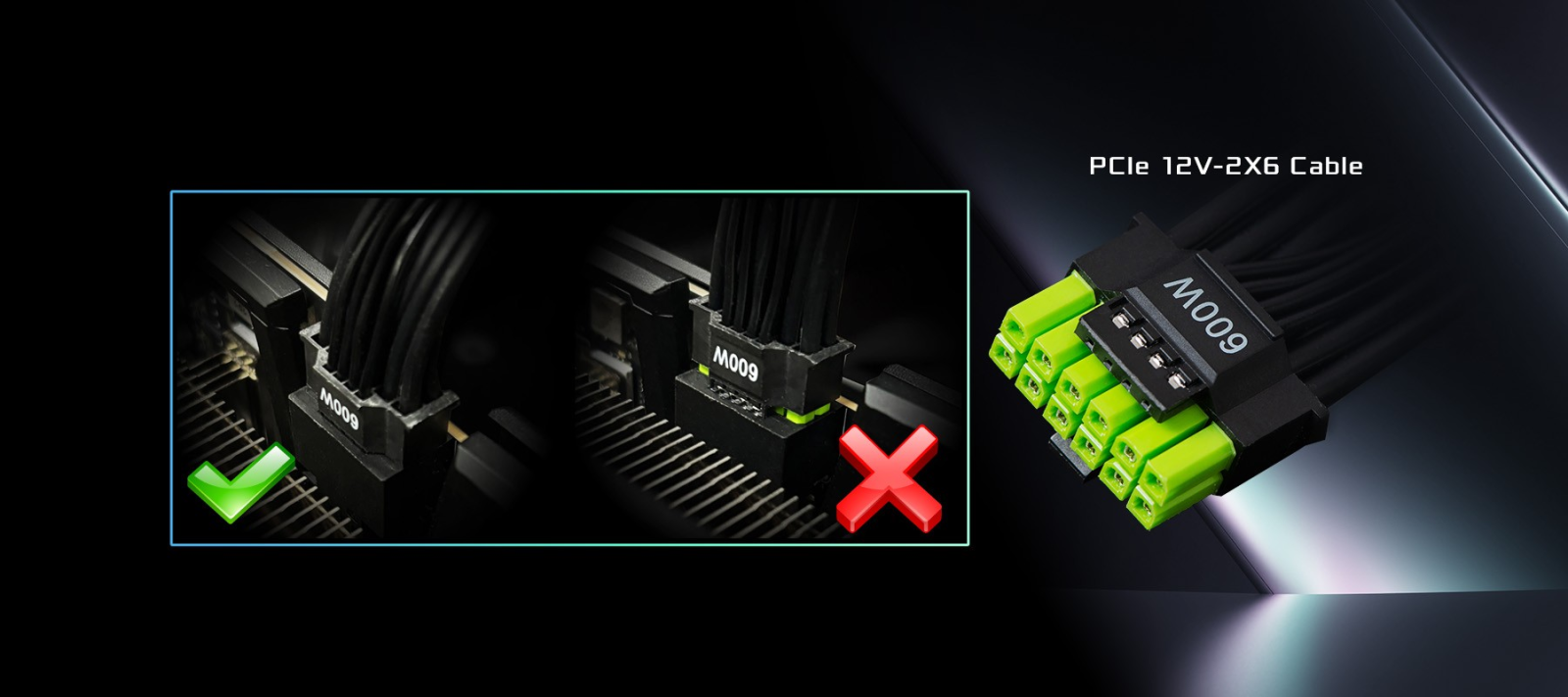

Native PCIe 12V-2x6 Cable

With ASRock Classic Green connectors, users can easily see if the connector has been plugged properly.

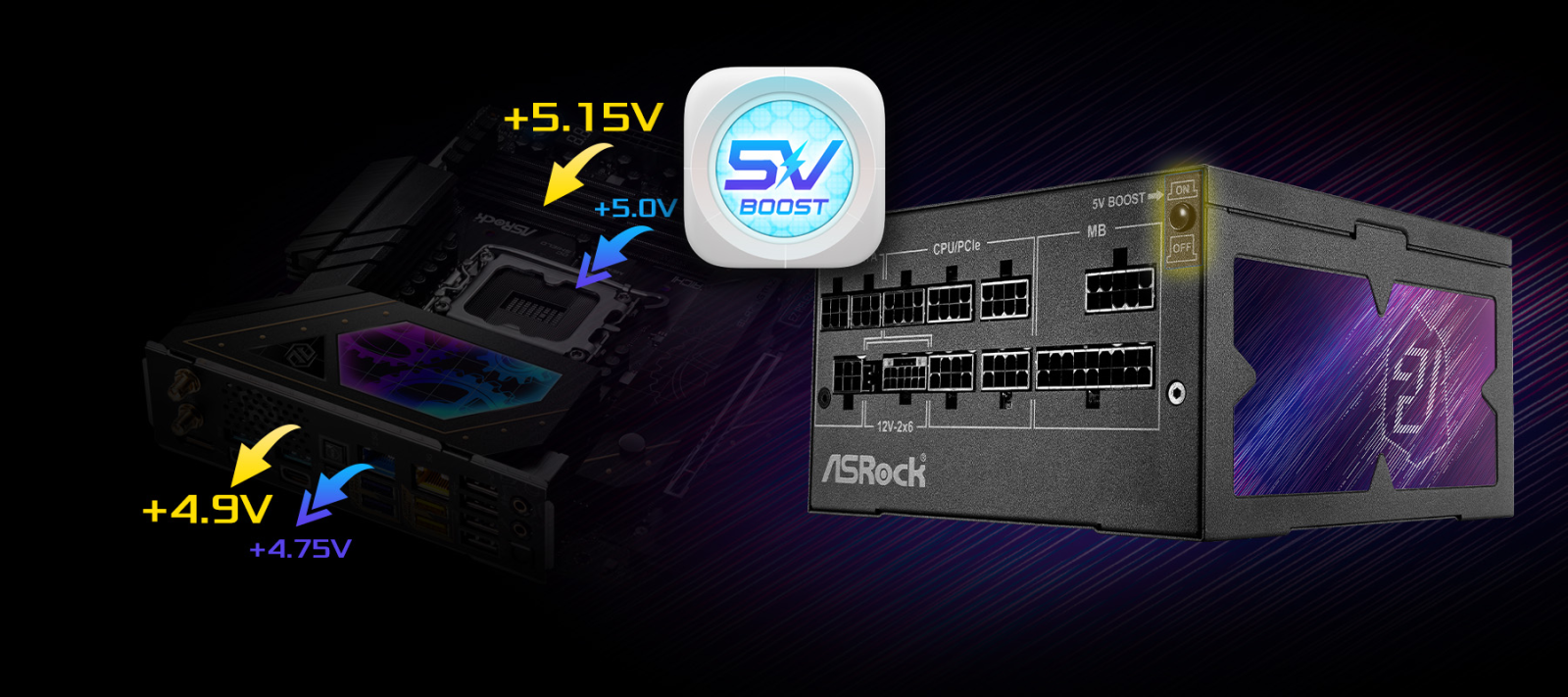

+5V BOOST Mode

Voltage Compensation Mechanism

When this switch is enabled, it boosts the +5V voltage to maintain optimal performance.
If no voltage drop occurs, the PSU will regulate the +5V rail to approximately +5.15V, ensuring consistent power delivery.

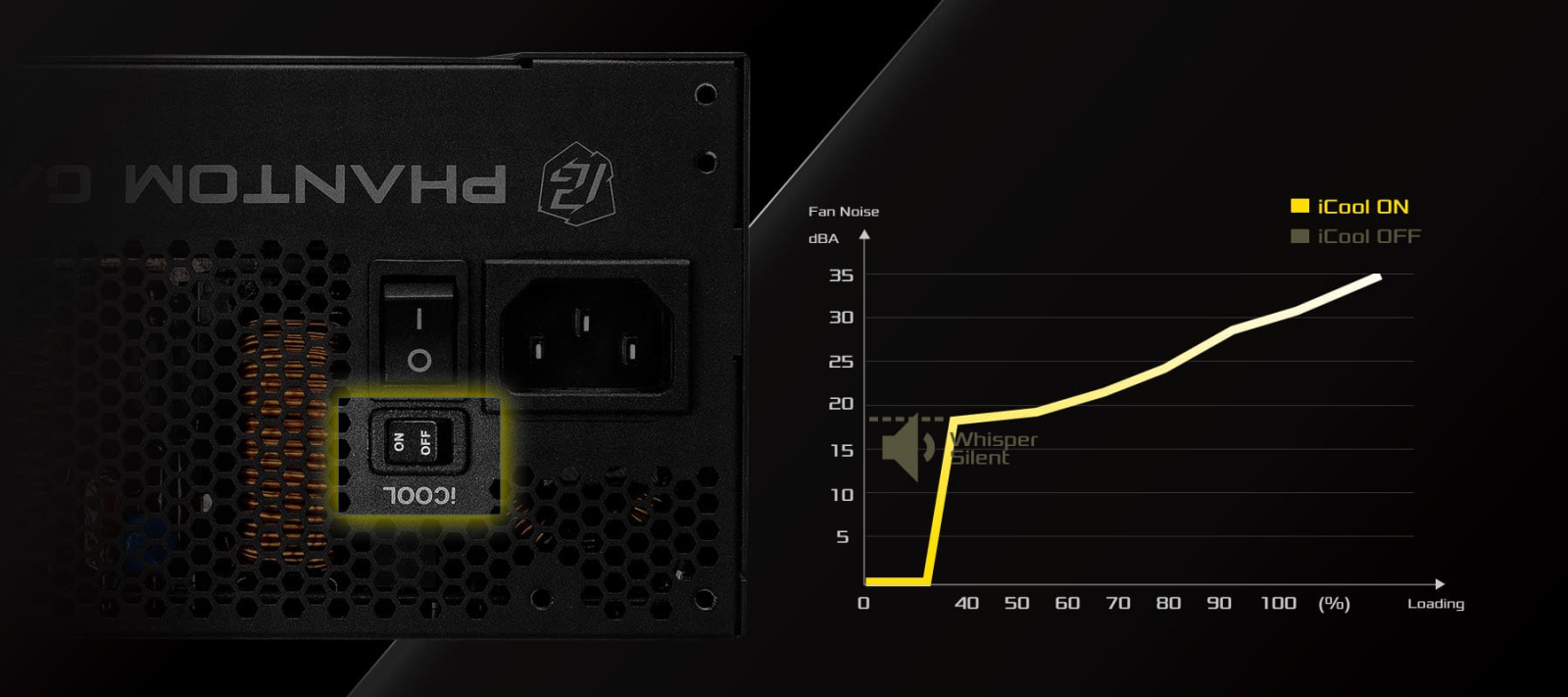

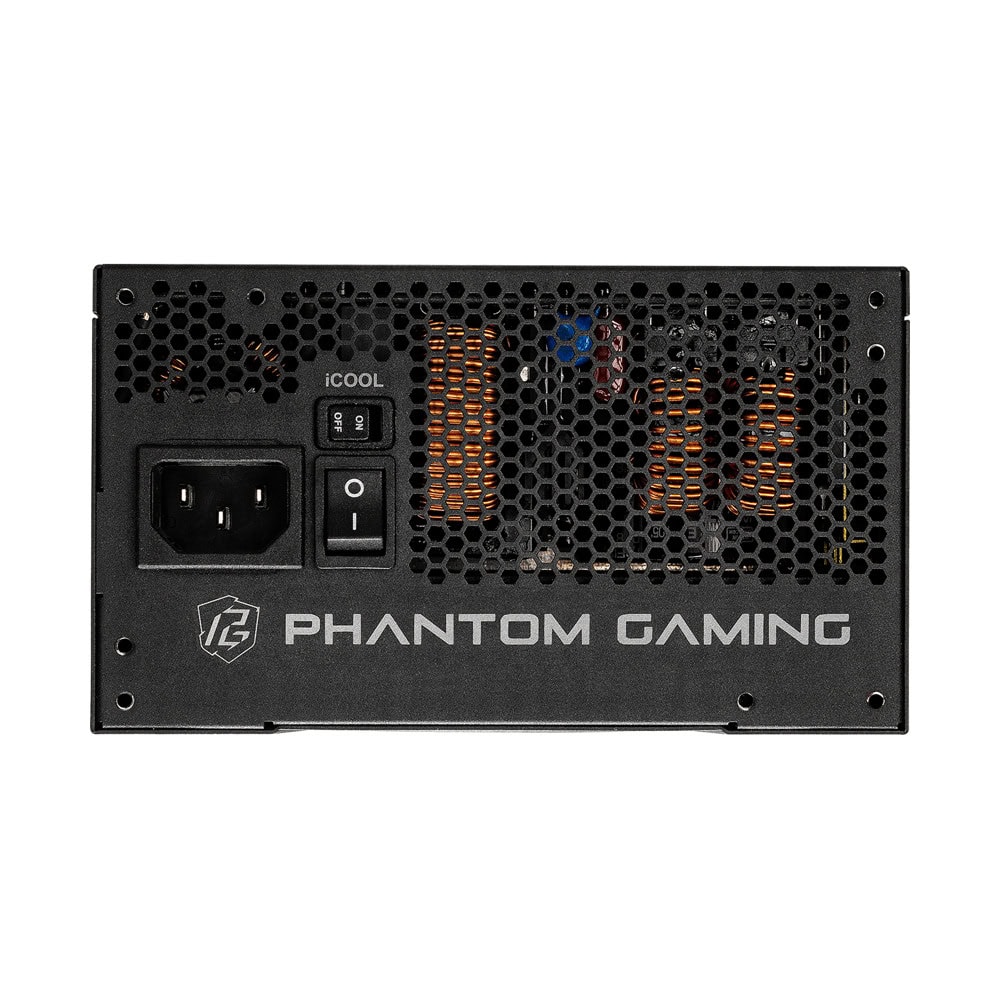

iCOOL Intelligent Fan Control Mode

iCOOL Mode ON: The power supply runs more efficiently. The fan stays off during low to medium loads, reducing noise and improving energy efficiency. The fan only activates when the load or temperature increases.
iCOOL Mode OFF: The fan runs continuously, regardless of load. This may increase noise slightly but provides consistent cooling and better performance under heavy loads.

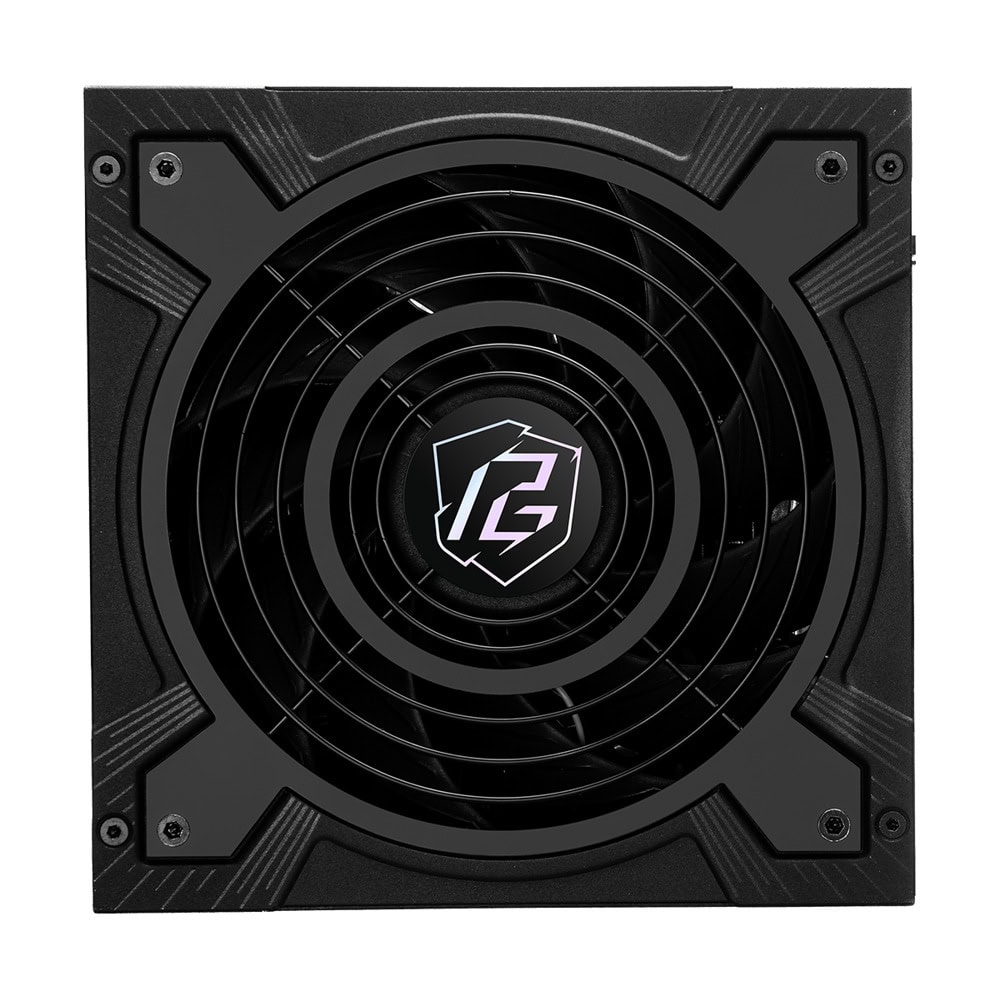

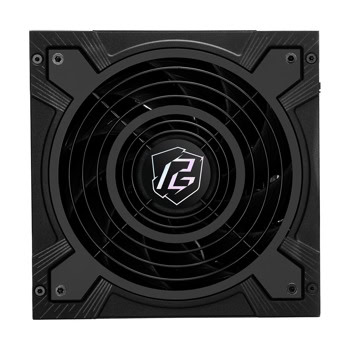

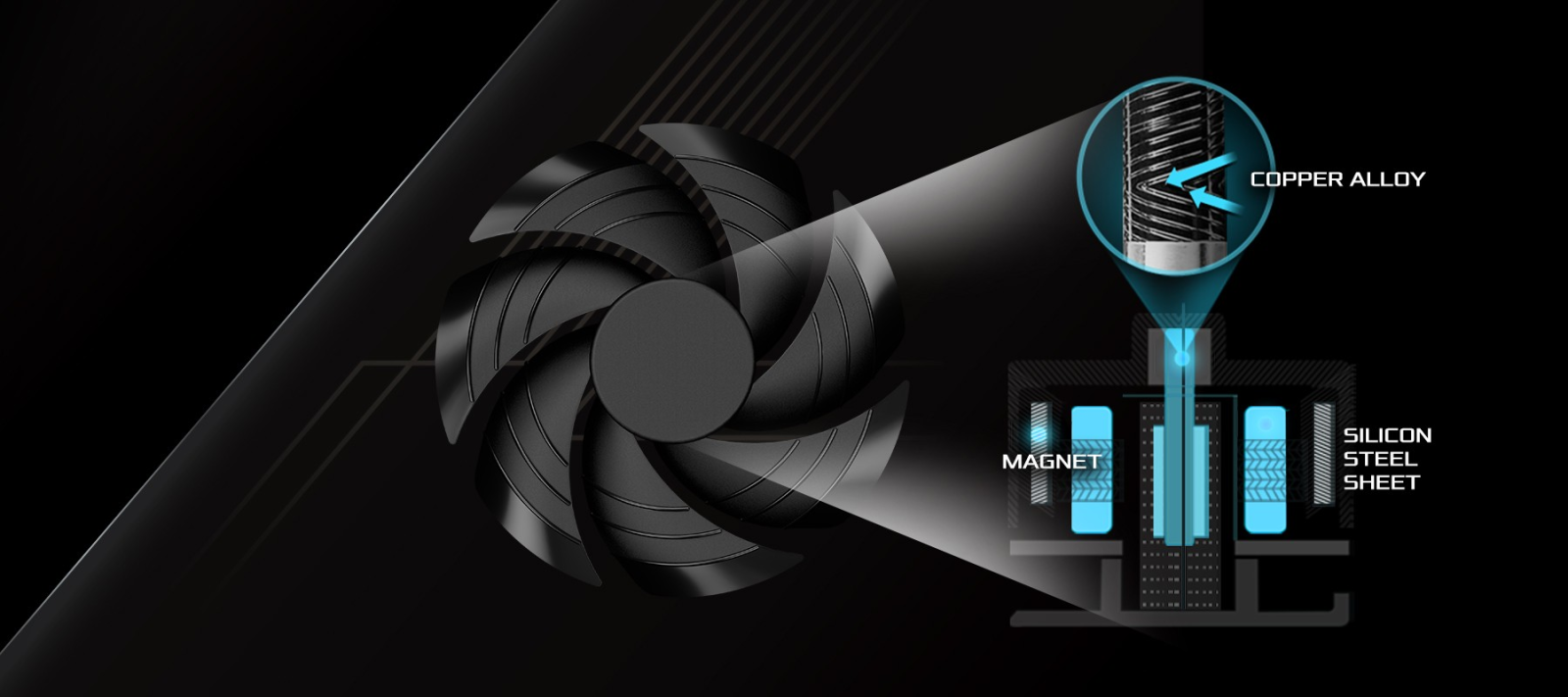

135mm Fluid Dynamic Bearing Fan

The fluid seal design and the herringbone structure provides an extremely long lifespan and noise minimization.

Specifications

80 Plus Efficiency

GOLD

Cybenetics (ETA/LAMBDA)

GOLD / A

ATX 12V Version

ATX 3.1

ATX

ATX 3.1

Continuous 12V output

83.3A

Dimensions(L x W x H)

150mm x 150mm x 86mm

Fan

135mm Striped Axial FDB Fan

iCOOL MODE

Yes (Switch)

Protections

OCP, SCP, OVP, UVP, OTP, OPP

Capacitors

All Japanese

5V BOOST

Yes (Switch)

PCIe 5.1 Cable TempGuard

Yes

Total Power Excursion

220%

MTBF (Hours)@25°C

100,000

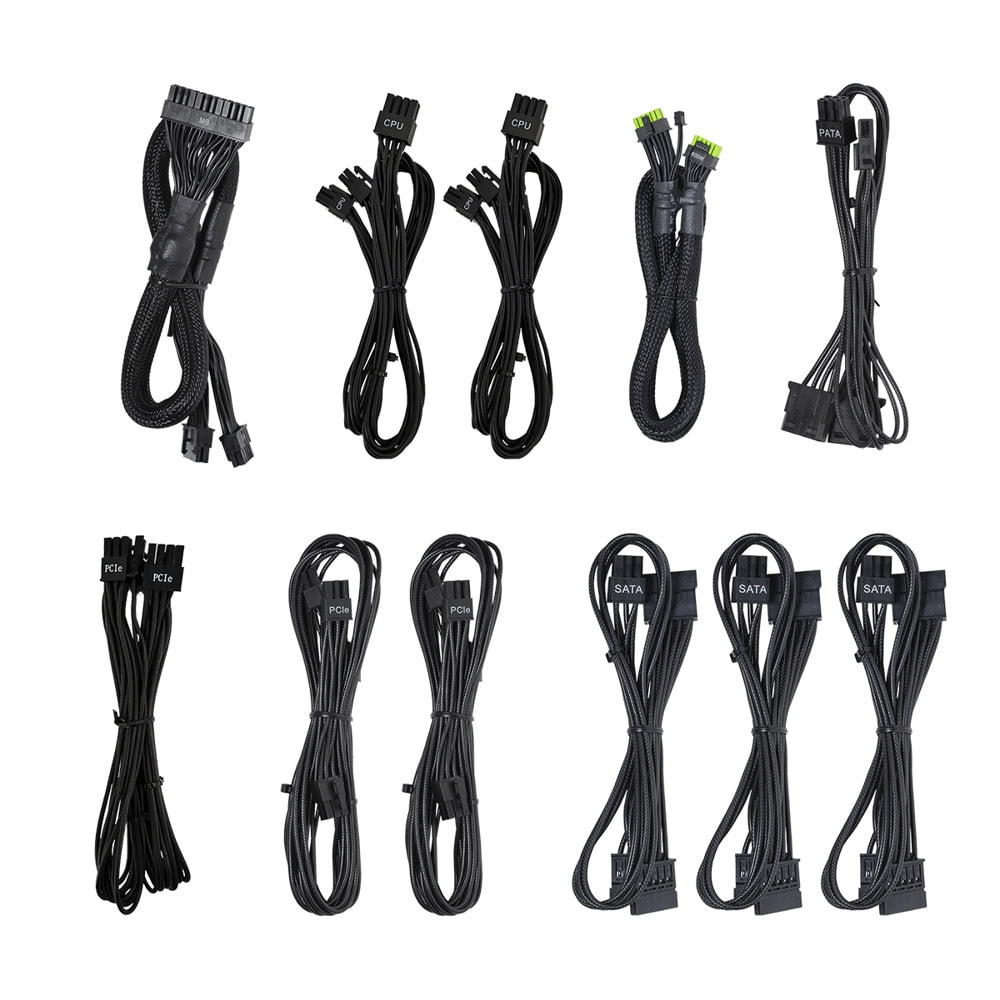

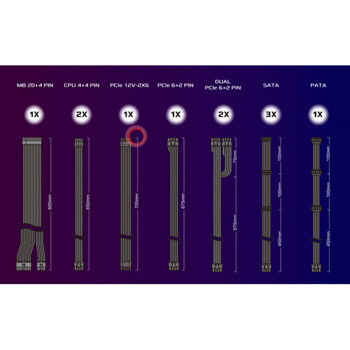

Cable Type

- 24pin & 12+4pin: Sleeved
- Others: Individual Braided Pattern

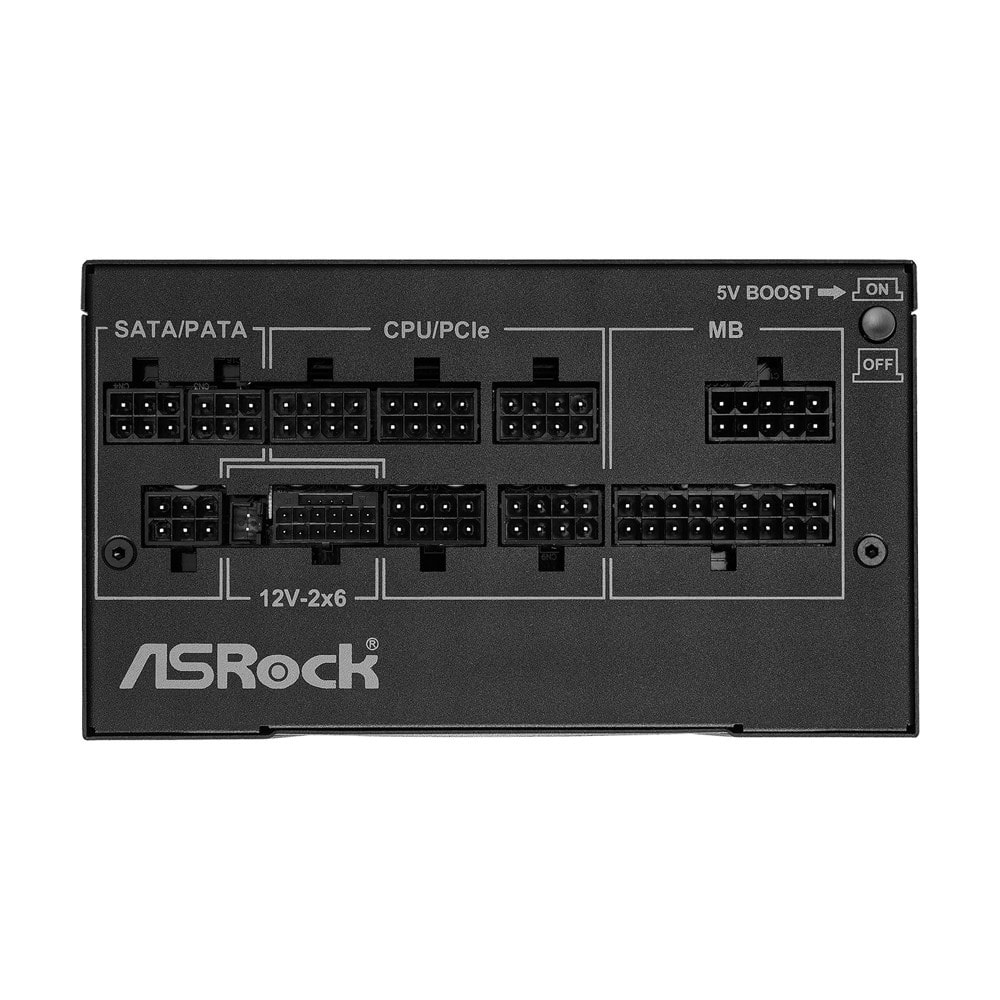

Motherboard cable (24pin)

1

EPS 12V CPU connectors (4+4pin)

2

PCIe5.1 connectors(12+4pin) Dual Color

1

PCIe connectors (6+2pin)

5

4-pin Peripheral connectors

3

SATA 5-pin connectors

9
