FSP HYDRO PTM PRO

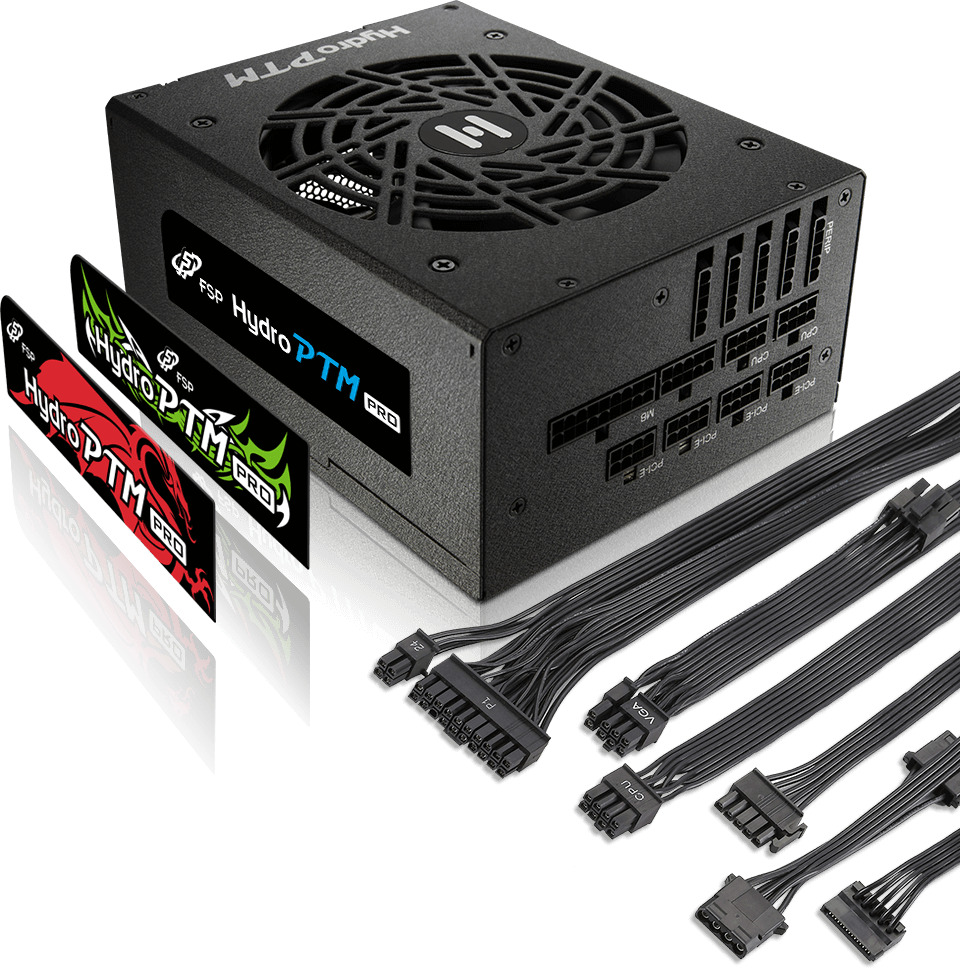

Fully Modular Design for Quick and Easy Installation

Fully modular design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.

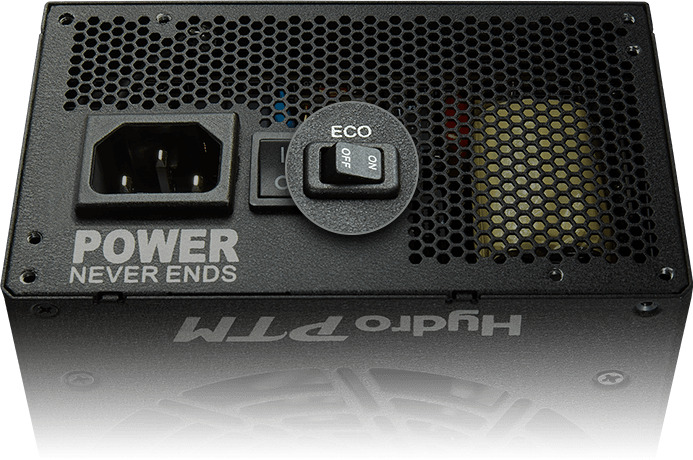

ECO Switch, Quieter and Longer Lasting Fan

When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.

80 Plus® Platinum Certification

Hydro PTM Pro series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.

Specifications:

Model	HPT2-1000M
Rated Output Power	1000W
Form Factor	ATX
80 PLUS Certification	Platinum
Input Voltage	100-240V
Input Current	13-6A
Input Frequency	50-60Hz
PFC	Active PFC
Efficiency	≥ 92%
Fan Type	FDB Fan, 135mm
Dimensions(L x W x H)	150 x 190 x 86 mm
Protection	OCP, OVP, SCP, OPP, OTP, UVP

AC Input	100-240Vac~ 13-6A 50-60Hz (Not for China)
AC Input	200-240Vac~ 6A 50-60Hz (Only for China)
DC Output	+3.3V	+5V	+12V	-12V	+5Vsb
Max Output Current	20A	20A	83.33A	0.3A	3A
Max Combined Power	120W		1000W	18.6W
Total Power	1000W
