FSP Hydro GSM Lite PRO

Sophisticated and User-Friendly for Fan and Look Design

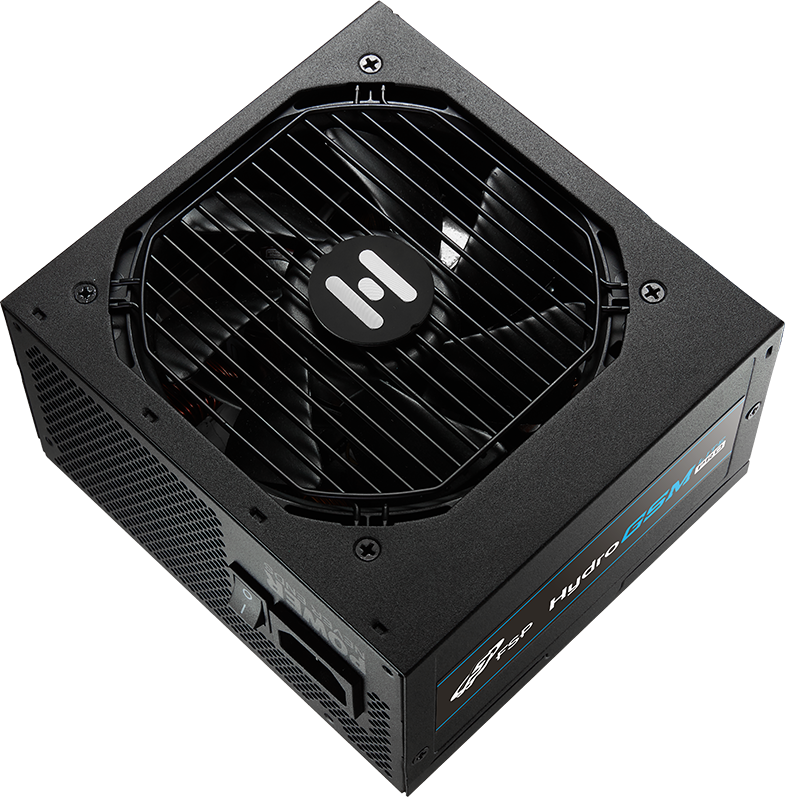

Hydro GSM LITE PRO series is mounted with an octagonal stainless fan grill to form an excellent airflow for optimal cooling. The surface is coated with matte black finish to prevent any scratches.

LLC Topology

The LLC topology allows for zero voltage switching of the main stitches thereby dramatically lowering switching losses and boosting efficiency. Both of +3.3V and +5V DC-DC module combined +12VSR circuit offers supreme efficiency, voltage stability, and high system compatibility especially in cross regulation (unbalance load) mode.

Japanese Electrolytic capacitors

Hydro GSM Lite PRO series uses Japanese electrolytic capacitors to ensure a longer lifetime, especially main-capacitor adopting 450V voltage durability to protect your PSU from sudden power change!

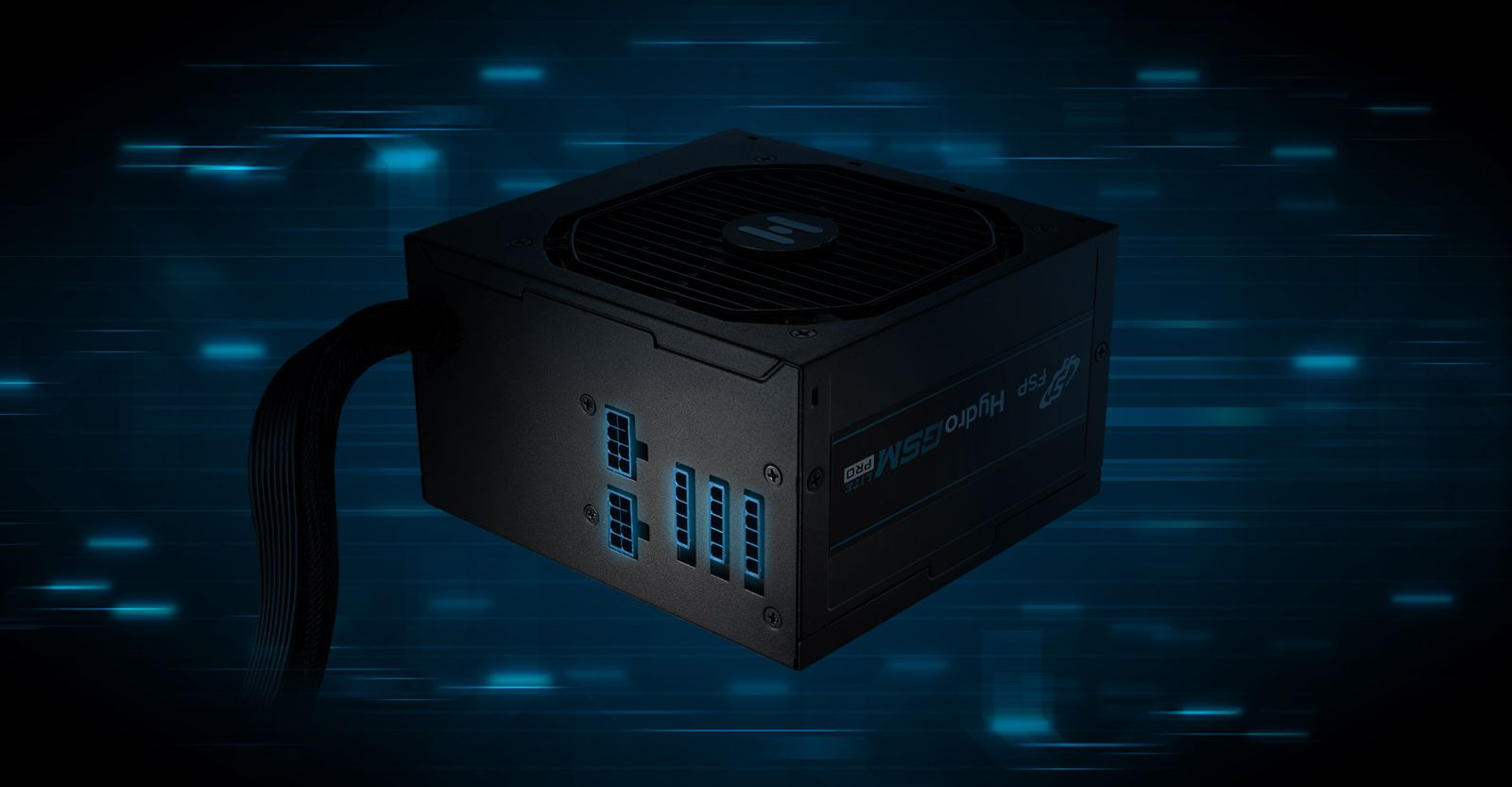

Semi-Modular Design

Hydro GSM LITE PRO series is designed semi-modular that not just saves user’s time for installation, but also provides your system a neat and tidy look for cable management.

Specifications:

Model	HGS-550M
Form Factor	ATX
80 PLUS Certification	Gold
Input Voltage	100V-240V
Input Current	8-4A
Input Frequency	50-60 Hz
PFC	Active PFC
Efficiency	≥90%
Fan Type	Silent Fan, 120 mm (HYB)
Dimensions(L x W x H)	150 x 140 x 86 mm
Protection	OCP, OVP, SCP, OPP, OTP
