Ubiquiti USW-Pro-Max-24
A 24-port, Layer 3 Etherlighting™ switch with 2.5 GbE.

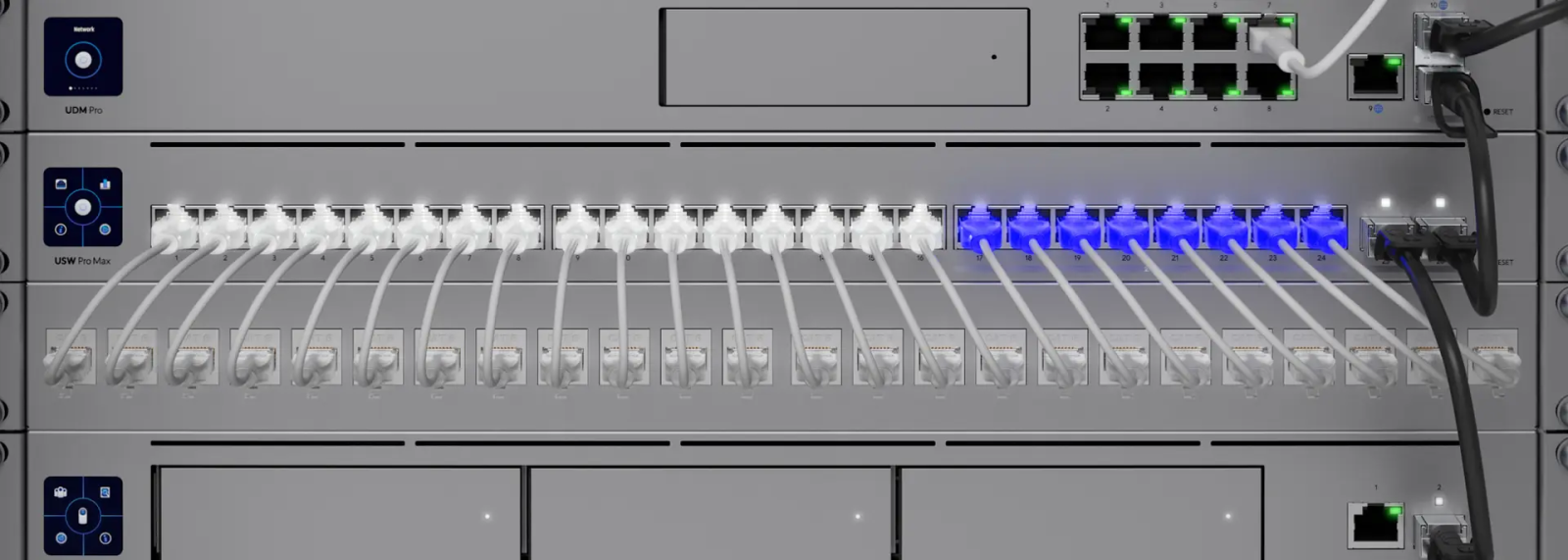

- Etherlighting™ ports that illuminate to indicate port location, speed/link, and native VLAN/network*
- (8) 2.5 GbE RJ45 ports
- (16) GbE RJ45 ports
- (2) 10G SFP+ ports
- DC power backup ready
- Managed with UniFi Network 8.0.24 and later


| Dimensions | 442 x 325 x 44 mm (17.4 x 12.8 x 1.7") |
| Weight | Without mounting brackets: 4.2 kg (9.3 lb) With mounting brackets: 4.3 kg (9.5 lb) |
| Enclosure material | SGCC steel |
| Management interface | Ethernet In-Band |
| Networking interface | (16) GbE RJ45 ports (8) 1/2.5 GbE RJ45 ports (2) 10G SFP+ ports |
| Total non-blocking throughput | 56 Gbps |
| Switching capacity | 112 Gbps |
| Forwarding rate | 83.328 Mpps |
| Power method | (1) Universal input, 100—240V AC, 50/60 Hz (1) USP-RPS DC input |
| Power supply | AC/DC, internal, 50W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 50W |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Ambient operating temperature | -5 to 40° C (23 to 104° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Layer 2 features | IGMP snooping STP / RSTP with priorities and port-level disable Port isolation Storm control Voice VLAN Port mirroring LACP port aggregation Multicast / broadcast rate limiting MAC address blocking Flow control 802.1X control Jumbo frames Proprietary loop protection DHCP snooping / guarding Egress rate limit LLDP-MED Port restricted by MAC Device isolation with ACLs |
| Layer 3 features | DHCP for locally-managed networks DHCP relay Inter-VLAN routing between networks on same switch Static routing between local networks Network isolation with ACLs |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| System | Status |
| RPS | Status |
| UniFi Network | Version 8.0.24 and later |
Виж още Суич Ubiquiti
Виж всички продукти Суич в категорията
| Брой портове: | 26 |
|---|---|
| Максимална скорост: | 2.5 Gbit/s |
| Стандарт: | Не е указано |
| Управляем: | Да |
