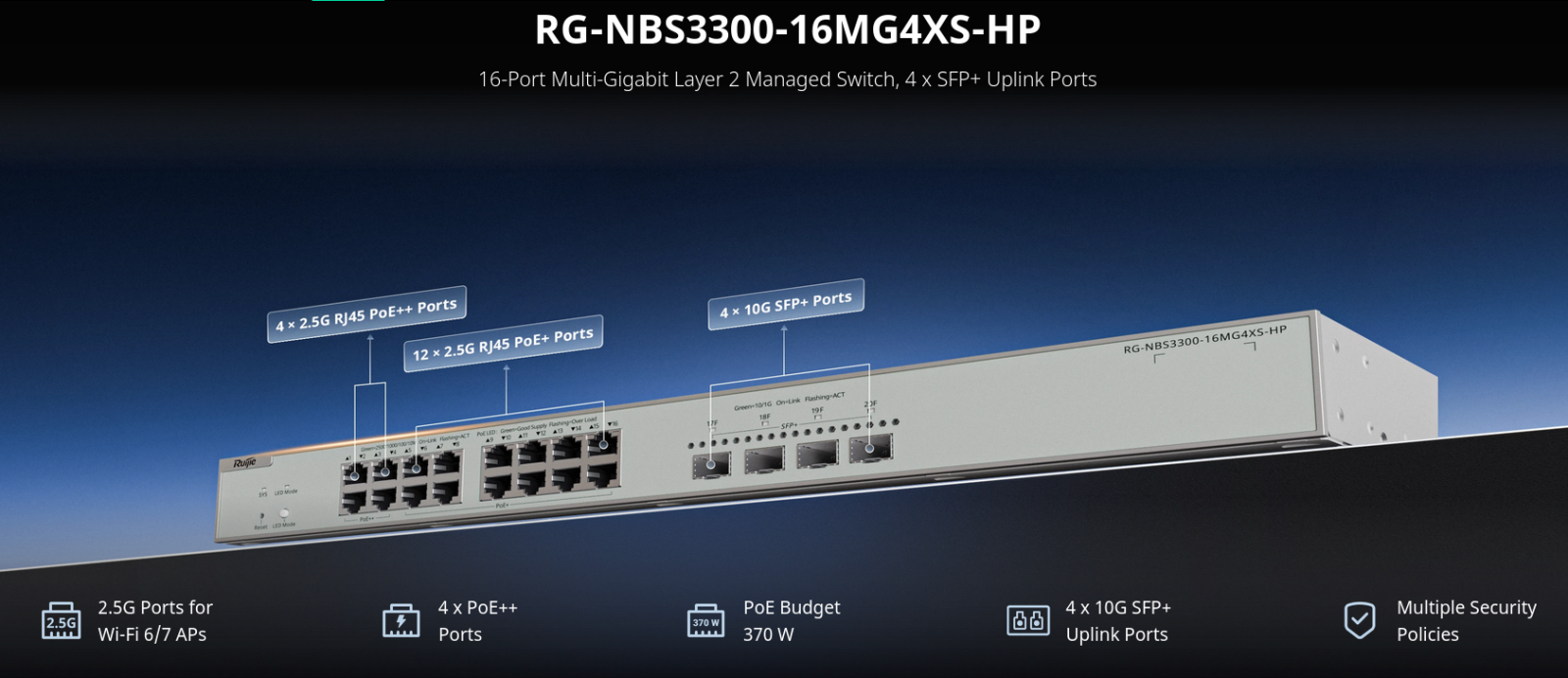

Ruijie RG-NBS3300-16MG4XS-HP
Highlight Features

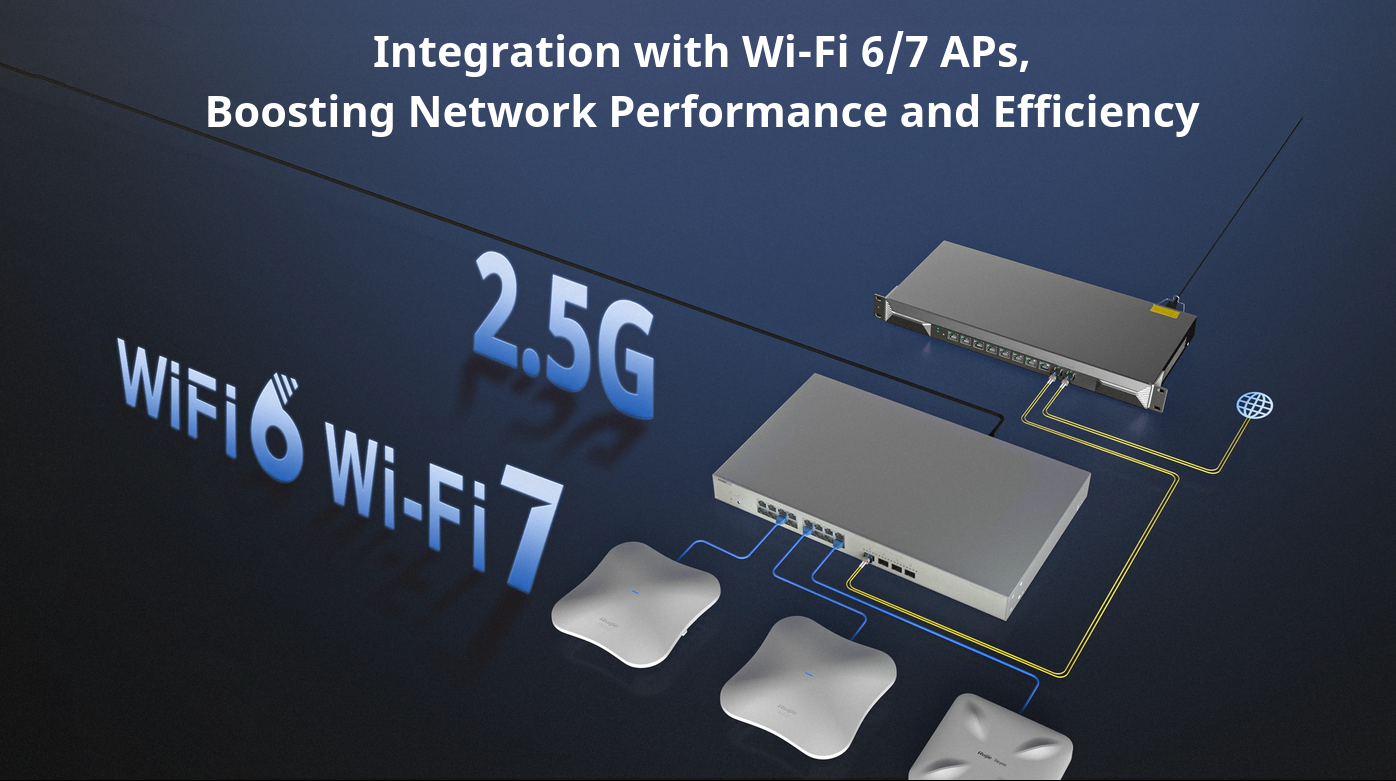

- 2.5 Gbps ports smash the gigabit barrier and unlock the full potential of Wi-Fi 6/7 APs

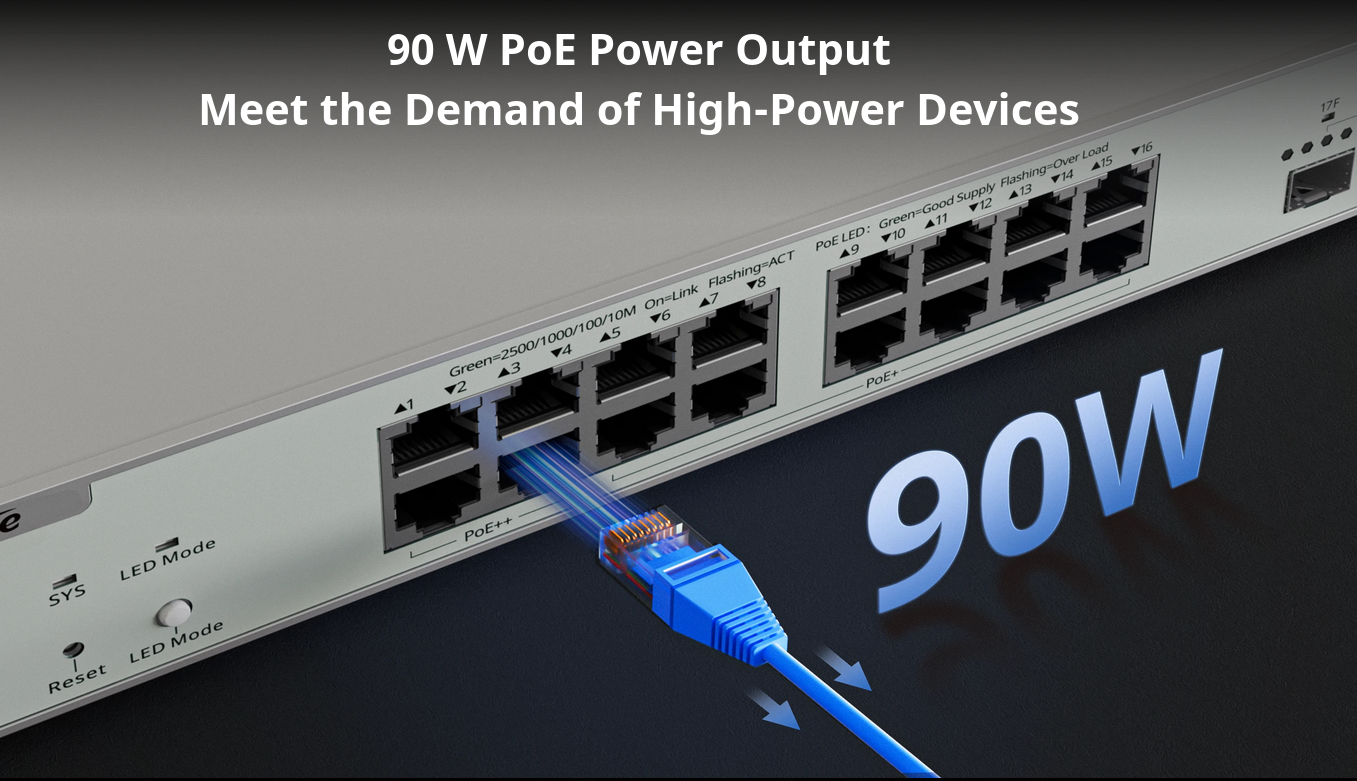

- 802.3bt/at/af-compliant PoE++ ports with a total power supply of 370 W
- CPP protects the CPU from attacks, ensuring CPU performance and stability
- Enterprise-grade quality ensures high performance
- Multiple security policies protect your network
- Easy Cloud Management Anytime and Anywhere



Specifications
Hardware Specifications
Specification | RG-NBS3300-16MG4XS-HP |
Number of 10/100/1000/2500BASE-T Ports | 16 |
Number of 10 Gbps Optical Ports (SFP+) | 4 |
Number of PoE/PoE+ Ports | 12 |
Number of PoE/PoE+/PoE++ Ports | 4 |
Number of Fans | 2 |
Power Supply Options | Single fixed power supply |
Forwarding Rate | 119.04 Mpps |
Switching Capacity | 160 Gbps |
MAC Address Table Size | 16000 |
ARP Table Size | 1000 |
Number of ACEs | Inbound: 1900 Outbound: 0 |
Dimensions (W x D x H) | 440 mm x 267.5 mm x 43.6 mm (17.32 in. x 10.55 in. x 1.72 in.) |
Power Supply | Rated voltage range: 100–240 V Maximum voltage range: 90–264 V Frequency: 50/60 Hz Rated current: 6 A |
Power Consumption | No PoE load: <40 W Full PoE load: < 460 W |
Max. PoE Power Budget | 370 W |
Output Power | 54 V/7.6 A, P = 409 W |
Airflow | Left to back |
Operating Temperature | 0°C to 50°C (32°F to 122°F) |
Storage Temperature | –40°C to +70°C (–40°F to +158°F) |
Operating Humidity | 10% to 90% RH (non-condensing) |
Storage Humidity | 5% to 95% RH (non-condensing) |
Port Surge Protection | Common mode: 6 kV |
Power Supply Surge Protection | Common mode: 6 kV Differential mode: 6 kV |
Net Weight | 3.6 kg (7.94 lbs) |
Gross Weight | 5.24 kg (11.55 lbs) |
Certification | CE; FCC |
Software Specifications
Software Specifications | RG-NBS3300-16MG4XS-HP | |
Multicast | IGMP | IGMP Filtering |
IGMP Fast Leave | ||
ACL and QoS | ACL | IP Standard ACL |
MAC Extended ACL | ||
IP Extended ACL | ||
IPv6 ACL | ||
QoS | Port-Level Rate Limiting (Ingress/Egress) | |
Security | 802.1X | IEEE 802.1X Authentication |
Port-based Authentication | ||
MAC-based Authentication | ||
Global IEEE 802.1X Authentication Control | ||
Force Authorized | ||
Force Unauthorized | ||
Port-based Single-Host Mode | ||
PEAP Authentication for Windows 7/8/10/11 Clients | ||
PEAP Authentication for macOS Clients | ||
PEAP Authentication for Linux OS Clients | ||
Management via Web Interface | Web Authentication | |
HTTP | ||
HTTPS | ||
IP-MAC-Port Binding | IP-MAC-Port Binding | |
ARP Anti-Spoofing | ARP Anti-Spoofing | |
IP Source Guard | IP Source Guard | |
CPU Protection Policy (CPP) | Hardware CPP | |
Reliability | RLDP | RLDP |
NMS and Maintenance | SPAN | SPAN |
NTP | NTP Client | |
SNMP | SNMP v1 | |
SNMP v2c | ||
SNMP v3 | ||
MQTT | MQTT | |
Self-Organizing Network | Self-Organizing Network | |
Network Management | Management via Ruijie Cloud | |
Ruijie Cloud | View Device Details on Ruijie Cloud |
Виж още Суич Ruijie
Виж всички продукти Суич в категорията
Технически характеристики
Брой портове: | 20 |
---|---|
Максимална скорост: | 2.5 Gbit/s |
Стандарт: | Не е указано |
Управляем: | Да |
