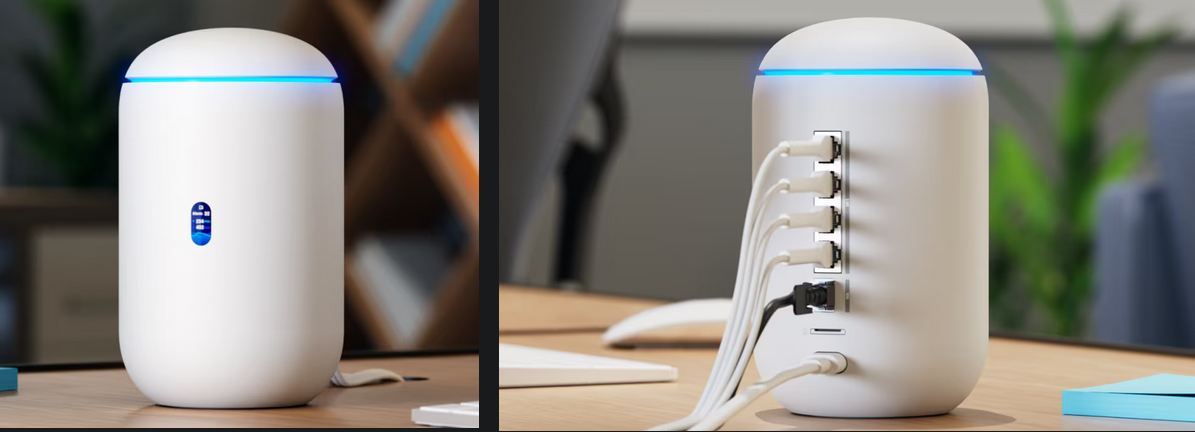

Ubiquiti UDR7
| Category | Specification |
|---|---|
| Dimensions | Ø110 x 184.1 mm (Ø4.3 x 7.3") |
| Form Factor | Compact desktop |
| Weight | 1.1 kg (2.4 lb) |
| Enclosure Material | Polycarbonate |
| Coverage Area | 160 m² (1,750 ft²) |
| LCM Display | 0.96" status display |
| UniFi Application Suite | Network, Protect, Access, Talk, Connect |
| Managed UniFi Devices | 30+ |
| Managed Cameras | (5) HD, (2) 2K, (1) 4K |
| Simultaneous Users Connected | 300+ |
| Default WAN Ports | (1) 10G SFP+, (1) 2.5 GbE RJ45 |
| LAN Ports | (3) 2.5 GbE RJ45 (incl. 1x PoE) |
| IDS/IPS Throughput | 2.3 Gbps |
| Stateful Firewall | Yes |
| Layer 7 Firewall | Application-Aware |
| DPI & Traffic Identification | Yes |
| Zone-Based Firewall Filtering | Regions, Domains, Apps |
| Content Filtering | Yes |
| Intrusion Prevention (IPS/IDS) | Yes |
| Ad Blocking | Yes |
| IDS/IPS Signatures | 20,000+ with CyberSecure |
| Traffic Segmentation | VLAN/Subnet-based |
| SD-WAN Support | License-Free |
| Site-to-Site VPN (Site Magic) | Yes |
| VPN Server Options | Identity Endpoint, Teleport |
| VPN Protocols (Server/Client) | OpenVPN, WireGuard, IPsec, L2TP |
| Multi-WAN Load Balancing | Yes |
| Dynamic Routing | OSPF |
| Advanced QoS | Yes |
| Multicast DNS (mDNS) | Yes |
| Advanced NAT | SNAT, DNAT, Masquerade, NAT Pooling, 1-to-1 NAT |
| RADIUS Server | Integrated |
| RADIUS over TLS (RadSec) | Yes |
| LTE Backup Support | Yes |
| Internet Quality Reporting | Yes |
| MAC Address Table Size | 2,000 |
| Policy-Based Routing (WAN/VPN) | Yes |
| Custom DHCP Server | Yes |
| IPv6 ISP Support | Yes |
| IGMP Proxy | Yes |
| WiFi Standard | 802.11a/b/g/n/ac/ax/be (WiFi 6/6E/7) |
| WiFi Throughput (6 GHz / 5 GHz / 2.4 GHz) | 5.7 Gbps / 4.3 Gbps / 688 Mbps |
| MIMO (All Bands) | 2x2 DL/UL MU-MIMO |
| Antenna Gain (6 GHz / 5 GHz / 2.4 GHz) | 6 dBi / 7 dBi / 5 dBi |
| Max TX Power (6 GHz / 5 GHz / 2.4 GHz) | 24 dBm / 26 dBm / 23 dBm |
| Wireless Security | WPA-PSK, WPA/WPA2/WPA3, Enterprise, PPSK |
| Max. BSSIDs | 4 per radio |
| Supported Data Rates | a/b/g/n/ac/ax/be (up to 5.7 Gbps) |
| Processor | Quad-core ARM® Cortex®-A53 @ 1.5 GHz |
| System Memory | 3 GB |
| Storage | 64GB microSD (pre-installed), MicroSD expansion slot |
| PoE Budget | 15.4W |
| Max. PoE Wattage per Port | 15.4W |
| Voltage Range (PoE Mode) | 44–57V |
| Max. Power Consumption | 26W (excluding PoE output) |
| Power Method | Universal AC input (100–240VAC, 1.5A Max, 50/60Hz) |
| Power Supply | AC/DC Internal, 50W |
| Supported Voltage Range | 100–240V AC |
| Management Interfaces | Ethernet, Bluetooth |
| System LED | Yes |
| Button | Factory Reset |
| ESD/EMP Protection | ±8kV air, ±4kV contact |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% non-condensing |
| Certifications | CE, FCC, IC |
| NDAA Compliant | Yes |
| Software Features | VLAN (802.1Q), Guest Traffic Isolation |
| UniFi Network Version Requirement | 9.0.108 and later |
Виж още Аксеспойнт/Репитер Безжични Ubiquiti
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 11000 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 7 (802.11be) |
| Честота: | 2.4 & 5 & 5 GHz |
| Антени: | 2 Вътрешни |
| dBi на антена/и: | 7 |
| PoE: | In |
| Други: | Няма |
