Точка за достъп Ubiquiti U7 Pro Outdoor, 2.4GHz (688Mbps)/ 5GHz (8600Mbps), RJ-45 (1x PoE+), 2x външни антени

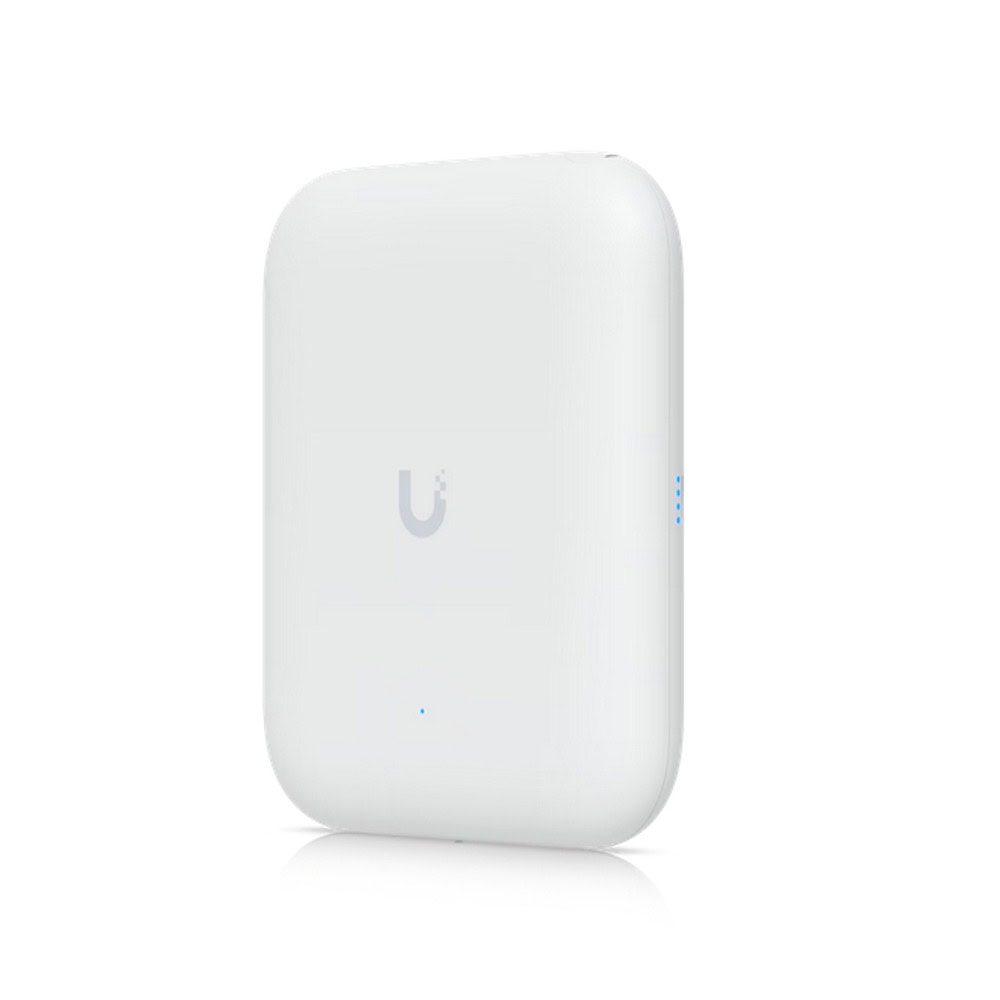

Ubiquiti U7 Pro Outdoor

Specifications

Overview

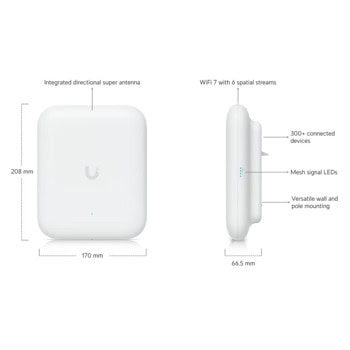

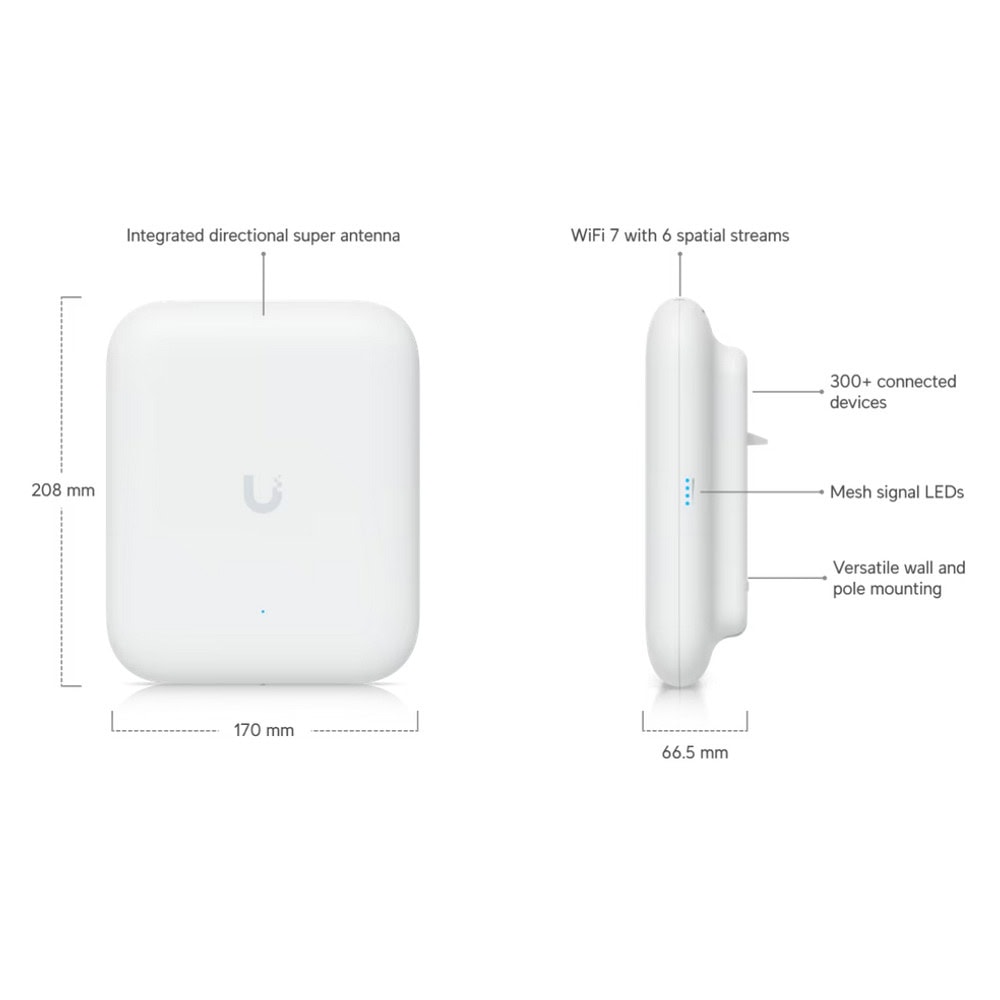

Dimensions

Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8")

WiFi Standard

WiFi 7

Spatial Streams

6

Coverage Area

465 m² (5,000 ft²)

Max. Client Count

300+

Uplink

2.5 GbE

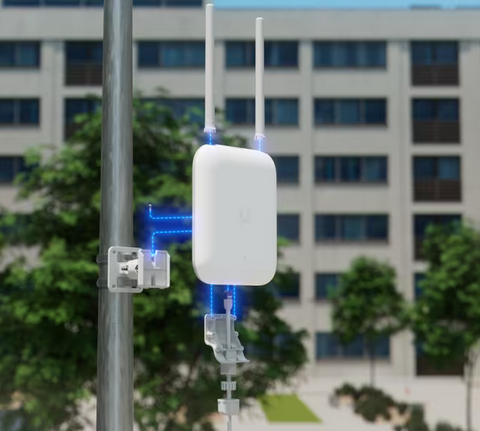

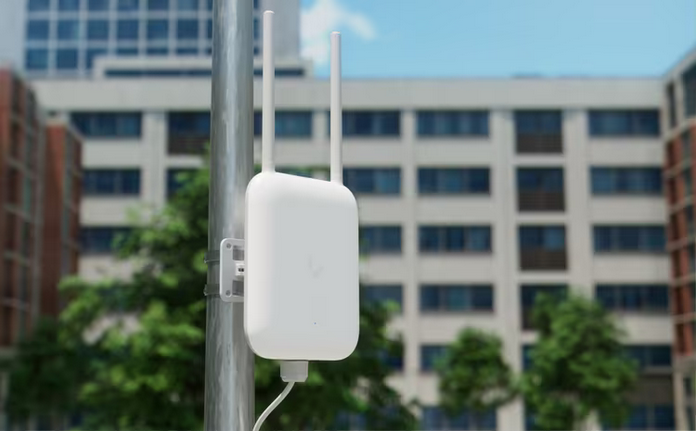

Mounting

Wall, Pole (Mounts Included)

Weatherproofing

IPX6 IP67 (With cable-gland door kit)

Power Method

PoE+

Performance

MIMO

5 GHz

4 x 4 (DL/UL MU-MIMO)

2.4 GHz

2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz

8.6 Gbps (BW240)

2.4 GHz

688 Mbps (BW40)

Antenna Gain

5 GHz

Directional internal: 11 dBi, 90° x 45° External omni: 8 dBi, 360° x 15°

2.4 GHz

Directional internal: 8 dBi, 90° x 90° External omni: 6 dBi, 360° x 15°

Max. TX Power

5 GHz

29 dBm

2.4 GHz

23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7)

7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)

802.11ax (WiFi 6)

7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)

802.11ac (WiFi 5)

6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

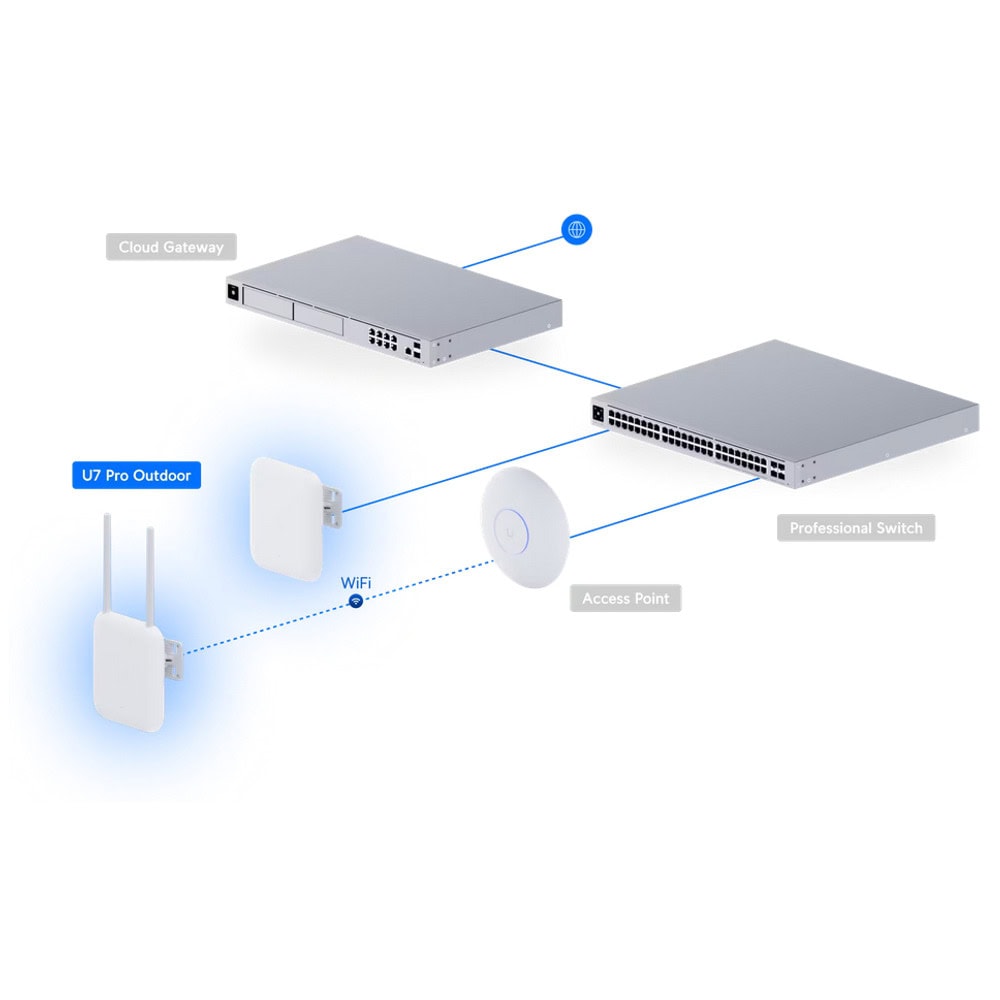

Wireless Meshing

✓

Band Steering

✓

802.11v BSS Transition Management

✓

802.11r Fast Roaming

✓

802.11k Radio Resource Management (RRM)

✓

Advanced Radio Management

✓

Passpoint (Hotspot 2.0)

✓

Captive Hotspot Portal

Custom Branding Landing Page

✓

Voucher Authentication

✓

Payment-Based Authentication

✓

External Portal Server Support

✓

Password Authentication

✓

Guest Network Isolation

✓

Private Pre-Shared Key (PPSK)

✓

WiFi Speed Limiting

✓

Client Device Isolation

✓

WiFi Schedules

✓

RADIUS over TLS (RadSec)

✓

Dynamic RADIUS-assigned VLAN

✓

Hardware

Max. Power Consumption

21W

Supported Voltage Range

42.5—57V DC

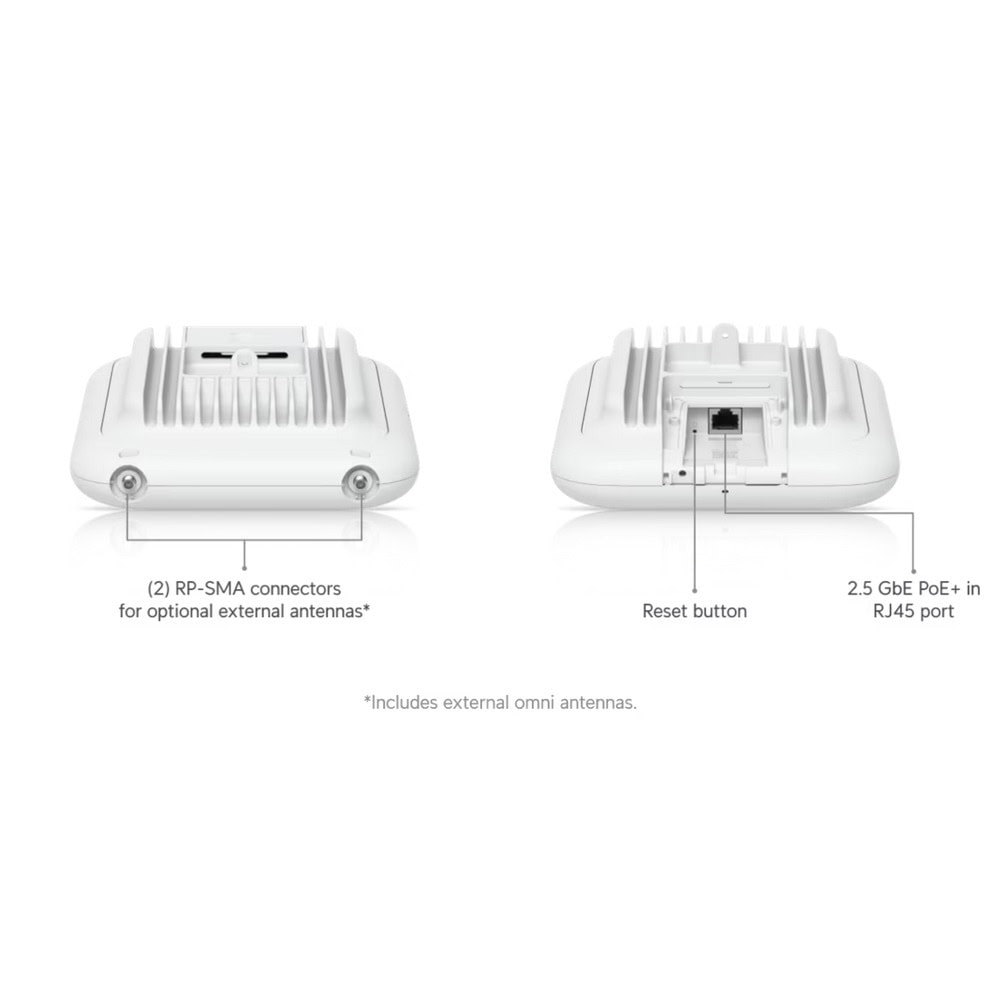

Networking Interface

(1) 1/2.5 GbE RJ45 port

Weight

Device: 1.2 kg (2.6 lb) With mount: 1.33 kg (2.9 lb)

Wind Loading

74.6 N at 200 km/h (16.8 lbf at 125 mph)

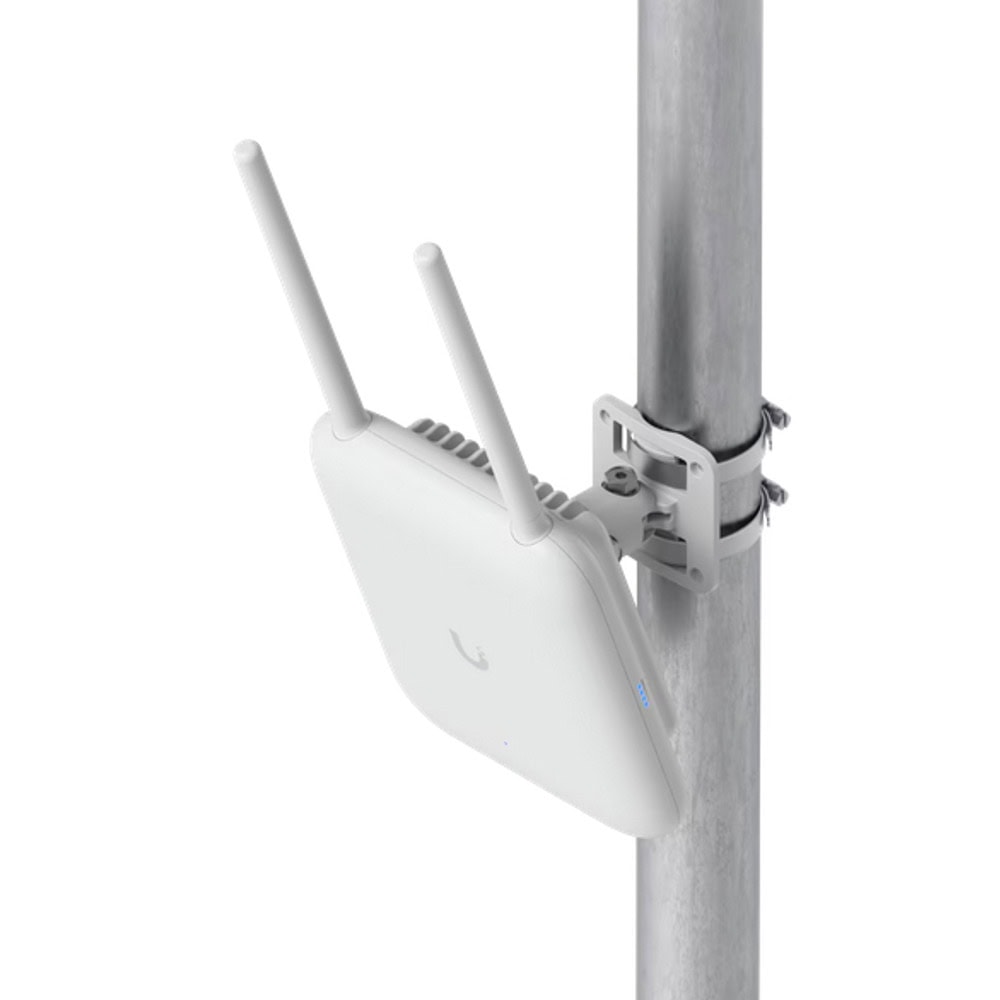

Pole Mount Diameter

1–2.5" (25–63.5 mm)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate, aluminum alloy

Mount Material

UV-stabilized polycarbonate

LEDs

System

(1) Power: White/Blue (4) Mesh signal: Blue

NDAA Compliant

✓

Certifications

CE

Ambient Operating Temperature

-30 to 60° C (-22 to 140° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network

Version 9.0.114 and later

Mobile App

iOS version 10.20.2 and later Android™ version 10.21.7 and later
