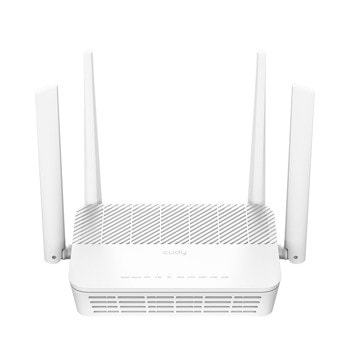

A PoE-powered WiFi 6 router with 2.5 Gbps internet connectivity, ideal for connecting a large number of devices and reducing latency. It features a USB ports, enabling fire sharing or third-party device powering.
Hardware Specs
| CPU | CPU Details | 1.3 GHz Dual-Core, ARM Cortex-A53 |
|---|---|---|
| Memory/Storage | Flash/ROM | 128 MB (1 Gbit) NAND |
| DDR/RAM | 512 MB (4 Gbit) DDR4 | |
| Wireless | 5 GHz Wi-Fi Speed | 2402 Mbps |
| 2.4 GHz Wi-Fi Speed | 574 Mbps | |
| 5 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) with an Extra Stream | |
| 2.4 GHz Wi-Fi Streams | 2T2R (2×2 MIMO) | |
| Wi-Fi Antennas | 4× Fixed | |
| 5 GHz Antenna Gain Max | 5.3dBi | |
| 2.4 GHz Antenna Gain Max | 5.3dBi | |
| FEM or PA/LNA |
| |
| Beamforming | True | |
| Range Performance | Max: 220 m (722 ft) Tested in open-space environments with minimal interference. Actual WiFi range may vary depending on layout and wall materials. Refer to the Wall Performance specifications for placement suggestions. | |
| Wall Performance | Two wooden walls with thickness < 10 cm (4'') One concrete wall with thickness < 20 cm (7'') or two concrete walls with thickness < 10 cm (4'') | |

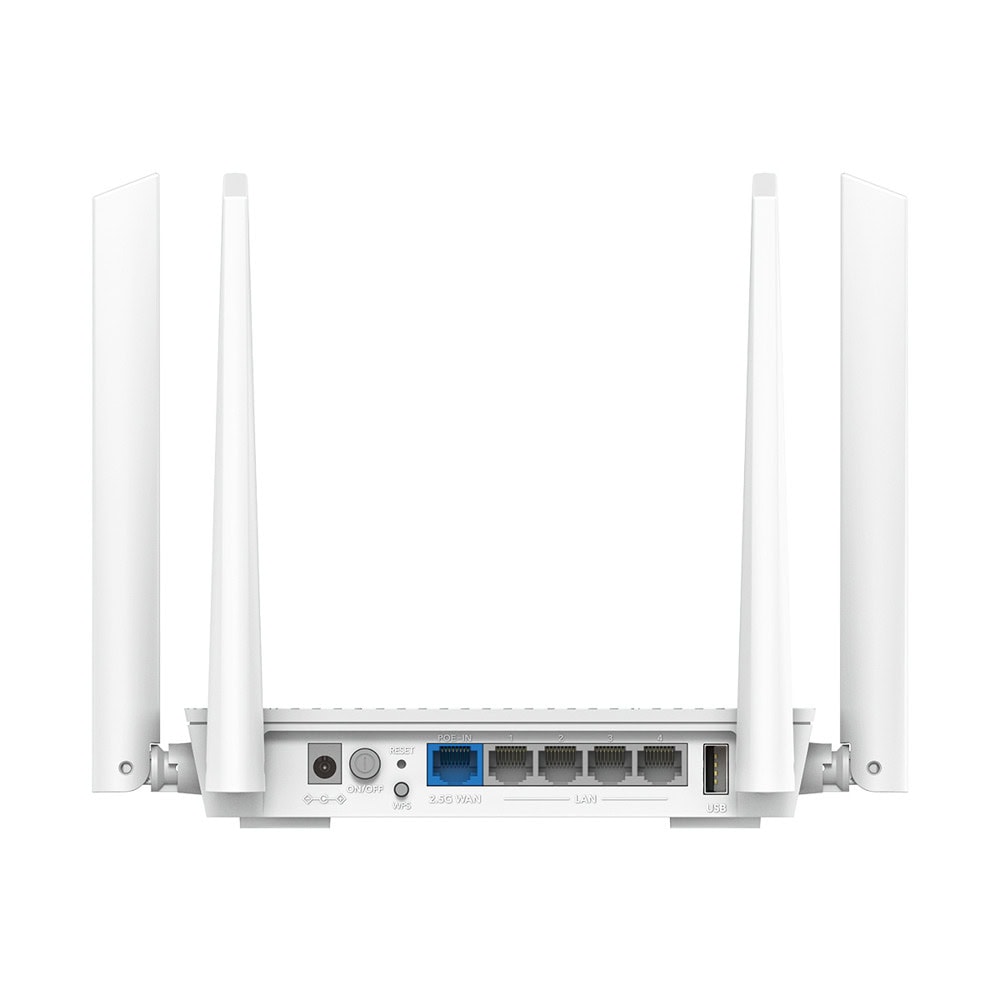

| Interfaces | 2.5G RJ45 Ports | 1 |
| Gigabit RJ45 Ports | 4 | |
| Ethernet Notes | The 2.5G port is WAN port and accepts PoE powering, the Gigabit ports are LAN ports | |
| USB-A 2.0 Ports | 1 | |
| LED |
| |
| Physical Buttons |
| |
| Power Input |
| |
| Power | Power Methods |
|
| DC Input | 12V 1.5A | |
| Power Adapter | Input: 100 ~ 240 V, 50/60 Hz AC Output: 12V 1.5A DC | |
| Max Power Consumption (W) | 11.5w | |
| Idle Power Consumption (W) | 4.2w | |
| Reliability | Environment |
|
| Certifications | FCC, CE | |
| Mechanical | Installation |
|
| Dimension | 173×123.8×33 mm 6.81×4.87×1.3 inches | |
Software Specs
| Wireless | Wi-Fi Standards | Wi-Fi 6 |
|---|---|---|
| Max Wi-Fi Modulation | 1024-QAM | |
| Wi-Fi Efficiency |
| |
| Max Capacity | 512 | |
| Recommended Client Upper Limit | 200 | |
| Max Wi-Fi Channel Width | 160 MHz | |
| Wi-Fi Security | WPA/WPA2/WPA3 | |
| Guest Network | 2.4 GHz, 5 GHz | |
| WPS | True | |
| General | Operation Modes |
|
| Mesh | Cudy Mesh | |
| Mesh Backhaul |
| |
| Multi-Band Backhaul | True | |
| WAN Mode |
| |
| Network | QoS | Per-User Rate Limiting |
| DHCP |
| |
| IP Versions | IPv4/IPv6 | |
| IPv6 Protocols |
| |
| IPTV/VLAN |
| |
| TTL Customization |
| |
| IGMP |
| |
| Forwarding |
| |
| Firewall |
| |
| Application Layer Gateway |
| |
| Utilities | VPN Server |
|
| VPN Client |
| |
| VPN Performance |
| |
| DNS Options |
| |
| DNS over TLS Providers |
| |
| Captive Portal | True | |
| Wake on LAN | True | |
| Online Detection | True | |
| Management | Parental Controls |
|
| All Devices Management |
| |
| Per-Devices Management |
| |
| Content Management |
| |
| System | LED Control | True |
| Local Control Method |
| |
| Remote Control Method |
| |
| Firmware Upgrade |
| |
| Reliability |
| |
| Diagnostic Tools |
| |
| Languages |
| |
| Dashboard | Panel |
|
| Charts |
|
Виж още Рутери Безжични Cudy
Виж всички Рутери Безжични в категорията
Технически характеристики
| Безжична скорост: | 3000 Mbps |
|---|---|
| Wi-Fi Стандарт: | Wi-Fi 6 (802.11ax) |
| Честота: | 2.4 + 5 GHz |
| LAN портове: | 4 x 1000 Mbps |
| WAN портове: | 1 x 2500 Mbps |
| Антени: | 4 Външни |
| USB портове: | 1 x 2.0 |
| 3G/4G: | Не |
| Преносим: | Не |
| Други: | Няма |
| Жична скорост: | 10/100/1000/2500 Mbps |
