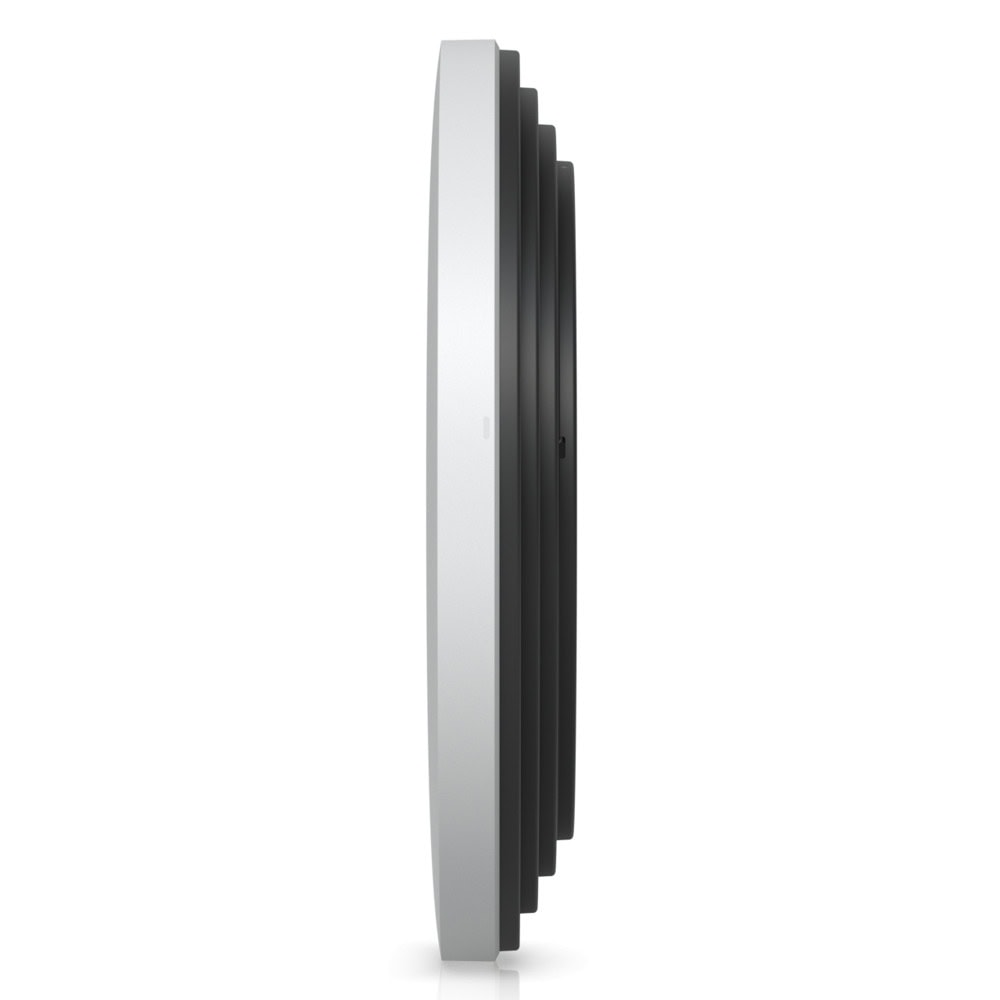

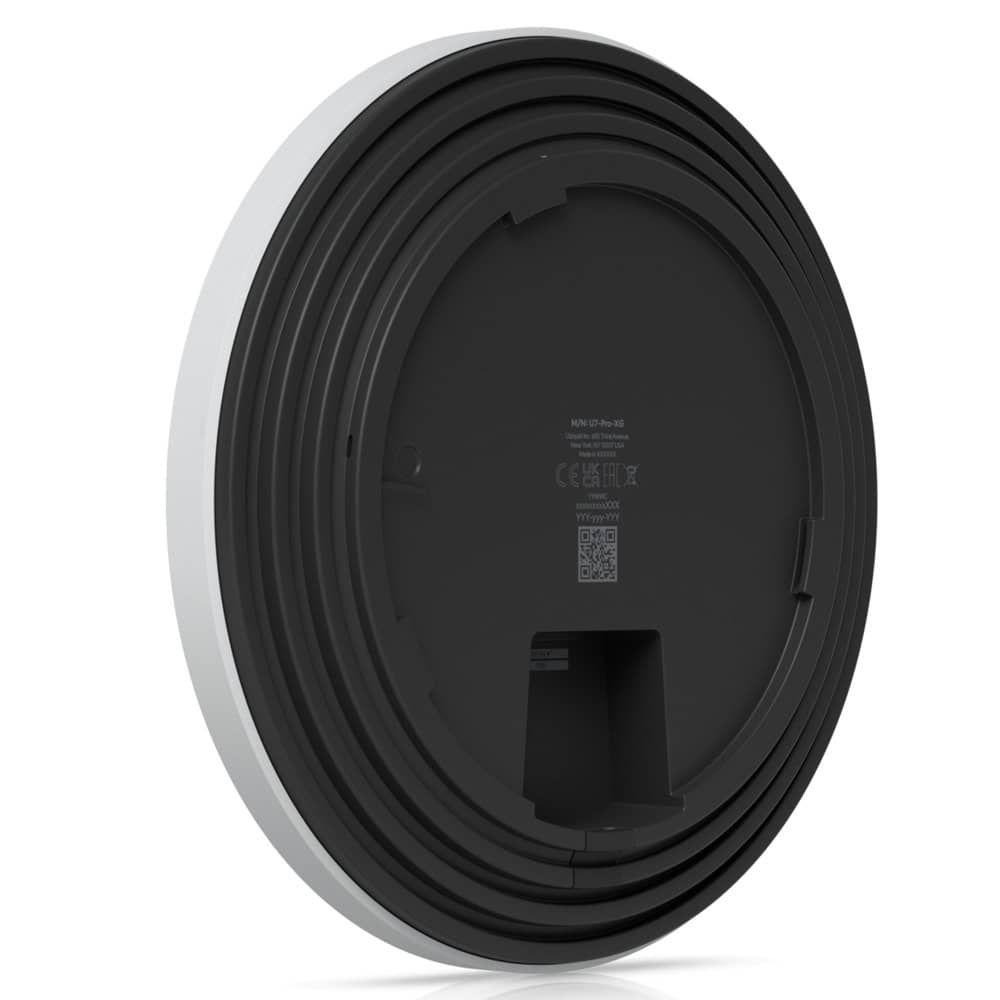

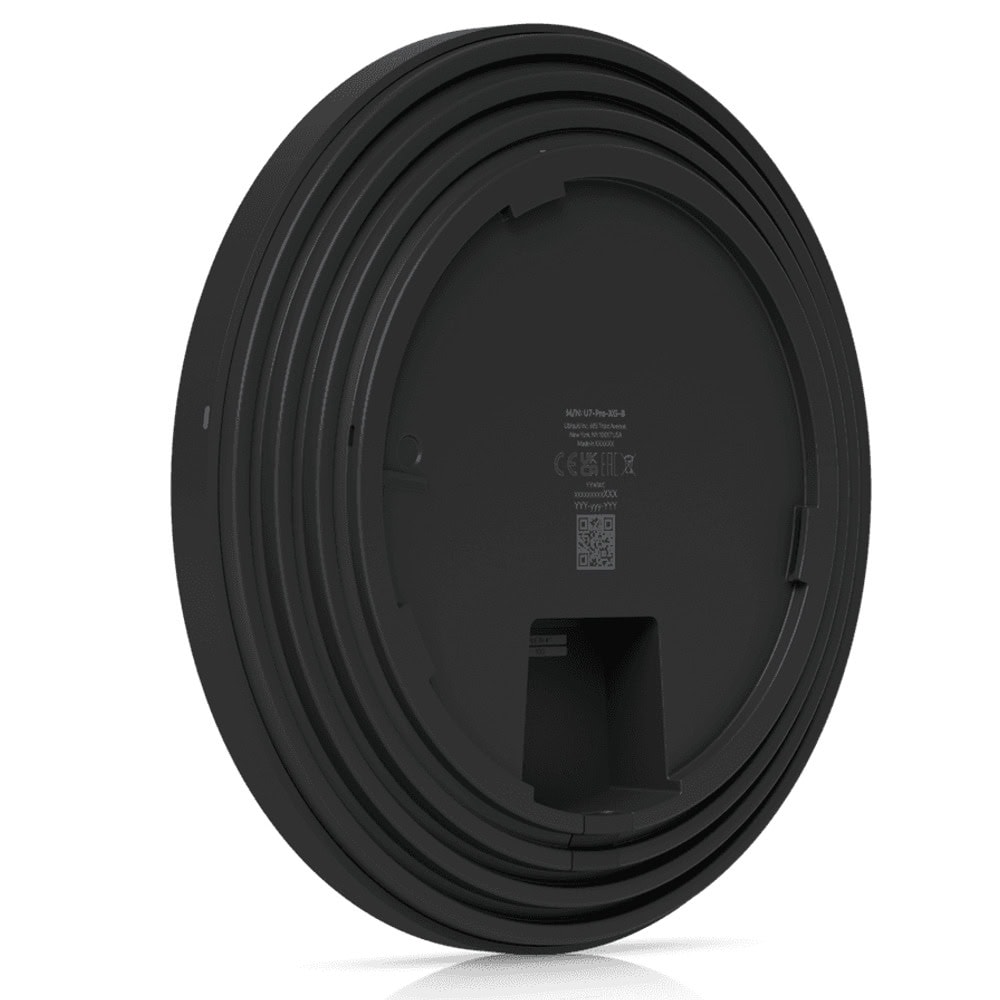

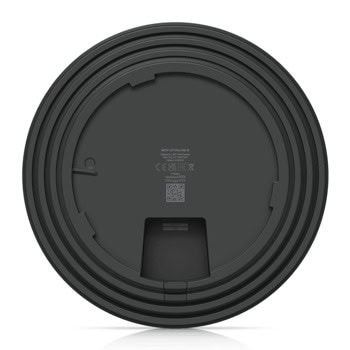

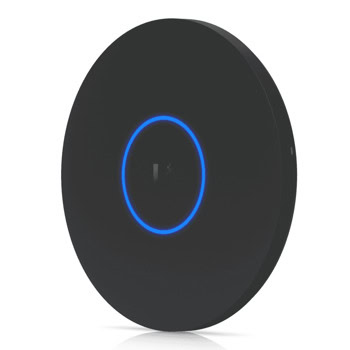

Name: Точка за достъп Ubiquiti U7 Pro XG Black, AB11000, 2.4GHz (688Mbps)/ 5GHz (4300Mbps)/ 6GHz (5800Mbps), 1x 10/100/10000Mbps LAN PoE+, 2x вътрешни антени
Brand: Ubiquiti
SKU: NTWBUBIQUITIU7PROXGB
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

Ubiquiti U7 Pro XG

Specification	Details
Dimensions	Ø206 x 32.5 mm (Ø8.1 x 1.3")
WiFi Standard	WiFi 7
Spatial Streams	6
Coverage Area	140 m² (1,500 ft²)
Max. Client Count	300+
Uplink	10 GbE

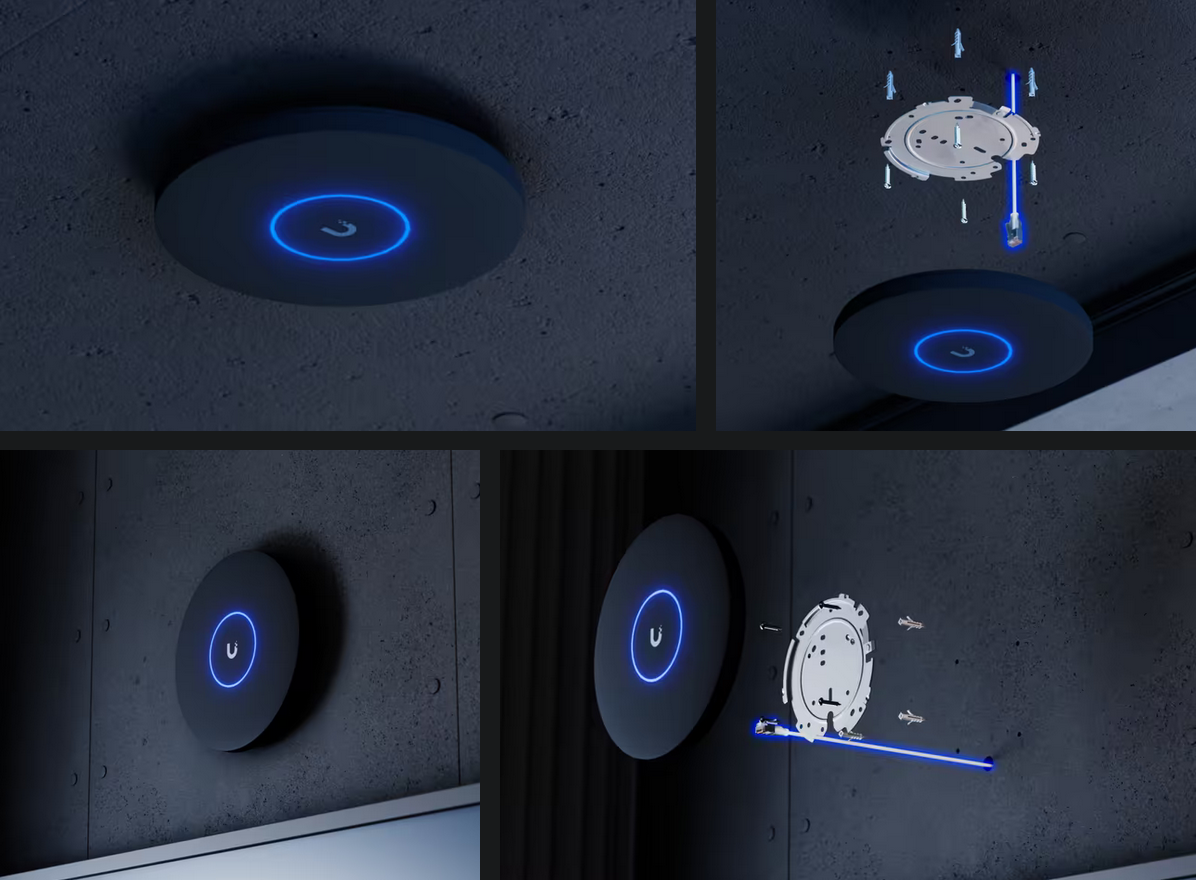

Mounting	Ceiling, Wall (Lite Mount Included)
Power Method	PoE+
MIMO	6 GHz: 2 x 2 (DL/UL MU-MIMO)
	5 GHz: 2 x 2 (DL/UL MU-MIMO)
	2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate	6 GHz: 5.8 Gbps (BW320)
	5 GHz: 4.3 Gbps (BW240)
	2.4 GHz: 688 Mbps (BW40)
Antenna Gain	6 GHz: 6 dBi
	5 GHz: 5 dBi
	2.4 GHz: 4 dBi
Max. TX Power	6 GHz: 24 dBm
	5 GHz: 26 dBm
	2.4 GHz: 23 dBm
Max. BSSIDs	8 per Radio
Supported Data Rates	802.11be (WiFi 7):
	- 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
	- 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
	802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
	802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
	802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
Wireless Meshing	Yes
Band Steering	Yes
802.11v BSS Transition Management	Yes
802.11r Fast Roaming	Yes
802.11k Radio Resource Management (RRM)	Yes
Advanced Radio Management	Yes
Passpoint (Hotspot 2.0)	Yes
Captive Hotspot Portal	Custom Branding Landing Page
Voucher Authentication	Yes
Payment-Based Authentication	Yes
External Portal Server Support	Yes
Password Authentication	Yes
Guest Network Isolation	Yes
Private Pre-Shared Key (PPSK)	Yes
WiFi Speed Limiting	Yes
Client Device Isolation	Yes
WiFi Schedules	Yes
RADIUS over TLS (RadSec)	Yes
Dynamic RADIUS-assigned VLAN	Yes
Max. Power Consumption	22W
Supported Voltage Range	42.5—57V DC

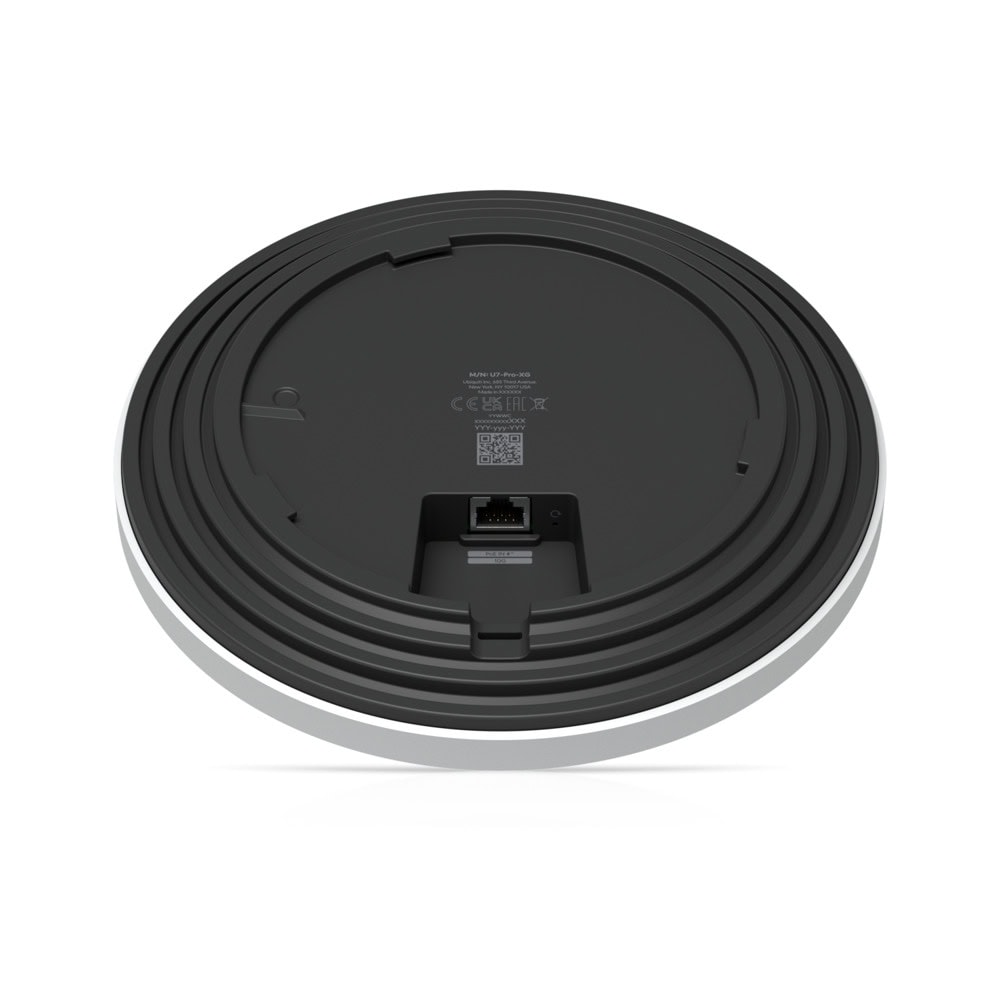

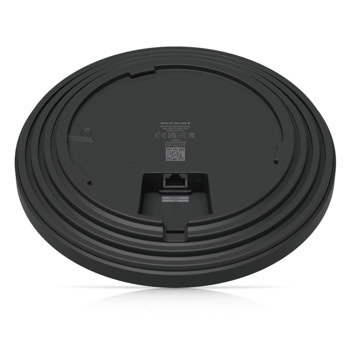

Networking Interface	(1) 10 GbE RJ45 port
Weight	750 g (1.7 lb)
Management	Ethernet
Enclosure Material	UV-stabilized polycarbonate, aluminum alloy
Mount Material	Stainless steel (SUS304), galvanized steel (SGCC)

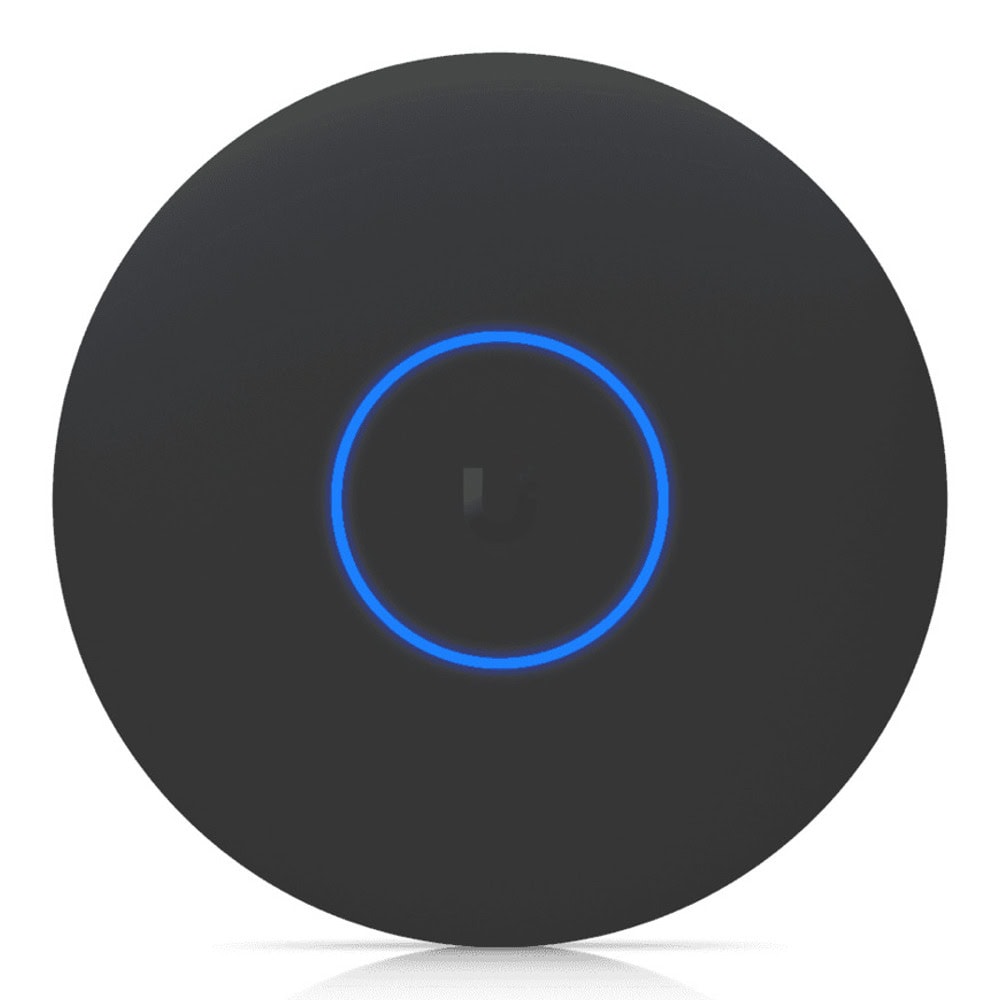

LEDs	System: White/Blue
Channel Bandwidth	HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant	Yes
Certifications	CE, FCC, IC
Ambient Operating Temperature	-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity	5 to 95% noncondensing

Виж още Аксеспойнт/Репитер Безжични Ubiquiti
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Аксес пойнт
Монтаж:	За вътрешен монтаж
Безжична скорост:	11000 Mbps
Wi-Fi Стандарт:	Wi-Fi 7 (802.11be)
Честота:	2.4 & 5 & 6 GHz
Антени:	2 Вътрешни
dBi на антена/и:	6
PoE:	In
Интерфейс:	1x 10000
Други:	Няма
