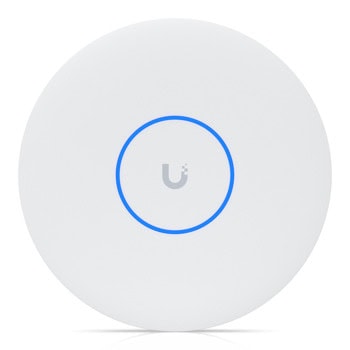

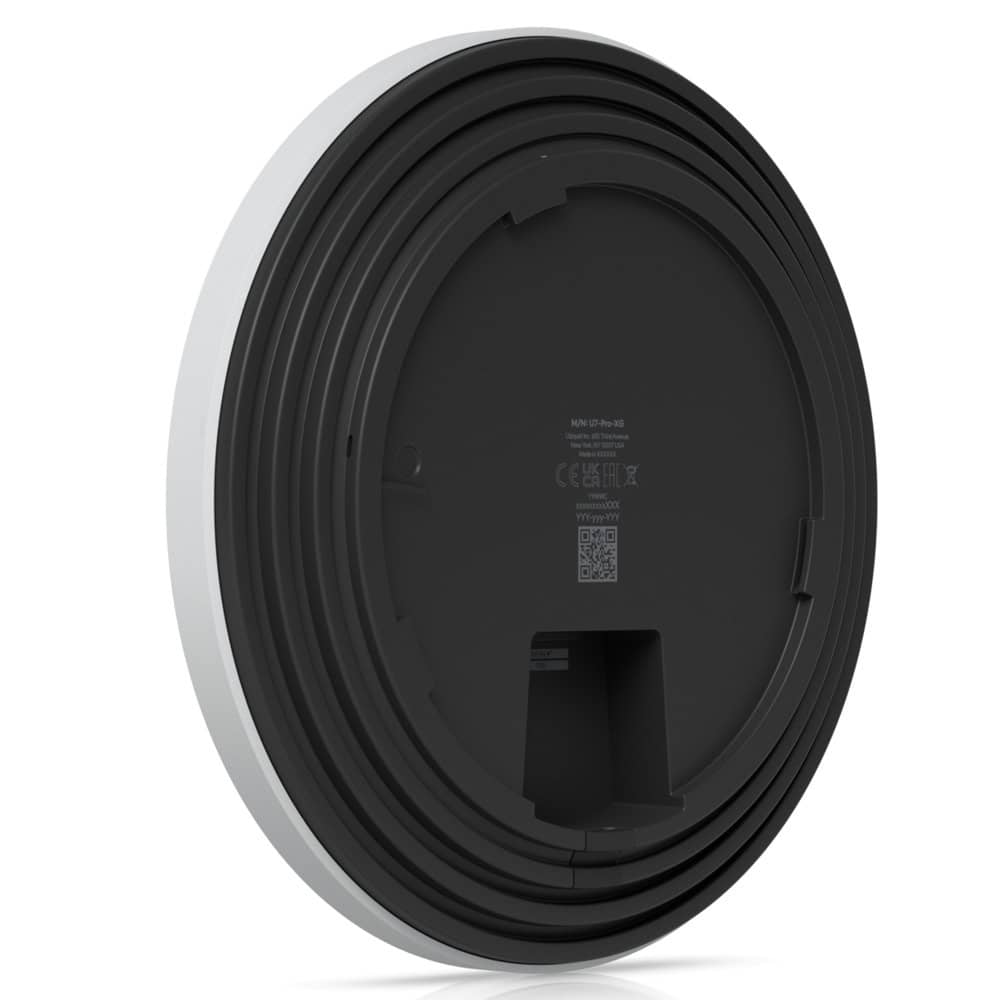

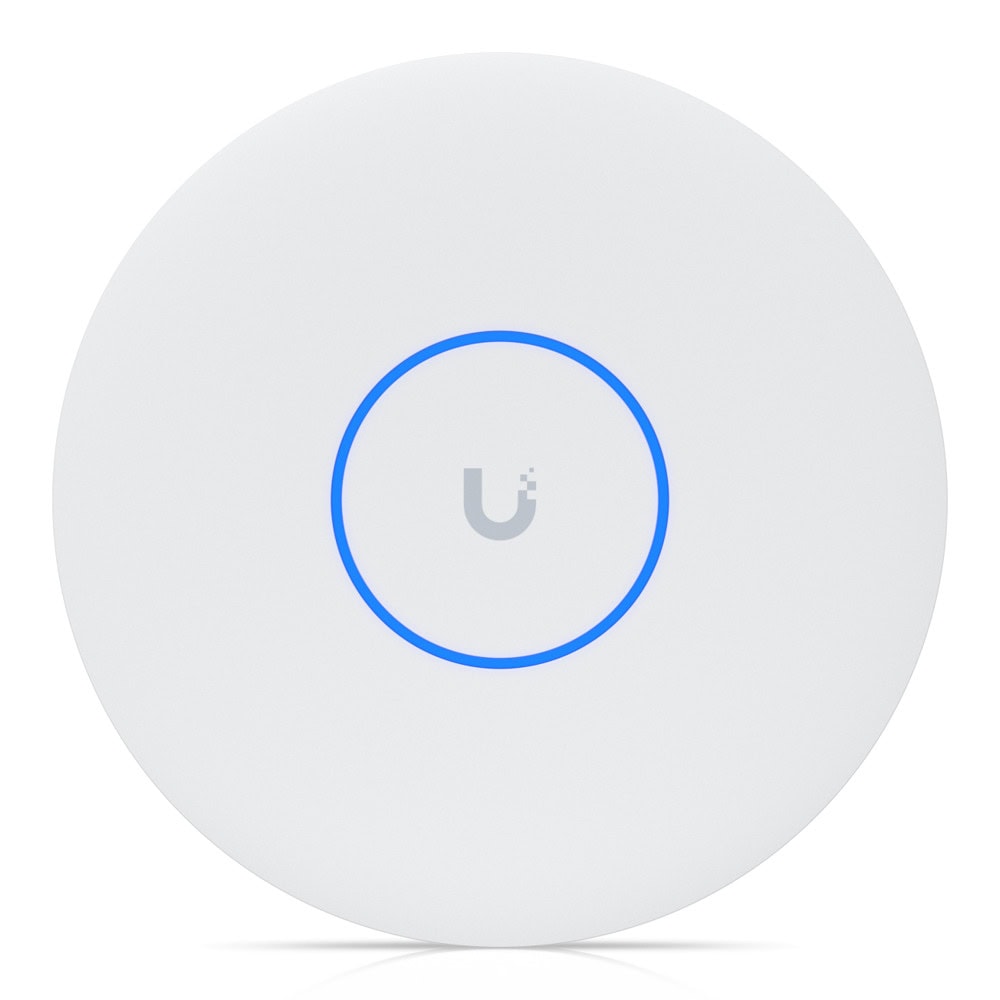

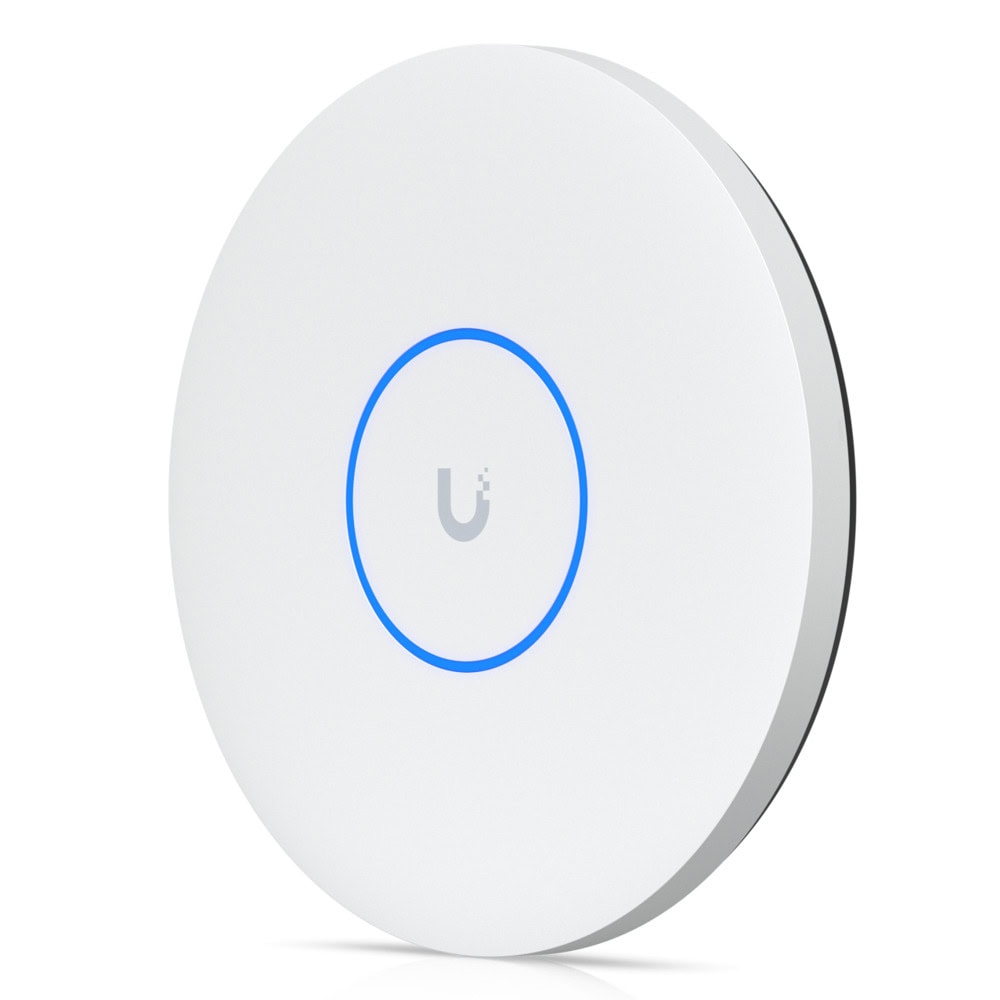

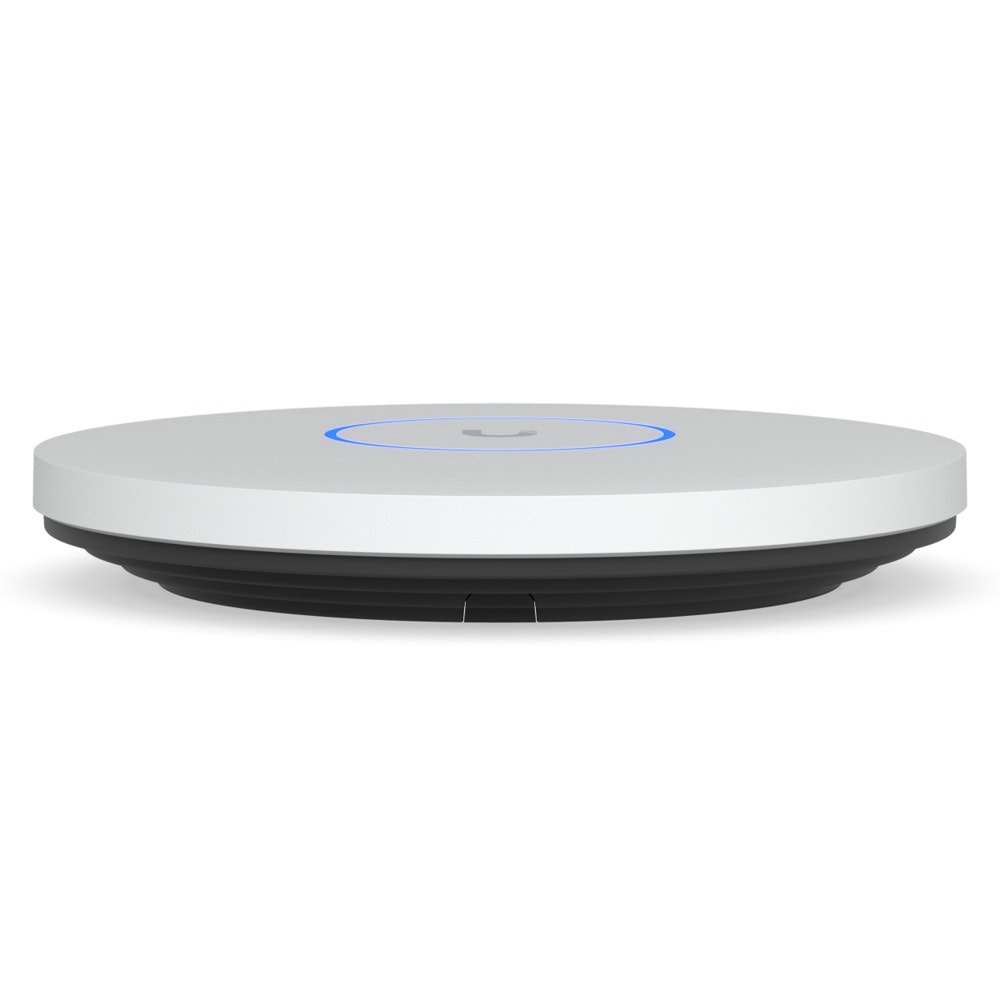

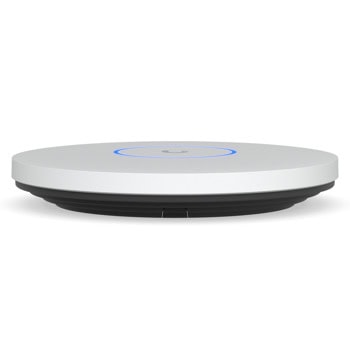

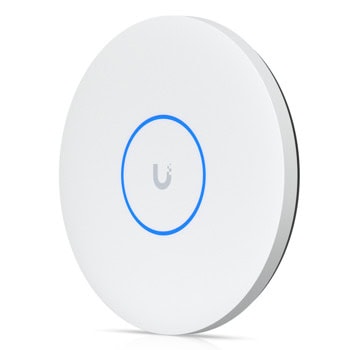

Ubiquiti U7 Pro XG
| Specification | Details |
|---|---|

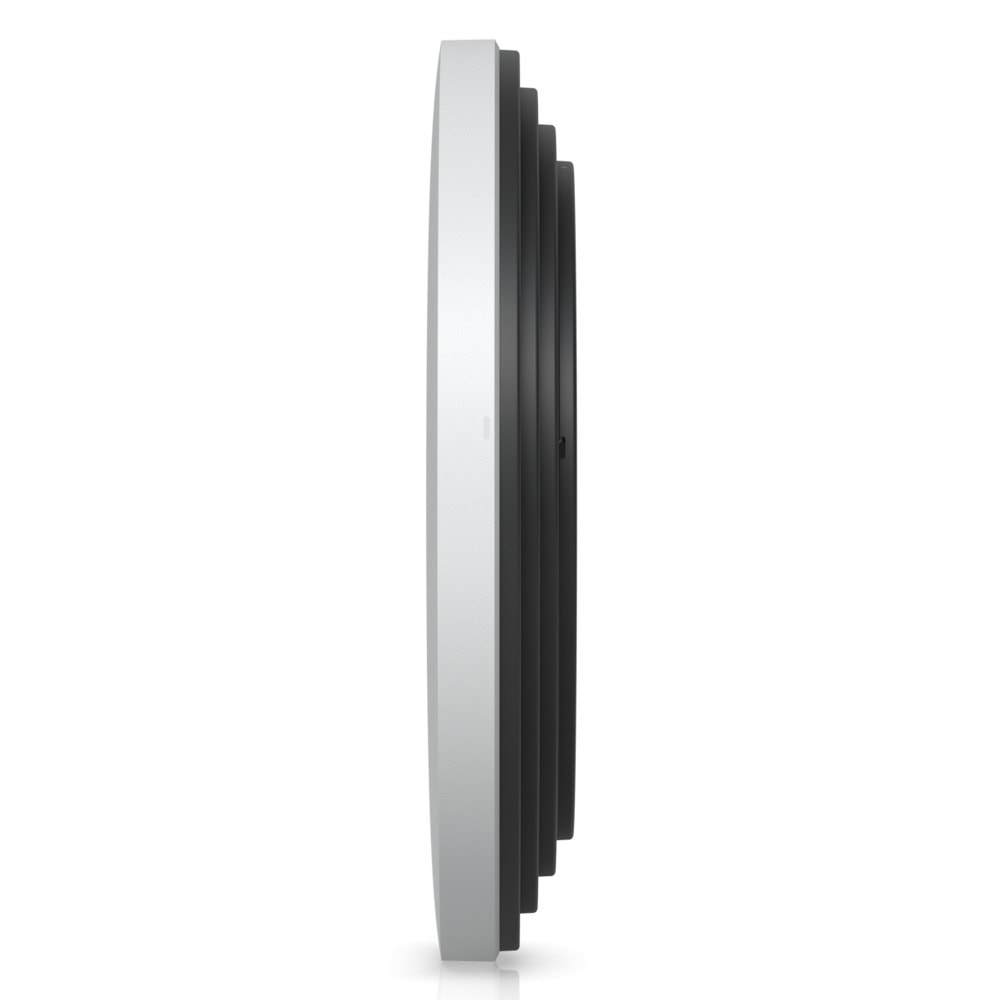

| Dimensions | Ø206 x 32.5 mm (Ø8.1 x 1.3") |
| WiFi Standard | WiFi 7 |
| Spatial Streams | 6 |
| Coverage Area | 140 m² (1,500 ft²) |
| Max. Client Count | 300+ |
| Uplink | 10 GbE |

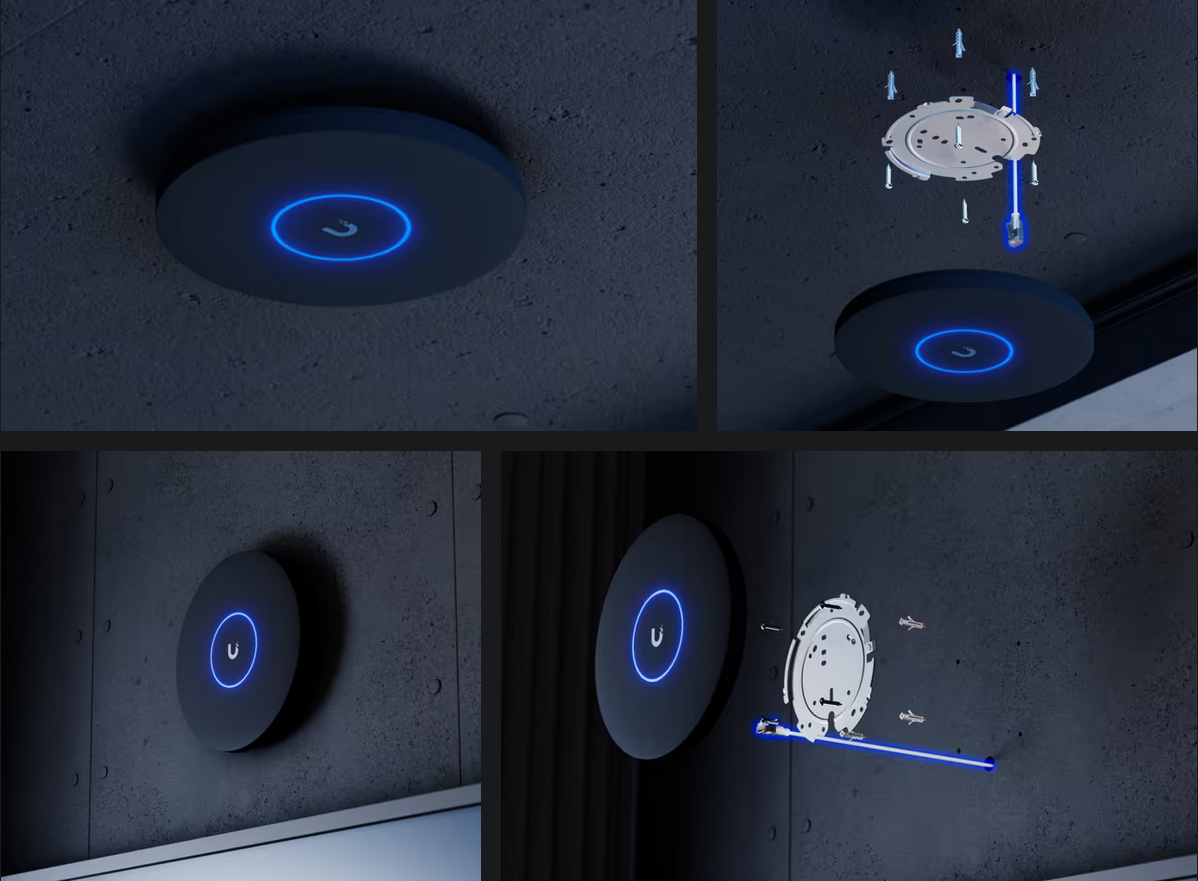

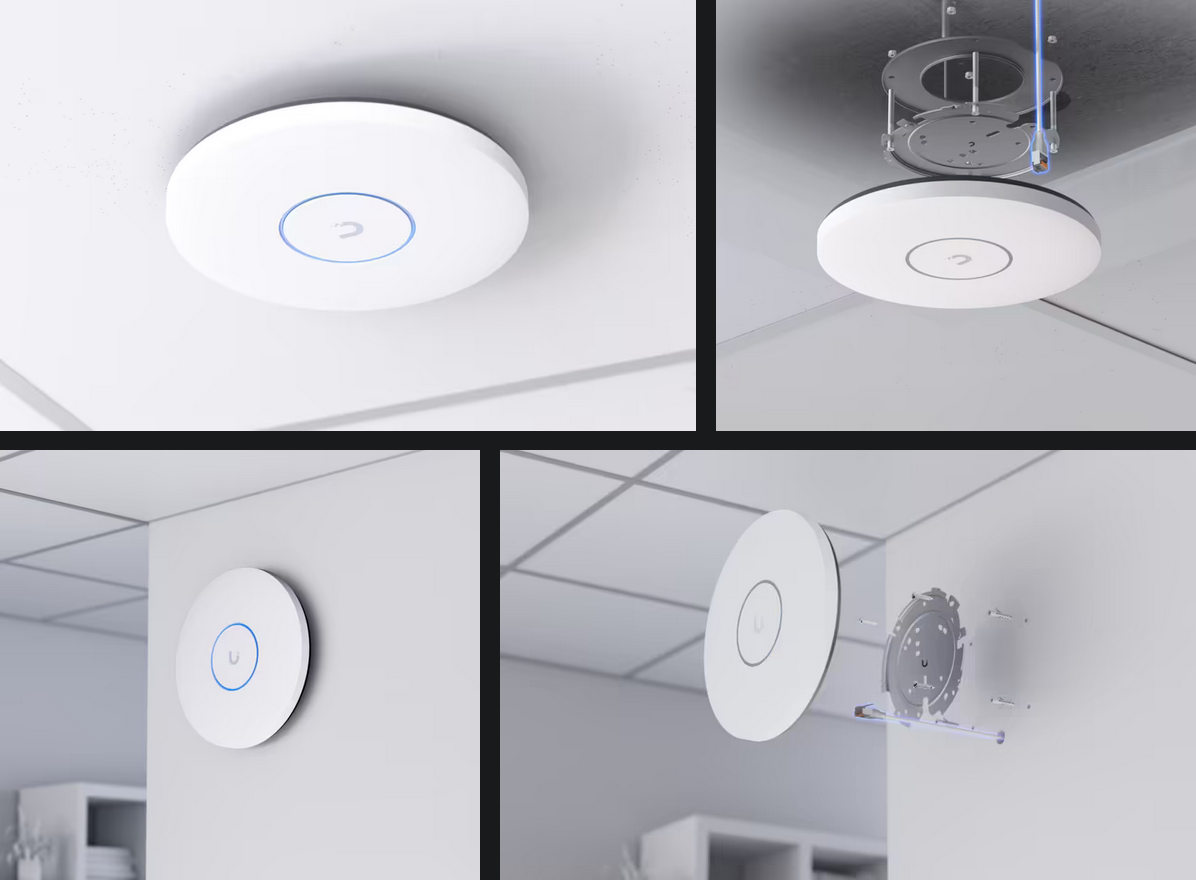

| Mounting | Ceiling, Wall (Lite Mount Included) |
| Power Method | PoE+ |
| MIMO | 6 GHz: 2 x 2 (DL/UL MU-MIMO) |
| 5 GHz: 2 x 2 (DL/UL MU-MIMO) | |
| 2.4 GHz: 2 x 2 (DL/UL MU-MIMO) | |
| Max. Data Rate | 6 GHz: 5.8 Gbps (BW320) |
| 5 GHz: 4.3 Gbps (BW240) | |
| 2.4 GHz: 688 Mbps (BW40) | |
| Antenna Gain | 6 GHz: 6 dBi |
| 5 GHz: 5 dBi | |
| 2.4 GHz: 4 dBi | |
| Max. TX Power | 6 GHz: 24 dBm |
| 5 GHz: 26 dBm | |
| 2.4 GHz: 23 dBm | |
| Max. BSSIDs | 8 per Radio |
| Supported Data Rates | 802.11be (WiFi 7): |
| - 6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320) | |
| - 5 GHz: 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240) | |
| 802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| Wireless Meshing | Yes |
| Band Steering | Yes |
| 802.11v BSS Transition Management | Yes |
| 802.11r Fast Roaming | Yes |
| 802.11k Radio Resource Management (RRM) | Yes |
| Advanced Radio Management | Yes |
| Passpoint (Hotspot 2.0) | Yes |
| Captive Hotspot Portal | Custom Branding Landing Page |
| Voucher Authentication | Yes |
| Payment-Based Authentication | Yes |
| External Portal Server Support | Yes |
| Password Authentication | Yes |
| Guest Network Isolation | Yes |
| Private Pre-Shared Key (PPSK) | Yes |
| WiFi Speed Limiting | Yes |
| Client Device Isolation | Yes |
| WiFi Schedules | Yes |
| RADIUS over TLS (RadSec) | Yes |
| Dynamic RADIUS-assigned VLAN | Yes |
| Max. Power Consumption | 22W |
| Supported Voltage Range | 42.5—57V DC |

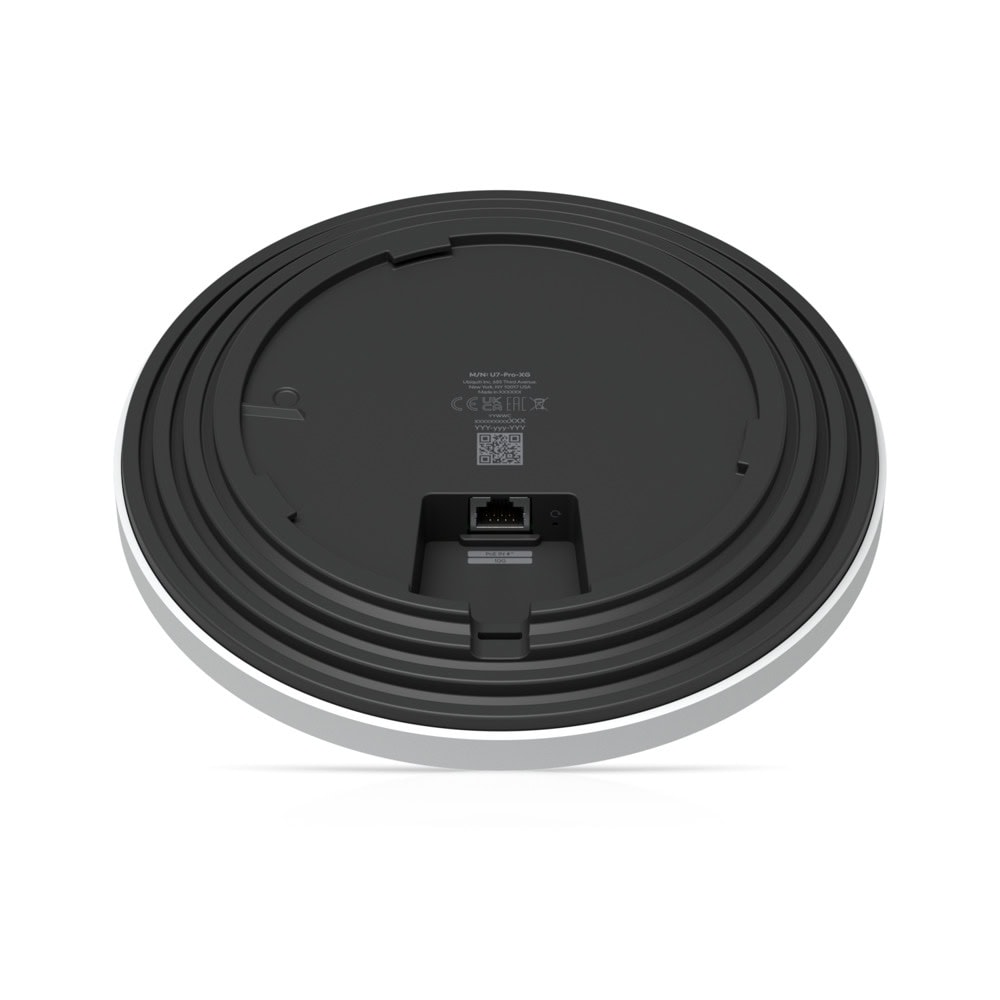

| Networking Interface | (1) 10 GbE RJ45 port |
| Weight | 750 g (1.7 lb) |
| Management | Ethernet |
| Enclosure Material | UV-stabilized polycarbonate, aluminum alloy |
| Mount Material | Stainless steel (SUS304), galvanized steel (SGCC) |
| LEDs | System: White/Blue |
| Channel Bandwidth | HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz) |
| NDAA Compliant | Yes |
| Certifications | CE, FCC, IC |
| Ambient Operating Temperature | -30 to 40° C (-22 to 104° F) |
| Ambient Operating Humidity | 5 to 95% noncondensing |
Виж още Аксеспойнт/Репитер Безжични Ubiquiti
Виж всички Аксеспойнт/Репитер Безжични в категорията
Технически характеристики
| Тип: | Аксес пойнт |
|---|---|
| Монтаж: | За вътрешен монтаж |
| Безжична скорост: | 11000 Mbps |
| Wi-Fi Стандарт: | Wi-Fi 7 (802.11be) |
| Честота: | 2.4 & 5 & 6 GHz |
| Антени: | 2 Вътрешни |
| dBi на антена/и: | 6 |
| PoE: | In |
| Интерфейс: | 1x 10000 |
| Други: | Няма |
