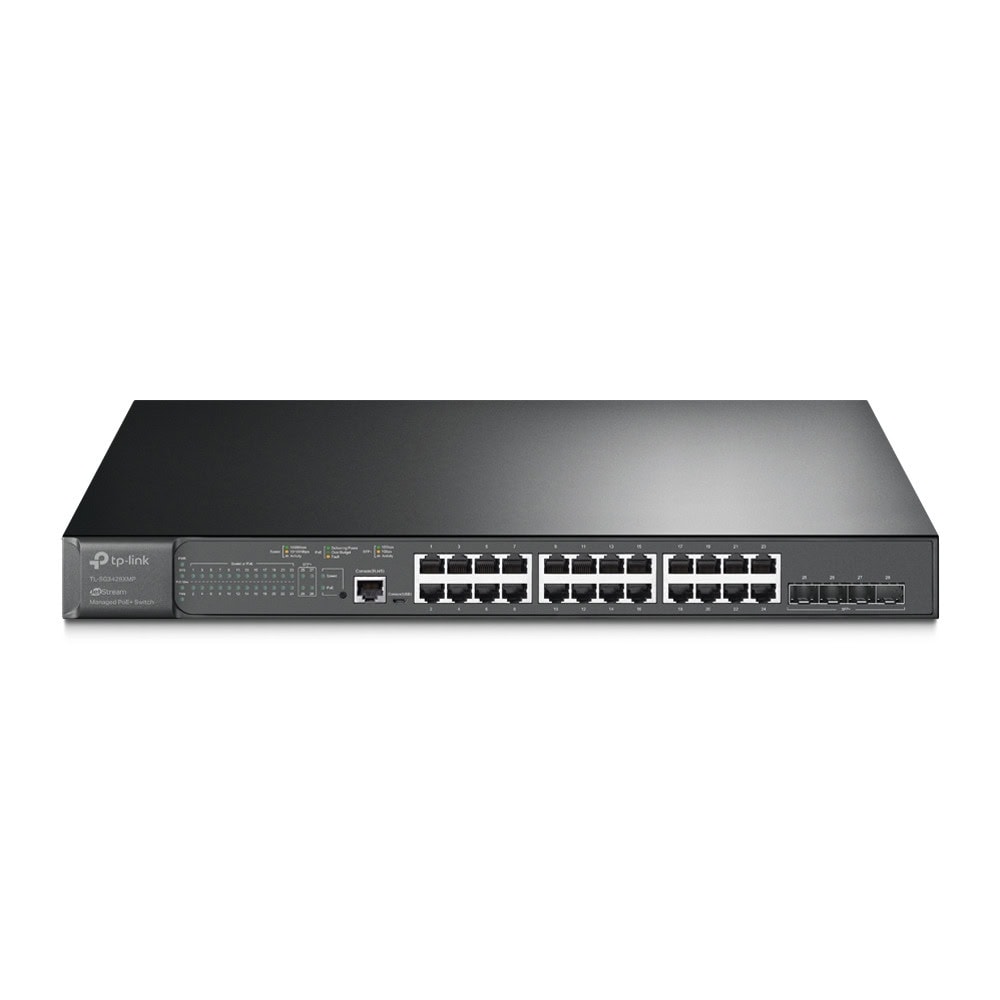

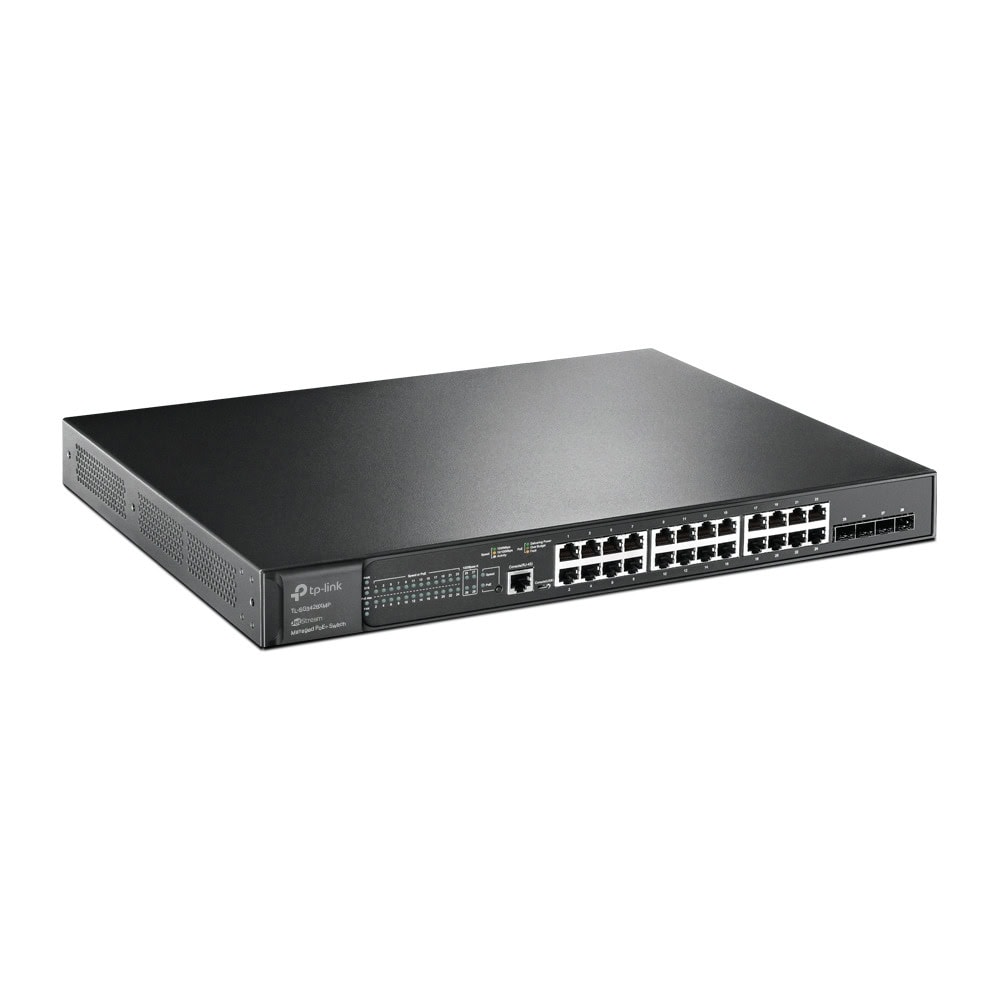

TL-SG3428XMP
JetStream 24-Port Gigabit and 4-Port 10GE SFP+ L2+ Managed Switch with 24-Port PoE+
- 10G Lightning-Fast Uplink: 4× 10 Gbps SFP+ slots enable high-bandwidth connectivity and non-blocking switching capacity.
- 384 W PoE Budget: 24× 802.3at/af-compliant PoE+ ports with a total power supply of 384 W*.
- Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
- Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
- Static Routing: Helps route internal traffic for more efficient use of network resources.
- Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
- Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
- Standalone Management: Web, CLI (Console Port, Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities
Enterprise Switch with 10G Uplink
4× 10 Gbps SFP+ slots provide non-blocking switching performance and ultra-low latency, so reliable and lightning-fast connections to server and other switches are easily built.

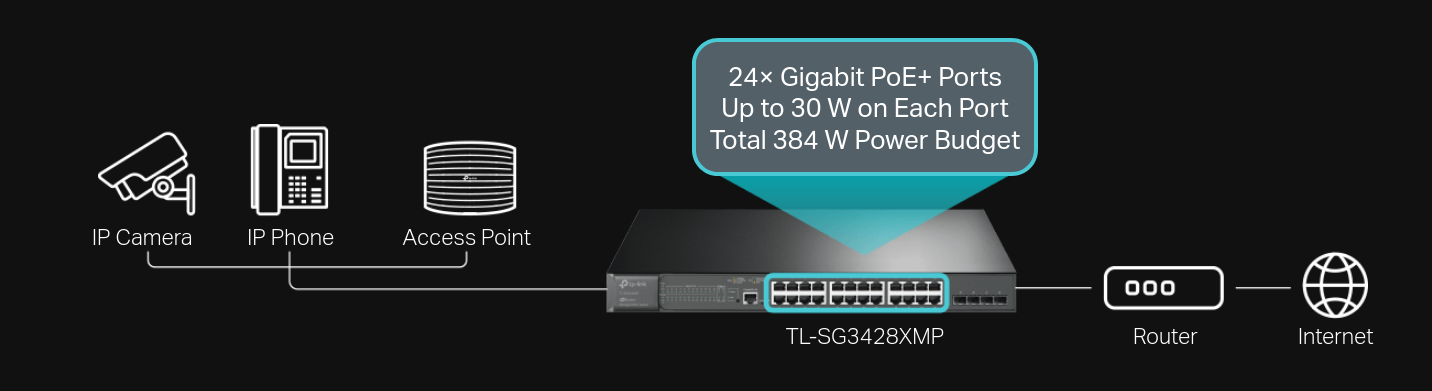

Dedicated 24 PoE+ Ports (384 W Budget)
for Numerous Applications
Features 24× 802.3af/at compliant PoE+ ports, the switch supports up to 384 W total PoE power budget. Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.
| Category | Specification |
|---|---|
| Hardware Characteristics | |
| Interface | 24× 10/100/1000 Mbps RJ45 Ports; 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port |
| Fans | 2 |
| Power Supply | 100-240 V AC~50/60 Hz |
| PoE Ports (RJ45) | Standard: 802.3at/af compliant; PoE+ Ports: 24 Ports, up to 30 W per port; Power Budget: 384 W |
| Dimensions (W×D×H) | 17.3 × 13.0 × 1.7 in (440 × 330 × 44 mm) |
| Mounting | Rack Mountable |
| Max Power Consumption | 34.4 W (110V/60Hz) (no PD device connected); 465.8 W (110V/60Hz) (with 384 W PD device connected) |
| Max Heat Dissipation | 117.38 BTU/h (110 V/60 Hz) (no PD device connected); 1589.31 BTU/h (110 V/60 Hz) (with 384 W PD device connected) |
| Performance | |
| Switching Capacity | 128 Gbps |
| Packet Forwarding Rate | 95.23 Mpps |
| MAC Address Table | 16 K |
| Packet Buffer Memory | 12 Mbit |
| Jumbo Frame Size | 9 KB |
| Software Features | |
| Quality of Service (QoS) | 8 priority queues; 802.1p CoS/DSCP priority; Scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR; Bandwidth Control (Port/Flow Rating Limiting); Flow Actions (Mirror, Redirect, Rate Limit, QoS Remark) |
| L3 Features | 128 IPv4/IPv6 Interfaces; Static Routing (48 static routes); Static ARP (128 entries); Proxy ARP; Gratuitous ARP; DHCP Server; DHCP Relay (Interface, VLAN, L2) |
| L2 and L2+ Features | Link Aggregation (static & 802.3ad LACP, up to 8 groups, 8 ports/group); Spanning Tree Protocol (802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security); Loopback Detection (Port & VLAN based); Flow Control (802.3x, HOL Blocking Prevention); Mirroring (Port, CPU, One-to-One, Many-to-One, Tx/Rx/Both) |
| L2 Multicast | IGMP Snooping (v1/v2/v3, Fast Leave, Querier, Authentication); MLD Snooping (v1/v2, Fast Leave, Querier, Static Group Config, Limited IP Multicast); MVR; Multicast Filtering (256 profiles, 16 entries/profile) |
| Advanced Features | Support Omada Hardware Controller (OC200/OC300), Software & Cloud Controllers; Automatic Device Discovery; Batch Config & Firmware Upgrading; Intelligent Network Monitoring; Abnormal Event Warnings; Unified Configuration; Reboot Schedule; ZTP (Zero-Touch Provisioning) |
| VLAN | VLAN Group (max 4K groups); 802.1Q Tagged VLAN; MAC VLAN (7 entries); Protocol VLAN (16 templates); Private VLAN; GVRP; VLAN VPN (QinQ - Port-Based & Selective); Voice VLAN |
| Access Control List (ACL) | Time-based ACL; MAC ACL (Source/Destination MAC, VLAN ID, User Priority, Ether Type); IP ACL (Source/Destination IP, Fragment, Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS, User Priority); Combined ACL; Packet Content ACL; IPv6 ACL; Policy (Mirroring, Redirect, Rate Limit, QoS Remark); ACL applied to Port/VLAN |
| Security | IP-MAC-Port Binding (512 entries); DHCP Snooping; ARP Inspection; IPv4 Source Guard (100 entries); IPv6-MAC-Port Binding (512 entries); DHCPv6 Snooping; ND Detection; IPv6 Source Guard (100 entries); DoS Defend; Static/Dynamic Port Security (up to 64 MAC addresses per port); Broadcast/Multicast/Unicast Storm Control (kbps/ratio mode); 802.1X (Port, MAC base auth, VLAN Assignment, MAB, Guest VLAN, Radius support); AAA (including TACACS+); Port Isolation; Secure HTTPS (SSLv3/TLS1.2); Secure CLI (SSHv1/v2); IP/Port/MAC based access control |
| IPv6 Features | Dual IPv4/IPv6; MLD Snooping; IPv6 ACL; IPv6 Interface; Static IPv6 Routing; IPv6 Neighbor Discovery; Path MTU Discovery; ICMPv6; TCPv6/UDPv6; IPv6 Apps (DHCPv6 Client, Ping6, Tracert6, Telnet v6, SNMP v6, SSH v6, SSL v6, HTTP/HTTPS, TFTP v6) |
| Management | Web GUI; CLI (console, telnet); SNMP v1/v2c/v3 (Trap/Inform, RMON 1,2,3,9 groups); SDM Template; DHCP/BOOTP Client; 802.1ab LLDP/LLDP-MED; DHCP AutoInstall; Dual Image/Config; CPU Monitoring; Cable Diagnostics; EEE; Password Recovery; SNTP; System Log |
| MIBs | MIB II (RFC1213); Interface MIB (RFC2233); Ethernet Interface MIB (RFC1643); Bridge MIB (RFC1493); P/Q-Bridge MIB (RFC2674); RMON MIB (RFC2819); RMON2 MIB (RFC2021); Radius Accounting MIB (RFC2620); Radius Auth Client MIB (RFC2618); Remote Ping/Traceroute MIB (RFC2925); TP-Link Private MIB |
| Omada App | Yes (requires OC300, OC200, Cloud or Software Controller) |
| Centralized Management | Omada Cloud-Based Controller; Omada Hardware Controllers (OC300, OC200); Omada Software Controller |
| Cloud Access | Yes (requires OC300, OC200, Cloud or Software Controller) |
| Zero-Touch Provisioning | Yes (requires Omada Cloud-Based Controller) |
| Others | |
| Certifications | CE, FCC, RoHS |
| System Requirements | Microsoft Windows 98SE, NT, 2000, XP, Vista, 7/8/10/11; MAC OS; NetWare; UNIX; Linux |
| Environment | Operating Temp: 0–45 ℃ (32–113 ℉); Storage Temp: -40–70 ℃ (-40–158 ℉); Operating Humidity: 10–90% RH non-condensing; Storage Humidity: 5–90% RH non-condensing |
Виж още Суич TP-Link
Виж всички Суич в категорията
Технически характеристики
| Брой портове: | 28 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | 802.3x |
| Управляем: | Да |
