Name: Суич TP-Link TL-SG2210P-V5.0, 1000 Mbps, 10 порта, 8x 10/100/1000Mbps RJ45, 2x SFP
Brand: TP-Link
SKU: NTLHTPLINKTLSG2210PV50
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

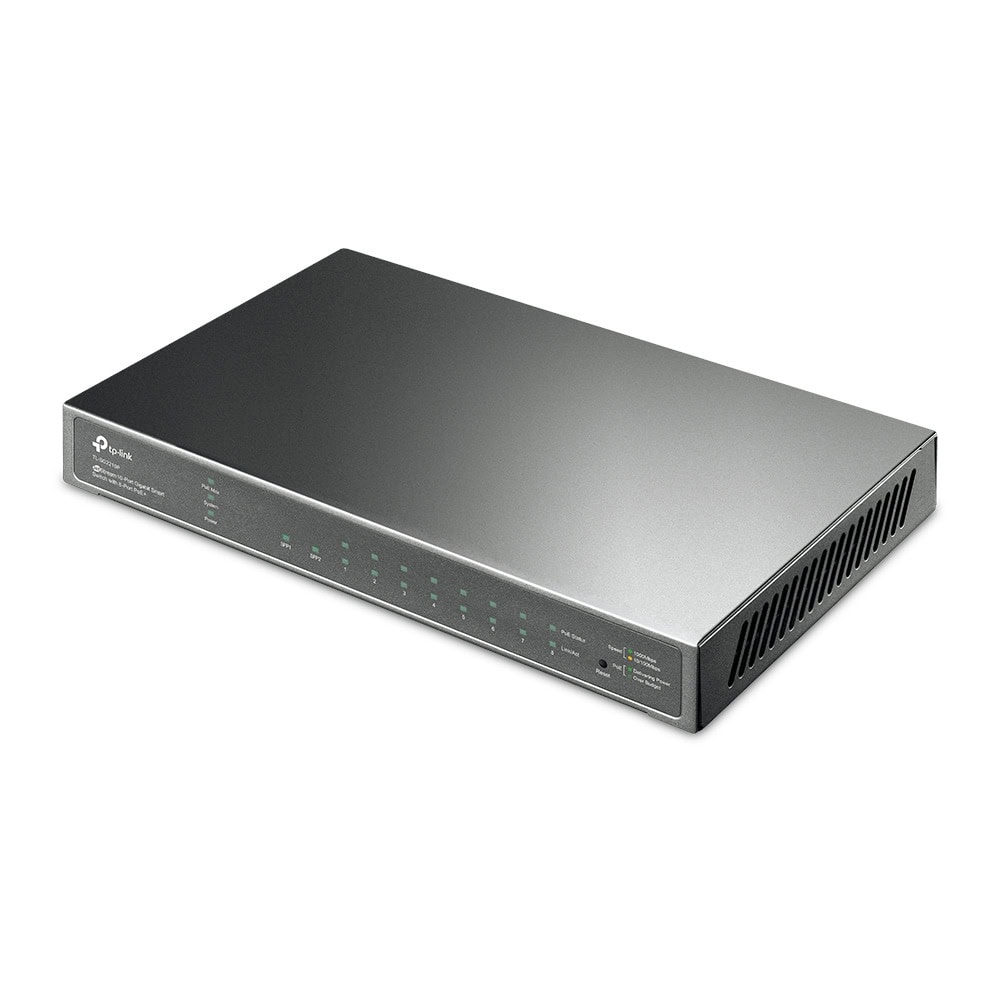

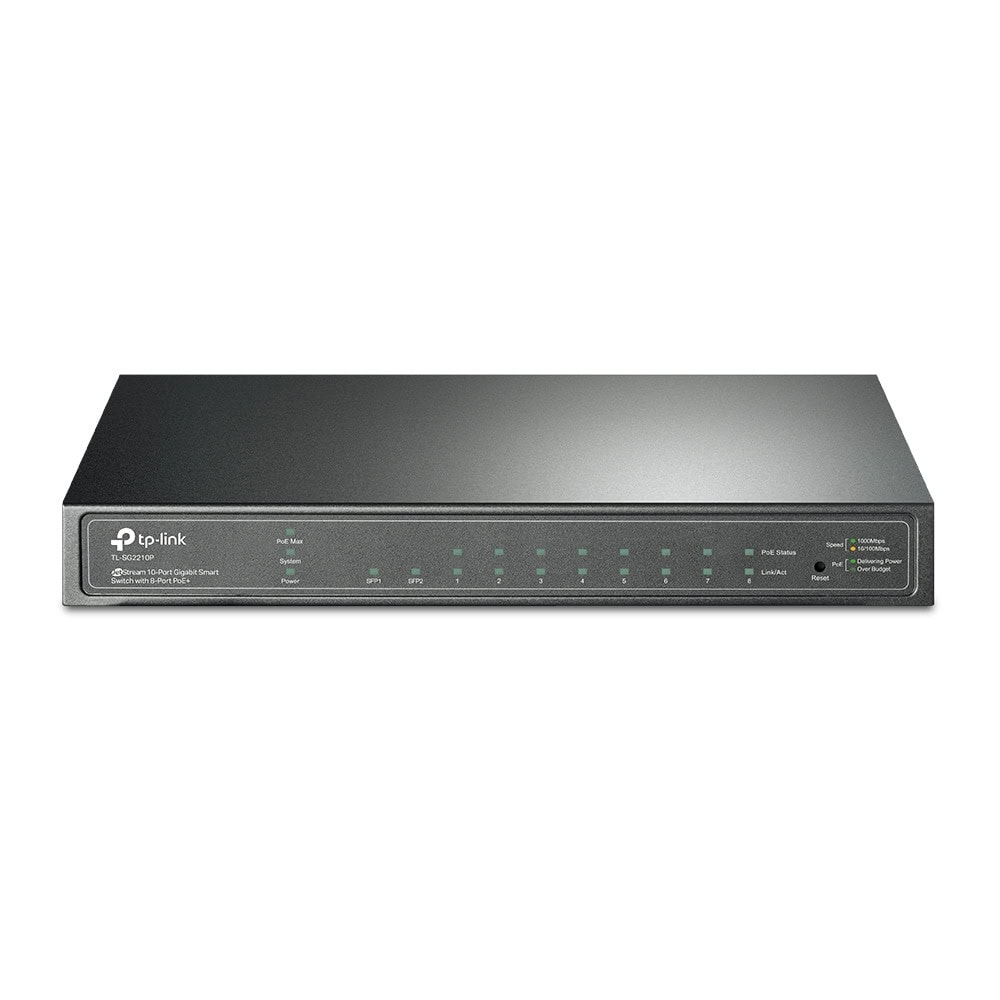

TP-Link TL-SG2210P-V5.0

JetStream 10-Port Gigabit Smart Switch with 8-Port PoE+

61 W PoE Budget: 8× 802.3af/at-compliant PoE+ ports with a total power supply of 61 W*.
Full Gigabit Ports: 8× gigabit PoE+ ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)**, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm Control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimized Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Versatile Management: WEB/CLI managed modes, SNMP, and RMON bring abundant management features.

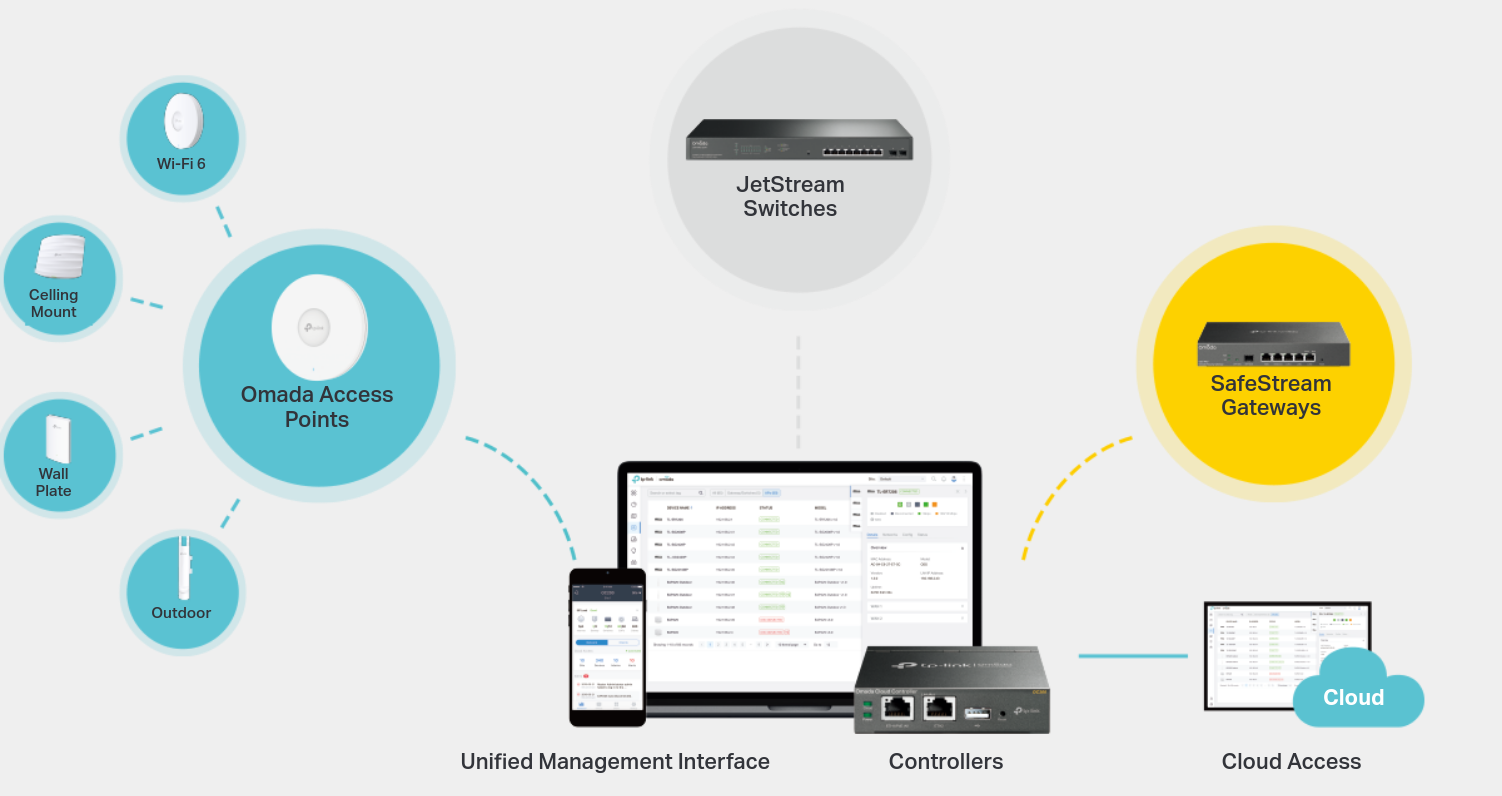

Software Defined Networking (SDN) with Cloud Access

Omada’s Software Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.

Категория	Спецификации
Стандарти и протоколи	IEEE 802.3i, 802.3u, 802.3z, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3x, 802.1d, 802.1s, 802.1w, 802.1q, 802.1p, 802.1x

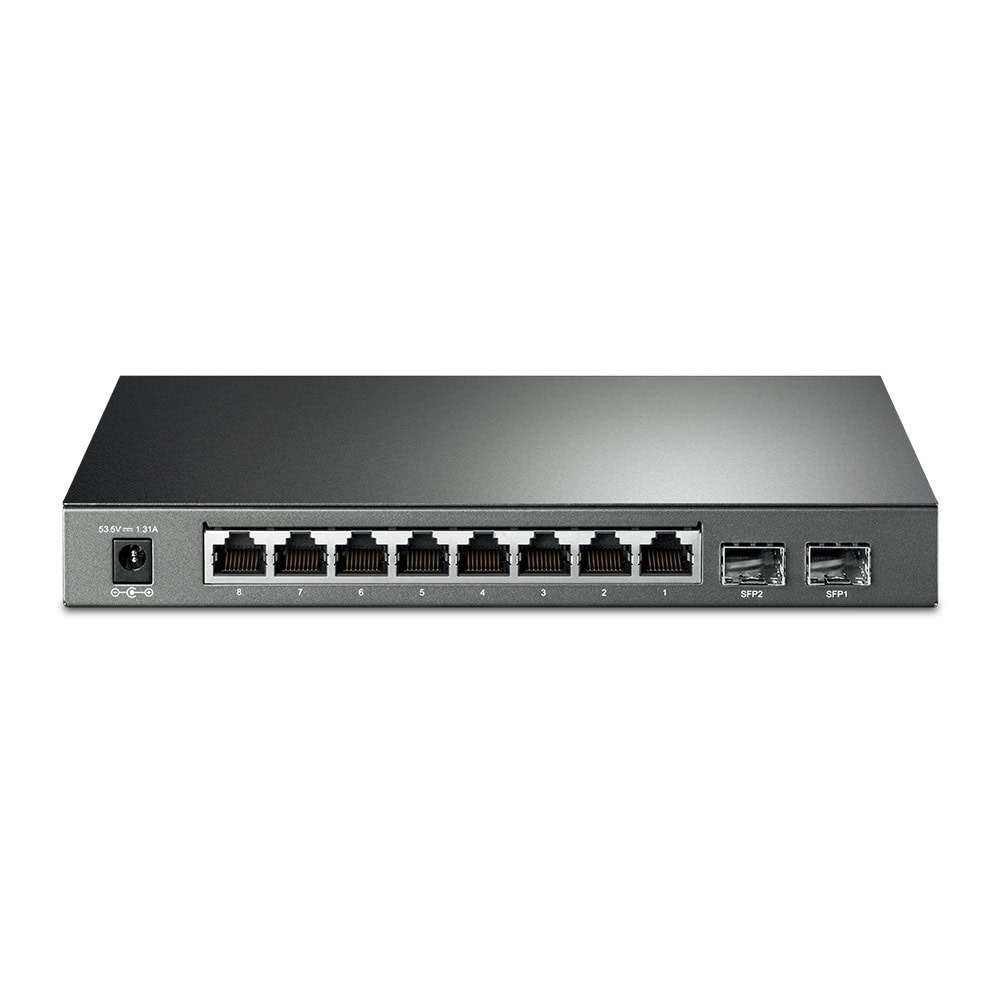

Интерфейси	8× 10/100/1000 Mbps RJ45 (Auto-Negotiation/Auto MDI/MDIX), 2× 1000 Mbps SFP
Мрежова медия	10BASE-T: Cat 3/4/5 (макс. 100 м); 100/1000BASE-T: Cat 5/5e+ (макс. 100 м); 1000BASE-X: MMF, SMF
Вентилатори	Fanless
Захранване	100~240VAC, 50/60Hz, външен адаптер (Output: 53.5VDC/1.31A)
PoE портове	8 порта, стандарт 802.3af/at, захранване: до 61 W
Макс. консумация на енергия	V3.2: 76.5 W; V4: 74.4 W; V5: 77.8 W
Празна консумация	10.3 W (без свързани PD)
Разсейване на топлина (макс.)	V3.2: 261.02 BTU/h; V4: 253.89 BTU/h; V5: 265.3 BTU/h
Размери (Ш×Д×В)	209 x 126 x 26 мм (8.2 x 4.9 x 1.0 in)
Монтаж	Desktop / Wall-Mounting
Комутационен капацитет	20 Gbps
Пропускателна способност	20 Gbps
Скорост на предаване на пакети	14.88 Mpps
MAC адресна таблица	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
QoS	802.1p CoS/DSCP, 8 опашки, SP/WRR, Bandwidth Control, Storm Control
L2/L2+ функции	DHCP Server/Relay, Static Routing (IPv4/IPv6), STP/RSTP/MSTP, Link Aggregation (до 8 групи), Port Mirroring, LLDP/LLDP-MED
Разширени функции	Batch Config & Upgrade, Device Discovery, Event Warnings, Unified Config, Reboot Schedule
VLAN	До 4K VLAN групи, 802.1Q, MAC VLAN (12), Protocol VLAN, Voice VLAN, GVRP
ACL (Контрол на достъп)	До 230 правила, MAC/IP/IPv6 ACL, Time-based, QoS, Redirect, Mirror, VLAN/Port Binding
Сигурност	AAA, 802.1X (Port/MAC), Radius, IP/IPv6-MAC Binding, DHCP Snooping, ARP Inspection, IP Source Guard, DoS защита, Port Isolation, HTTPS, SSH
IPv6 функции	IPv6 Routing & ACL, MLD Snooping, ND, Ping6, Traceroute6, IPv6 SSH/SSL/Telnet, DHCPv6, IPv6 SNMP
Поддържани MIB	MIB II (RFC1213), Bridge MIB (RFC1493), Radius MIB, RMON (1,2,3,9), TP-Link Private MIBs
Управление (Omada)	Omada App, Cloud Controller, OC200/OC300, Software Controller, Zero-Touch Provisioning (без v4)
Управление (допълнително)	Web GUI, CLI (Telnet), SNMPv1/v2c/v3, Trap/Inform, DHCP Client, Dual Image, CPU Monitoring, Cable Diagnostics, SNTP
Сертификати	CE, FCC, RoHS
Пакет	TL-SG2210P, захранващ адаптер, ръководство, гумени крачета
Системни изисквания	Windows 98SE и нагоре, Mac OS, NetWare, UNIX, Linux
Околна среда	Раб. темп.: 040°C; Съхр. темп.: -4070°C; Раб. влажност: 1090%; Съхр. влажност: 590% (без кондензация)
