Name: Суич TP-Link SG2218, 1000Mbps, 18 порта, 16x 10/100/1000Mbps RJ45, 2x SFP
Brand: TP-Link
SKU: NTLHTPLINKSG2218
Price: 137.23 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

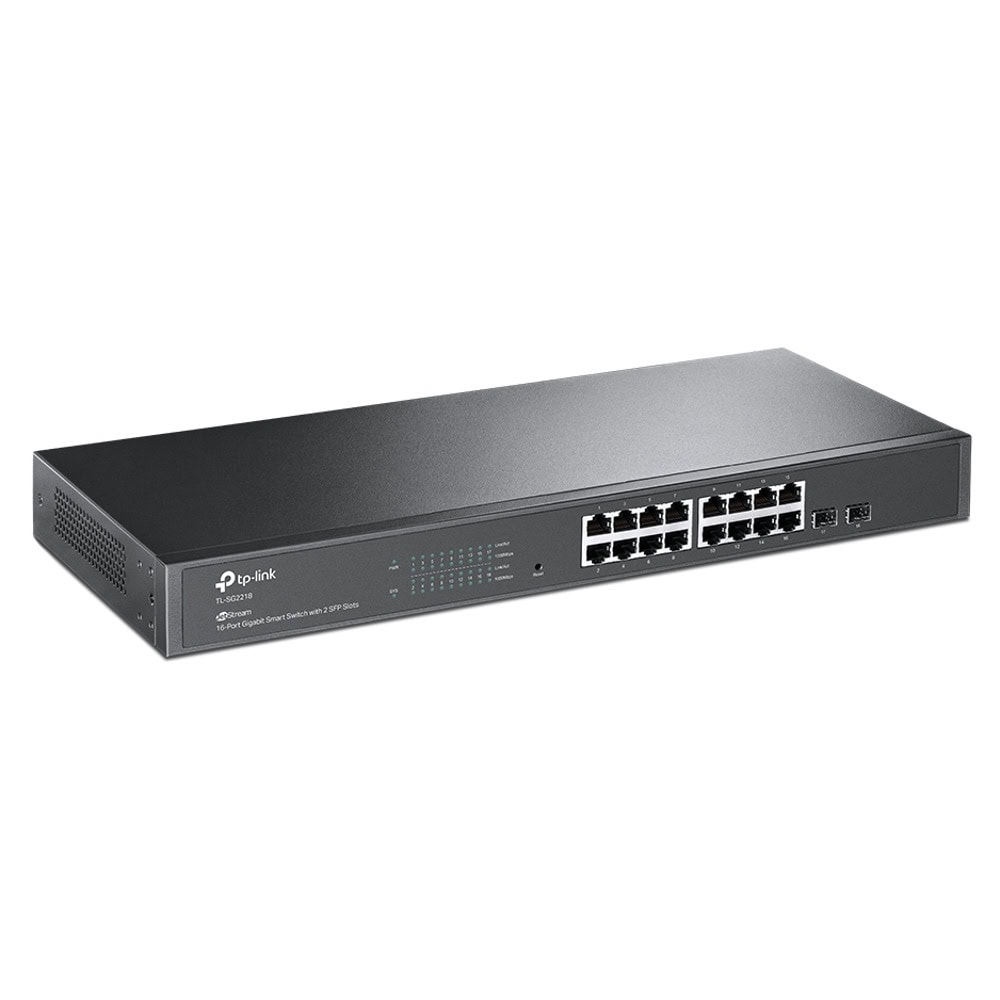

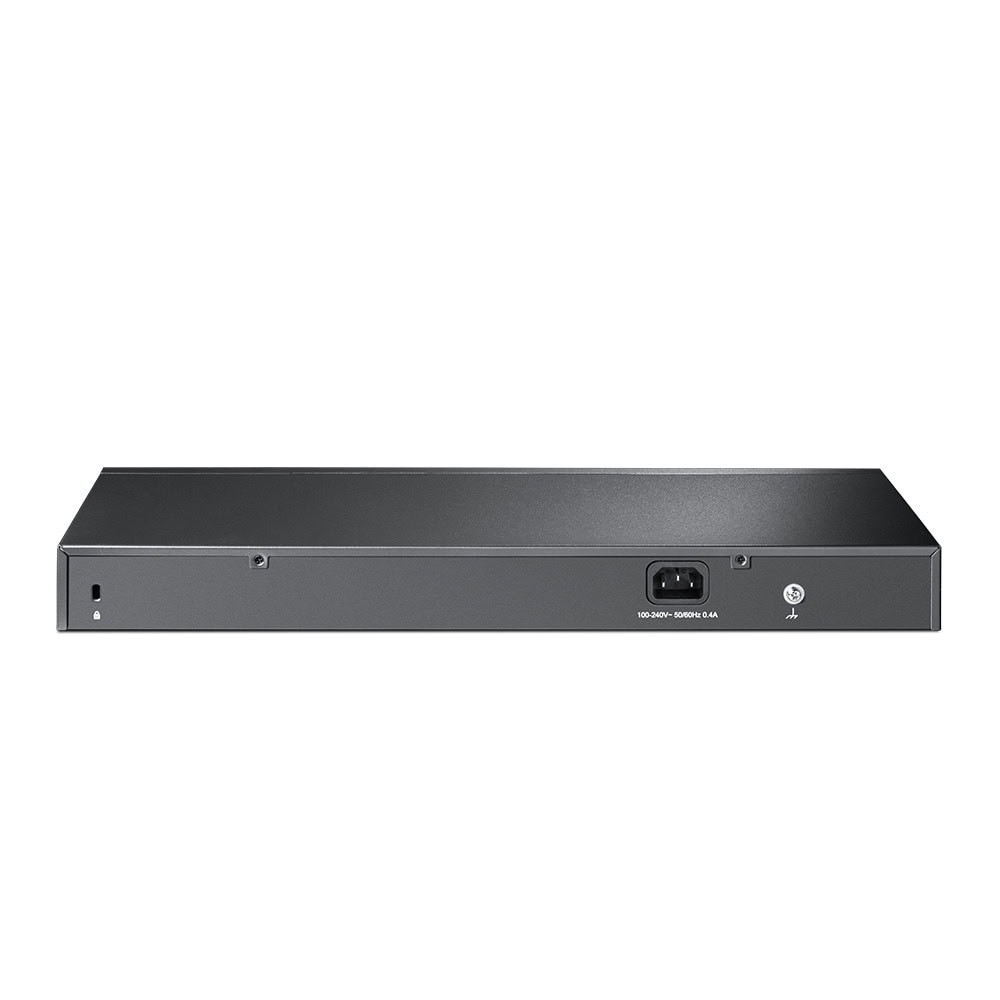

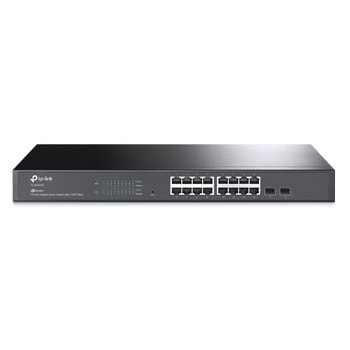

TP-Link SG2218

JetStream 16-Port Gigabit Smart Switch with 2 SFP Slots

Full Gigabit Ports: 16× gigabit RJ45 ports and 2× gigabit SFP Slots provide high-speed connections.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP)*, Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Static Routing: Helps route internal traffic for more efficient use of network resources.
Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.
Standalone Management: Web, CLI (Telnet, SSH), SNMP, RMON, and Dual Image bring powerful management capabilities

Advanced L3 Features**

An abundance of L2+ and L3 features are supported to help build a highly scalable and robust network, providing a reliable and efficient solution for enterprises, campuses and ISPs.

Category	Feature / Specification
HARDWARE FEATURES	Interface
	• 16× 10/100/1000 Mbps RJ45 Ports
	• 2× Gigabit SFP Slots
	Fan Quantity
	Fanless
	Power Supply
	100-240 V AC~50/60 Hz
	Dimensions (W x D x H)
	17.3 × 7.1 × 1.7 in. (440 × 180 × 44 mm)
	Mounting
	Rack Mountable
	Max Power Consumption
	12.3 W
	Max Heat Dissipation
	42.0 BTU/hr
PERFORMANCE	Switching Capacity
	36 Gbps
	Packet Forwarding Rate
	26.8 Mpps
	MAC Address Table
	8K
	Jumbo Frame
	9 KB
SOFTWARE FEATURES	Quality of Service
	• 8 priority queues
	• 802.1p CoS/DSCP priority
	• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
	• Bandwidth Control: Port/Flow based Rating Limiting
	• Smoother Performance
	• Action for Flows: Mirror, Redirect, Rate Limit, QoS Remark
	L3 Features
	• 16 IPv4/IPv6 Interfaces
	• Static Routing: 48 static routes
	• Static ARP, 316 ARP Entries, Proxy ARP, Gratuitous ARP
	• DHCP Server, DHCP Relay, DHCP L2 Relay
	L2 and L2+ Features
	• Link Aggregation: Static, 802.3ad LACP, up to 8 groups and 8 ports per group
	• Spanning Tree Protocol: 802.1d STP, 802.1w RSTP, 802.1s MSTP, STP Security features
	• Loopback Detection: Port-based, VLAN based
	• Flow Control: 802.3x, HOL Blocking Prevention
	• Mirroring: Port, CPU, One-to-One, Many-to-One, Tx/Rx/Both
	L2 Multicast
	• Supports 511 IGMP groups (IPv4, IPv6), IGMP Snooping v1/v2/v3, Fast Leave, Querier, Authentication
	• MVR, MLD Snooping v1/v2, Fast Leave, Querier, Static Group Config, Limited IP Multicast
	• Multicast Filtering: 256 profiles, 16 entries per profile
	Advanced Features
	• Support Omada Hardware/Software/Cloud-Based Controllers
	• Automatic Device Discovery, Batch Config/Firmware Upgrade, Intelligent Monitoring, Event Warnings, Unified Config, Reboot
	• ZTP (Zero-Touch Provisioning)*
	VLAN
	• Max 4K VLAN Groups, 802.1q Tagged VLAN, MAC VLAN (12 entries), Protocol VLAN (16 templates)
	• GVRP, VLAN VPN (QinQ), Voice VLAN
	Access Control List
	• Time-based ACL, MAC ACL (source/destination MAC, VLAN ID, user priority, ether type)
	• IP ACL (source/destination IP, fragment, protocol, TCP flag, ports, DSCP, user priority)
	• Combined ACL, Packet Content ACL, IPv6 ACL
	• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
	• ACL apply to Port/VLAN
	Security
	• IP-MAC-Port Binding (DHCP Snooping, ARP Inspection, IPv4 Source Guard)
	• IPv6-MAC-Port Binding (DHCPv6 Snooping, ND Detection, IPv6 Source Guard)
	• DoS Defend
	• Static/Dynamic Port Security (up to 64 MAC addresses per port)
	• Broadcast/Multicast/Unicast Storm Control (kbps/ratio/pps control)
	• IP/Port/MAC based access control
	• 802.1X (port/mac authentication, VLAN assignment, MAB, guest VLAN, Radius support)
	• AAA (including TACACS+)
	• Port Isolation
	• Secure web management (HTTPS SSLv3/TLS 1.2), Secure CLI (SSHv1/2)
	IPv6
	• Dual IPv4/IPv6, MLD Snooping, IPv6 ACL, IPv6 Interface, Static IPv6 Routing, Neighbor Discovery, MTU discovery
	• ICMPv6, TCPv6/UDPv6, DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
	Management
	• Web-based GUI, CLI (console/telnet), SNMP v1/v2c/v3, Trap/Inform, RMON (1,2,3,9), SDM Template
	• DHCP/BOOTP Client, 802.1ab LLDP/LLDP-MED, DHCP AutoInstall, Dual Image/Dual Configuration
	• CPU Monitoring, Cable Diagnostics, EEE, Password Recovery, SNTP, System Log
	MIBs
	• MIB II (RFC1213), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), Radius Accounting & Authentication Client MIBs (RFC2618/2620)
	• Remote Ping, Traceroute MIB (RFC2925), TP-Link private MIBs, RMON MIB (RFC1757)
MANAGEMENT	Omada App
	Yes, through Omada Cloud-Based Controller (not supported by TL-SG2210P v4), OC300, OC200, Omada Software Controller
	Centralized Management
	Omada Cloud-Based Controller (not supported by TL-SG2210P v4), Hardware Controllers OC300/OC200, Software Controller
	Cloud Access
	Yes, through Omada Cloud-Based Controller (not supported by TL-SG2210P v4), OC300, OC200, Software Controller
	Zero-Touch Provisioning
	Yes. Requires Omada Cloud-Based Controller (Supported by TL-SG2210P v3.2, v5+, not by v4)
	Management Features
	Web GUI, CLI (telnet), SNMP v1/v2c/v3, SNMP Trap/Inform, RMON (1,2,3,9), SDM Template, DHCP/BOOTP Client
	Dual Image/Dual Configuration, CPU Monitoring, Cable Diagnostics, EEE, SNTP, System Log
OTHERS	Certification
	CE, FCC, RoHS
	System Requirements
	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™, Windows 7/8/10/11, MAC® OS, NetWare®, UNIX®, Linux
