TP-Link SG2016P
Икона в кампания
TP-Link SG2016PTP-Link SG2016PTP-Link SG2016Pempty image 3

Суич TP-Link SG2005P-PD, 1000Mbps, 16 порта, 16x 10/100/1000Mbps RJ45 (8x PoE)

id 289086 Код: NTLHTPLINKSG2016P
  • Модел: SG2016P
  • Марка: TP-Link
  • Брой портове: 16
  • Максимална скорост: 1 Gbit/s
  • Стандарт: 802.3x
  • Управляем: Да
  • Гаранция: 24 месеца
  • Наличност: Не е наличен
    Продукта вече не се предлага Виж подобни предложения Абонирай се за бюлетина

    Печат

    Изпрати на приятел

    ОписаниеХарактеристикиРевюта / ВъпросиДокументация

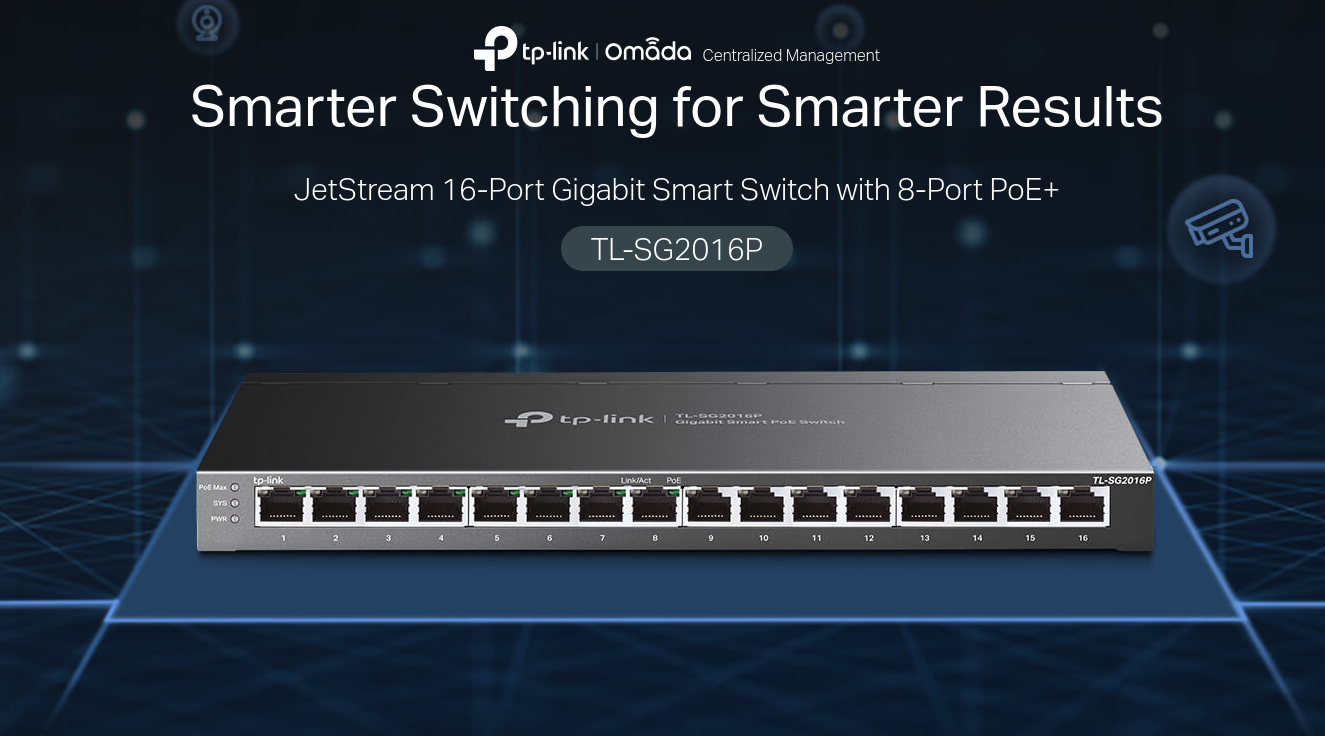

    TL-SG2016P

    JetStream 16-Port Gigabit Smart Switch with 8-Port PoE+

    • 120 W PoE Budget: 8× 802.3at/af-compliant PoE+ ports with a total power supply of 120 W*.
    • Full Gigabit Ports: 8× gigabit PoE+ ports and 8× gigabit non-PoE ports provide high-speed connections.
    • Integrated into Omada SDN: Zero-Touch Provisioning**, Centralized Cloud Management, and Intelligent Monitoring.
    • Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
    • Robust Security Strategies: IP-MAC-Port Binding, ACL, Port Security, DoS Defend, Storm control, DHCP Snooping, 802.1X, Radius Authentication, and more.
    • Optimize Voice and Video Applications: L2/L3/L4 QoS and IGMP snooping.

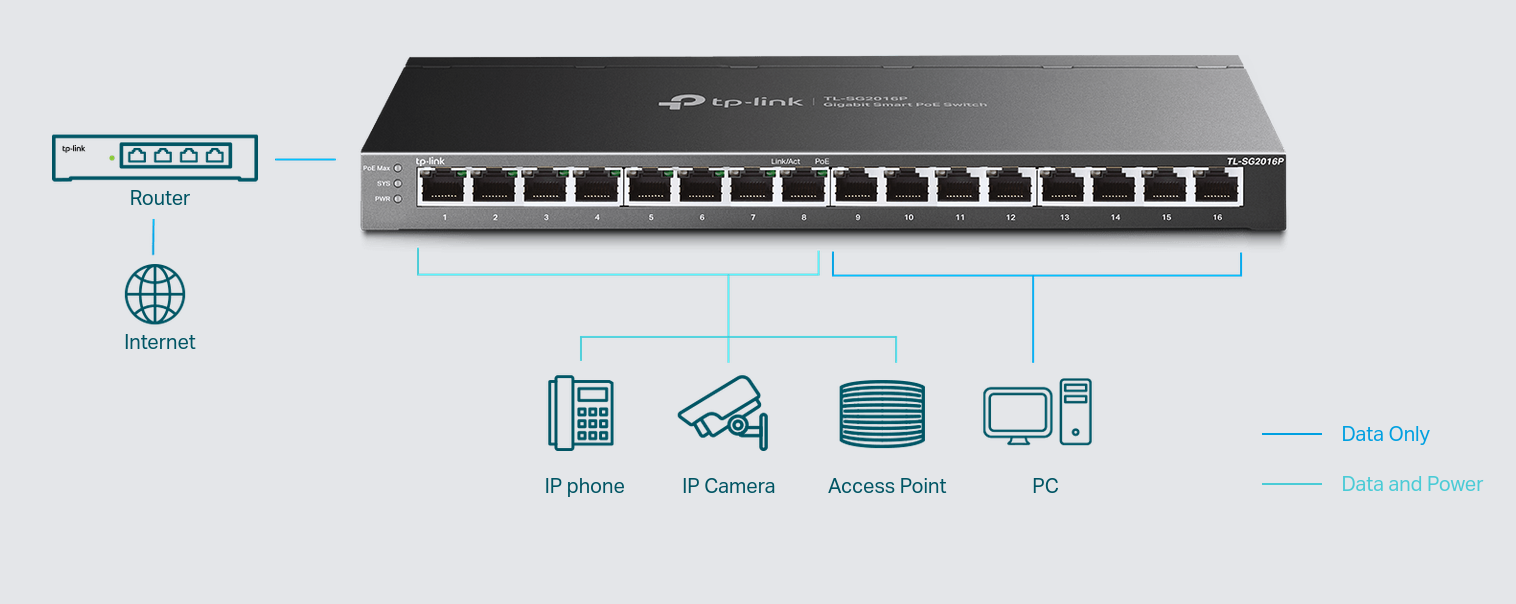

    Multiple Application Scenarios

    The TL-SG2016P is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices to provide gigabit connections, such as PCs, printers, and IPTV.





    Power over Ethernet for Simplified Network Deployment

    Features eight 802.3af/at compliant PoE+ ports, the switch supports up to 120 W total PoE power budget.* Designed to use a single Ethernet cable for both data and power transmission, it offers flexible deployment for PoE-supported devices such as wireless access points, IP cameras, and IP phones, lowering infrastructure costs for small businesses.





    Спецификации:

    ХАРДУЕРНИ ХАРАКТЕРИСТИКИ
    Стандарти и протоколиIEEE 802.3i, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1p, IEEE 802.1x
    Интерфейс• 16× 10/100/1000 Mbps RJ45 Ports (Ports 1–8 Support 802.3at/af PoE+)
    • Auto-Negotiation/Auto MDI/MDIX
    Мрежова медия• 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    • 100BASE-TX/1000Base-T: UTP category 5, 5e or above cable (maximum 100m)
    Брой вентилаториFanless
    Захранване• External Power Adapter (Output: 53.5 VDC/ 2.43 A)
    PoE портове (RJ45)• Standard: 802.3af/at compliant
    • PoE Ports: 8 Ports
    • Power Supply: 120 W*
    Размери (Ш x Д x В )11.3 x 4.4 x 1.0 in (286 x 111.7 x 25.4 mm)
    МонтажDesktop/Wall-Mounting
    Макс. консумация на енергия146.5 W (110 V/60 Hz) (with 120 W PD connected)
    Max Heat Dissipation499.98 BTU/hr (110 V/60 Hz) (with 120 W PD connected)
    ПРОИЗВОДИТЕЛНОСТ
    Bandwidth/Backplane16 Gbps
    Таблица на МАС адресите8k
    Packet Buffer Memory4.1 Mbit
    Jumbo кадър9 KB
    СОФТУЕРНИ ХАРАКТЕРИСТИКИ
    Качество на услугата• 802.1p CoS/DSCP priority
    • 8 priority queues
    • Priority Schedule Mode
    - SP (Strict Priority)
    - WRR (Weighted Round Robin)
    • Queue Weight Config
    • Bandwidth Control
    - Port/Flow-based Rating Limit
    • Smoother Performance
    • Storm Control
    - Multiple Control Modes(kbps/ratio)
    - Broadcast/Multicast/Unknown-Unicast Control
    L2 and L2+ Features• DHCP Relay
    - DHCP VLAN Relay
    • DHCP L2 Relay
    • Link Aggregation
    - Static link aggregation
    - 802.3ad LACP
    - Up to 8 aggregation groups and up to 8 ports
    per group
    • Spanning Tree Protocol
    - 802.1D STP
    - 802.1w RSTP
    - 802.1s MSTP
    - STP Security: TC Protect, BPDU Filter/Protect,
    Root Protect
    • Loopback Detection
    • Flow Control
    - 802.3x Flow Control
    • Mirroring
    - Port Mirroring
    - CPU Mirroring
    - One-to-One
    - Many-to-One
    - Flow-Based
    - Ingress/Egress/Both
    • Device Link Detect Protocol (DLDP)
    • 802.1ab LLDP/ LLDP-MED
    L2 Multicast• 511 IPv4, IPv6 shared multicast groups
    • IGMP Snooping
    - IGMP v1/v2/v3 Snooping
    - Fast Leave
    - IGMP Snooping Querier
    - Static Group Config
    • Multicast VLAN Registration (MVR)
    • Multicast Filtering
    • MLD Snooping
    - MLD v1/v2 Snooping
    - Fast Leave
    - MLD Snooping Querier
    - Static Group Config
    • Limited IP Multicast (256 profiles and 16 entries per profile)
    Разширени характеристики• Automatic Device Discovery
    • Batch Configuration
    • Batch Firmware Upgrading
    • Intelligent Network Monitoring
    • Abnormal Event Warnings
    • Unified Configuration
    • Reboot Schedule
    IPv6 Support• IPv6 Dual IPv4/IPv6
    • Multicast Listener Discovery (MLD) Snooping
    • IPv6 neighbor discovery (ND)
    • Path maximum transmission unit (MTU) discovery
    • Internet Control Message Protocol (ICMP)
    version 6
    • TCPv6/UDPv6
    • IPv6 applications
    - DHCPv6 Client
    - Ping6
    - Tracert6
    - Telnet (v6)
    - IPv6 SNMP
    - IPv6 SSH
    - IPv6 SSL
    - Http/Https
    - IPv6 TFTP
    VLAN• VLAN Group
    - Max. 4K VLAN Groups
    • 802.1Q tag VLAN
    • MAC VLAN: 12 Entries
    • Protocol VLAN
    • GVRP
    • Voice VLAN
    Access Control List• Support up to 230 entries
    • Time-Range
    - Time Slice
    - Week Time-Range
    - Absolute Time-Range
    - Holiday
    • Time-based ACL
    • MAC ACL
    - Source MAC
    - Destination MAC
    - VLAN ID
    - User Priority
    - Ether Type
    • IP ACL
    - Source IP
    - Destination IP
    - IP Protocol
    - TCP Flag
    - TCP/UDP Source Port
    - TCP/UDP Destination Port
    - DSCP/IP TOS
    • IPv6 ACL
    • Combined ACL
    • Rule Operation
    - Permit/Deny
    • Policy Action
    - Mirror
    - Rate Limit
    - Redirect
    - QoS Remark
    • ACL Rules Binding
    - Port Binding
    - VLAN Binding
    • Actions for flows
    - Mirror (to supported interface)
    - Redirect (to supported interface)
    - Rate Limit
    - QoS Remark
    Защита• AAA
    • 802.1X
    - Port-based authentication
    - MAC (Host) based authentication
    - Authentication Method includes PAP/EAP-MD5
    - MAB
    - Guest VLAN
    - Support Radius authentication and
    accountability
    • IP/IPv6-MAC Binding
    - 512 Binding Entries
    - DHCP Snooping
    - DHCPv6 Snooping
    - ARP Inspection
    - ND Detection
    • IP Source Guard
    - 253 Entries
    - Source IP+Source MAC
    • IPv6 Source Guard
    - 183 Entries
    - Source IPv6 Address+Source MAC
    • DoS Defend
    • Static/Dynamic/Permanent Port Security
    - Up to 64 MAC addresses per port
    • Broadcast/Multicast/Unicast Storm Control
    - kbps/ratio control mode
    • Port Isolation
    • Secure web management through HTTPS with
    SSLv3/TLS 1.2
    • Secure Command Line Interface (CLI)
    management with SSHv1/SSHv2
    • IP/Port/MAC-based access control
    MIBs• MIB II (RFC1213)
    • Bridge MIB (RFC1493)
    • P/Q-Bridge MIB (RFC2674)
    • Radius Accounting Client MIB (RFC2620)
    • Radius Authentication Client MIB (RFC2618)
    • Remote Ping, Traceroute MIB (RFC2925)
    • Support TP-Link private MIBs
    • RMON MIB(RFC1757, rmon 1,2,3,9)
    MANAGEMENT
    Omada AppYes, through
    • Omada Cloud-Based Controller
    • OC300
    • OC200
    • Omada Software Controller
    Centralized Management• Omada Cloud-Based Controller
    • Omada Hardware Controller (OC300)
    • Omada Hardware Controller (OC200)
    • Omada Software Controller
    Cloud AccessYes, through
    • Omada Cloud-Based Controller
    • OC300
    • OC200
    • Omada Software Controller
    Zero-Touch ProvisioningYes. Requiring the use of Omada Cloud-Based Controller
    Management Features• Web-based GUI
    • Command Line Interface (CLI) through telnet
    • SNMPv1/v2c/v3
    • SNMP Trap/Inform
    • RMON (1,2,3,9 groups)
    • SDM Template
    • DHCP/BOOTP Client
    • Dual Image, Dual Configuration
    • CPU Monitoring
    • Cable Diagnostics
    • EEE
    • SNTP
    • System Log
    ДРУГИ
    СертификатиCE, FCC, RoHS
    Системни изискванияMicrosoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
    Околна среда• Operating Temperature: 0–40 ℃ (32–104 ℉);
    • Storage Temperature: -40–70 ℃ (-40–158 ℉)
    • Operating Humidity: 10–90% RH non-condensing
    • Storage Humidity: 5–90% RH non-condensing




    Виж още Суич TP-Link
    Виж всички Суич в категорията
    Документация
    Технически характеристики
    Брой портове:  16
    Максимална скорост:  1 Gbit/s
    Стандарт:  802.3x
    Управляем:  Да
