Name: Суич TP-Link Omada SG2206MP, 1000Mbps, 6 порта, 5x 10/100/1000Mbps RJ-45 (4x PoE+), 1x SFP
Brand: TP-Link
SKU: NTLHTPLINKSG2206MP
Price: 115.09 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Вземи на изплащане

SG2206MP

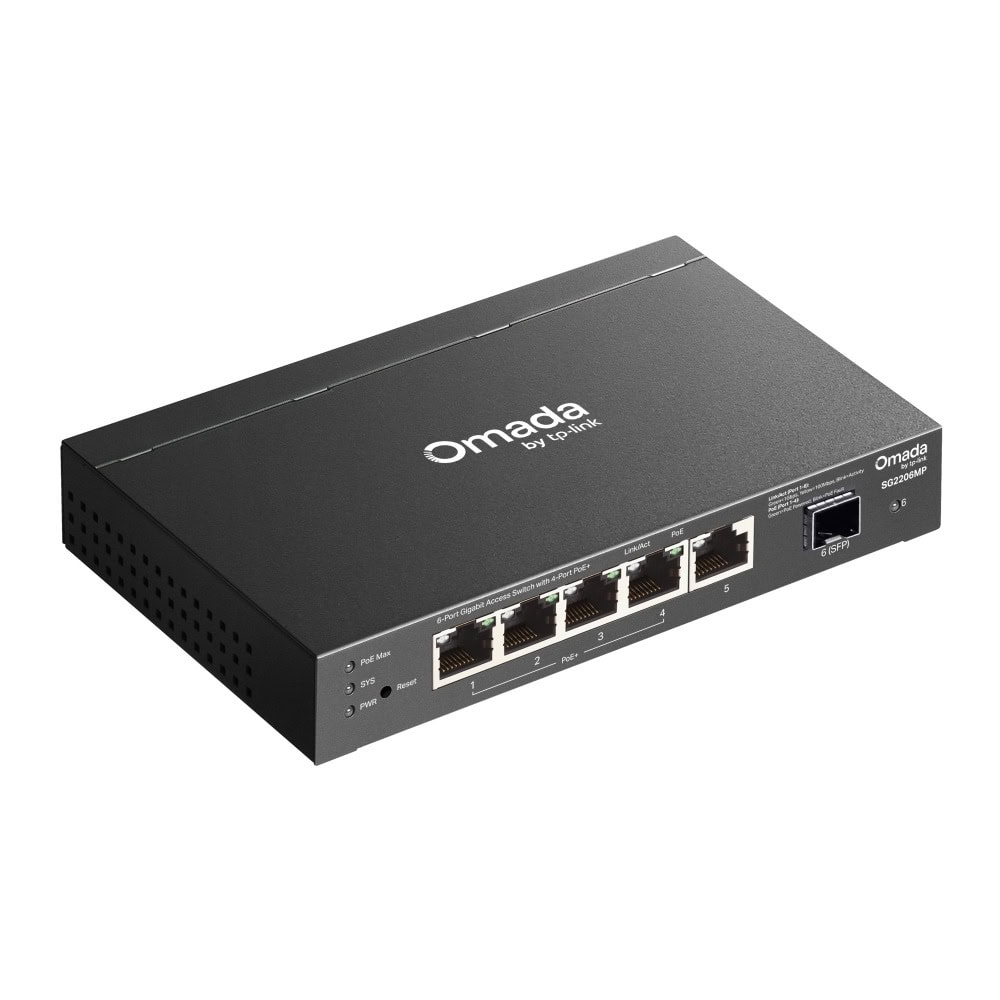

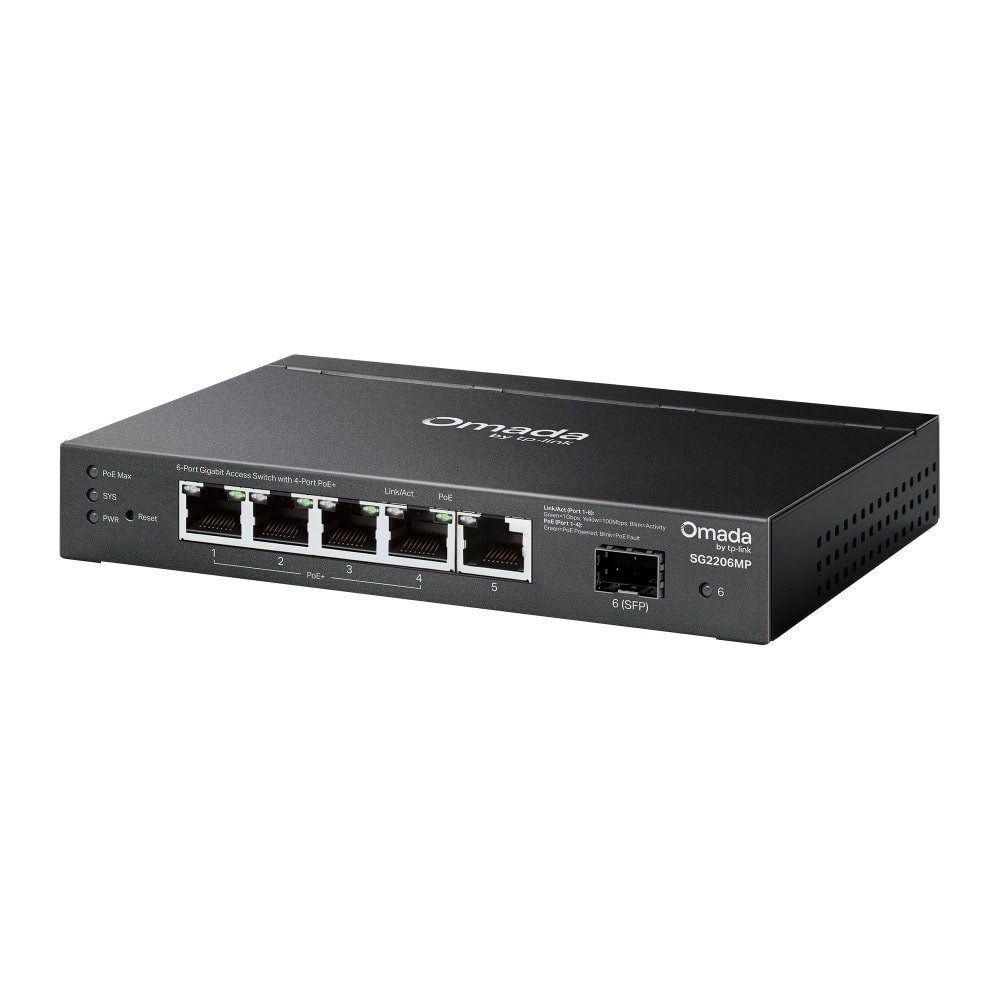

Omada Access 6-Port Gigabit Switch with 4-Port PoE+

5× Gigabit RJ45 ports (4× PoE+) and 1× Gigabit SFP slot
63W total PoE budget with up to 30W for each PoE+ port*
Centralized cloud management via the web or the Omada app†
Standalone management via web, CLI, SNMP, and RMON
Static Routing helps route internal traffic for higher efficiency
VLAN, ACL, QoS, and IGMP Snooping
Durable metal casing and desktop/wall mounting design

Category	Specification
HARDWARE FEATURES
Interface	• 4× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× 10/100/1000 Mbps RJ45 Port • 1× Gigabit SFP Slot
Physical Security Lock	√

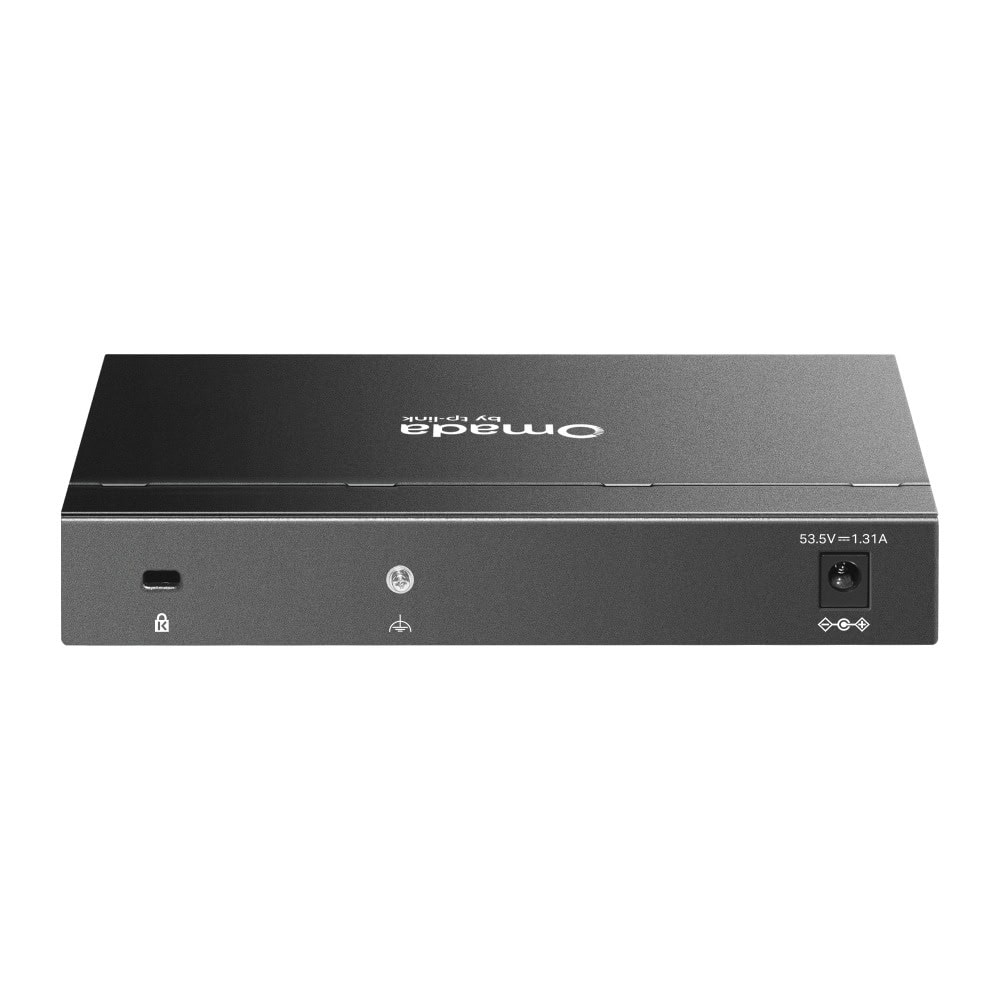

Power Supply	53.5 VDC / 1.31 A
PoE Ports (RJ45)	• Standard: 802.3at/af compliant • PoE+ Ports: 4 Ports • PoE Power Budget: 63 W* • Fast PoE • Perpetual PoE
Dimensions (W × D × H)	6.2 × 4.0 × 1.0 in (158 × 100.7 × 25.4 mm)

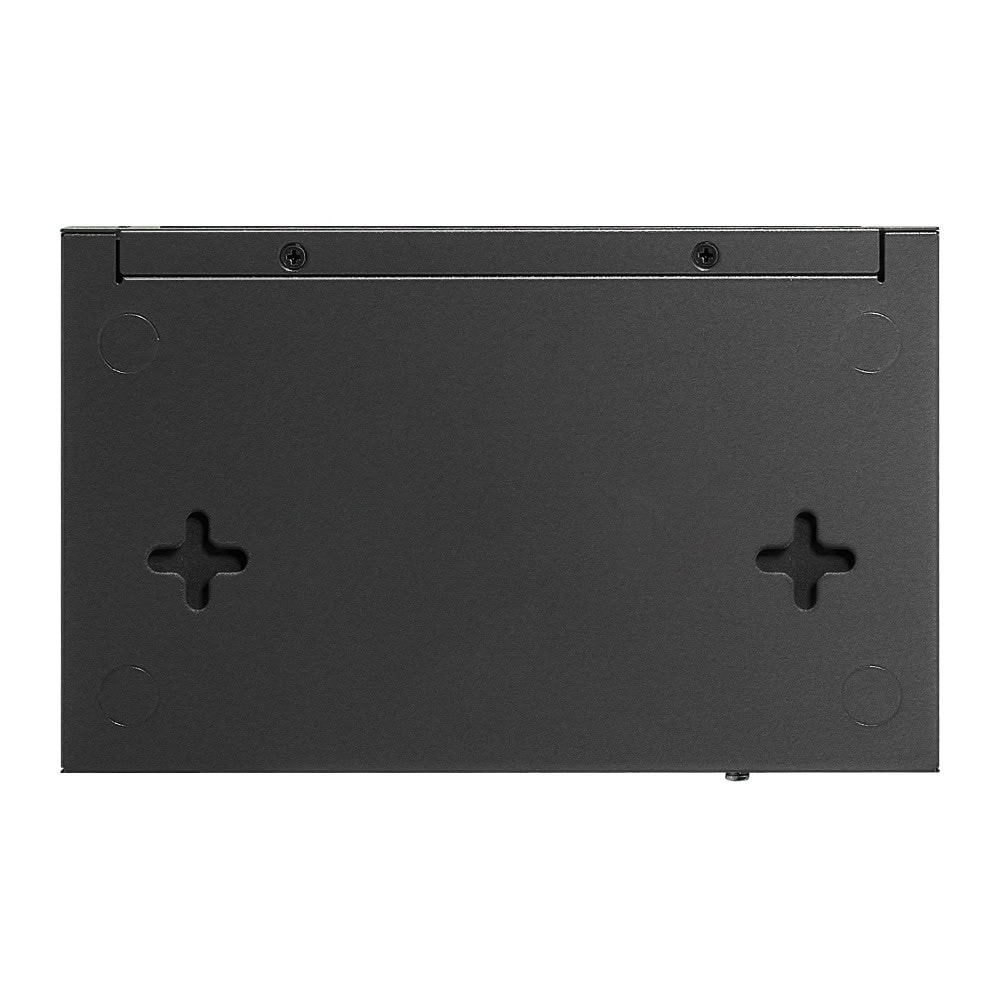

Mounting	Desktop / Wall Mounting
Max. Power Consumption	73.7 W (110V/60Hz) (with 63 W PD connected)
Max. Heat Dissipation	250.4 BTU/hr (110V/60Hz) (with 63 W PD connected)
PERFORMANCE
Switching Capacity	12 Gbps
Packet Forwarding Rate	8.93 Mpps
MAC Address Table	8K
Packet Buffer Memory	4.1 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• 802.1p CoS/DSCP priority • 8 priority queues • Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control (Port/Flow based Rating Limit) • Storm Control (Multiple Control Modes kbps/ratio, Broadcast/Multicast/Unknown-Unicast Control)
L2 and L2+ Features	• 16 IP Interfaces (IPv4/IPv6) • Static Routing: 32 IPv4/IPv6 Static Routes • DHCP Server / Relay (Interface/VLAN/L2 Relay) • Static/Proxy/Gratuitous ARP • Link Aggregation • Spanning Tree Protocol (STP, RSTP, MSTP) with protections • Loopback Detection • 802.3x Flow Control • Mirroring • DLDP • LLDP/LLDP-MED
L2 Multicast	• 511 IPv4/IPv6 multicast groups • IGMP Snooping • Multicast VLAN Registration (MVR) • Multicast Filtering • Limited IP Multicast (256 profiles / 16 entries each)
Advanced Features	• Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrade† • Intelligent Network Monitoring† • Abnormal Event Warnings† • Unified Configuration† • Reboot Schedule†
VLAN	• VLAN Groups: up to 4K • 802.1Q Tag VLAN • MAC VLAN (16 Entries) • Protocol VLAN • GVRP • Voice VLAN
Access Control List	• Up to 230 entries • Time-Range / Time-based ACL • MAC/IP/IPv6 ACL • Combined ACL • Permit/Deny Rules • Actions: Mirroring, Redirect, Rate Limit, QoS Remark • Binding: Port/VLAN
Security	• IP-MAC-Port Binding • AAA, 802.1X (Port/MAC auth, PAP/EAP-MD5, MAB, Guest VLAN, RADIUS) • IP/IPv6-MAC Binding (512 entries) • DHCP/DHCPv6 Snooping • ARP/ND Inspection & Snooping • IP/IPv6 Source Guard (253 IPv4, 183 IPv6 entries) • DoS Defend • DHCP Filter • Port Security (Static/Dynamic/Permanent, 64 MAC/port) • Storm Control (Broadcast/Multicast/Unicast, kbps/ratio) • Port Isolation • Secure HTTPS (SSLv3/TLS 1.2) • SSHv1/v2 CLI • IP/Port/MAC Access Control
IPv6	• IPv6 Static Routing & ACL • Dual IPv4/IPv6 • IPv6 Interface • MLD Snooping • Neighbor Discovery • MTU Discovery • ICMPv6 • TCPv6/UDPv6 • Apps: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), SNMPv6, SSHv6, SSLv6, HTTP/HTTPS, TFTPv6
MIBs	• MIB II (RFC1213) • Bridge MIB (RFC1493) • P/Q-Bridge MIB (RFC2674) • RADIUS MIBs (Auth & Accounting) • Remote Ping/Traceroute MIB (RFC2925) • TP-Link Private MIBs • RMON (RFC1757, groups 1,2,3,9)
MANAGEMENT FEATURES
Omada App	Yes (requires Omada Controller)
Centralized Management	• Omada Cloud-Based Controller (≥v5.15.22) • Omada Hardware Controller (≥v5.15.20) • Omada Software Controller (≥v5.15.20)
Cloud Access	Yes (via Omada Controller)
Zero-Touch Provisioning	Yes (via Omada Cloud-Based Controller)
Management Tools	• Web GUI • CLI (Telnet) • SNMP v1/v2c/v3 with Trap/Inform • RMON (1,2,3,9) • SDM Template • DHCP/BOOTP Client • Dual Image/Dual Config • CPU Monitoring • Cable Diagnostics • IEEE 802.1az EEE • SNTP • System Log • DDM • OAM
OTHERS
Certification	CE, FCC, RoHS
Package Contents	• SG2206MP • Power Adapter • Power Cord • Rackmount Kit • Rubber Feet • Installation Guide
System Requirements	Windows 98SE/NT/2000/XP/Vista/7/8/10/11, macOS, NetWare, UNIX, Linux
Environment	• Operating Temp: -5–40 ℃ (23–104 ℉) • Storage Temp: -40–70 ℃ (-40–158 ℉) • Operating Humidity: 10–90% RH non-condensing • Storage Humidity: 5–90% RH non-condensing
