Name: Контролер TP-Link Omada OC220, 2x 10/100/1000Mbps RJ-45, 1x USB 2.0
Brand: TP-Link
SKU: NTWBTPLINKOC220
Availability: OutOfStock

Описание Характеристики Ревюта / Въпроси

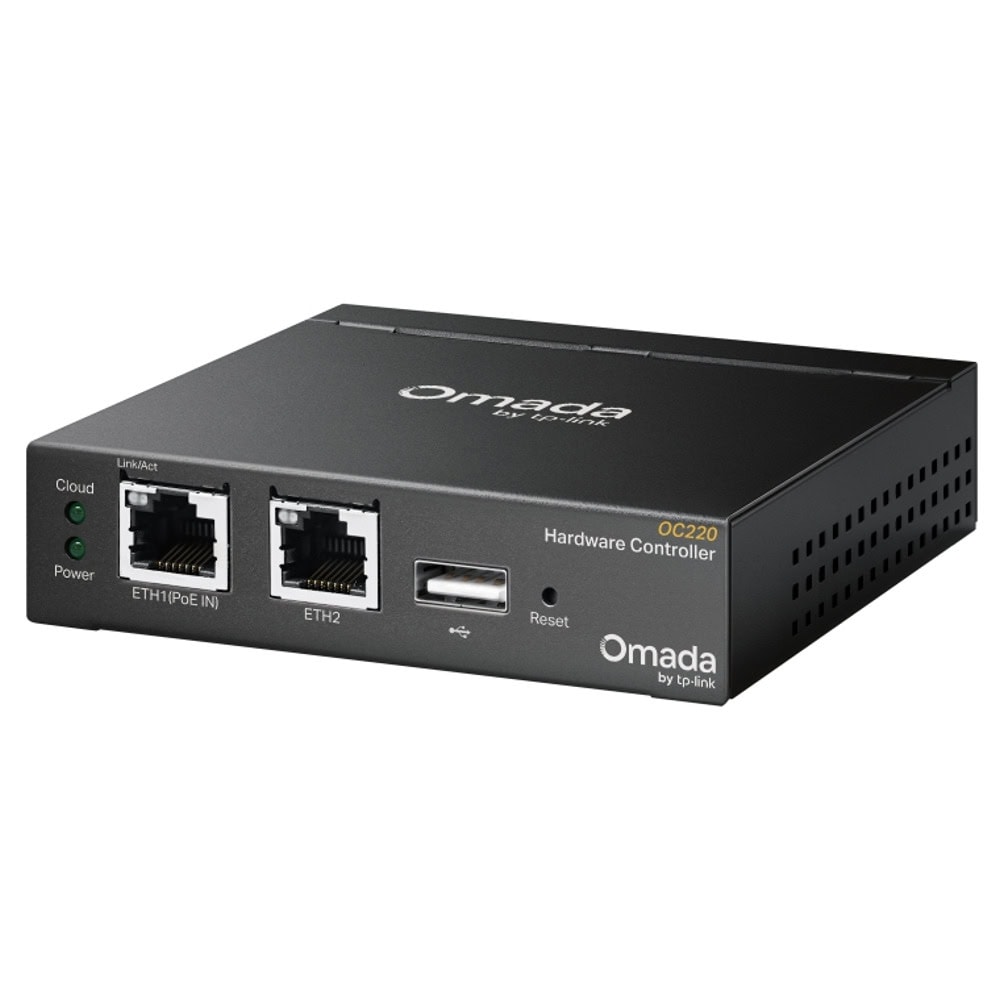

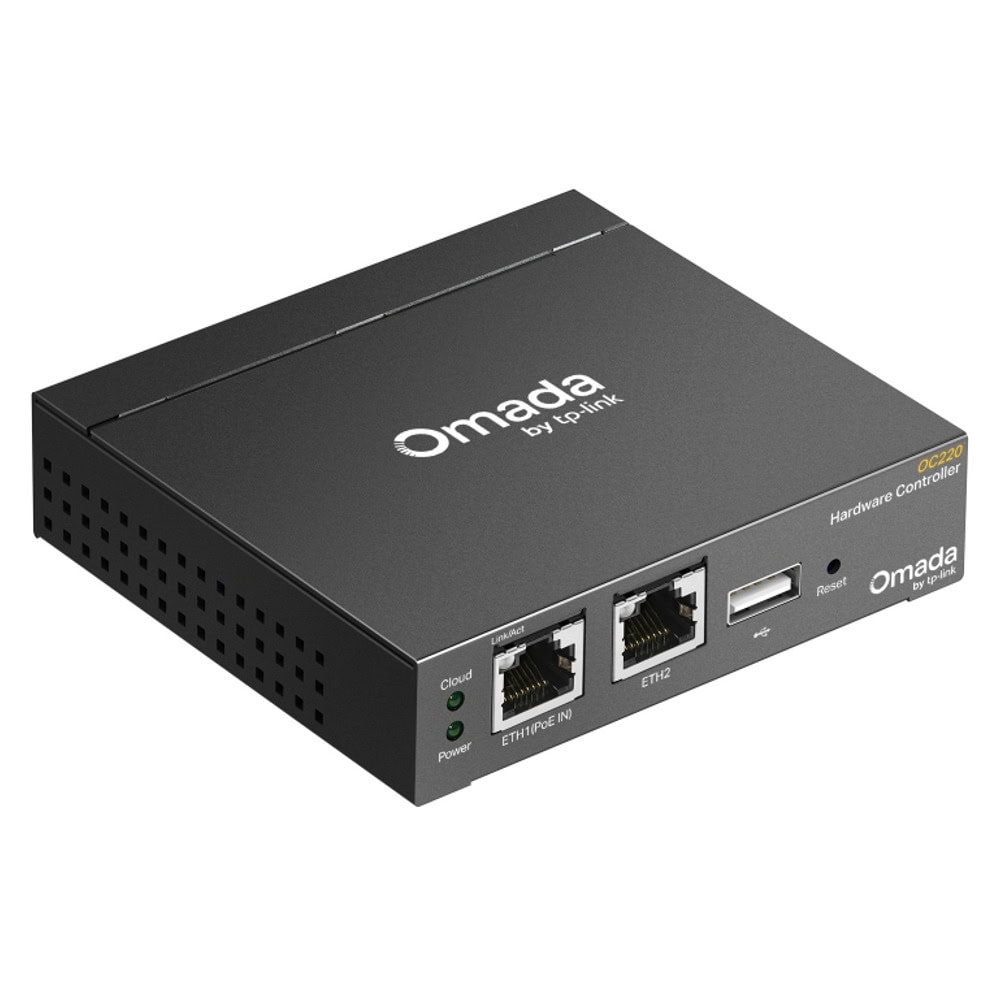

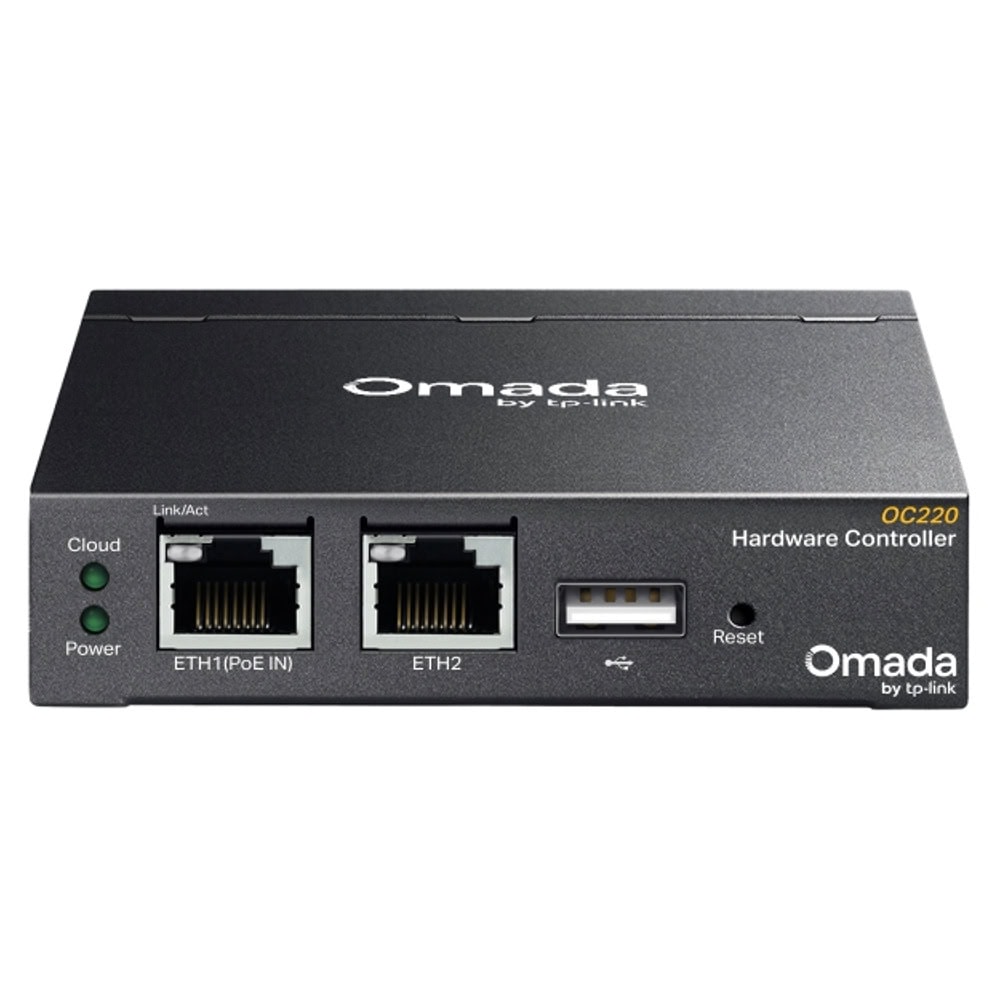

TP-Link Omada OC220

Centralized Cloud Management: Supports up to 100 Omada access points, 10 Omada gateways, a maximum of 20 Omada switches, and a maximum of 2 certain DeltaStream GPON OLTs.*
Free Cloud Access: Manage and monitor with the Omada app or Web UI from anywhere, anytime.
On-Premises Management: Locally monitor and manage devices with the ultimate stability and complete privacy.

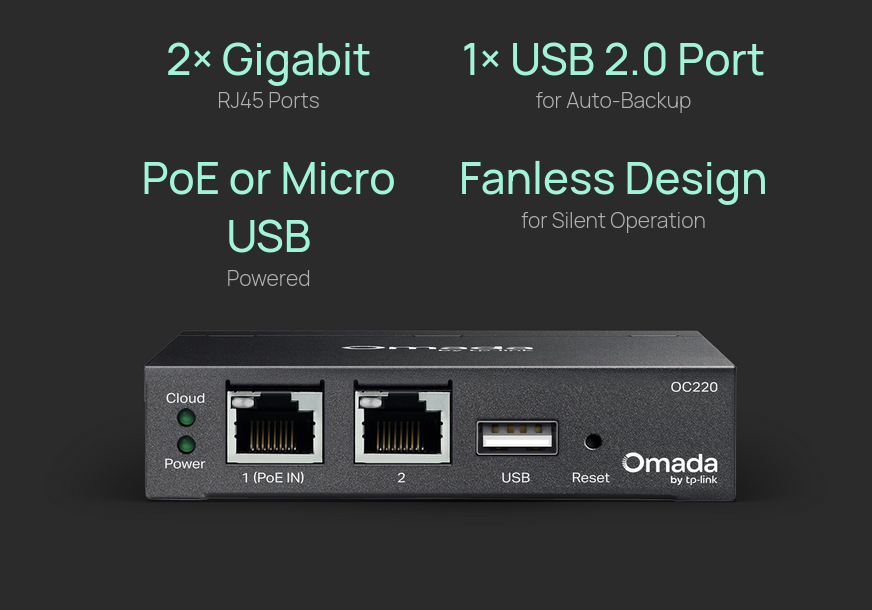

Hardware Design for Businesses: Features a powerful chipset, durable metal casing, USB 2.0 port for data backup, and 2× Gigabit Ethernet ports.

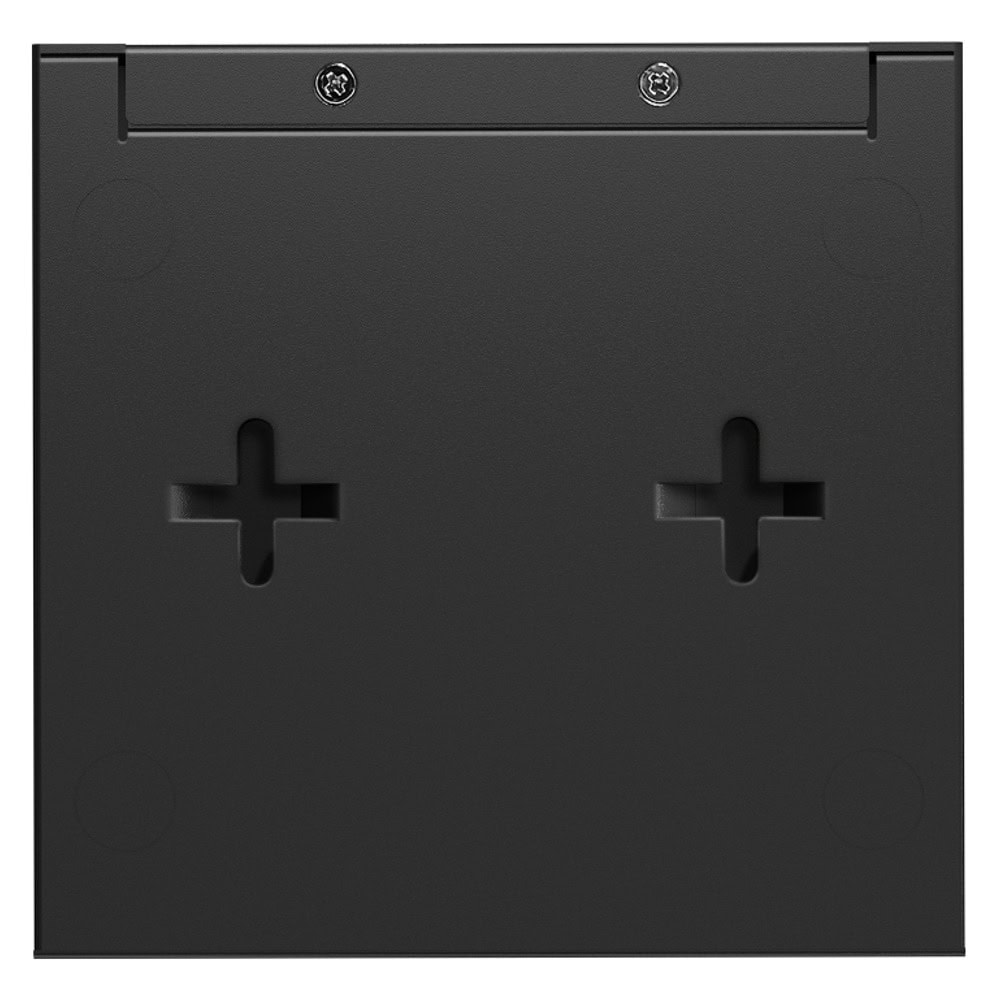

Flexible Deployment: Powerd via 802.3af/at PoE or Micro USB (DC 5 V / Minimum 1 A) with a compact desktop or wall mount installation.

Industry-Leading
Hardware Design

Equipped with an advanced design and the latest chipset, the Omada OC220 delivers more than enough processing
power to support massive network management—while its enterprise‑grade reliability ensures uninterrupted, 24/7 operation under heavy loads. It features 802.3af PoE input or Micro USB power supply for easier and flexible installation.

Specification	Details
Processor	Quad-Core A53 @ 2.0 GHz/Core
Interface	• 2× Gigabit Ethernet Ports• 1× USB 2.0 Port• 1× Micro-USB Port (only for power supply)

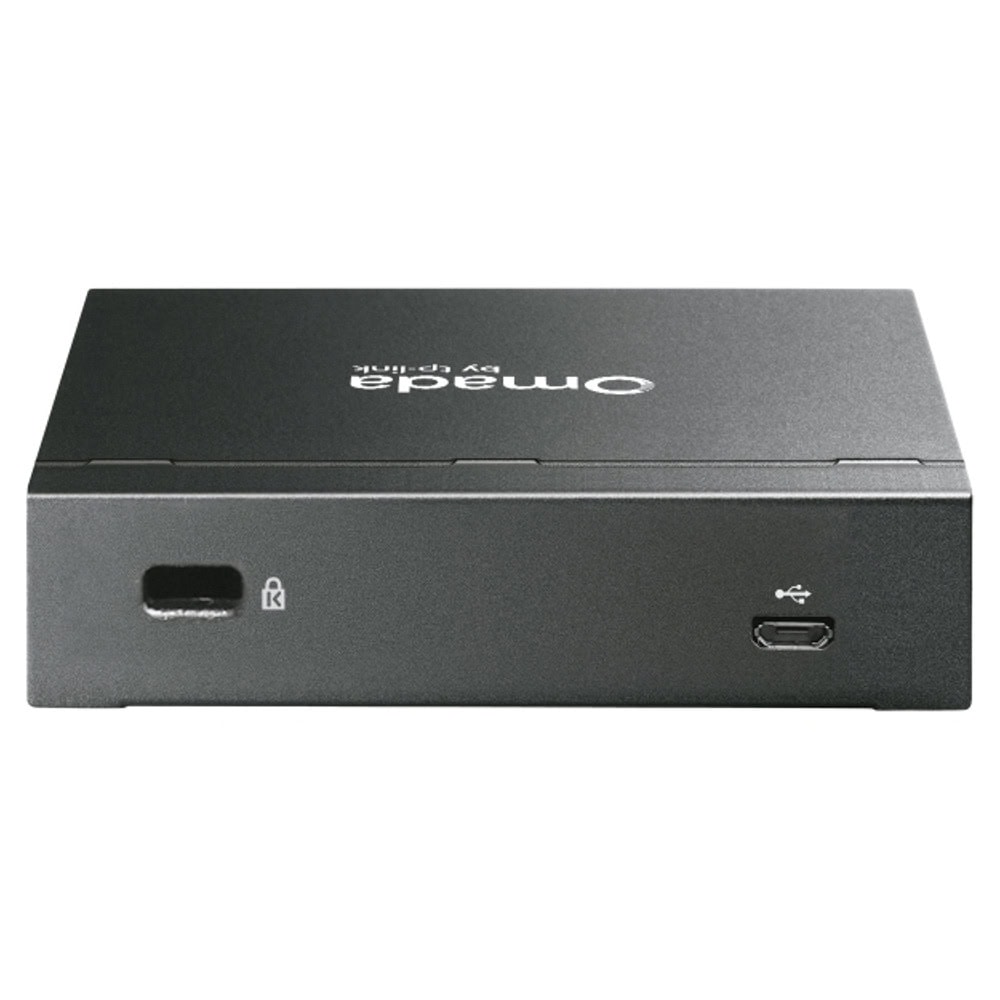

Physical Security Lock	Kensington Lock
Button	Reset Button
Power Supply	• 802.3af/at PoE• Micro-USB (DC 5 V / Minimum 1 A)
Max. Power Consumption	11.2 W (powered by a PoE device, with USB 2.0 connected)3.5 W (powered via Micro-USB port, no USB 2.0 connected)
DRAM	2 GB DDR4
Storage	• 4MB Nor Flash• 8 GB eMMC
Weight	0.305 kg
Dimensions ( W x D x H )	3.9 × 3.9 × 1.0 in (100 × 98 × 25 mm)
Omada App	√
Restore & Backup	√
Centralized Management	• 100 Omada access points• 10 Omada gateways• A maximum of 20 Omada switches• A maximum of two select DeltaStream GPON OLTs
Cloud Access	√
L3 Management	√
Multi-site Management	√
Management Features	• Wired Network• Wireless Network• WLAN Optimization• Network Security (ACL/URL Filtering/Attack Defense)• Transmission (Routing/NAT/Session Limit/Bandwidth Control)• VPN (IPSec/L2TP/PPTP/OpenVPN/WireGuard VPN)• Portal (Voucher/Local User/SMS/RADIUS/External Portal Server)• 802.1x• RADIUS (Authentication/MAC Auth/Accounting)
Monitoring	• DPI• IPS/IDS• Dashboard (Custom Dashboard)• Statistics (Performance/Switch Statistics)• Network topology• Network Map• Devices List (Custom Table)• Clients List (Custom Table)• Insights (Known Clients/Past Connections/Past Portal Authorizations/Rogue APs)• Logs (Alerts/Events/Custom Notifications)
Certification	CE, FCC, RoHS
System Requirements	Windows 7/8/10/11, Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux
Environment	• Operating Temperature: -5–50 ℃ (23–122 ℉)• Storage Temperature: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing

Виж още Аксеспойнт/Репитер Безжични TP-Link
Виж всички Аксеспойнт/Репитер Безжични в категорията

Технически характеристики

Тип:	Контролер
Монтаж:	За вътрешен монтаж
Безжична скорост:	Не е указано Mbps
Wi-Fi Стандарт:	Не е указано
Честота:	Не е указано GHz
Антени:	Няма
dBi на антена/и:	Не е указано
PoE:	Няма
Интерфейс:	2x 1000 + USB 2.0
Други:	Няма
