TP-Link Omada MC420L
Икона нов продукт
TP-Link Omada MC420L

Медиа конвертор TP-Link Omada MC420L, 10/100M/1000/10000Mbps Media Converter, 1x 10/100/1000/10000 Mbps RJ45 Port, 1x SFP+ Port

id 291102 Код: CNMTPLINKMC420L
    ОписаниеРевюта / Въпроси

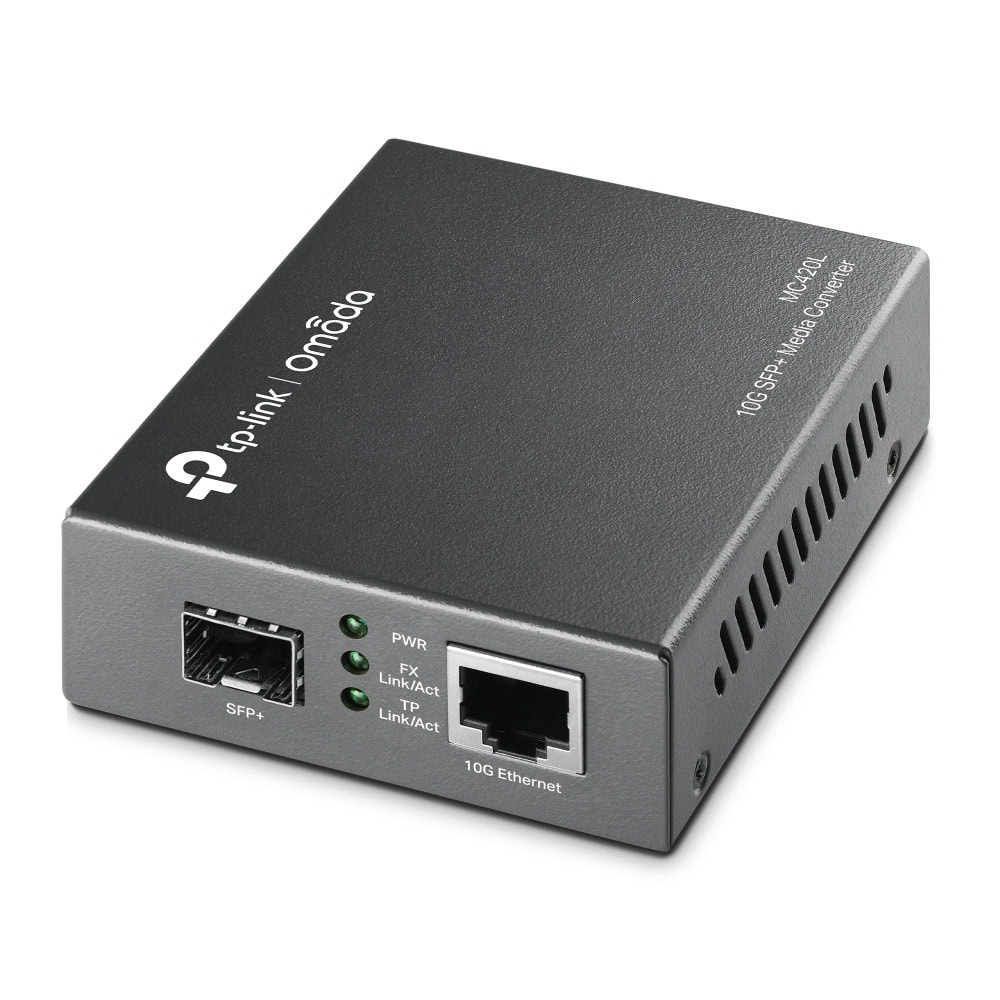

    TP-Link Omada MC420L

    Omada 10G Multi-Gigabit SFP Media Converter

    • 1× 1G/2.5G/5G/10Gbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
    • Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
    • Complies with IEEE 802.3an, IEEE 802.3ae, and IEEE 802.3aq
    • FX port supports hot-swappable
    • Maximum transmission distance depends on the inserting SFP



    The MC420L is a media converter designed to convert between 10GBASE-SR/LR fiber, 10GBASE-LRM fiber and 10GBASE-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The MC420L applies the IEEE 802.3ae 10GBASE-SR/LR 10G Ethernet & IEEE 802.3an 10GBASE-T 10G Ethernet standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

    MC420L offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

    MEDIA CONVERTER & MODULE
    Standards and ProtocolsIEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x

    Basic Function• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
    • Maximum transmission distance depends on the inserting SFP module
    Interface• 1× SFP+ port
    • 1× 1G/2.5G/5G/10Gbps RJ45 port

    Wave LengthDepends on the used SFP module
    Network Media 10GBASE-RMulti-mode/Single-mode SFP+ module
    Network Media 10GBASE-T1000BASE-T/2.5GBASE-T/5GBASE-T: UTP cat.5e or above (max. 100m);
    10GBASE-T: UTP cat.6(max. 55m), STP Cat. 6 or above(max. 100m)
    Dimensions ( W x D x H )3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)
    Power SupplyExternal Power Adapter

    Max. Power Consumption4.12W
    LEDPWR, Link/Act

    Safety & EmissionUL, RoHS
