TP-Link Omada IES206GPP

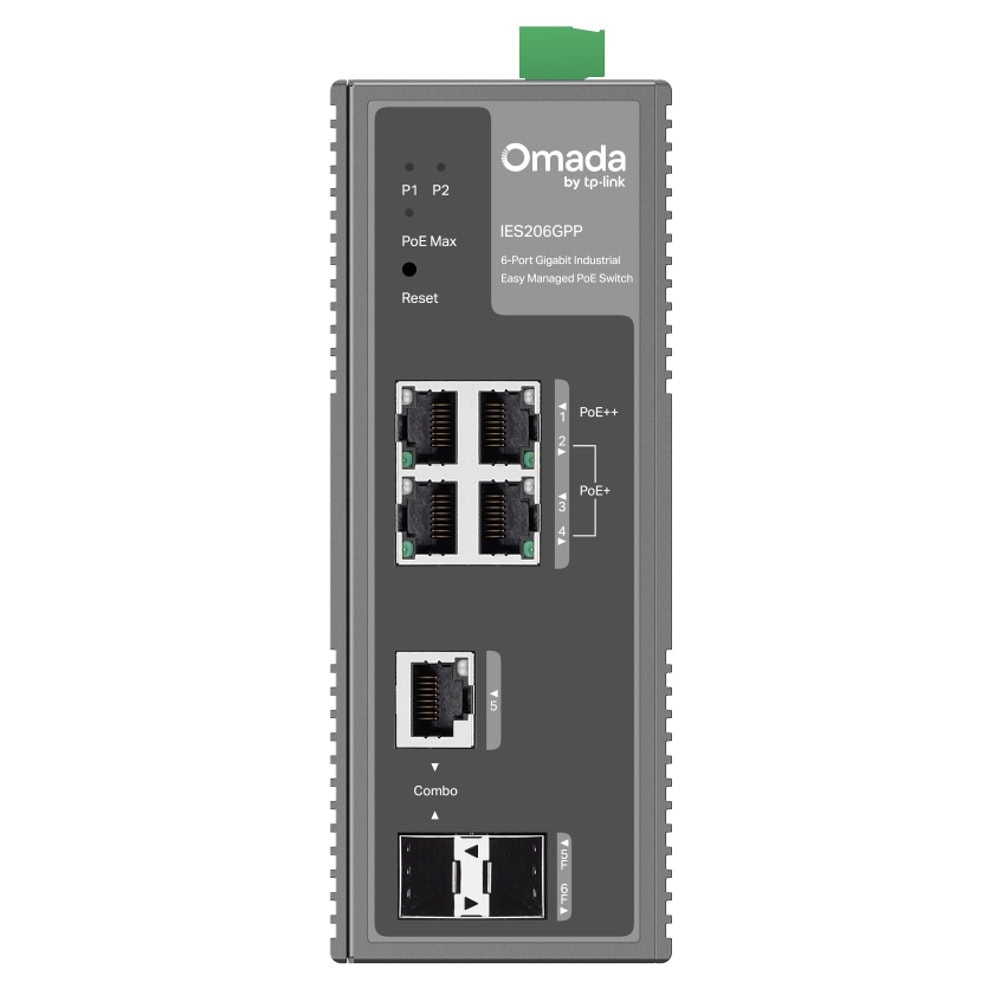

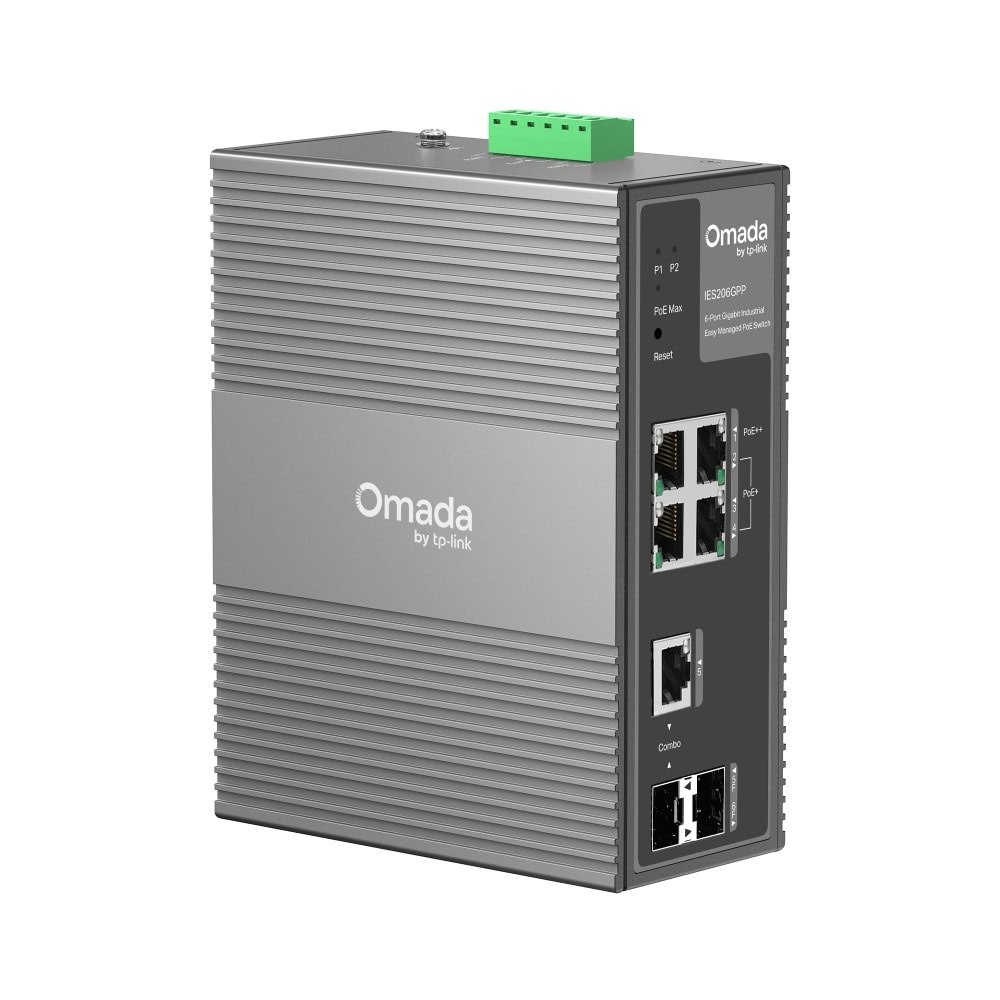

Omada 6-Port Gigabit Industrial Easy Managed Switch with 3-Port PoE+ and 1-Port PoE++
- 4× Gigabit RJ45 Ports (1× PoE++, 3× PoE+)
- 1× Gigabit Combo RJ45/SFP Slot, 1× Gigabit SFP Slot
- 120W Power Budget* with up to 60W for PoE++ Port
- Professional Industrial-Grade Design: -40~75°C Operating Temperature, 6kV Lighting Protection, and 1+1 Redundant Power Input
- Abundant Features: Up to 820ft (250m) PoE,** VLAN, QoS, and STP/RSTP
- Centralized Cloud Management via the Web or Omada App
- Durable IP40 Aluminum Casing and DIN-rail / Wall-mount Design


| Feature | Details |
|---|---|
| Interface | • 1× 10/100/1000 Mbps PoE++ RJ45 Port • 3× 10/100/1000 Mbps PoE+ RJ45 Ports • 1× Gigabit SFP/RJ45 Combo Slot • 1× Gigabit SFP Slot • Auto-Negotiation/Auto MDI/MDIX |
| Fan Quantity | Fanless |
| Installation | • DIN-rail mounting • Wall mounting |
| Physical Security Lock | Yes (√) |

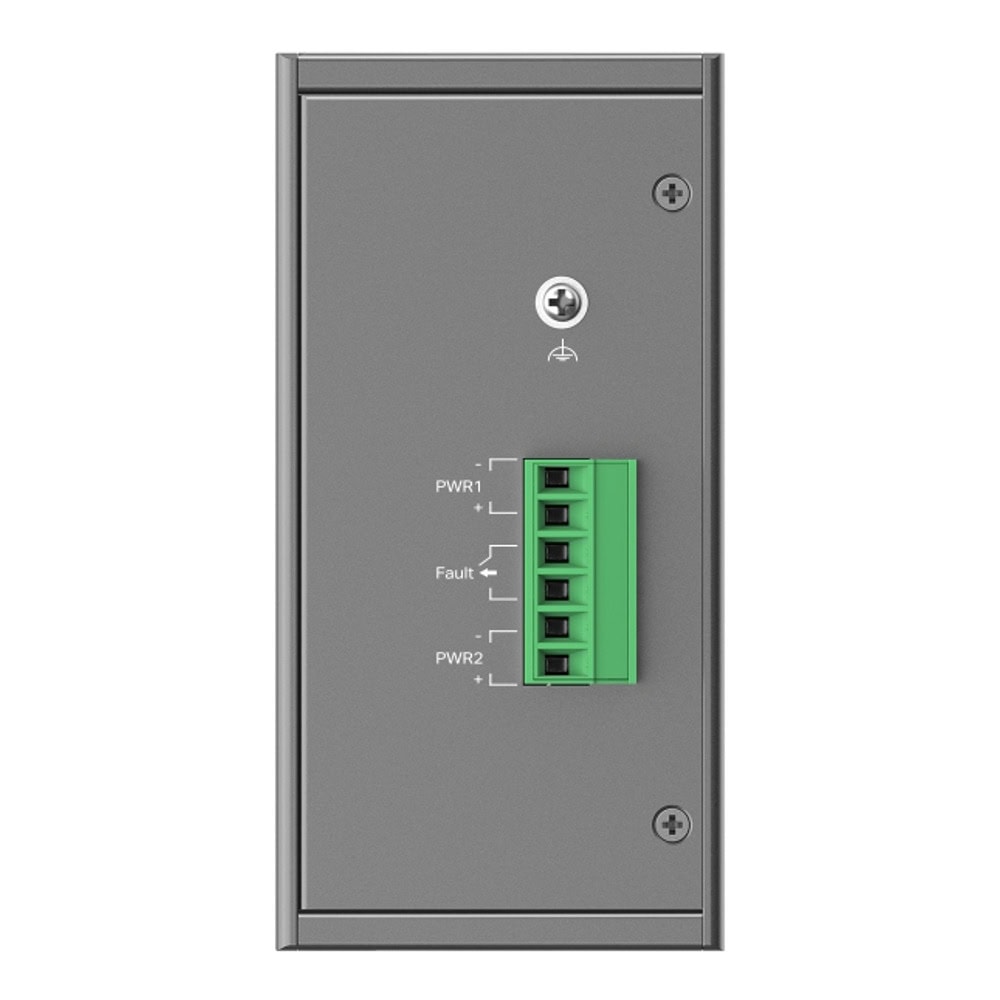

| Power Supply | 12–57V 1+1 Redundant DC Power Input |
| PoE Ports (RJ45) | • Standard: 802.3af/at/bt compliant • PoE++ Ports (802.3af/at/bt PoE): 1 Port, up to 60W per port • PoE+ Ports (802.3af/at PoE): 3 Ports, up to 30W per port • PoE Budget: - 60W (Input: 12V / 7.0A – 21V / 3.5A) - 120W (Input: 21V / 6.5A – 57V / 2.3A) |
| Dimensions (W × D × H) | 6.1 × 4.7 × 2.4 in (155 × 120 × 60 mm) |
| Surge Protection | • ±6 kV in common mode for Ethernet ports • ±4 kV in common mode for DC power input ports |
| Switching Capacity | 12 Gbps |
| Packet Forwarding Rate | 8.93 Mpps |
| MAC Address Table | 8K |
| Packet Buffer Memory | 4 Mbit |
| Jumbo Frame | 15 KB |
| Quality of Service | • 802.1p DSCP Priority • 8 Priority Queues • Priority Schedule Mode: WRR (Weighted Round Robin) • Queue Weight Config • Bandwidth Control: Port-Based Rate Limit • Storm Control: Multiple Control Modes (kbps/pps), Broadcast/Multicast/Unknown-Unicast Control |
| L2 Features | • Link Aggregation: Static Link Aggregation, up to 2 groups and 4 ports per group • Loopback Detection • Flow Control: 802.3x Flow Control • Mirroring: Port Mirroring (One-to-One, Many-to-One, Ingress/Egress/Both) • Port Statistics: Mirror Status, Traffic Statistics • 802.1ab LLDP • Spanning Tree: STP (802.1d), RSTP (802.1w) |
| L2 Multicast | • IGMP Snooping: IGMP v1/v2/v3 Snooping, Fast Leave |
| VLAN | • MTU VLAN • Port-Based VLAN • 802.1Q Tag VLAN: Max 32 VLAN Groups, 4K VID |
| Transmission Method | Store-and-Forward |

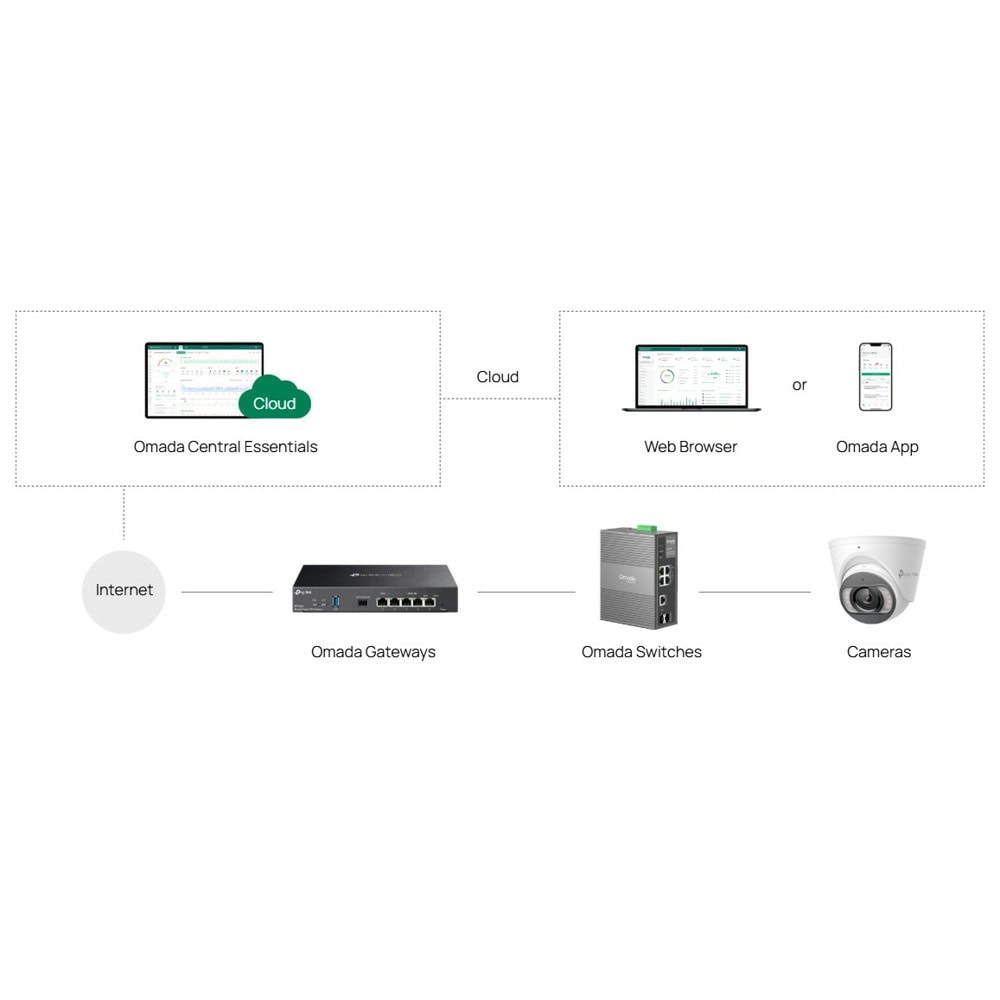

| Management Features | • Omada App (requires controller) • Centralized Management: Omada Cloud-Based, Hardware, or Software Controller • Cloud Access (requires controller) • Zero-Touch Provisioning (requires Cloud-Based Controller) • Web-based GUI • DHCP Client • Cable Diagnostics • Digital Diagnostic Monitoring (DDM) • Automatic Device Discovery† • Batch Configuration† • Batch Firmware Upgrading† • Unified Configuration† |
| Certification | FCC, CE, RoHS |
| Environment | • Operating Temperature: -40℃ ~ 75℃ (-40℉ ~ 167℉) • Storage Temperature: -40℃ ~ 85℃ (-40℉ ~ 185℉) • Operating Humidity: 5% ~ 95% non-condensing • Storage Humidity: 5% ~ 95% non-condensing |
Виж още Суич TP-Link
Виж всички продукти Суич в категорията
Технически характеристики
| Брой портове: | 6 |
|---|---|
| Максимална скорост: | 1 Gbit/s |
| Стандарт: | Не е указано |
| Управляем: | Да |
