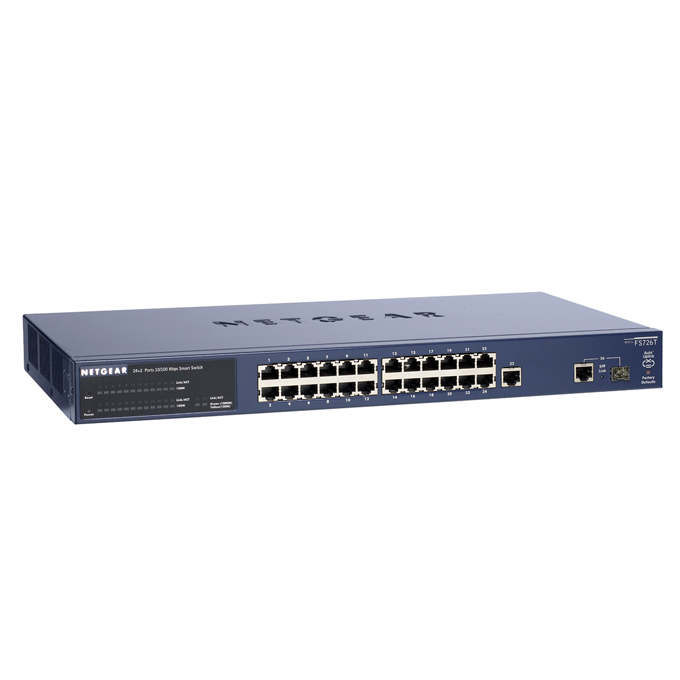

Суич NETGEAR FS726T, 24 x 10/100 Smart Суич with 2x 10/100/1000 Ports, Rack-mount

PROSAFE™ 24 PORT 10/100 SMART SWITCH WITH 2 GIGABIT PORTS

FS726T

Browser-based simple switch management

24 10/100 Mbps ports

Two copper gigabit ports for high speed connections



Specifications:

Network Protocol and Standards Compatibility

* IEEE 802.3 10BASE-T
* IEEE 802.3u 100BASE-TX
* IEEE 802.3ab 1000BASE-T
* IEEE 802.3z 1000BASE-X
* IEEE 802.3x full-duplex flow control

Power Supply

* Power Consumption: 13 W maximum
* 100-240VAC/50-60 Hz universal input

Network Ports

* 24 10/100 Mbps auto sensing Fast Ethernet - 2 10/100/1000 Mbps auto-sensing Gigabit Ethernet switching ports (RJ-45)
* 1 SFP slot for SFP GBIC Modules

Physical Specifications

* Dimensions (W x D x H): 440 x 205 x 43 mm (17.8 x 8.1 x 1.6 in.)
* Weight: 2.5 kg (5.5 lb)

Electromagnetic Emissions

* CE mark, commercial
* FCC Part 15 Class A
* VCCI Class A
* C-Tick

LEDs

* Per port: (10/100 and Gigabit): Link/ Activity, Speed
* Per device: Power

Electromagnetic Immunity

* EN 55024

Safety

* CE mark, commercial
* cUL IEC950/EN60950

Administrative Switch Management

* IEEE 802.1Q Static VLAN (Up to 64)
* Port-based VLAN (Up to 26)
* IEEE 802.1p Class of Service (CoS)
* Port-based QoS
* DSCP – Layer 3 QoS
* IEEE802.3ad (manual) Link Aggregation
* IEEE 802.1D Spanning Tree Protocol
* RFC 1157 SNMP v1*
* RFC 1213 MIB II
* RFC 1643 Ethernet Interface MIB
* RFC 1493 Bridge MIB
* RFC 2131 DHCP client
* Static IGMP and IGMP Snooping v1
* Private Enterprise MIB
* Port Mirroring Support
* Web-based configuration
* Rate limiting
* Configuration Backup/Restore
* Password Access Control
* Broadcast storm control
* Firmware upgradeable

Performance Specifications

* Forwarding modes: Store-and-forward
* Bandwidth: 8.8 Gbps
* Network latency: <20?s for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission
* Buffer memory: 256 KB embedded memory per unit
* Address database size: 8,000 media access control (MAC) addresses per system
* Addressing: 48-bit MAC address
* Mean Time Between Failure (MTBF): 305,000 hours (~35 years)
* Acoustic Noise: 0 dB

Modules

* AGM731F 1000BASE-SX SFP Module
* AGM732F 1000BASE-LX SFP Module
* AGM733 1000BASE-ZX SFP Module

Warranty

* NETGEAR Lifetime Warranty†

ProSupport™ Service Packs Available

OnCall 24x7, Category 1

* PMB0331-100 (US)
* PMB0331 (non-US)

XpressHW, Category 1

* PRR0331

Package Contents

* 24-port Smart Switch with Gigabit Ports (FS726T)
* Rubber footpads
* Power cord
* Rack-mount kit
* Resource CD
* Installation guide
* Warranty/Support information card

NETGEAR Related Products

* 32-bit PCI Copper Gigabit Adapter (GA311)
* 1000BASE-SX SFP Module (AGM731F)
* 1000BASE-LX SFP Module (AGM732F)
* 1000BASE-ZX SFP Module (AGM733)
