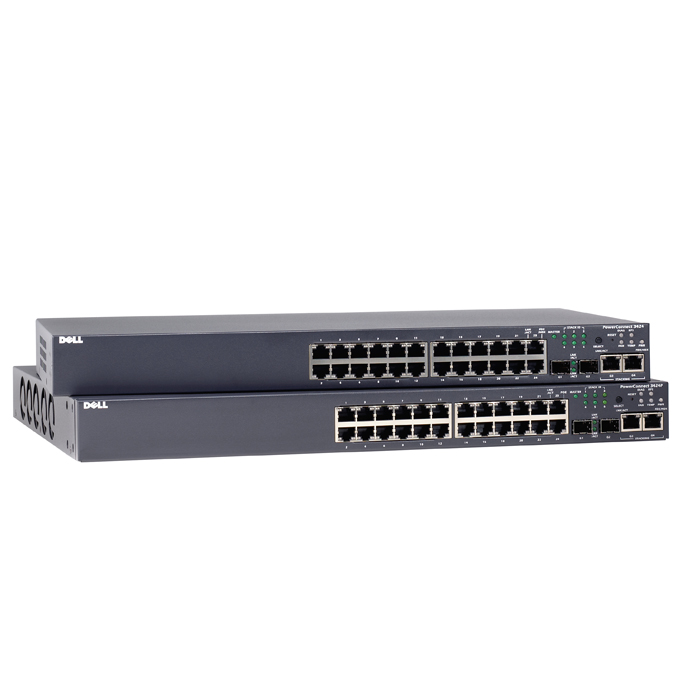

Суич DELL PowerConnect 3424, 10/100Mbs 24Port / 2 GigE (+2 опционални), Managed, RackMount 1U

Overview

The PowerConnectTM 3424 switches provide robust security, resilient stacking, and enterprise-class management features which are ideal for edge of network applications requiring speed, availability and management. Two of the models (3424P and 3448P) deliver Power-over-Ethernet (PoE).

* High-performance, 24 port Fast Ethernet wire-speed solution which is ideal for resilient stacking, cost-effective wiring closet solutions, desktop connectivity and high-speed network backbone traffic aggregation.
* PowerConnect 3424 supports maximum switching capacity of 12.8Gbps. Up to 256 VLANs supported.
* Secure switching using edge authentication via 802.1x, private VLANs and SNMPv3. Robust security capabilities provided through flow-based ACLs, port-based MAC security, RADIUS and TACACS+ remote authentication, SSL/SSH encryption, and IP-based management access filtering.
* Supports open industry standards including advanced Quality of Service (L2, L3-aware), Multiple Spanning Trees, SNTP and IP multicast support, dynamic link aggregation (LACP), dynamic VLAN configurations, port mirroring and Rapid Spanning Tree Protocol
* Versatile remote management uses an industry-standard CLI, an embedded web interface or an SNMP-based management application.
* Virtual Cable Tester by MarvellTM for diagnosing copper connectivity and detecting problems and fiber transceiver diagnostics for troubleshooting transceiver problems.

Specifications

Port Attributes
24 10/100BASE-T auto-sensing Fast Ethernet switching ports
Additional 2 Copper GbE ports PLUS 2 optional Fiber GbE via SFP transceivers
Integrated Copper GbE ports provide resilient stacking
Auto-negotiation for speed, duplex mode and flow control
Auto MDI/MDIX
Port mirroring
Broadcast storm control

Performance
Switch Fabric Capacity 12.8 Gbps
Forwarding Rate 9.5 Mpps
Up to 8,000 MAC Addresses

Availability
Spanning Tree (IEEE 802.1D) and Rapid Spanning Tree (IEEE 802.1w) with Fast Link Support
Multiple Spanning Trees (IEEE 802.1s)
External redundant power support with PowerConnect RPS-600 (sold separately)
Virtual Cable Tester provided by MarvellTM for providing cable diagnostics
Optical transceiver diagnostics

VLAN
VLAN support for tagging and port-based as per IEEE 802.1Q
Up to 256 VLANs supported
Dynamic VLAN with GVRP support

Quality of Service
Layer 2 Trusted Mode (IEEE 802.1p tagging)
Layer 3 Trusted Mode (DSCP)
4 Priority Queues per Port

Layer 2 Multicast
Static IP Multicast
IGMP snooping for IP multicast support

Security
IEEE 802.1x based edge authentication
Switch access password protection
User-definable settings for enabling or disabling Web, SSH, Telnet, SSL management access
Port-based MAC Address alert and lock-down
IP Address filtering for management access via Telnet, HTTP, HTTPS/SSL, SSH and SNMP
RADIUS and TACACS+ remote authentication for switch management access
SSLv3 and SSHv2 encryption for switch management traffic
Private VLANs

Switching Features
Link Aggregation with support for up to 8 aggregated links per switch and up to 8 member ports per aggregated link (IEEE 802.3ad)
LACP support (IEEE 802.3ad)

Management
Web-based management interface
Industry-standard CLI accessible via Telnet or Local Serial Port
SNMPv1, SNMP v2c and SNMPv3 supported
4 RMON groups supported (history, statistics, alarms and events)
TFTP transfers of firmware and configuration files
Dual Firmware images on-board
Multiple Configuration file upload/download supported
Statistics for error monitoring and performance optimization including port summary tables
BootP/DHCP IP address management supported
Syslog remote logging capabilities
Temperature sensors for environmental monitoring
Virtual Cable Tester by MarvellTM and fiber transceiver diagnostics for advanced troubleshooting

Chassis
17.3 inch x 15.2 inch x 1.7 inch (W x L X H)
1U rack height
3424 is 7.05 lbs

Environmental
Operating Temperature: 0 to 45C
Storage temperature: -20 to 70C
Operating Humidity: 10 to 90% Relative Humidity
Storage Humidity: 10 to 95% Relate Humidity

Power
Power Supply: 100-240VAC, 50-60Hz voltage
