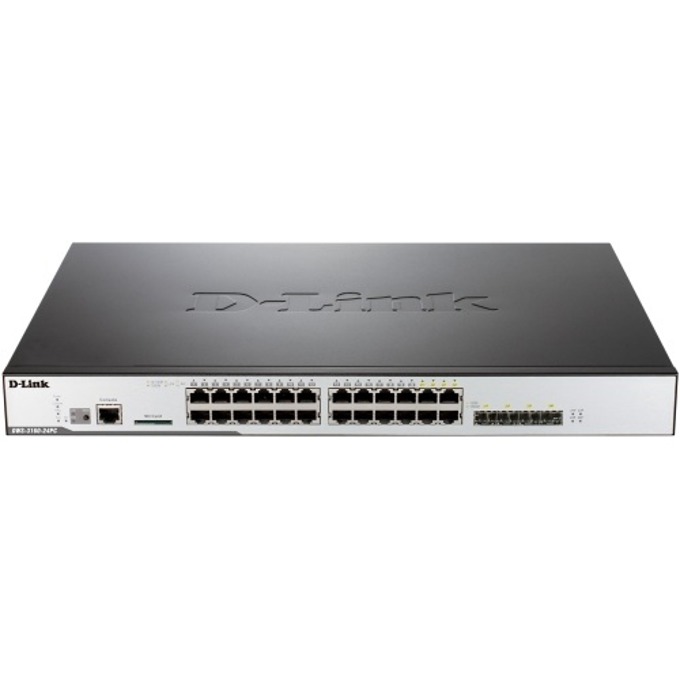

Суич D-Link DWS-3160-24PC 20Ports 10/100/1000Mbps Base-T port Unified Суич, 4Ports Combo 1000Mbps Base-T PoE/SFP ports

D-Link 20 10/100/1000 Base-T port Unified Switch with 4 Combo 1000Base-T PoE/SFP ports
Комутатор

Сигурност LAN Security: RADIUS Authentication Management Access, TACACS+ Authentication for Management Access, SSH & SSL Support, 802.1X Port-based Access Control & Guest VLAN WLAN Security: WPA Personal/Enterprise, WPA2 Personal/Enterprise, 802.1X Support
Захранване Redundant Power Supply: DPS-700
MAC адреси 16000 MAC Address Table
Управление Manages up to 48 Unified Access Points per switch, up to 192 APs per cluster, Switch Cluster for Single IP Management, SSH, SSL, SNMP v1, 2c, 3, sFlow, Dual Image Support, Web GUI, Command Line Interface
VLAN (брой, стандарти) 802.1Q VLAN Tagging, 802.1V, Subnet-based VLAN, MAC-based VLAN, GVRP, Double VLAN, Voice VLAN
Размери, mm 440 x 310 x 44 mm 1U Height
Stackable No
Суич, тип Fixed Port
Общ брой портове 24
Основни портове, тип 20x10/100/1000Base-T
Power Over Ethernet (PoE) PoE (15.4 W Per Port, 370 W Total Power Budget, 740 W Total Power Budget With RPS)
Uplink портове 4 dual personality
Свободни (10GB) слотове No
Routing Layer 3 RIP (IPv4/v6 Static Route, Routing Table Size: 512 Static Routes, RIPv1/v2 dynamic routing)
Капацитет за маршрутизиране/превключване, Gbps 48 Gbps
Пропускателна способност, Mpps 35.71 Mpps
QoS Voice VLAN, Wireless Multimedia (WMM), 802.1p Priority Queues, CoS-based QoS, Per-Flow Bandwidth Control, Per-Port Traffic Shaping, Minimum Bandwidth Guarantee
L2 мреживи стандарти IGMP Snooping, MLD Snooping, 802.1D/w/s Spanning Tree, 802.3ad Link Aggregation, 802.1ab LLDP, Port Mirroring (One-to-One and Many-to-One), Jumbo Frame Size: Up to 13 KB
L3 мрежови стандарти IPv4/v6 Static Route, Routing Table Size: 512 Static Routes, VRRP, ARP Proxy, VLAN routing, RIP v1/v2 support
IPv6 functionality IPv6 ready, IPv6 support,
L2 мрежови стандарти IGMP Snooping, MLD Snooping, 802.1D/w/s Spanning Tree, 802.3ad Link Aggregation, 802.1ab LLDP, Port Mirroring (One-to-One and Many-to-One), Jumbo Frame Size: Up to 13 KB
