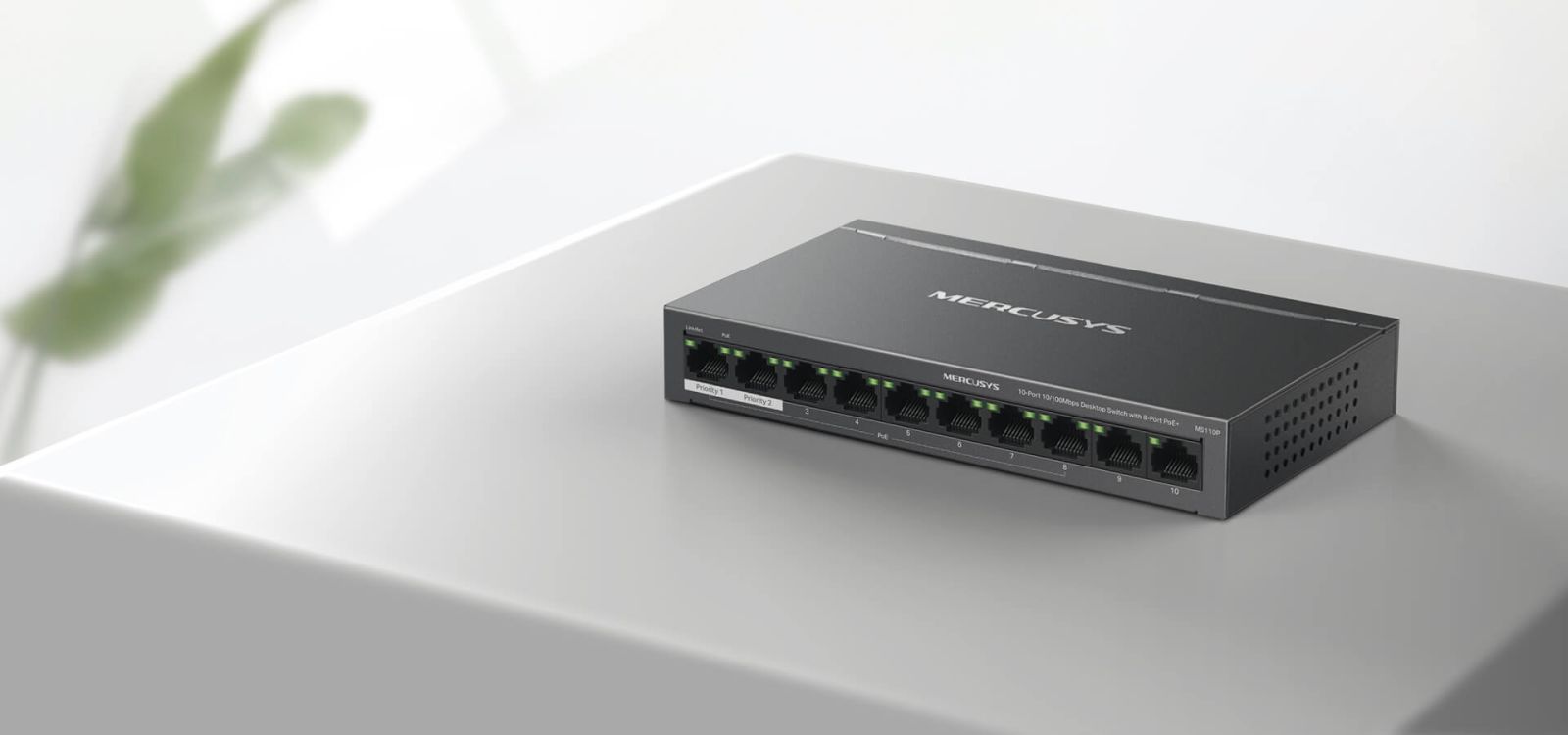

Суич Mercusys MS110P, 100Mbps, 10 порта, 10x 10/100 Mbps (8x PoE+)

MS110P

10-Port 10/100Mbps Desktop Switch with 8-Port PoE+

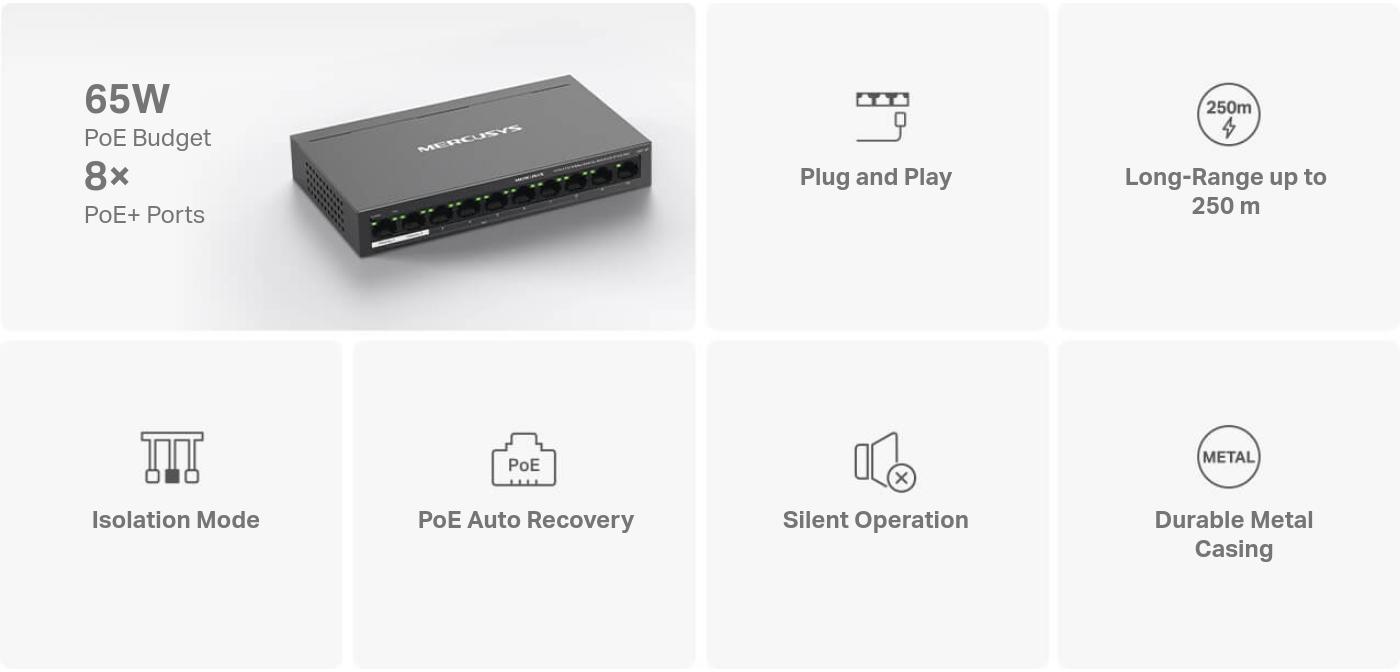

• 10 Ports: 10× 10/100 Mbps RJ45 ports with 8 PoE+ ports
• Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
• High Power PoE+: Support PoE Power up to 30 W for each PoE port and 65 W for all PoE ports*
• 2× Uplink Ports: MS110P provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
• Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode*
• Isolation Mode: One click to divide traffic for specific ports for stability and security
• Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
• Durable Metal Casing: Allows for efficient heat dissipation and long network life
• Plug and Play: Simple to use and saves time and effort
• PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices

Long-Range up to 250 m with Extend Mode**

Extend Mode** increases PoE transmission distance to 250 m. MS110P has 8 long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.

Specs:

Hardware

Dimensions

171*98*27 mm

PoE Ports

RJ45

Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 65 W

Interfaces

10× 10/100 Mbps Ports, Auto-Negotiation, Auto MDI/MDIX

External Power Supply

External Power Adapter (Output: 53.5V/1.31A)

Installation

Desktop

Wall Mount

Standards and Protocols

IEEE 802.3x Flow Control

Data Rates

10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex

Jumbo Frame

 2 KB

Mac Address Table

2K

Max Power Consumption

2.96W（220 V / 50 Hz, no PD connected）

77.52W（220 V / 50 Hz, with 65W PD connected）

Max Power Consumption

10.064 BTH/h （no PD connected)

263.568 BTH/h（with 65W PD connected）
