Name: Суич Stonet ST106PDI-2-65, 100Mbps, 6 порта, 4x 10/100Mbps RJ45 (PoE), 2x uplink
Brand: Stonet
SKU: NTLHSTONETST106PDI265
Price: 28.46 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

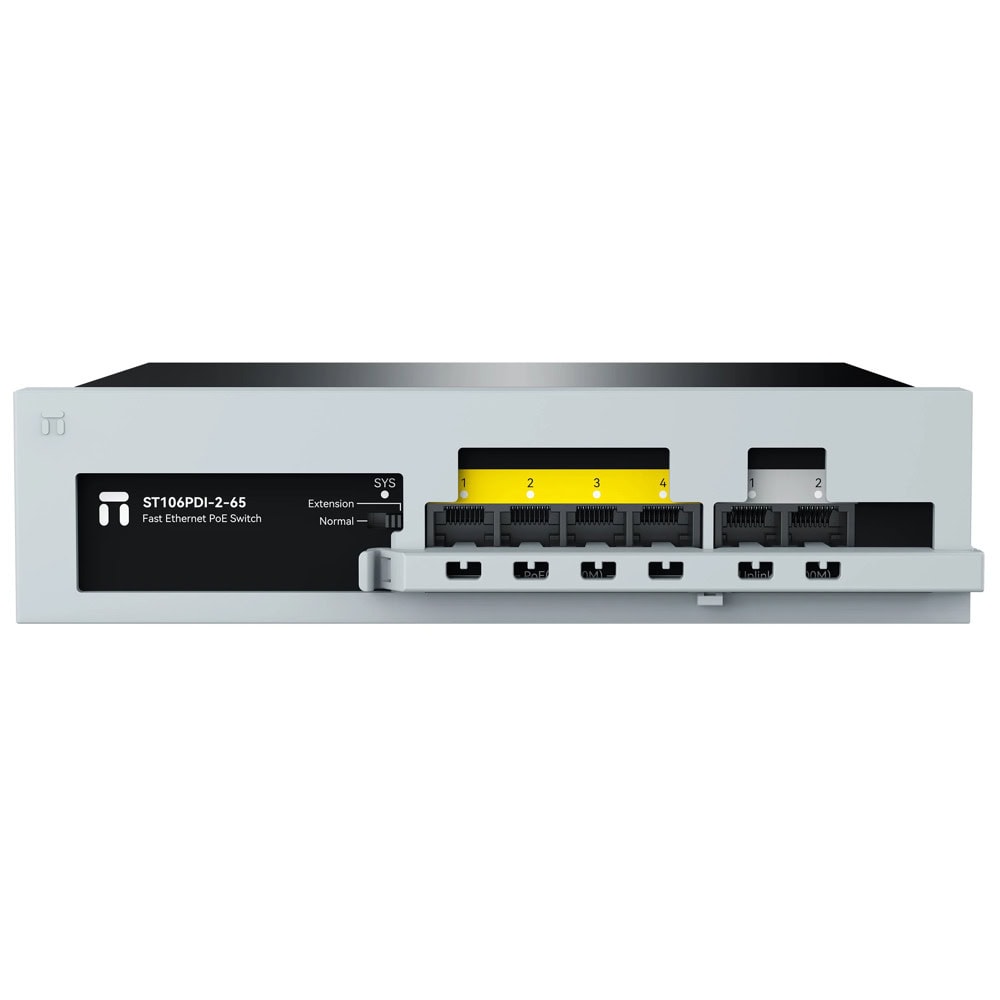

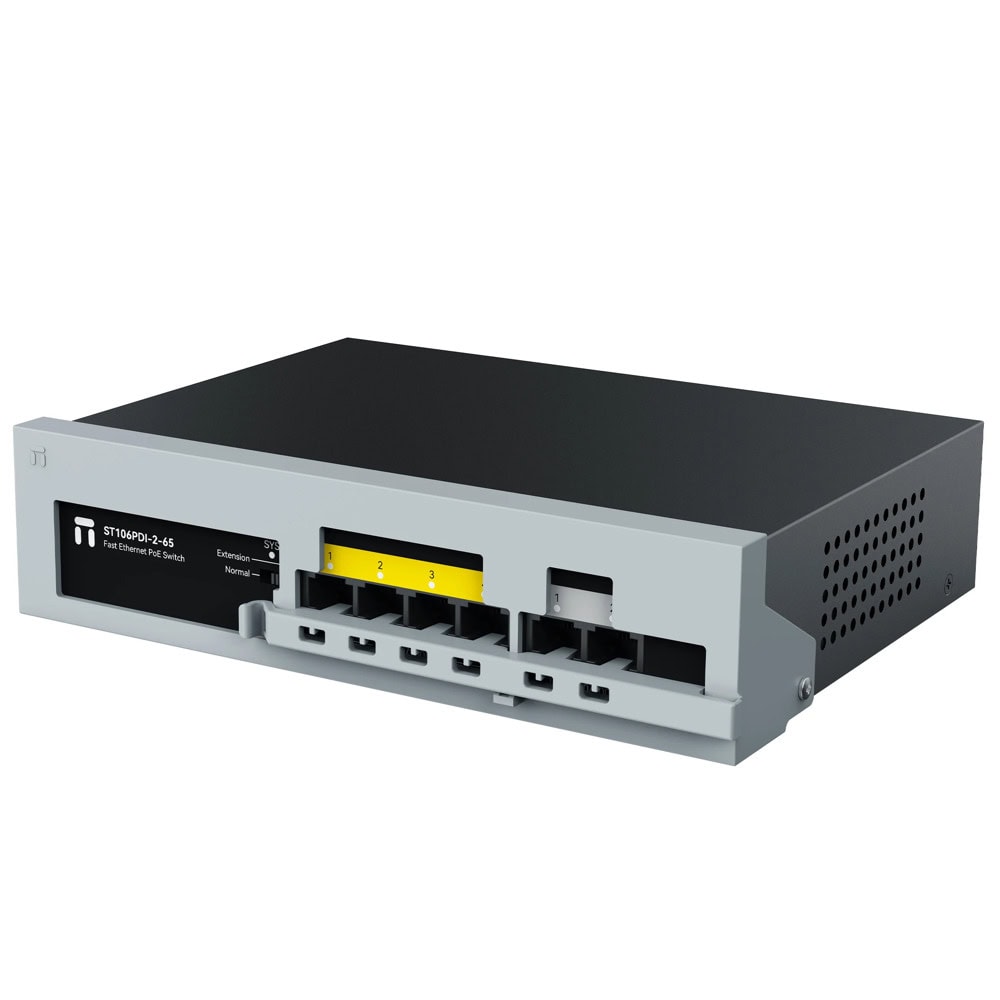

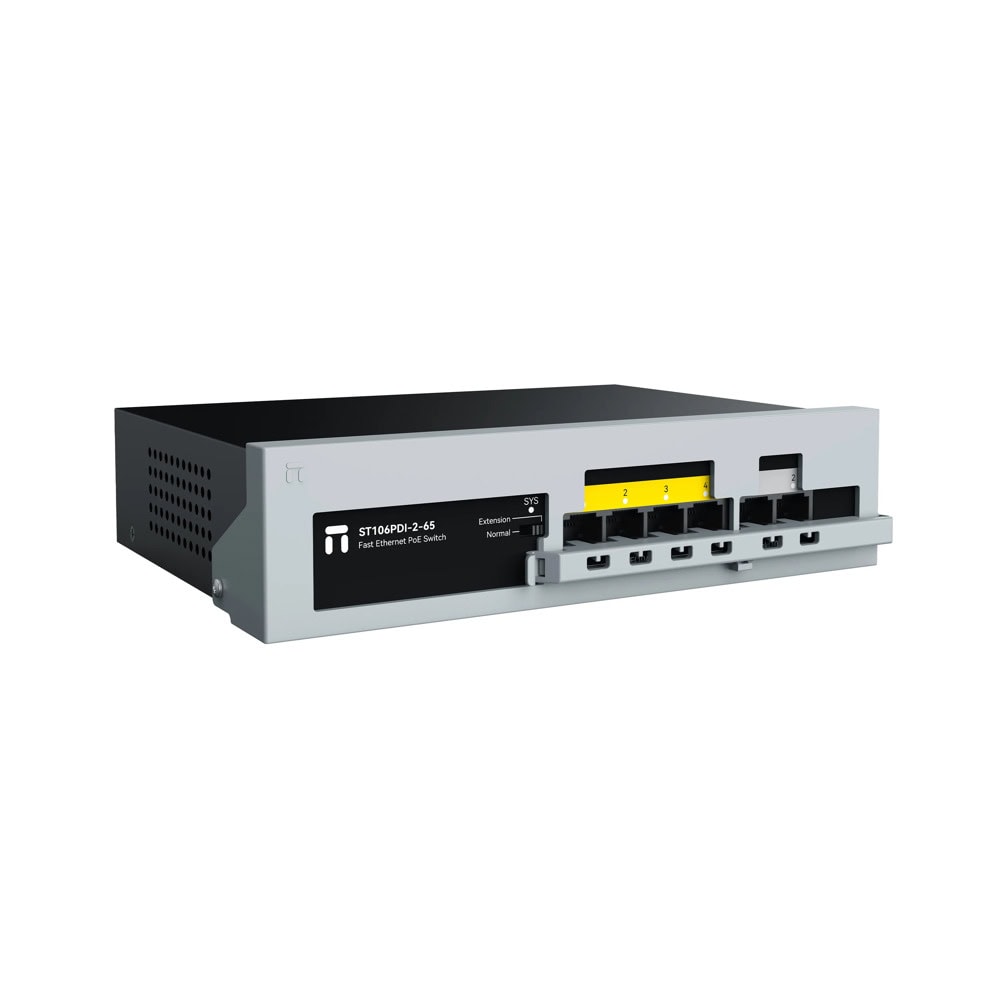

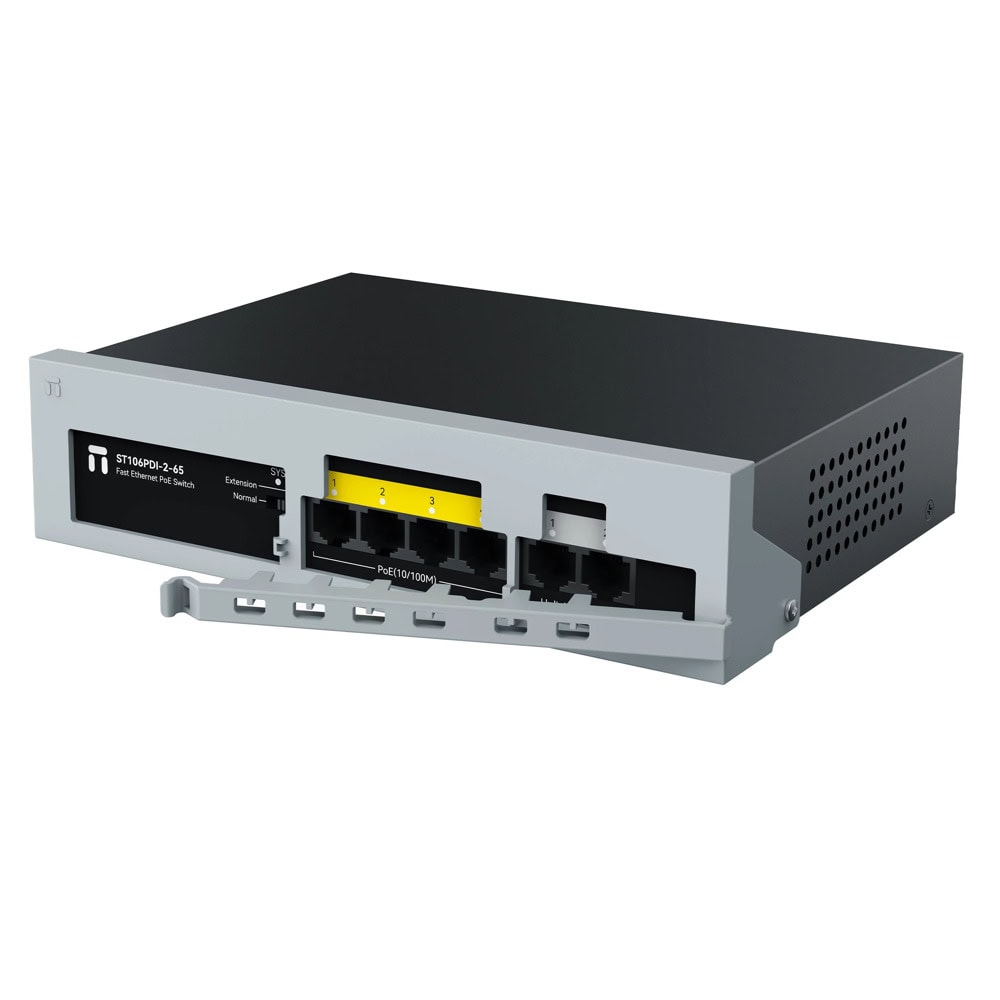

Stonet ST106PDI-2-65

Fast Ethernet PoE Switch with Attached Safety Lock

Attached safety lock, more stable.
6*10/100M ports: 4 PoE ports+2 uplink ports.
Internal 65W power supply with up to 30W PoE output per port.

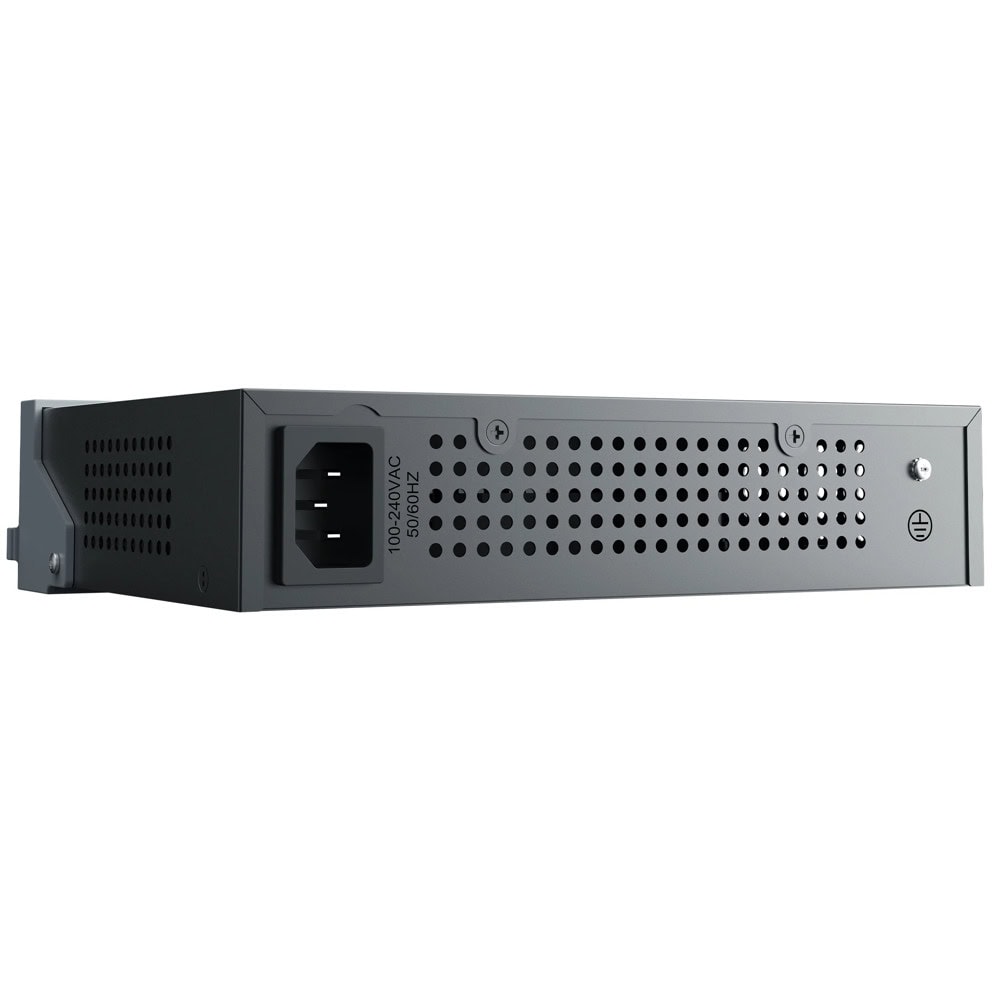

Durable steel housing for better heat dissipation.
Support IEEE 802.3af/at standards, compatible with powered devices (PD) that meet IEEE 802.3af/at.
All ports support auto MDI/MDI-X function.
Equipped with a convenient DIP switch that can be easily switched between normal mode and extension mode.

More Durable!

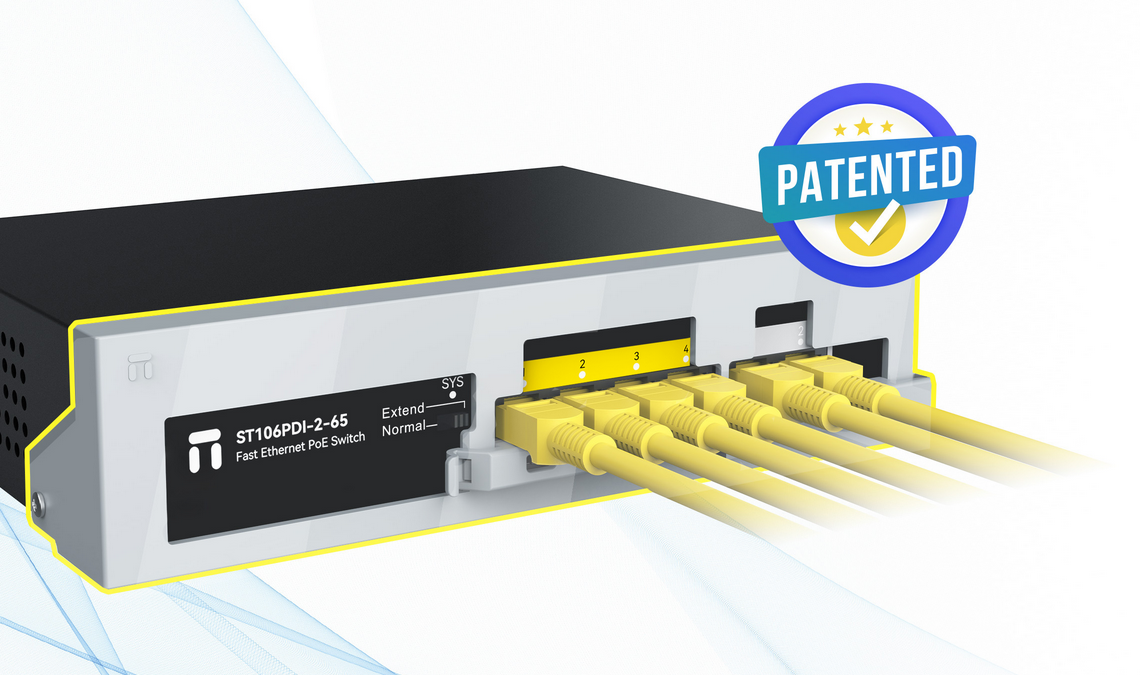

Attached safety lock design, no need to install, it will keep your network cable fixed stable with the switch.

*Attached safety lock with exclusive patent certification, 100% quality assured.

Standard PoE Power Supply

Up To 30W PoE Output Per Port

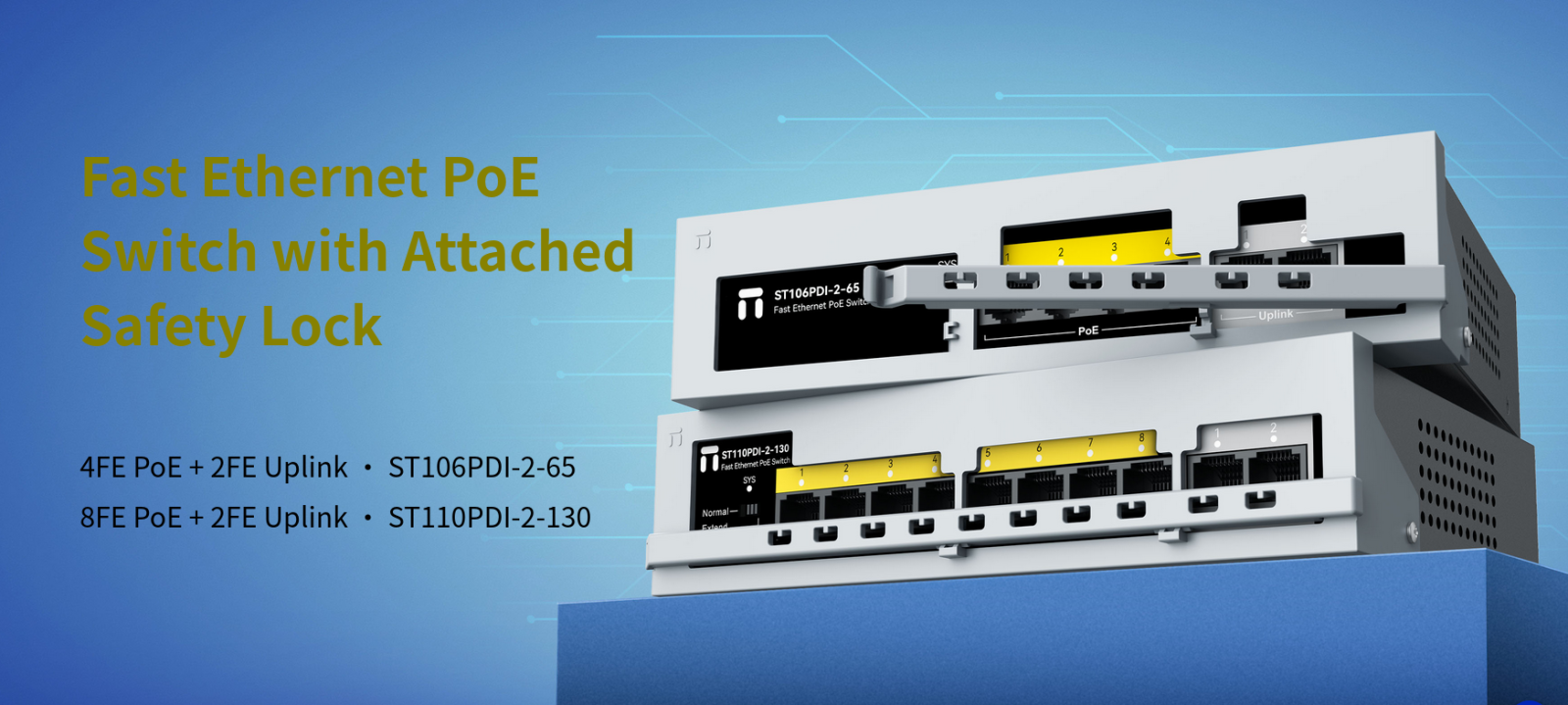

ST106PDI-2-65 has a total power of 65W with 4*100M PoE ports and 2*100M uplink ports.

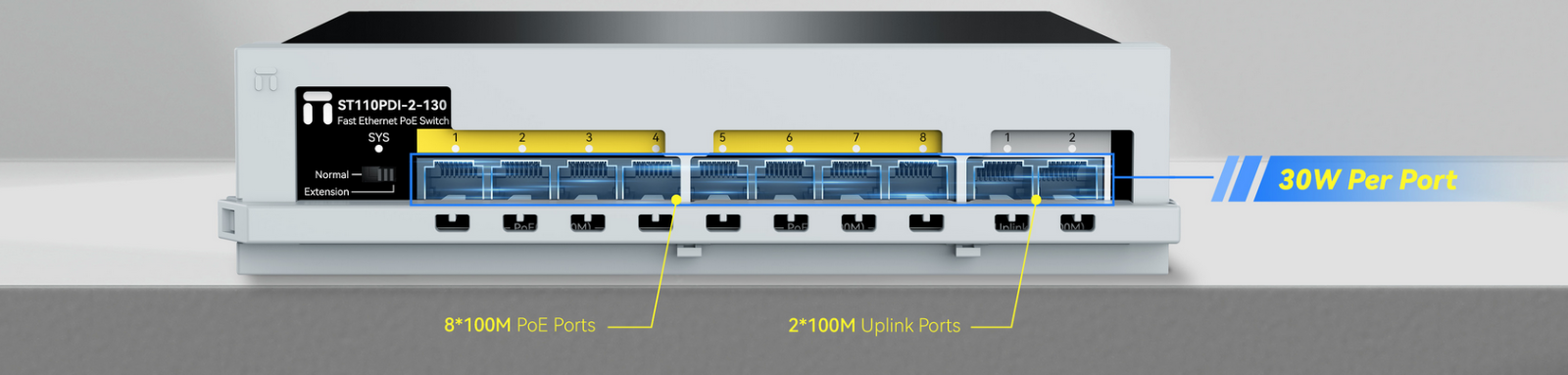

ST110PDI-2-130 has a total power of 130W with 8*100M PoE ports and 2*100M uplink ports.

It can support multiple IP cameras and other high-power devices running simultaneously, ensuring a stable and sufficient power supply.

Specification	Details
Power Indicator	Lights up when the device is powered on
Function Indicator	Lights up when the extended transmission function is enabled
Switch Ports	Normal mode / Cable Extension mode
Ports	4 × 100Mbps PoE ports + 2 × 100Mbps uplink ports
Backplane Bandwidth	1.2 Gbps
MAC Address Table	2K
Input Power	100–240V ~ 50/60Hz
Power Supply	65W (54V / 1.2A)
Maximum PoE Output Power	55W
Network Media & Transmission Distance	100Base-TX: Cat5 or higher UTP/STP (≤100m)10Base-TX: Cat6 or higher UTP/STP (≤250m)
Basic Functions	Complies with IEEE 802.3 / 802.3u standardsCompatible with IEEE 802.3af/at PD devicesSupports non-standard PD devicesStore-and-forward switchingAutomatic MAC learning & agingExtended transmission for long-distance monitoringIEEE 802.3X full-duplex flow controlBackpressure half-duplex flow control
Ethernet Protocols & Standards	IEEE 802.3 MACIEEE 802.3i (10BASE-T)IEEE 802.3u (100BASE-TX)IEEE 802.3af (PoE)IEEE 802.3at (PoE+)IEEE 802.3x Flow Control
Data Transfer Rates	10/100 Mbps (full-duplex and half-duplex)
Temperature	Operating: 0°C ~ 40°CStorage: -40°C ~ 70°C
Humidity	Operating: 10% ~ 90% RH (non-condensing)Storage: 5% ~ 90% RH (non-condensing)
Altitude	Operating: ≤2000 m (6500 ft)Storage: ≤2000 m (6500 ft)
Differential Mode	4KV
Common Mode	4KV
Dimensions (W × D × H)	190 × 140 × 43 mm
Protective Packing	EPE protection
Stacking Limit	Maximum 4 layers (fully packaged)
Humidity	5% ~ 90% RH (non-condensing)
Storage Temperature	-40°C ~ 70°C (room temperature recommended considering humidity)
Storage Precautions	Store in clean, ventilated environmentAvoid corrosive gases, flammable/explosive materialsKeep away from heat and vibration
Storage Period	Up to 1 year under proper conditionsRe-test recommended after 2 years
