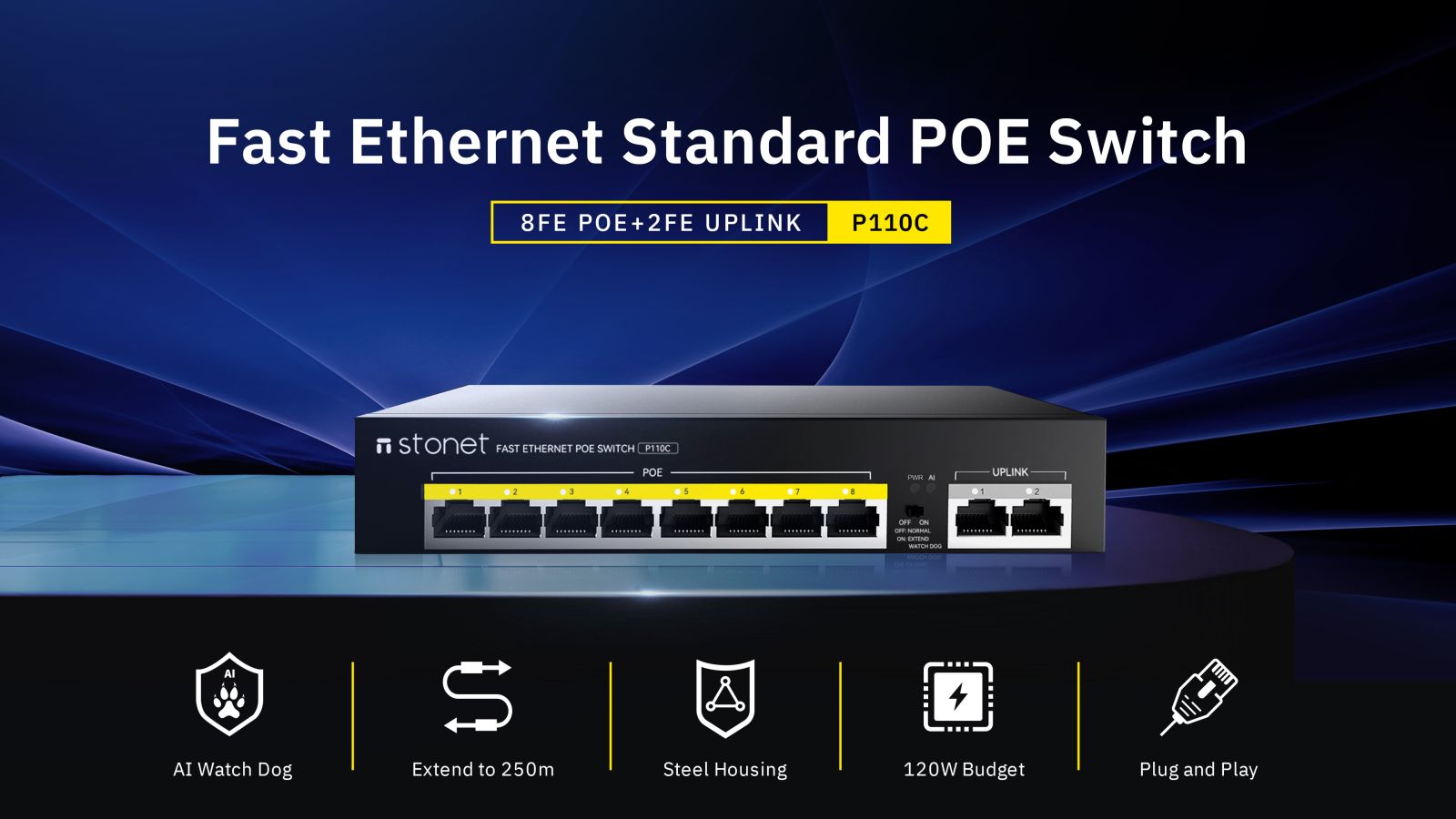

8POE+2RJ45 100M Standard POE Switch
Stonet P110C is a 100M standard POE switch that provides 10 10/100M adaptive RJ45 ports. Ports 1~8 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable.Supports two modes: normal switch mode/250M ultra-long transmission. P110C makes it easier for you to deploy wireless access point (AP) and IP terminal network devices using POE technology.
Interface |
8*10/100Mbps POE ports(Data/Power) 2*10/100M uplink RJ45 ports (Data) |
Basic function
|
Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol Supports POE IEEE 802. 3af/at compliant Powered Device (PD)

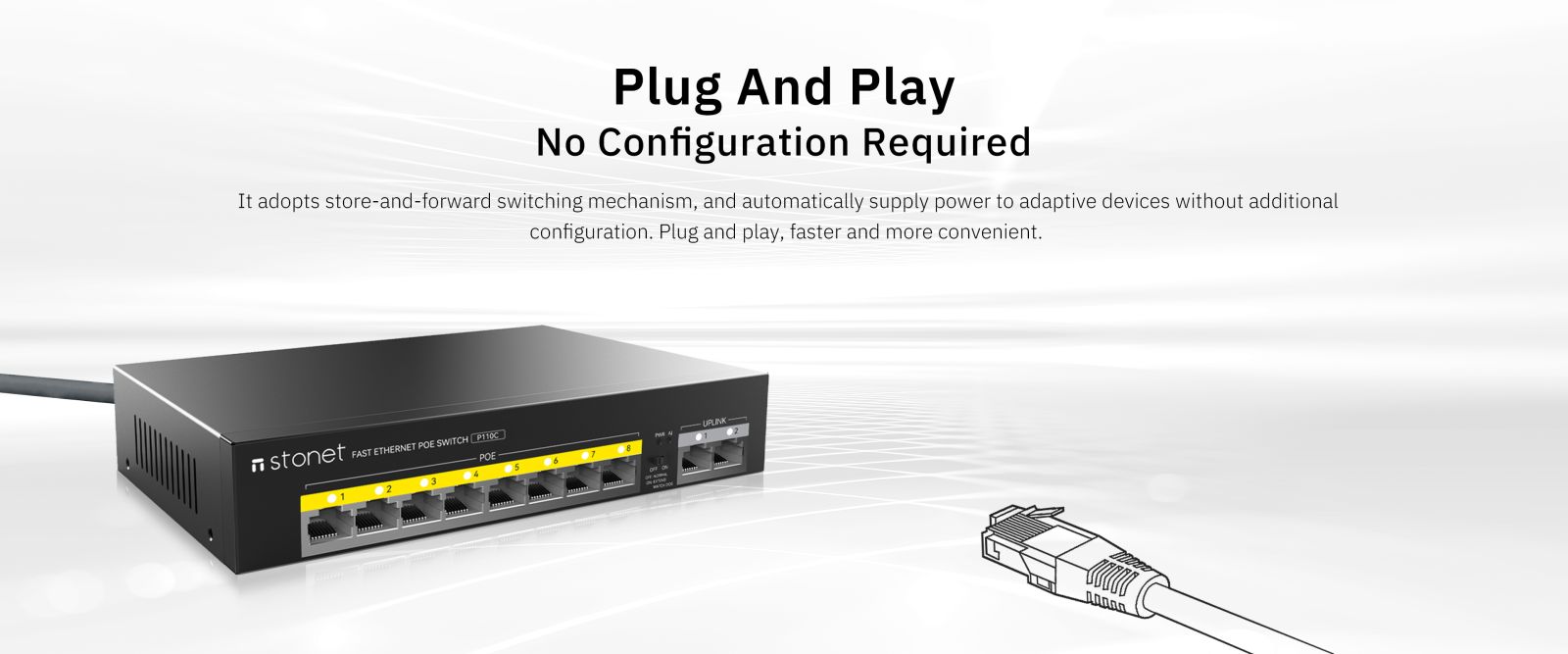

Store-and-forward switching schemeSupport IEEE802.3X full duplex and Backpressure half duplex MAC address auto-learning & auto-aging |
Standards
|
IEEE 802.3 10BASE-T Ethernet IEEE 802.3i 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast EthernetIEEE 802.3af/at, Power over Ethernet IEEE 802.3x Flow Control |
Mode
|

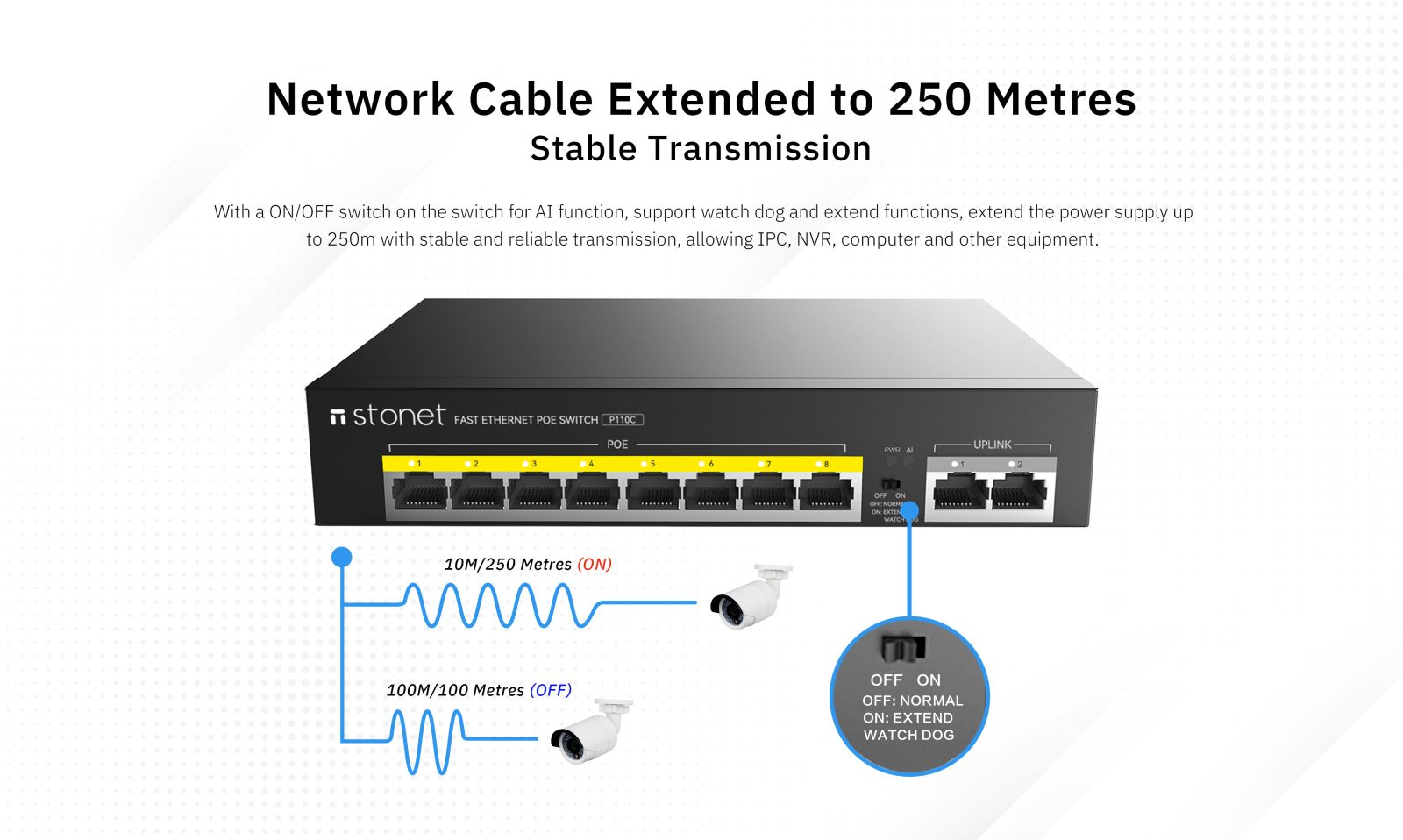

Normal switch mode/Extend mode
|
Data Transfer Rate
|
Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex) Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex) |
Store & Forwarding
|
Yes |
Switching Capacity
|
2G |
MAC Address
Table Size
|
2K |
Jumbo Frame
|
2048 byte
|
Environment
|
Operation Temperature:0℃~40℃
Storage Temperature:-40℃~70℃
Operation Humidity:10%~90% RH Non-condensing
Storage Humidity:5%~90% RH Non-condensing
|
Power Input POE
Standards
|

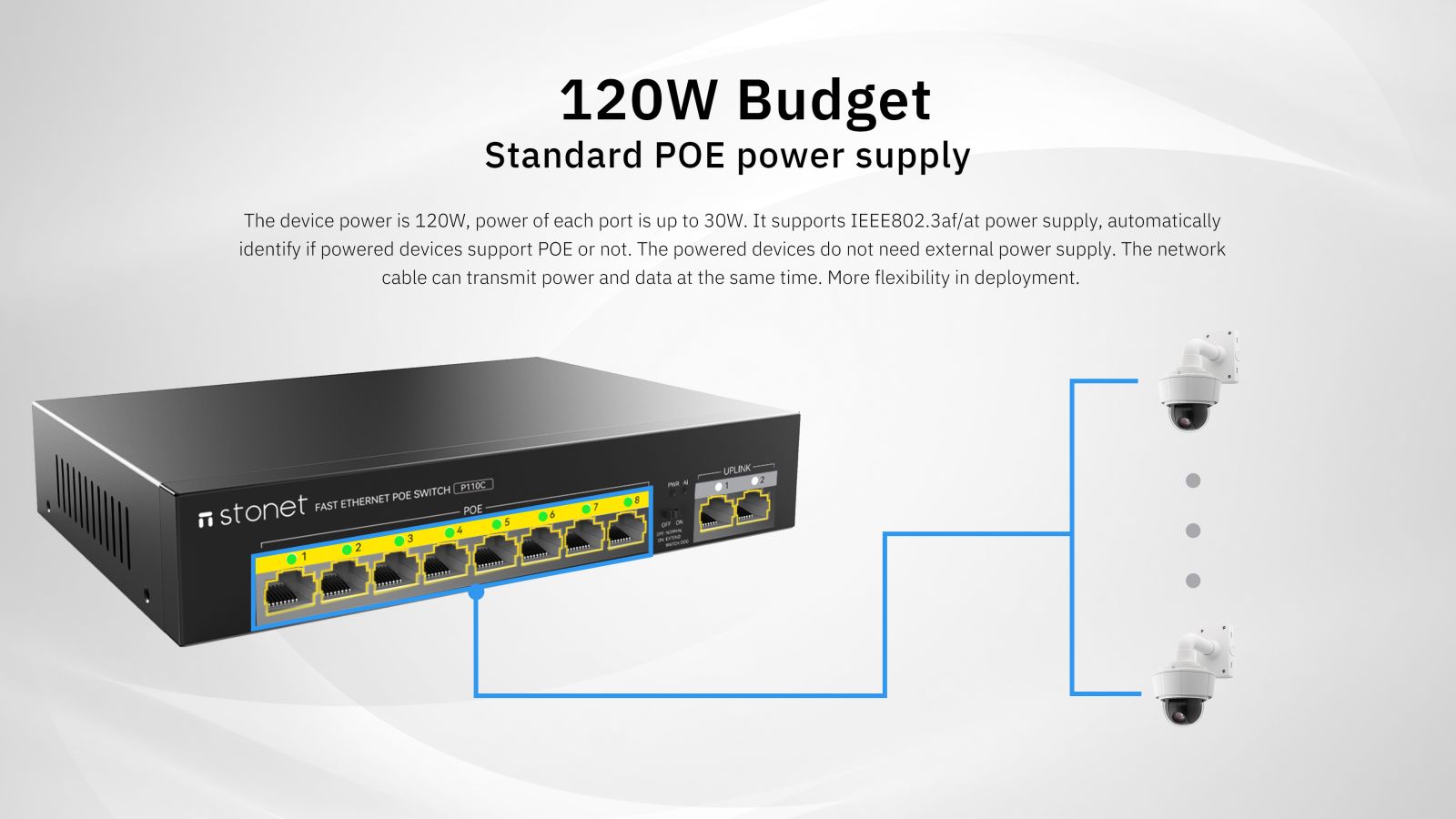

Single port maximum power 30W,
Whole switch maximum power 120W Support over-current,over-voltage and short-circuit protection Support Soft Start of High Power PD Support sequential boot-up
Power Supply Pin:12+/36-
AC 110~240V 50/60HZ
|
Cabling type
|
100Base-TX: Cat 5e or better UTP/STP(≤100m)
10Base-TX: Cat 5e or better UTP/STP(≤250m)
|
Dimensions
(L x W x H )
|
190mm*140mm*43mm
|
