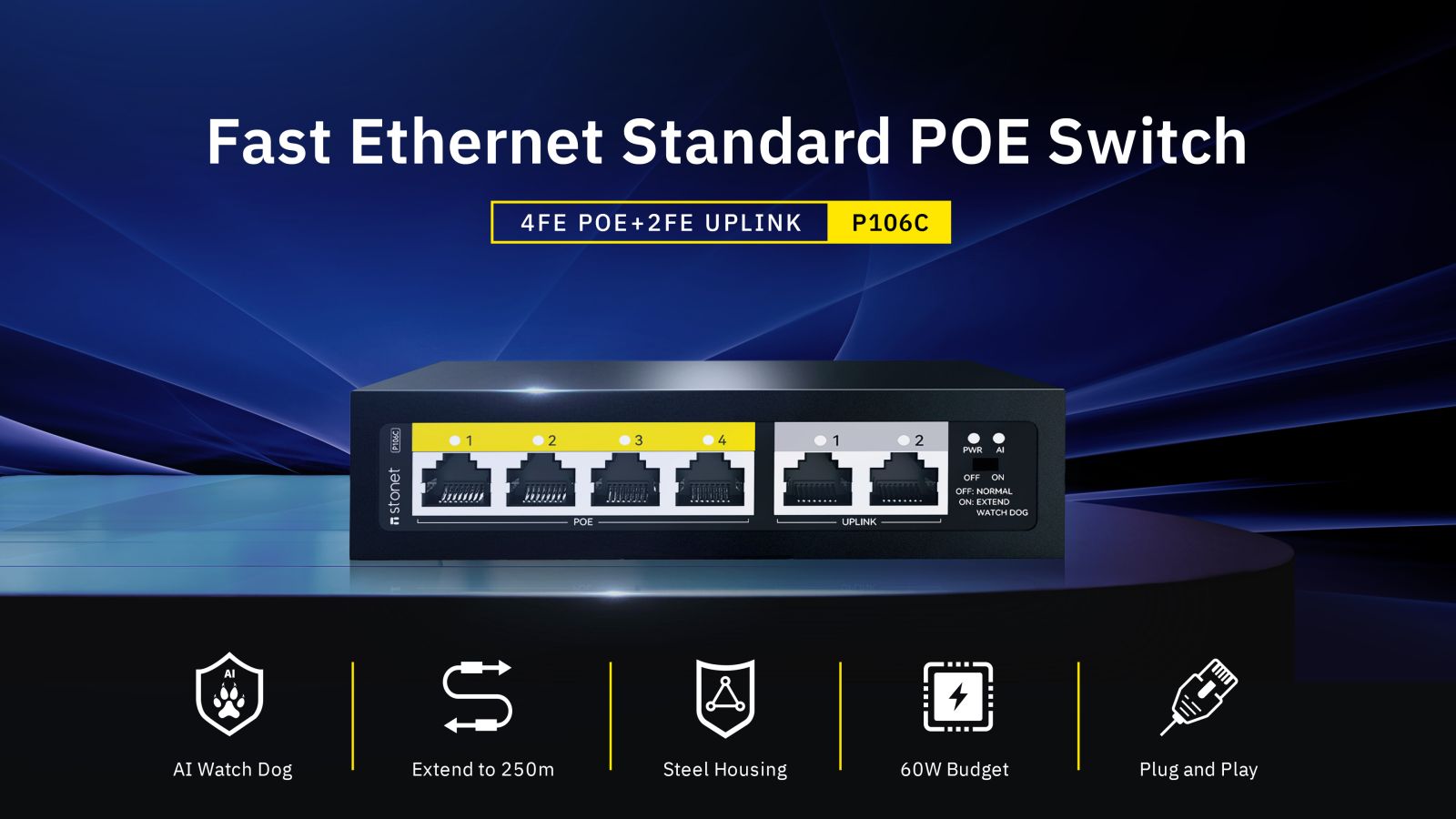

Суич Stonet P106C, 6 порта, 2x 10/100 Mbps RJ45, 4x 10/100 Mbps PoE

4POE+2RJ45 100M Standard POE Switch

Stonet P106C is a 100M standard POE switch that provides 6*10/100M adaptive RJ45 ports. Ports 1~4 features POE power supply capability and can be used as Power over Ethernet devices. The power supply port can automatically detect and recognize the powered device that complies with the IEEE 802.3af/at standard and supply power through the network cable.Supports two modes: normal switch mode/250M ultra-long transmission. P106C makes it easier for you to deploy wireless access point (AP) and IP terminal network devices using POE technology.





Specifications:

Interface	4*10/100Mbps POE ports（Data/Power） 2*10/100M uplink RJ45 ports (Data)
Basic function	Follow IEEE 802.3 Ethernet and IEEE802.3u Fast Ethernet Protocol  Supports POE IEEE 802. 3af/at compliant Powered Device (PD)  Store-and-forward switching scheme  Support IEEE802.3X full duplex and Backpressure half duplex  MAC address auto-learning & auto-aging
Standards	IEEE 802.3 10BASE-T Ethernet  IEEE 802.3i 10BASE-T Ethernet  IEEE 802.3u 100BASE-TX Fast Ethernet  IEEE 802.3af/at, Power over Ethernet  IEEE 802.3x Flow Control

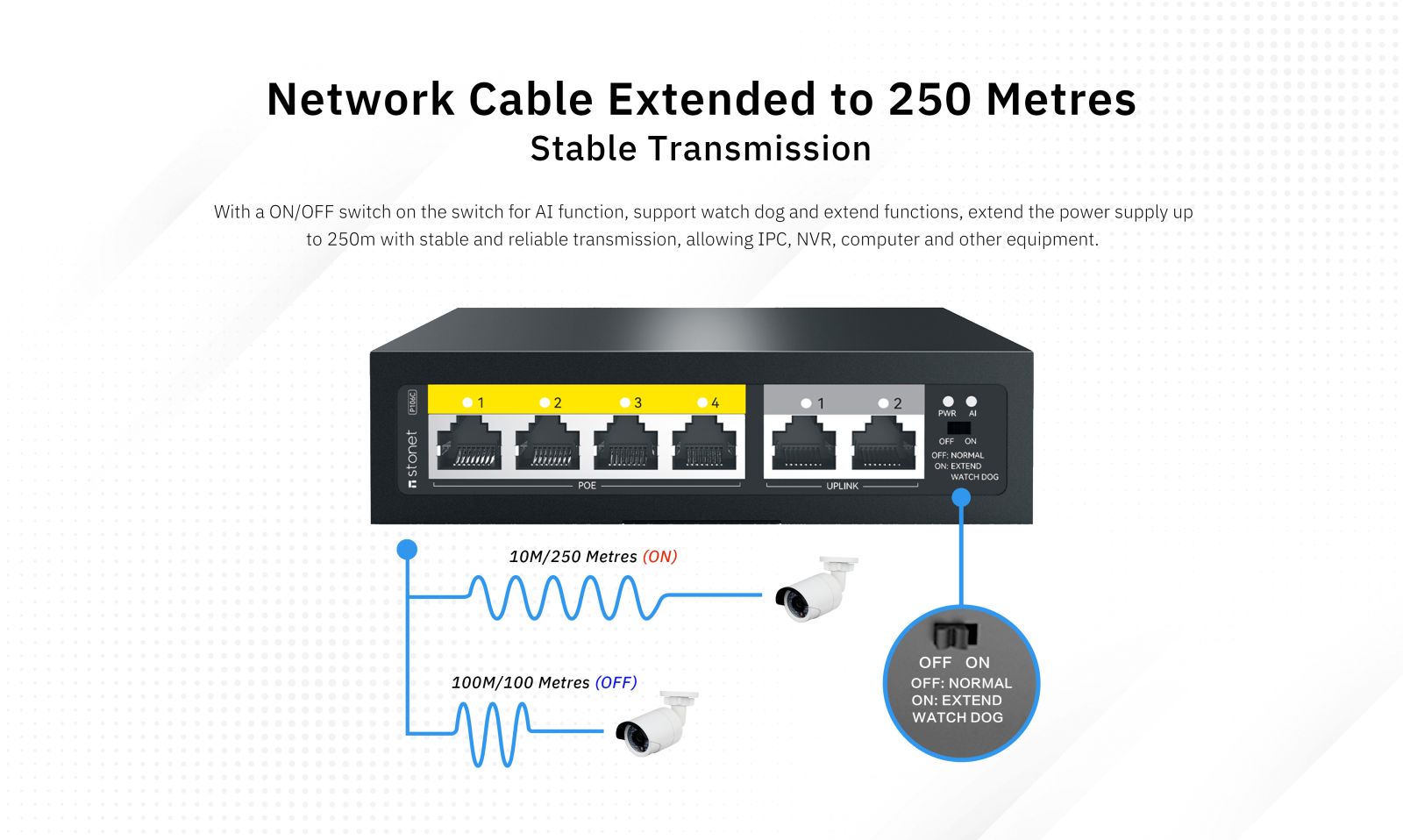

Mode	Normal switch mode/Extend mode
Data Transfer Rate	Etherent:10Mbps(Half-duplex);20Mbps(Full-duplex) Fast Entherent:100Mbps(Half-duplex);200Mbps(Full-duplex)
Store & Forwarding	Yes
Switching Capacity	1.2G
MAC Address   Table Size	2K
Jumbo Frame	2048 byte
Environment	Operation Temperature：0℃～40℃  Storage Temperature：-40℃～70℃  Operation Humidity：10%～90% RH Non-condensing  Storage Humidity：5%～90% RH Non-condensing

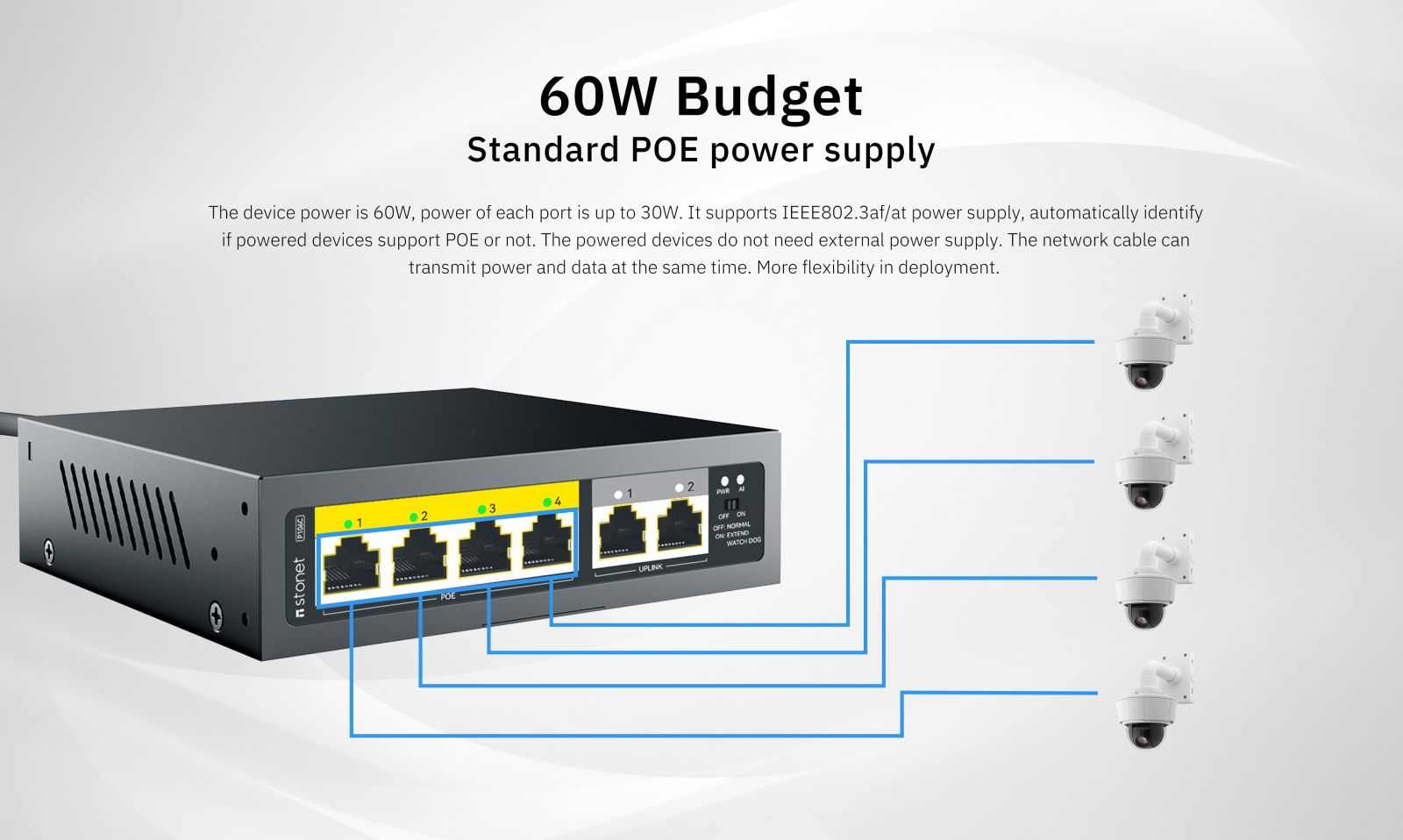

Power Input POE  Standards	Single port maximum power 30W,  Whole switch maximum power 60W  Support over-current,over-voltage and short-circuit protection  Support Soft Start of High  Power PD  Support sequential boot-up  Power Supply Pin:12+/36-  AC 110~240V 50/60HZ
Cabling type	100Base-TX: Cat 5e or better UTP/STP(≤100m)  10Base-TX: Cat 5e or better UTP/STP(≤250m)
Dimensions (L x W x H )	125mm*115mm*34mm
