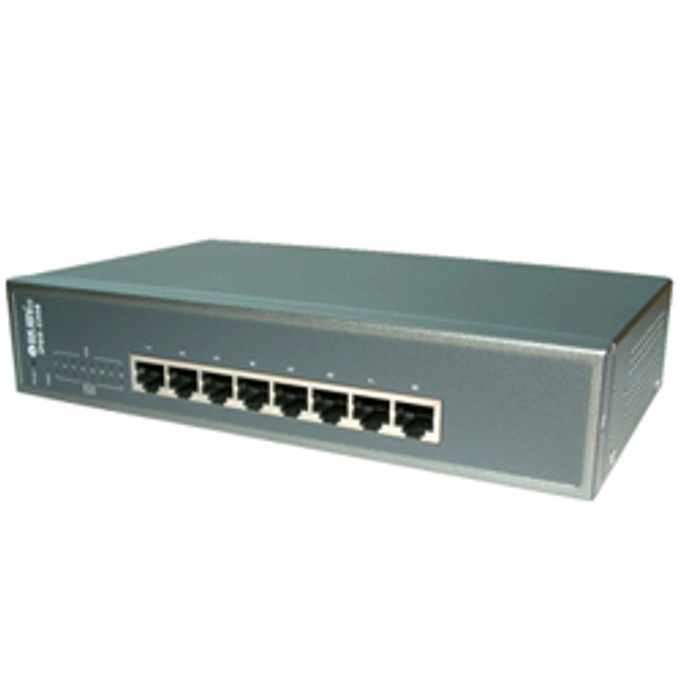

Суич Ruby Tech IPGS-1308, 8x LAN 100/1000 PoE

IPGS-1308 supports 8 Port 10/100/1000 Mbps Auto-negotiation, Auto-MDIX Ethernet ports and Power over Ethernet to IEEE 802.3af compliant devices. It’s fully compliant with the standards of IEEE 802.3/u/x/z/ab/af. With web-based management, the network administrator can logon the switch to monitor and configure. In addition, the switch implements the QoS(Quality of Service), Port Mirror,VLAN,LACP,LAN security, Multicasting video stream protocol, and SNMP v2c.IPGS-1308 provides R-Ring technology to enable self-recover time in less than 300ms.

Key Features

Supports 8 Port 15.4 W PoE Power output
130 watts of total power diversification options
PoE saves your power infrastructure and installation cost
Port Mirroring helps supervisor monitoring network
Redundancy: Gigabit R-Ring (Recover Time < 300ms)
Supports jumbo frame up to 9k bytes
-10° to 60°C operating temperature
Wide range power input, DC48V (44~56V)
IP-30 grade protection case
Alarm contact
VLAN
Storm Control
QoS with four priority queues
Port Mirroring
LACP
STP/RSTP

PoE Specification

8 IEEE802.3af PoE PSE ports
Endpoint with 48VDC power through RJ-45 pin 1,2,3,6
PoE activity LED indicator
130 watts of total power (15.4 watts/port)
Auto detect powered device and consumption level
Smart feature for PD detection, power class and power feeding priority

Hardware Specification

Power Requirement - DC 48VDC(44~56V)
Power Consumption - 130W
Alarm Relay - 1A@24V
Operating Temperature -10C to +60C
Humidity - 220(W) x 44(H) x 130.5(D) mm
Installation - DIN-Rail (Wall Mount: Optional)
EMI - Comply with FCC Part 15 Class A & CE Mark Approval
Shock - IEC60068-2-27
Freefall - IEC60068-2-32
Vibration - IEC60068-2-6
Casing IP30
