Кутия NZXT H5 Elite (Разопакован продукт), Mini-ITX/Micro-ATX/ATX, 1x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, с прозорец, черна, без захранване







Details


The H5 Elite features a tempered glass front panel and built-in RGB functionality to showcase various lighting components. With optimized thermal performance and intuitive

cable management, the H5 Elite is an ideal chassis for most builds.



Pre-installed fan on bottom inside panel is angled to cool GPU


Tempered glass front panel and built-in RGB controller


Perforated top panel provides optimal ventilation


Intuitive cable management system with wide channels, hooks, & straps


Tool-less access to front & side panels




Front panel supports 2 x 140mm fans or 280mm radiator


Top panel supports up to 2 x 120mm fans or 240mm radiator


Includes two pre-installed F140 RGB fans & one F120Q fan

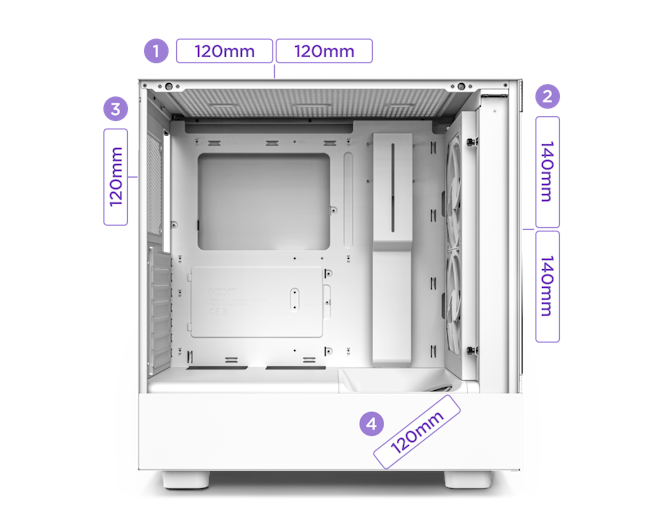

Fan Capacity Fan mounts offer space for two 140mm fans on the front panel and two 120mm fans on the top panel. Top: 2x 120mm Front: 2x 140mm / 2x 120mm Rear: 1x 120mm Bottom: 1x 120mm
	Radiator Capacity The top panel offers space for a 240mm radiator and the front panel provides room for a 280mm radiator.







Tech Specs


KEY SPECS

Motherboard Support:  Mini-ITX, Micro-ATX, ATX

Enclosure Type:  Mid-Tower

Case Material:  SGCC Steel, Ultra-clear Tempered Glass, Dark Tinted Tempered Glass (Black only)



DIMENSIONS

Height:  464 mm (With Feet)

Width:  227 mm

Depth:  446 mm

Weight:  8.1 kg



COMPATIBILITY & CLEARANCE

Max CPU Cooler Clearance:  Up to 165mm

Max GPU Clearance:  Up to 365mm

Front Radiator Clearance:  45mm

Cable Management:  Up to 23mm



FRONT I/O PORTS

USB 3.2 Gen 1 Type-A:  1

USB 3.2 Gen 2 Type-C:  1

Headset Audio Jack:  1



INCLUDED ACCESSORIES

Installation screws:  1

Cable ties:  10

RGB Lighting Controller:  NZXT RGB Connector: 3 (Support up to 120 LEDs)



EXPANSION SLOTS

Standard:  7



DRIVE BAYS

2.5":  1+1

3.5":  1



FAN SUPPORT

Front:  2 x F Series RGB 140mm (Case Version) included

Top:  2 x 120mm

Rear:  1 x 120mm

Bottom:  1 x F Series Quiet 120mm (Case Version) included

Filters:  All Air Intakes



RADIATOR SUPPORT

Front:  Up to 280mm

Top:  Up to 240mm

Rear:  Up to 120mm



FAN SPECS

Model:  F140 RGB Fan

Speed:  500 - 1800 RPM

Airflow:  24.85 - 89.48 CFM

Static Pressure:  0.94 - 3.39 mm-H2O

Noise:  20 - 32.5 dBA

Fan Connector:  4-pin



FAN SPECS

Model:  F120Q Airflow Fan (Case Version)

Speed:  1200 ± 240 RPM

Airflow:  62.18 CFM

Static Pressure:  1.05 mm-H2O

Noise:  25.1 dBA

Fan Connector:  3-pin

JAR Computers може да предложи ремонт/смяна/монтаж в наш сервиз или при партньор.
