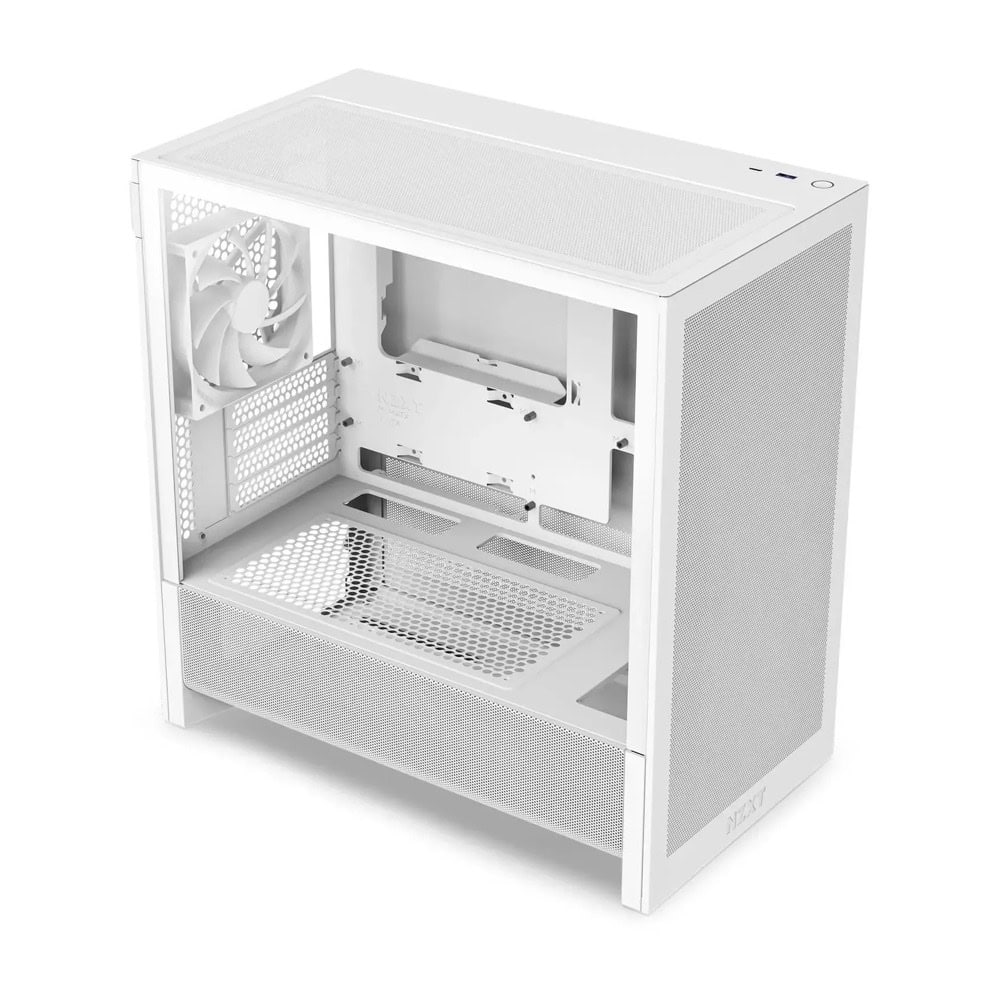

Кутия NZXT H3 Flow 2025, microATX/Mini-ITX, USB 3.2 Gen 2x2 Type-C, 1x 120mm вентилатор, с прозорец, бяла, без захранване

NZXT H3 Flow 2025

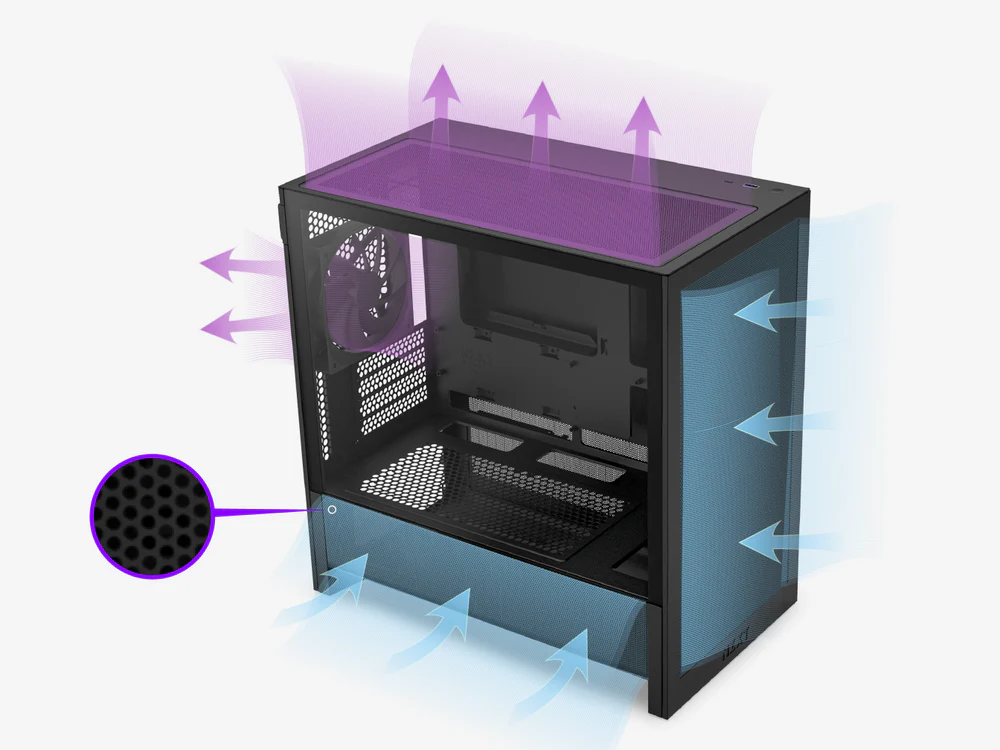

Optimized Airflow Ultra-fine mesh on the front, top, and sides enhances cooling while filtering dust. The ventilated PSU shroud optimizes intake from bottom-mounted fans.

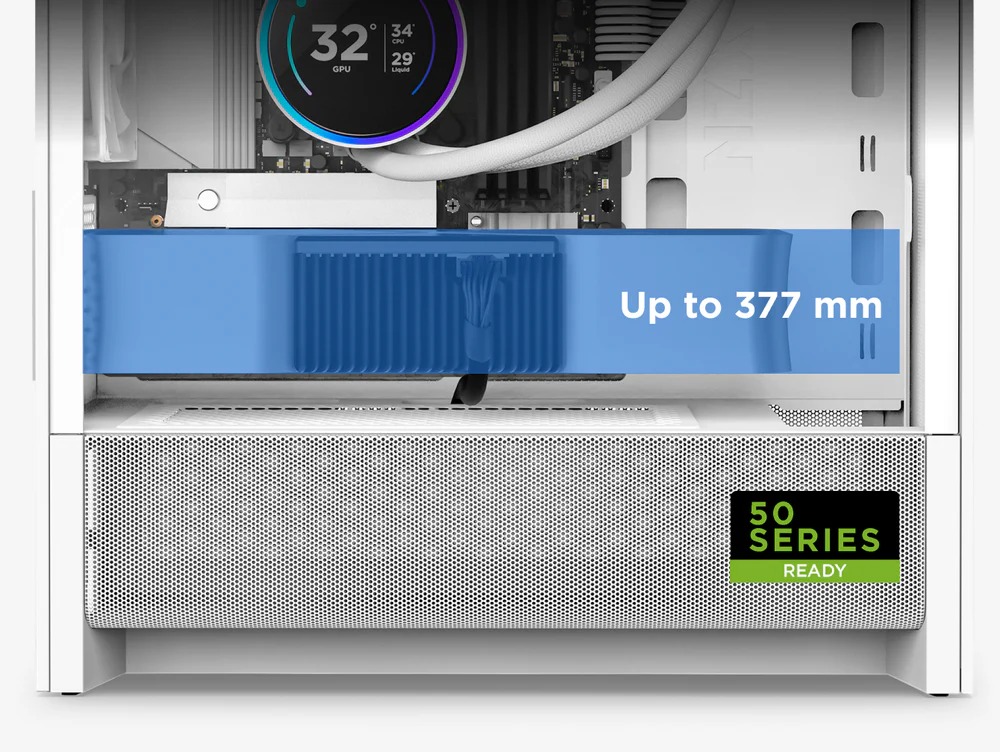

Full-Size GPU Support Max length of 377 mm (no front fans), 352 mm (with fans), 317 mm (with fans & radiator).

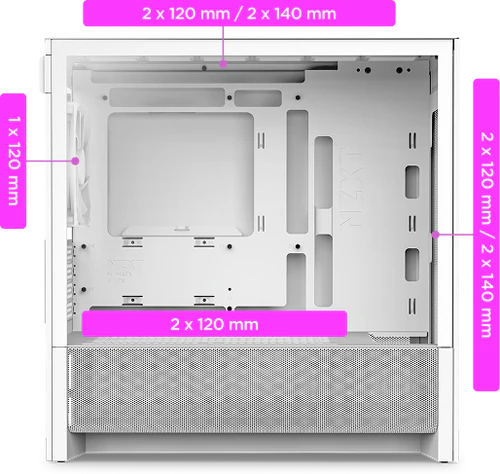

7-Fan Capacity Supports up to 140 mm fans (two front, two top) and 120 mm fans (two bottom, one rear).

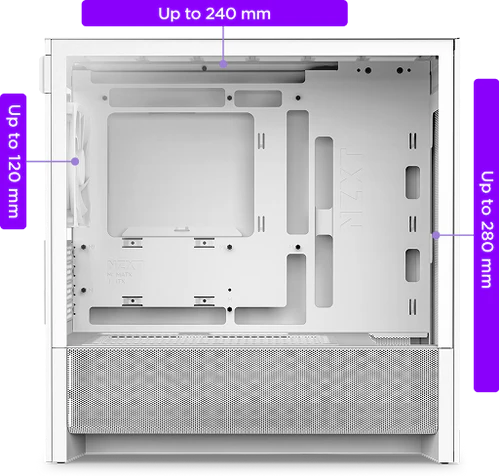

Radiator Ready Supports a 280 mm front radiator and a 240 mm top radiator for versatile cooling setups.

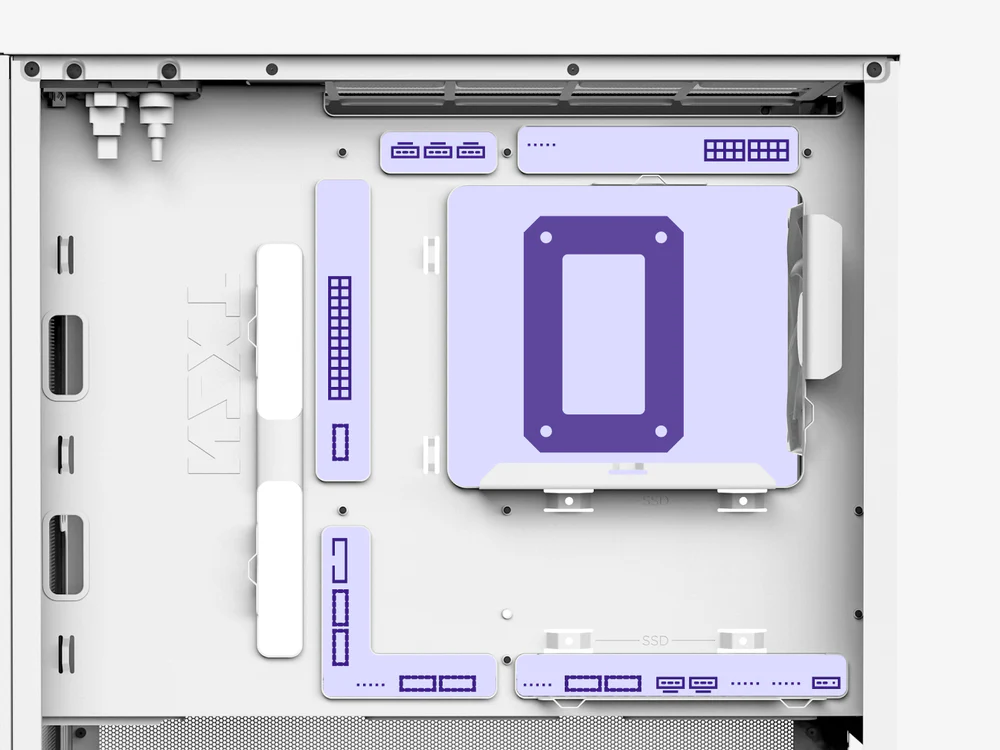

Back-Connect Ready Compatible with ASUS BTF and MSI Project Zero motherboards for a clean, cable-free build.

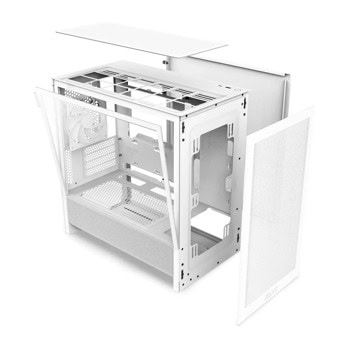

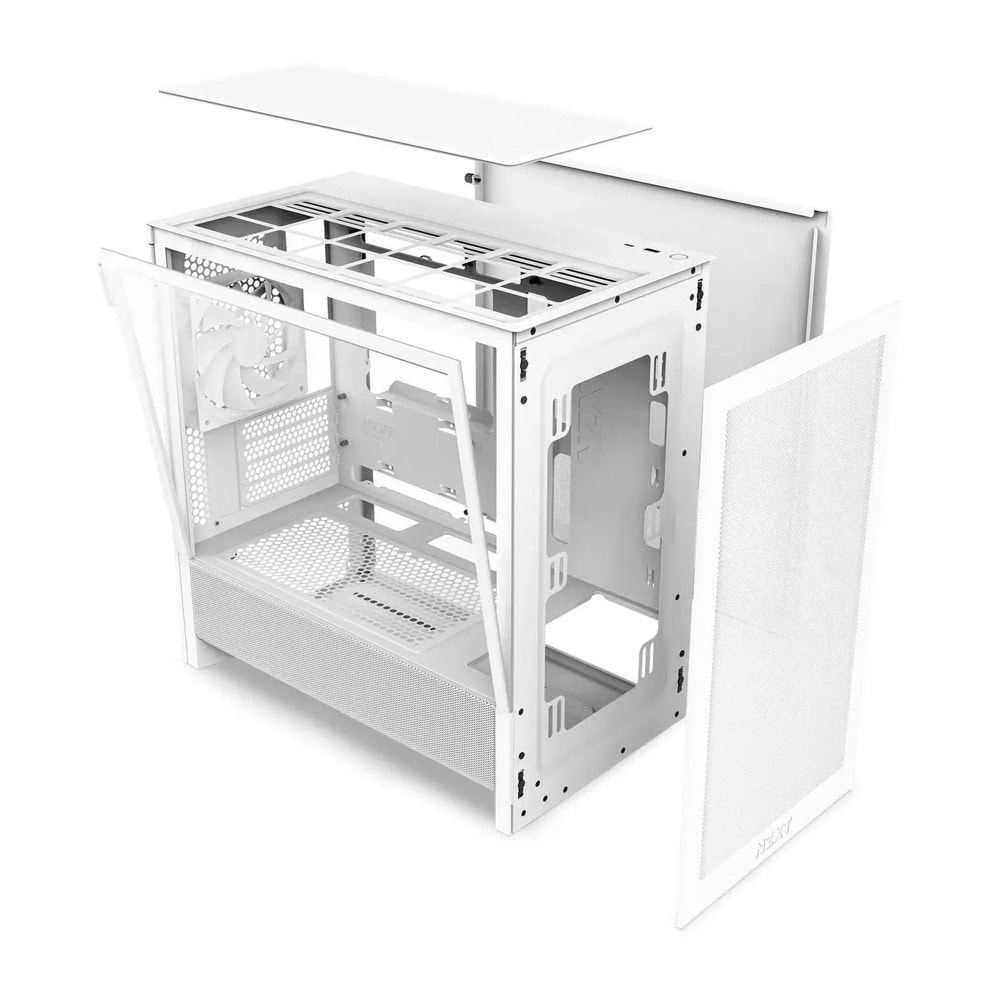

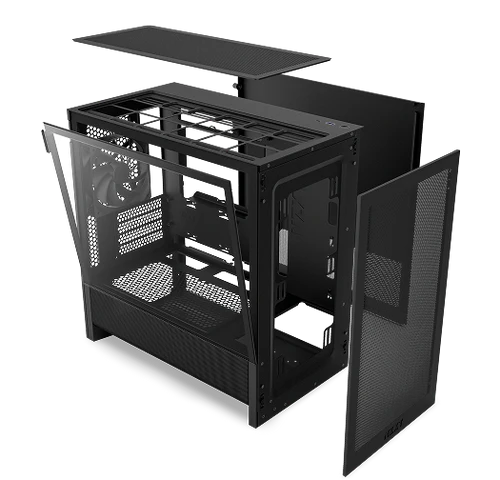

Tool-Free Access Easily remove panels for building, upgrading, or cleaning.

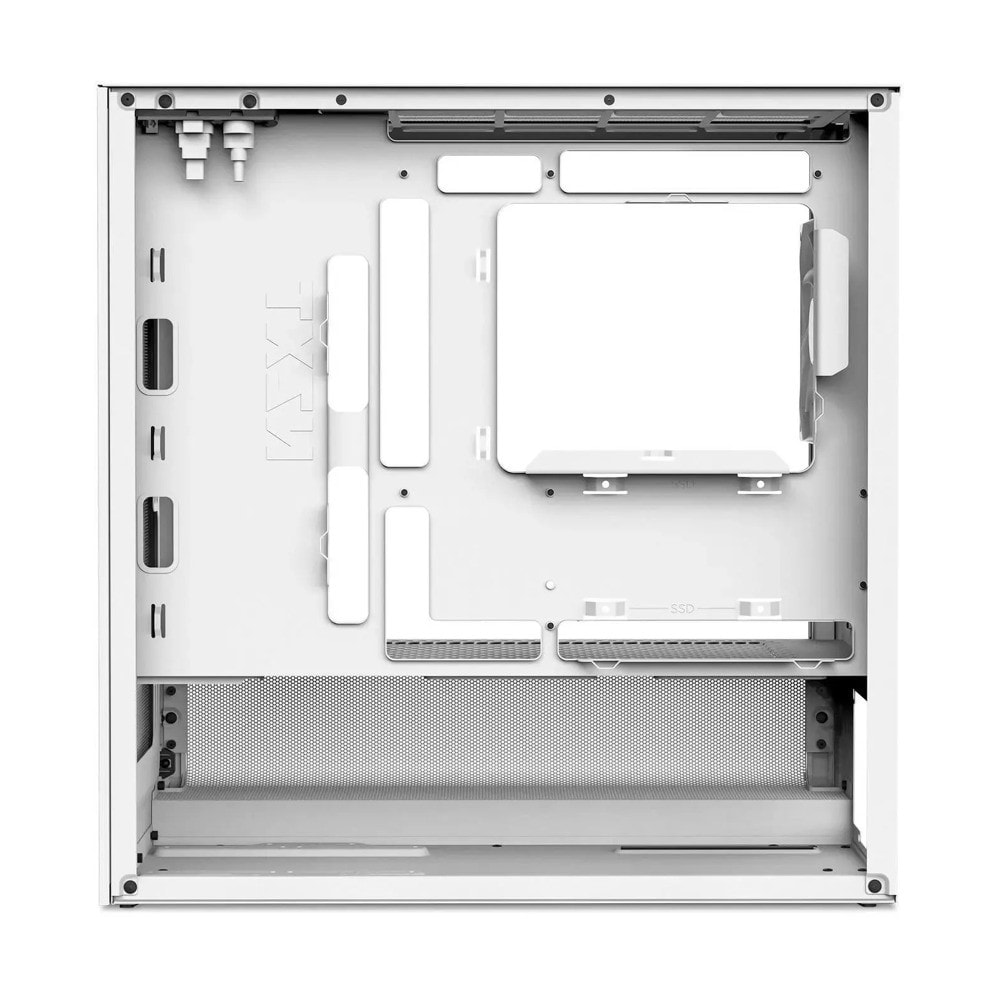

Easy Cable Management Integrated cable channels and tie-down points make routing clean and simple.

Tech Specs

Dimensions

Height (with feet)

400 mm (15.75 in)

Width

225 mm (8.86 in)

Depth

389 mm (15.31 in)

Volume

35.0 L

Weight

4.8 kg (10.58 lb)

General

Enclosure Type

Micro-ATX Case

Motherboard Compatibility

Micro-ATX, Mini-ITX

Supports Rear-Connecting Motherboards (BTF, Project Zero)

Yes (Micro-ATX)

Materials

SGCC steel, clear tempered glass (white), tinted tempered glass (black)

Clearance

CPU Cooler Height

170 mm

GPU Length

Up to 377 mm (without front fans) Up to 352 mm (with front fans) Up to 317 mm (with front radiator and fans)

PSU Length

Up to 185 mm

Cable Routing Space

Up to 31.5 mm

Front Radiator + Fan Thickness

Up to 63 mm

Top Radiator + Fan Thickness

Up to 70 mm

Front I/O Ports

USB 3.2 Type-A

1

USB 3.2 Gen2x2 Type-C

1

Expansion Slots

Standard

4

Vertical

0

Drive Bays

2.5"

1+2

3.5"

1

Fan Support

Front

2 x 120 mm / 2 x 140 mm

Top

2 x 120 mm / 2 x 140 mm

Bottom

2 x 120 mm

Rear

1 x 120 mm (1 x F120Q (CV) included )

Radiator Support

Front

Up to 280 mm

Top

Up to 240 mm

Fan Specs

Model

F120Q (CV)

Speed

1,350 ± 150 RPM

Airflow

60.2 CFM

Static Pressure

1.05 mmH2O

Noise

24.1 dBA

Fan Connector

3-pin
