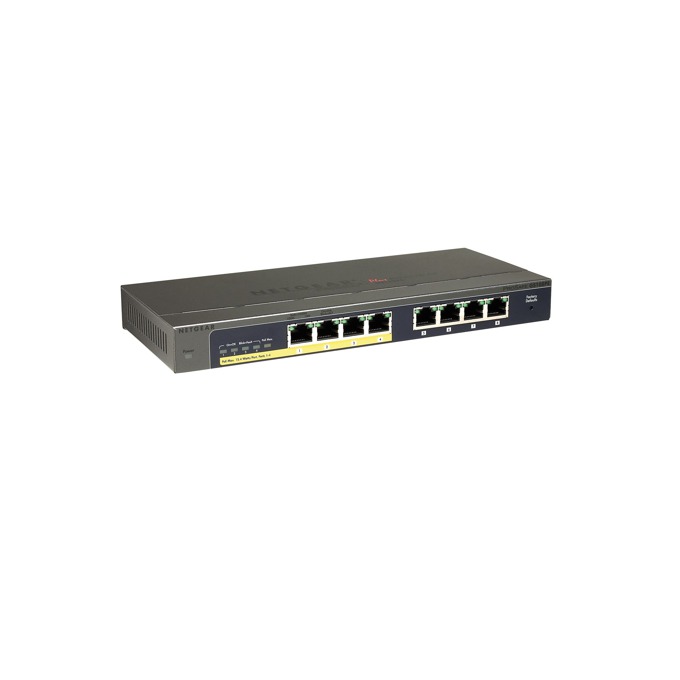

Netgear GS108PE, 8 Port Gigabit Ethernet Prosafe PLUS switch with PoE ports

Gigabit Unmanaged Plus Switches

NETGEAR ProSAFE® Gigabit Plus Switches deliver network monitoring, traffic prioritization and network segmentation to small businesses who want more visibility and control on top of plug-N-play connectivity.

Specifications

Status LEDs
– System: Power, PoE maximum power
–Per Port: Link, activity, speed, PoEactive, PoE fault

Power Supply
– Total power consumption: 51.1W maximum
– 802.3af power consumption: 45W maximum (Ports 1- 4)
– 48V DC, 1.25A power output; plug is localized to country of sale

Physical Specification s
– Dimensions (H x W x D): 27 x 235 x
103 mm (1.1 x 9.3 x 4.1 in)
– Weight: 0.716 kg (1.7 lb)
– Network Ports
– Eight (8) auto speed-sensing 10/100/1000 RJ-45 ports

• Network Protocol and Standards
–IEEE 802.3i 10BASE-T
–IEEE 802.3u 100BASE-TX
–IEEE 802.3ab 1000BASE-T Gigabit Ethernet
– IEEE 802.3x flow control
– IEEE 802.3af DTE Power via MDI

Electromagnetic Emissions
–CE mark, commercial
–EN 55022 (CISPR 22) Class A
–FCC Part 15 Class A
– VCCI ClassA
– C-Tick


Environmental Specifications
–Operating temperature: 32° to 122° F (0° to 50° C)
–Storage temperature: -4° to 158° F (-20° to 70° C)
– Operating humidity: 90% maximum relative humidity, non-condensing
– Storage humidity: 95% maximum relativ ehumidity, non-condensing
–Operating altitude: 10,000 ft (3,000 m) maximum
– Storage altitude: 10,000 ft (3,000 m)maximum

Safety
– CE/LVD EN 60950
– CB

Performance Specifications
–Forwarding mode: Store-and-forward
–Queue Buffer Memory: 192 KB
–Bandwidth: 16 Gbps (non-blocking)
–Forwarding rate:
–10 Mbps port: 14,880 packets/sec,
–100 Mbps port: 148,800packets/sec,
–1000 Mbps port: 1,488,000packets/sec
–Latency: 1000 Mbps to 1000 Mbps:2.7 μs max.
–MAC address database: 4K
