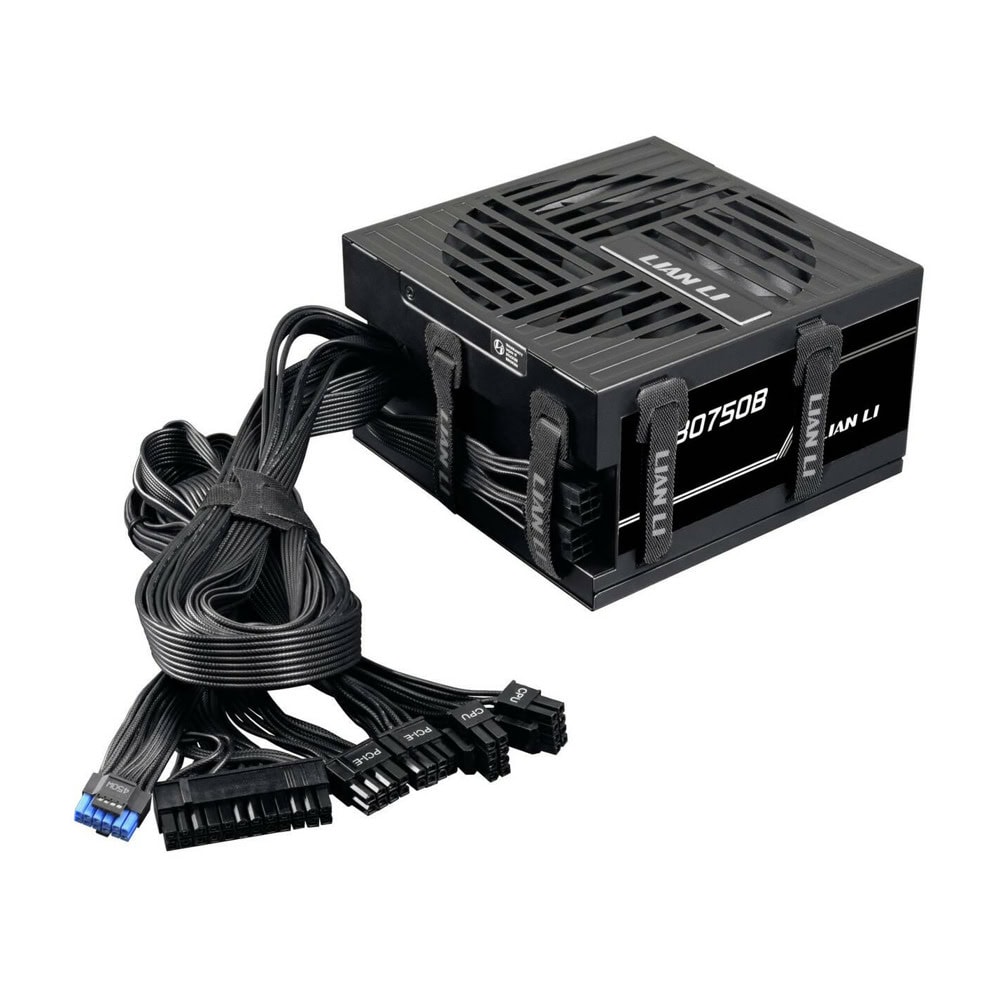

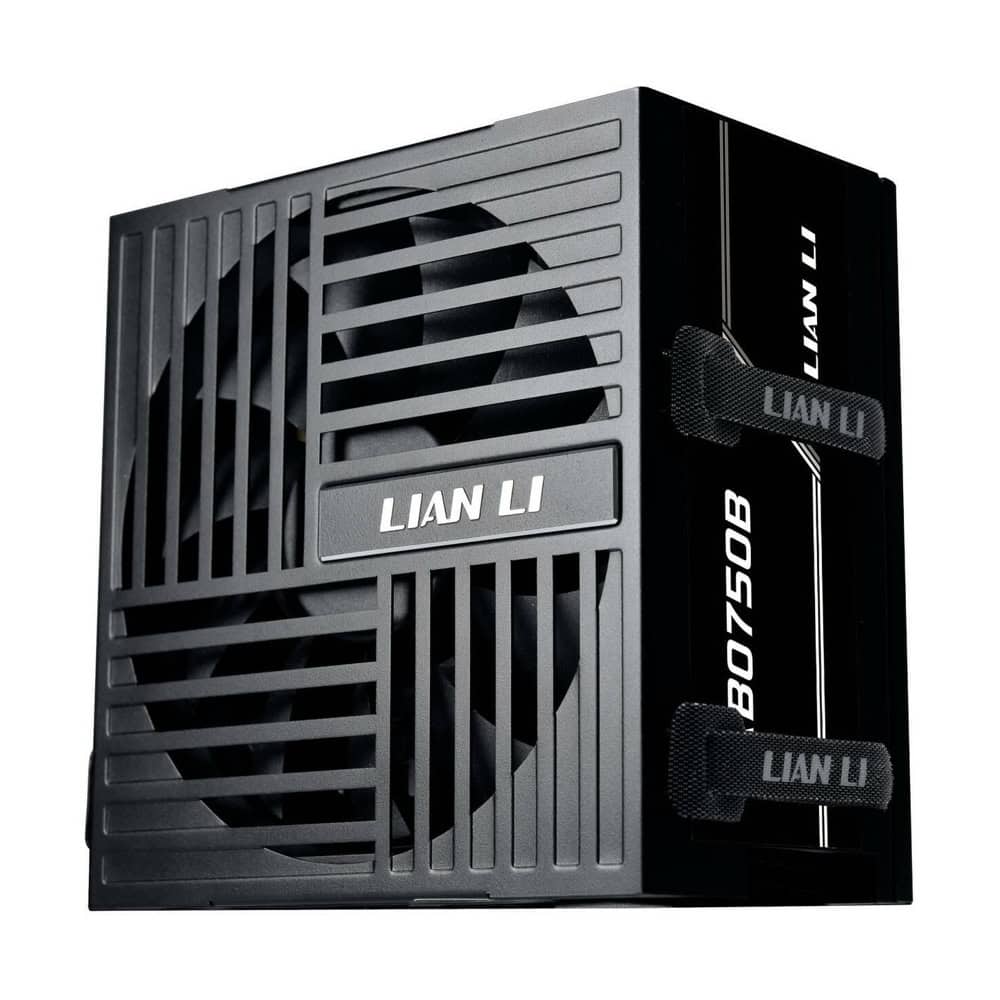

Захранване Lian Li RB750B, 750W, Active PFC, 80 Plus Bronze, 135mm вентилатор

Lian Li RB750B

BUILT FOR THE LATEST ATX 3.1 STANDARD

Fully compliant with the latest ATX 3.1 standard, this PSU supports next-gen hardware demands with native 12V-2×6 PCIe connectors for improved safety and power delivery. Engineered to handle high transient loads with greater efficiency, it’s ready for the most demanding GPUs and future upgrades.

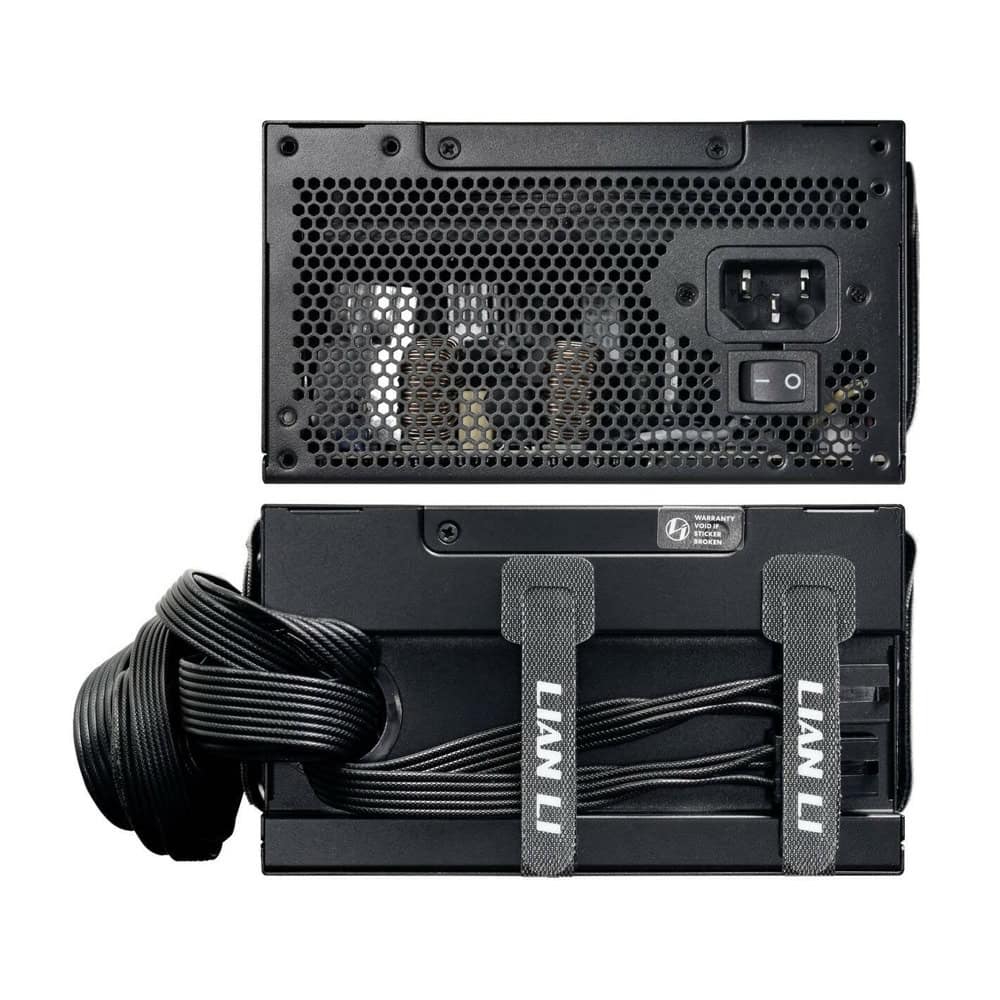

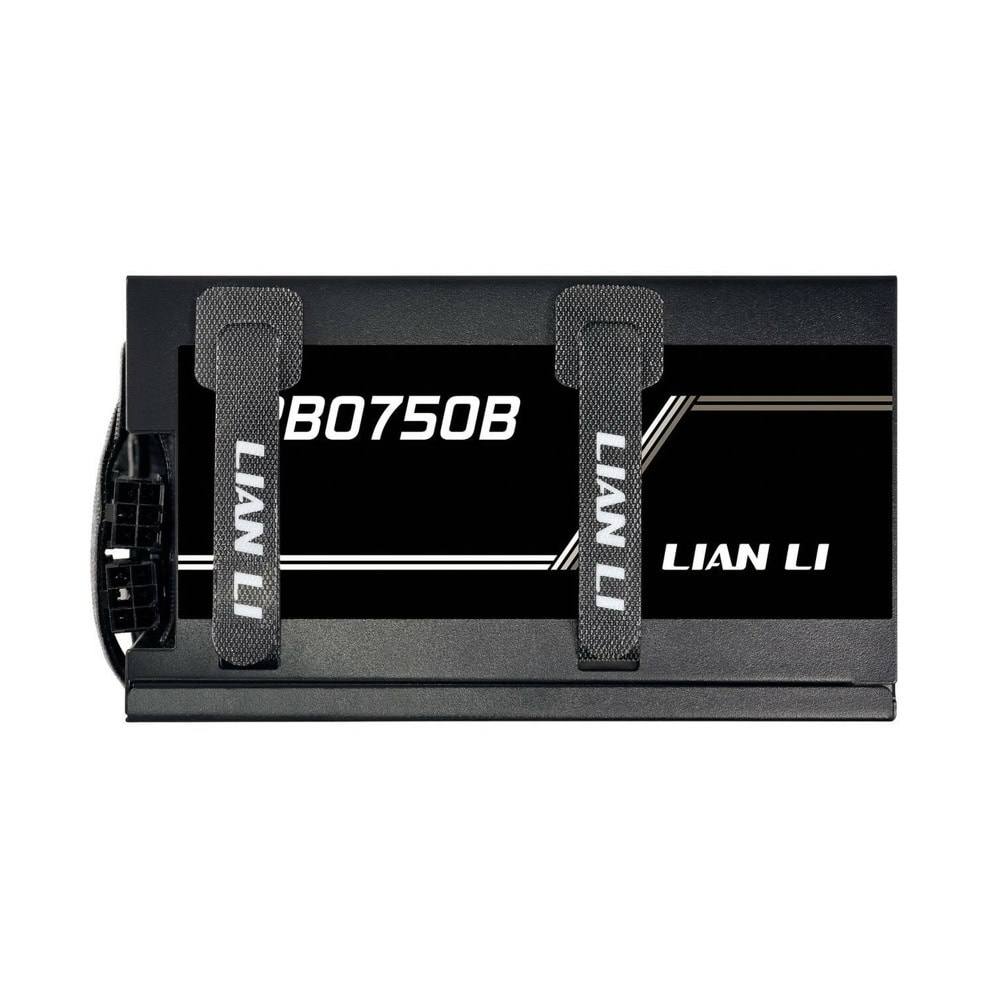

SMART CABLE MANAGEMENT

The RB Series features a built-in deep routing channel and Velcro straps on three sides of the PSU housing to keep cables securely in place. Excess cables can be easily tucked away, while thick CPU and GPU power lines stay neatly organized. This improves airflow, reduces clutter, and results in a cleaner and more professional build.

MODULAR FOR PERIPHERALS To maintain a clutter-free build, modular SATA and peripheral cables let users connect only what they need. These cables are neatly routed through a dedicated grooved channel and secured with built-in Velcro straps on the PSU housing, improving airflow and maintaining a clean, professional look.

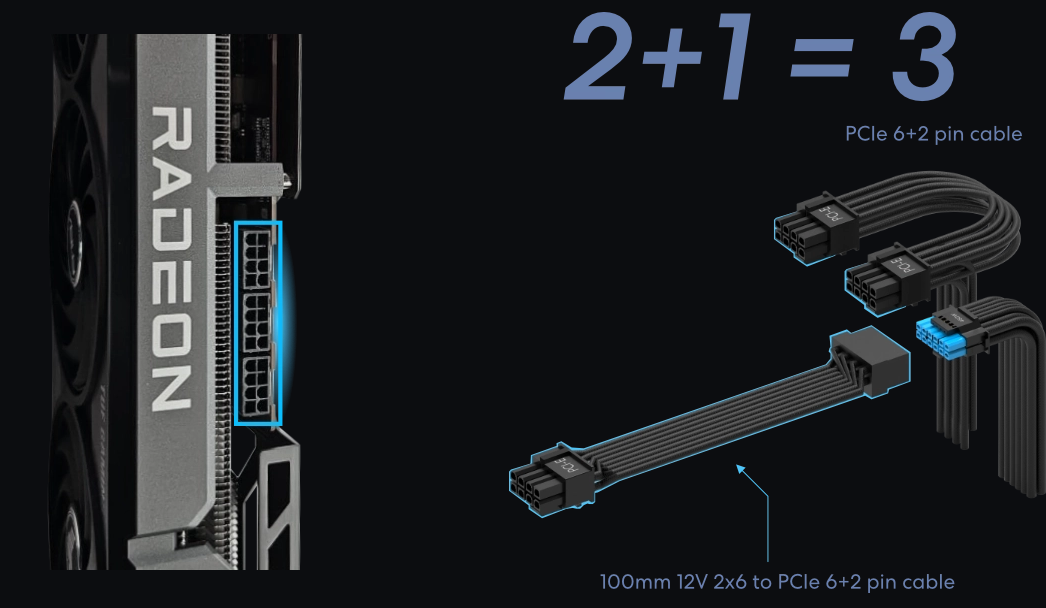

TRIPLE PCIe 6+2 pin GPU SUPPORT

The RB 750W goes further with an extra 100mm 12V 2×6 to PCIe 6+2 pin cable, delivering a total of three 8-pin connectors for high-end AMD GPUs. This added flexibility makes it a future-proof choice for demanding users.

HIGH-QUALITY 105°C CAPACITORS Built with premium 105°C capacitors, a robust single +12V high-amperage rail, and reliable DC-to-DC architecture, this PSU delivers stable and consistent power output. These high-quality components form the foundation of stability—reducing voltage fluctuations and noise to ensure smooth performance, extended component lifespan, and dependable reliability even under continuous operation at up to 40°C.

QUIET COOLING, STABLE OPERATION

Equipped with a 135mm HYB smart temperature-controlled fan, larger than the standard 120mm, the PSU delivers superior cooling performance even at lower fan speeds. This design not only improves heat dissipation but also helps reduce noise levels, ensuring efficient, quiet cooling for everyday tasks and stable operation under heavy workloads.

ENHANCED DURABILITY WITH FULL PROTECTION

Built to operate at up to 40°C, the RB Series features six industrial-grade protections: OVP, UVP, OCP, OPP, OTP, and SCP, ensuring stable power delivery even under harsh conditions.

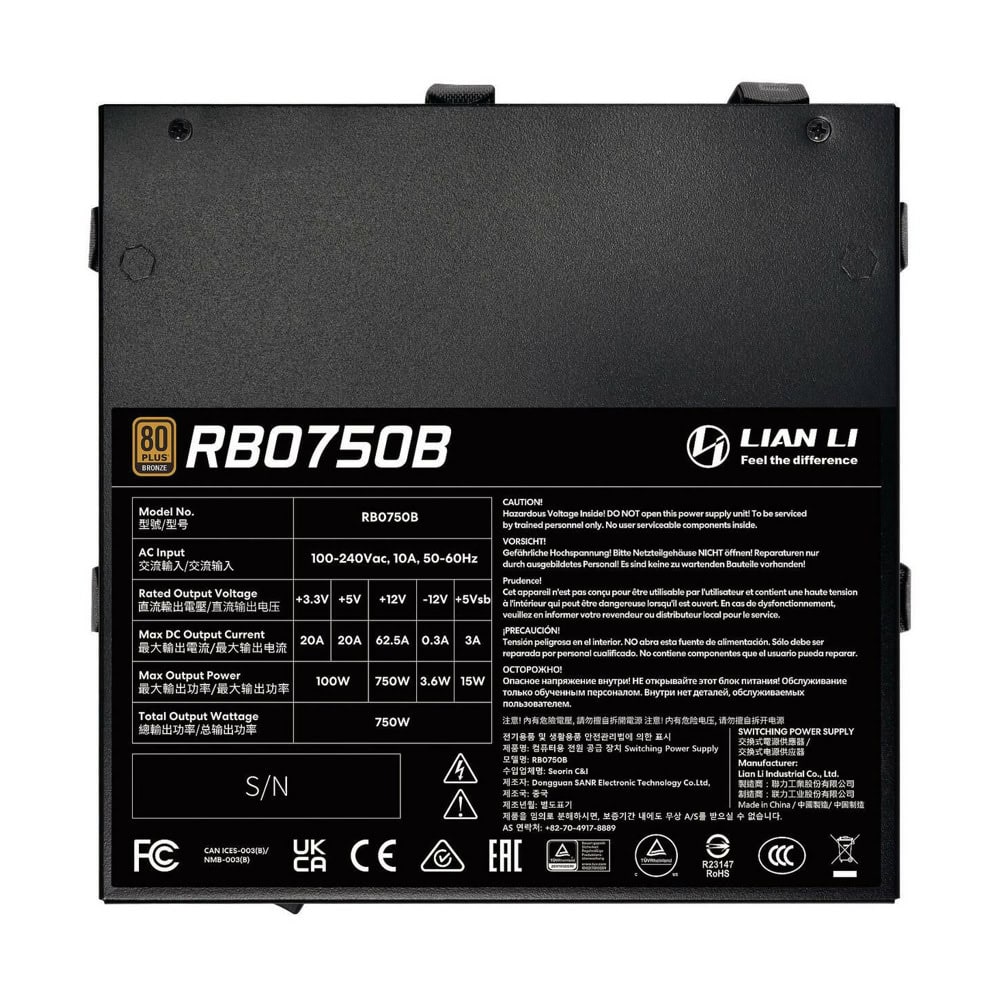

Specifications

ATX12V VERSION

ATX 3.1

EFFICIENCY

80 PLUS Bronze

DC OUTPUT CABLE

Non-Modular

DIMENSIONS

(D)150 mm X (W)86 mm X (H)150 mm

PFC

Active PFC, PF > 0.95 under full load @ 115Vac, 60Hz

INPUT RATING

100-240Vac 10A, 50-60Hz

MAX. DC OUTPUT

750W

COMBINED +12V

750W

COMBINED +3.3V & +5V

100W

FAN SPEC

135mm HYB Fan

FAN RPM

1600rpm

NOISE LEVEL

40.1dBA

MTBF

100,000 hrs minimum 25℃/75% Load

PROTECTION

OPP，OVP，SCP，OCP，UVP，OTP

SAFETY APPROVAL

CE/CB/cTUVus/TÜV/FCC/BSMI/CCC/KCC/SAA+RCM
