Суич Lanberg ILFE-8P-1GE-1S-120, 1000 Mbps, 10 порта, 8x 10/100/1000Mbps RJ45 PoE, 1x 10/100/1000Mbps RJ45, 1x SFP

Lanberg ILFE-8P-1GE-1S-120

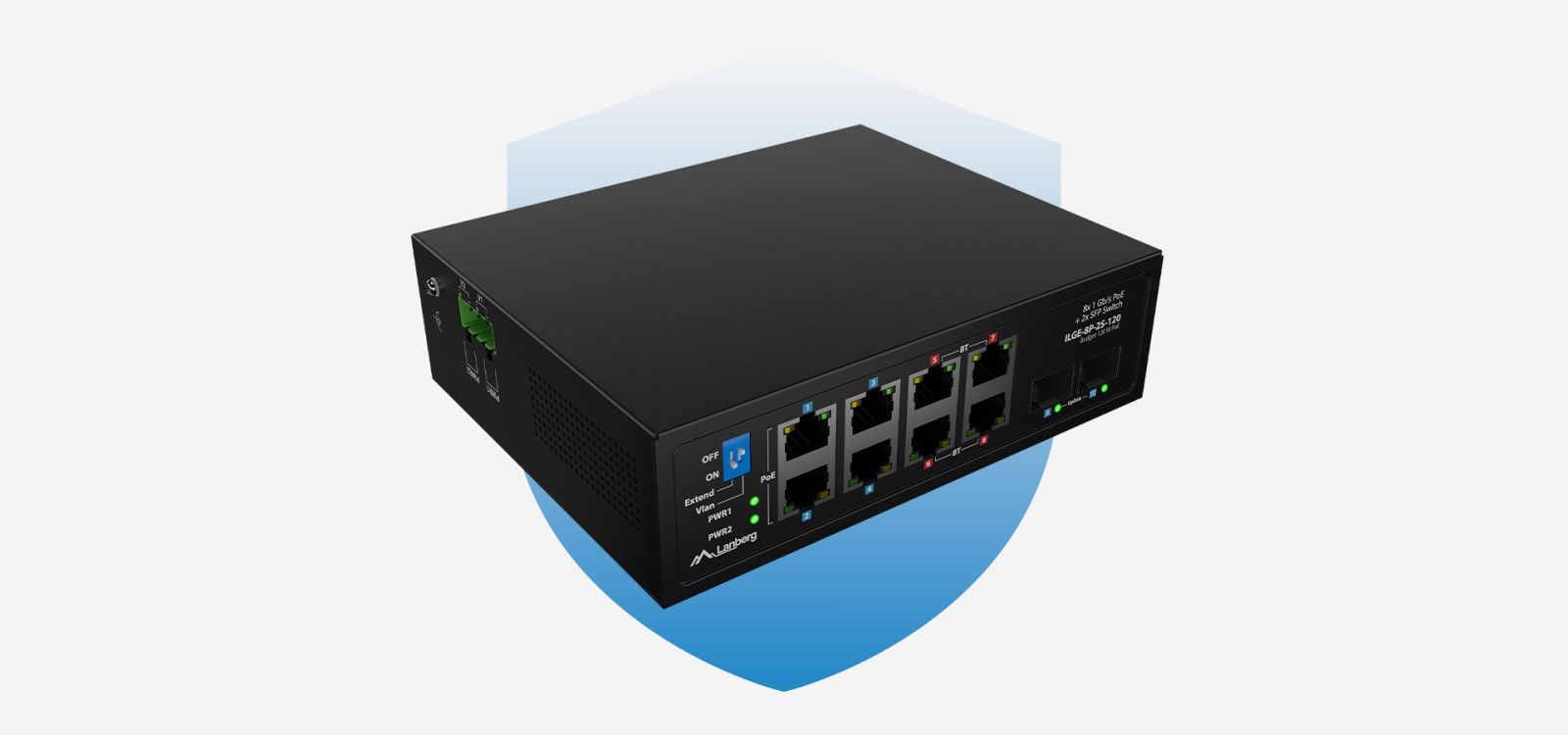

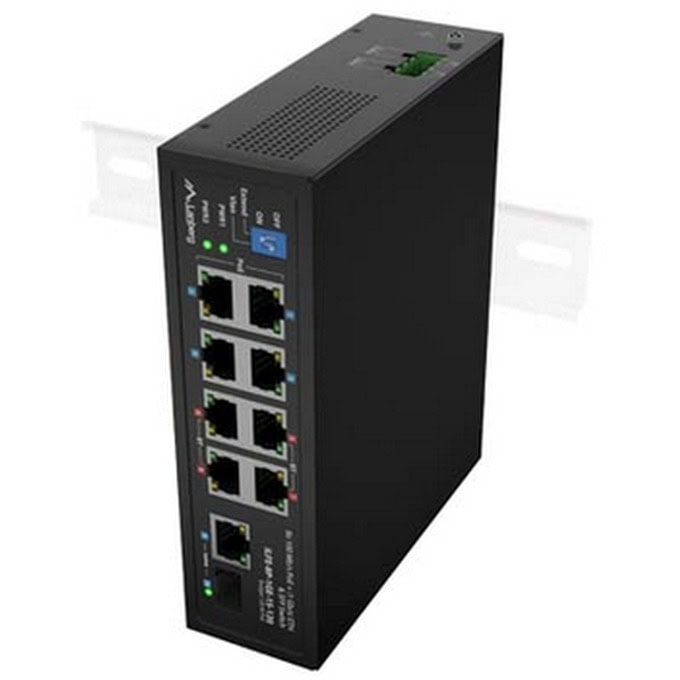

Lightweight unmanaged industrial switch Lanberg ILFE-8P-1GE-1S-120

Industrial switches are an essential active device in any network structure – from automation and SCADA systems, through cable TV networks, to distributed IoT installations and surveillance. Lanberg’s lightweight industrial switch series was designed for demanding working environments: a metal enclosure, passive cooling, and operating parameters that support stable operation across a wide ambient temperature range. The key advantages of this line include high PoE power (PoE+ / PoE++), redundant power input (you can connect 2 power sources), DIN-rail mounting, VLAN and EXTEND functions, automatic MDI/MDI-X, flow control, an intelligent PoE port cut-off function, and MAC auto-learning.

In practice, this is a network switch built for distributed infrastructure: industry, street lighting infrastructure, outdoor CCTV monitoring, alarm systems, and both indoor and outdoor deployments where Ethernet data transmission and PoE power for end devices (cameras, recorders, access points, controllers, sensors) matter – often with higher power requirements.

NOTE: The device power supply is included in the product set.

Industrial switch ILFE-8P-1GE-1S-120 with a rich selection of ports

This switch is equipped with ports optimized for larger deployments with many PoE endpoints:

• 8× Fast Ethernet RJ45 PoE ports (10/100 Mb/s): 4× IEEE 802.3af/802.3at PoE+ plus 4× IEEE 802.3bt PoE++ (BT, max 90 W) – for higher-power end devices.
• 1× 1000BASE-T uplink (Gigabit Ethernet) – for fast traffic aggregation and connection to the network core / NVR / router.
• 1× SFP slot (1000BASE-X) as a fiber uplink – optical parameters depend on the selected SFP module.

An unmanaged switch that knows how to disconnect devices

If too many devices are connected and the available PoE power reserve is exceeded, the switch will disconnect endpoints starting from the highest-numbered PoE ports down to the lowest until a safe power limit is restored. This makes it easy to plan for power spikes and define which devices are most critical and should stay online first.

Number of Ethernet ports

9

Number of fiber ports

1

Number of POE ports

8

Ports specification

1x 1000BASE-T, 1x 1000BASE-X SFP, 4x 100BASE-T 802.3af/802.3at PoE+, 4x 100BASE-T 802.3bt PoE++

Maxiumum network link speed

1 Gbps

Network Link Type

Ethernet, Fiber

Management

Unmanaged

Specialized

Industrial, Rack

Type of casing

Din rail, Rack

PoE support

Yes

PoE standards

802.3af, 802.3at, 802.3bt

PoE power supply type

PoE, PoE+, PoE++

Total budget for PoE

120 W

Bandwith

4.8 Gbps

MAC address table

2K

Cooling

Passive

Power Requirements

48~56V DC

Surge protection

6 kV

Plug & Play

Yes

Work signal

LED

Wired standards

IEEE 802.3af PoE, IEEE 802.3at PoE+, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3x (Flow-Control), IEEE 802.3z 1000Base-LX/SX

Functions

Automatic MDI / MDI-X, Extend mode, Flow control, Intelligent PoE port disconnection function, MAC auto-learning, VLAN

Material

Metal

Software

No

Length

124 mm

Width

152 mm

Height

44 mm

Weight

0.53 kg
