Name: Суич TP-Link TL-SL1311P, 1000Mbps, 11 порта, 8x 10/100Mbps RJ45 PoE+, 2x 10/100/1000Mbps RJ45, 1x SFP
Brand: TP-Link
SKU: NTLHTPLINKTLSL1311P
Price: 109.14 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

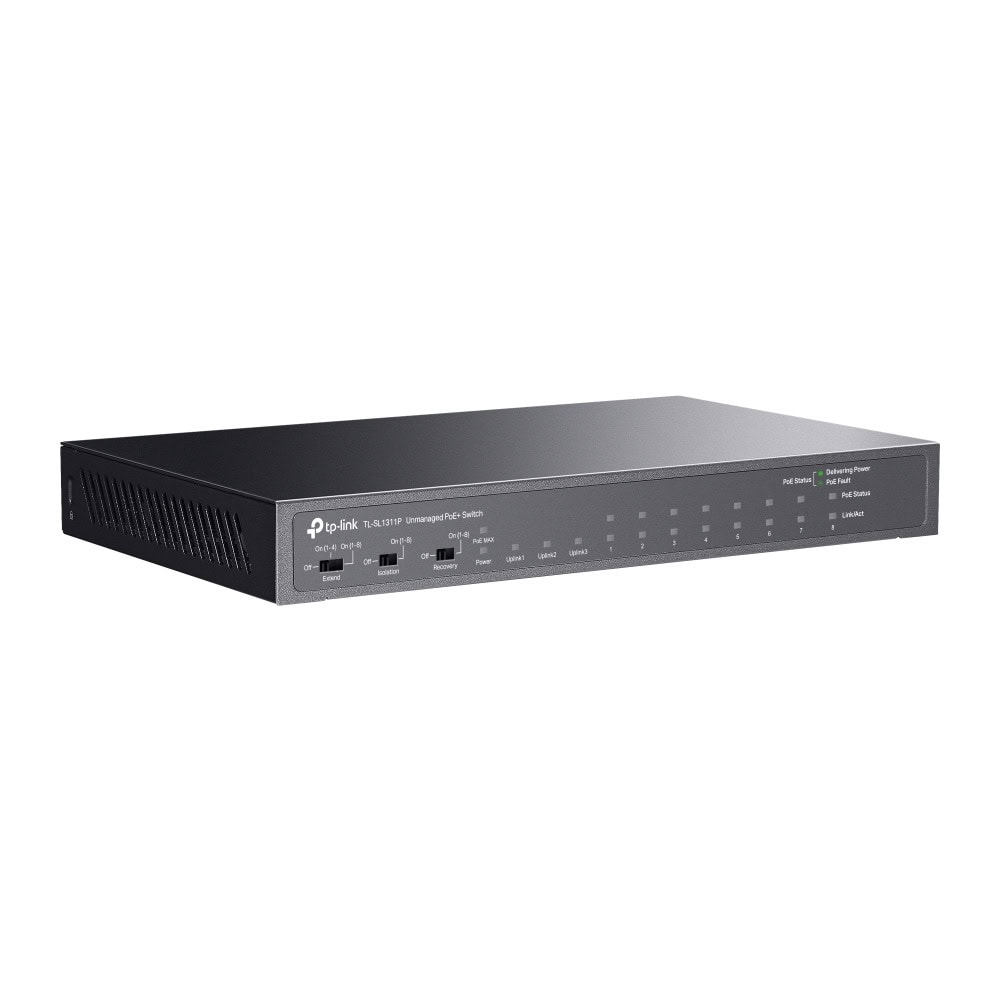

TP-Link TL-SL1311P

8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+

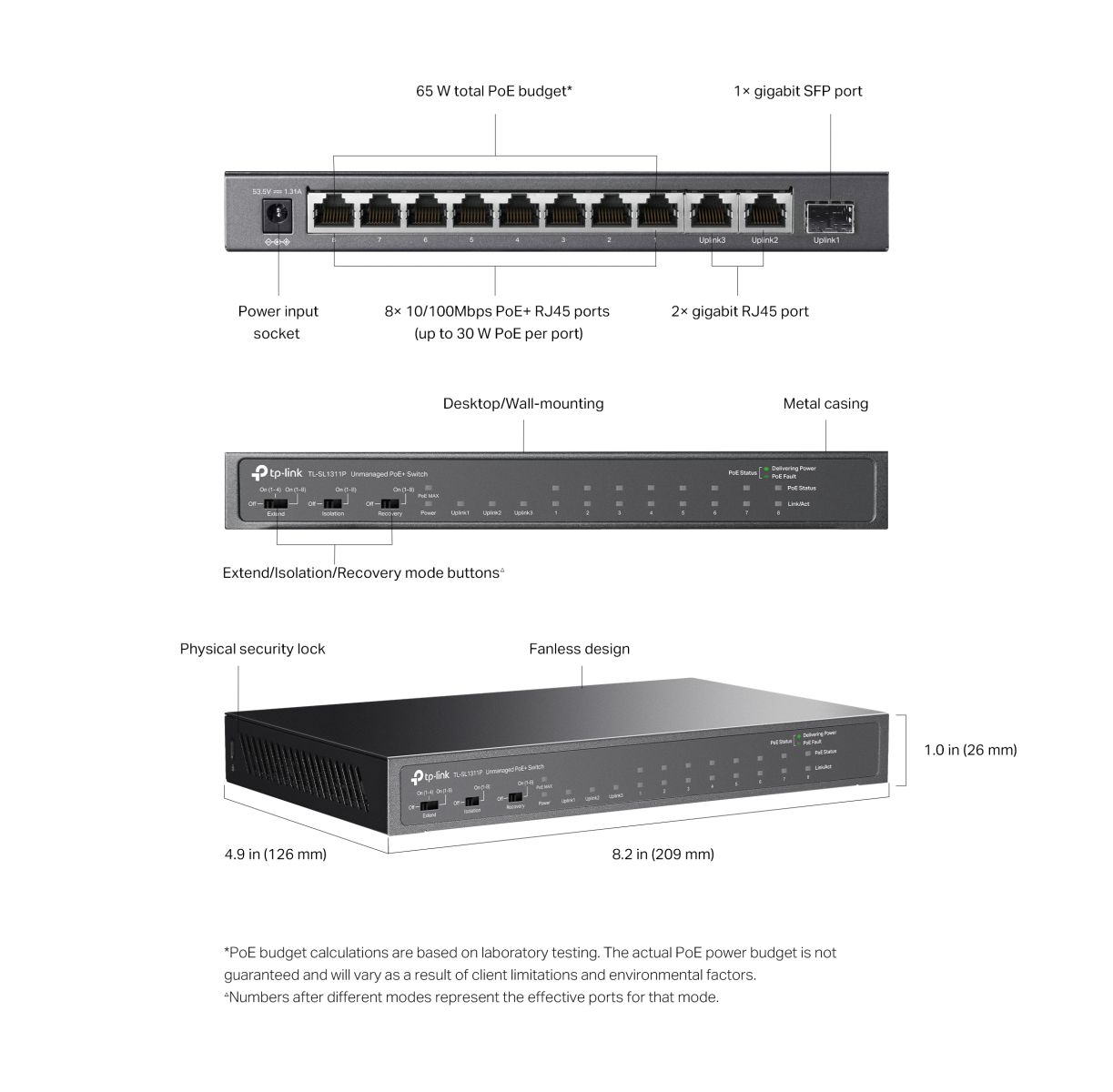

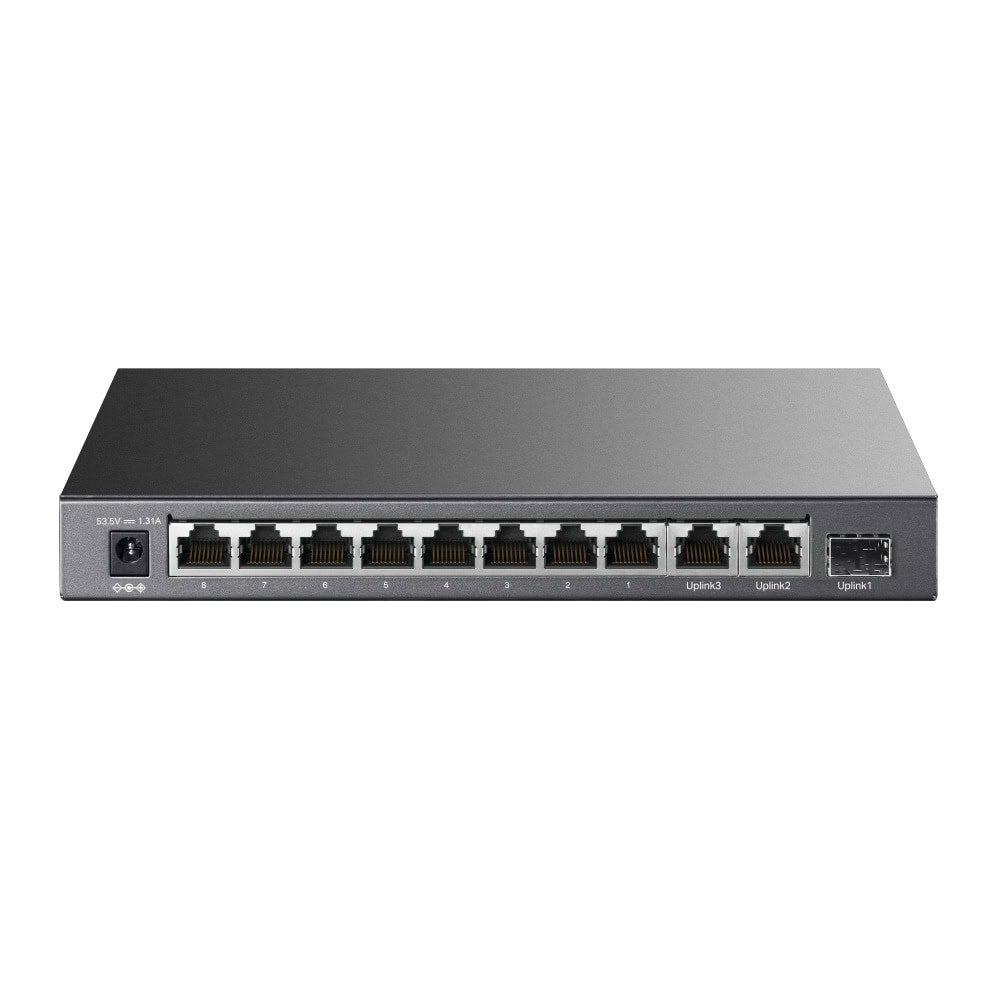

8× 10/100 Mbps RJ45 Ports, 2× Gigabit RJ45 Ports, 1× Gigabit SFP Port
8× PoE+ ports transfer data and power on individual cables
Works with IEEE 802.3af/at compliant PDs
Supports PoE Power up to 30 W for each PoE port
Supports PoE Power up to 65 W for 8 PoE ports*
Up to 250 m data and power transmitting range under Extend Mode**
Isolation Mode allows one-click client traffic separation for higher security and performance
PoE Auto Recovery guarantees stable operation of PoE devices by automatically rebooting the dropped or unresponsive PD devices
Fanless Design reduces power consumption and works silently in its location
Plug and play with no configuration required

Category	Specification
Hardware Features
Interface	• 8× 10/100 Mbps 802.3af/at PoE+ Ports• 2× Gigabit RJ45 Ports• 1× Gigabit SFP Port• AUTO Negotiation• AUTO MDI/MDIX
Network Media	• 10BASE-T: UTP Cat 3, 4, 5 (max 100m)• EIA/TIA-568 100Ω STP (max 100m)• 100BASE-TX: UTP Cat 5, 5e (max 100m)• EIA/TIA-568 100Ω STP (max 100m)
Fan Quantity	Fanless
Physical Security Lock	Yes
External Power Supply	External Power Adapter (53.5 VDC / 1.31 A)
Packet Forwarding Rate	5.6544 Mpps
PoE Ports (RJ45)	• Standard: 802.3 af/at compliant• Ports: 1–8• Power Supply: 65 W
MAC Address Table	2K
Jumbo Frame	16 KB
Switching Capacity	7.6 Gbps
Dimensions (W x D x H)	8.2 × 4.9 × 1.0 in (209 × 126 × 26 mm)
Max Power Consumption	• 5.61 W (220 V/50 Hz, no PD connected)• 77.32 W (110 V/50 Hz, with 65 W PD connected)
Max Heat Dissipation	• 19.13 BTU/h (no PD connected)• 263.7 BTU/h (with 65 W PD connected)
Software Features
Advanced Features	• Compatible with IEEE 802.3af/at PDs• Extend Mode (Ports 1–4 and 1–8, up to 250 m)• Isolation Mode (Ports 1–8)• PoE Auto Recovery (Ports 1–8)• MAC Address Auto-Learning and Aging• IEEE802.3x Flow Control (Full-Duplex), Backpressure (Half-Duplex)
Transmission Method	Store-And-Forward
Other
Certifications	FCC, CE, RoHS
Environment	• Operating Temp: 0–40 ℃ (32–104 ℉)• Storage Temp: -40–70 ℃ (-40–158 ℉)• Operating Humidity: 10–90% RH non-condensing• Storage Humidity: 5–90% RH non-condensing
