Публичен дисплей IIYAMA LH5541UHS-B2, 55" (139.7 cm) 4K UHD IPS дисплей, HDMI, VGA, USB, RS232, LAN

ProLite LH5541UHS-B2

55" Professional Digital Signage display with 4K UHD resolution and 24/7 operating time

Set in a slim bezel, the iiyama LH5541UHS is a professional digital signage display offering 24/7 operating time in portrait and landscape orientation.

This 500cd/m² high brightness IPS panel with 4K UHD resolution (3840x2160) provides exceptional colour and image performance. With the built-in media player you can play your favourite music and show your most beautiful videos, photos and images directly on screen.



4K

UHD resolution (3840x2160), better known as 4K, offers a gigantic viewable area with 4 times more information and work space than a Full HD screen. Due to the high DPI (dots per inch), it displays an incredibly sharp and crisp image.

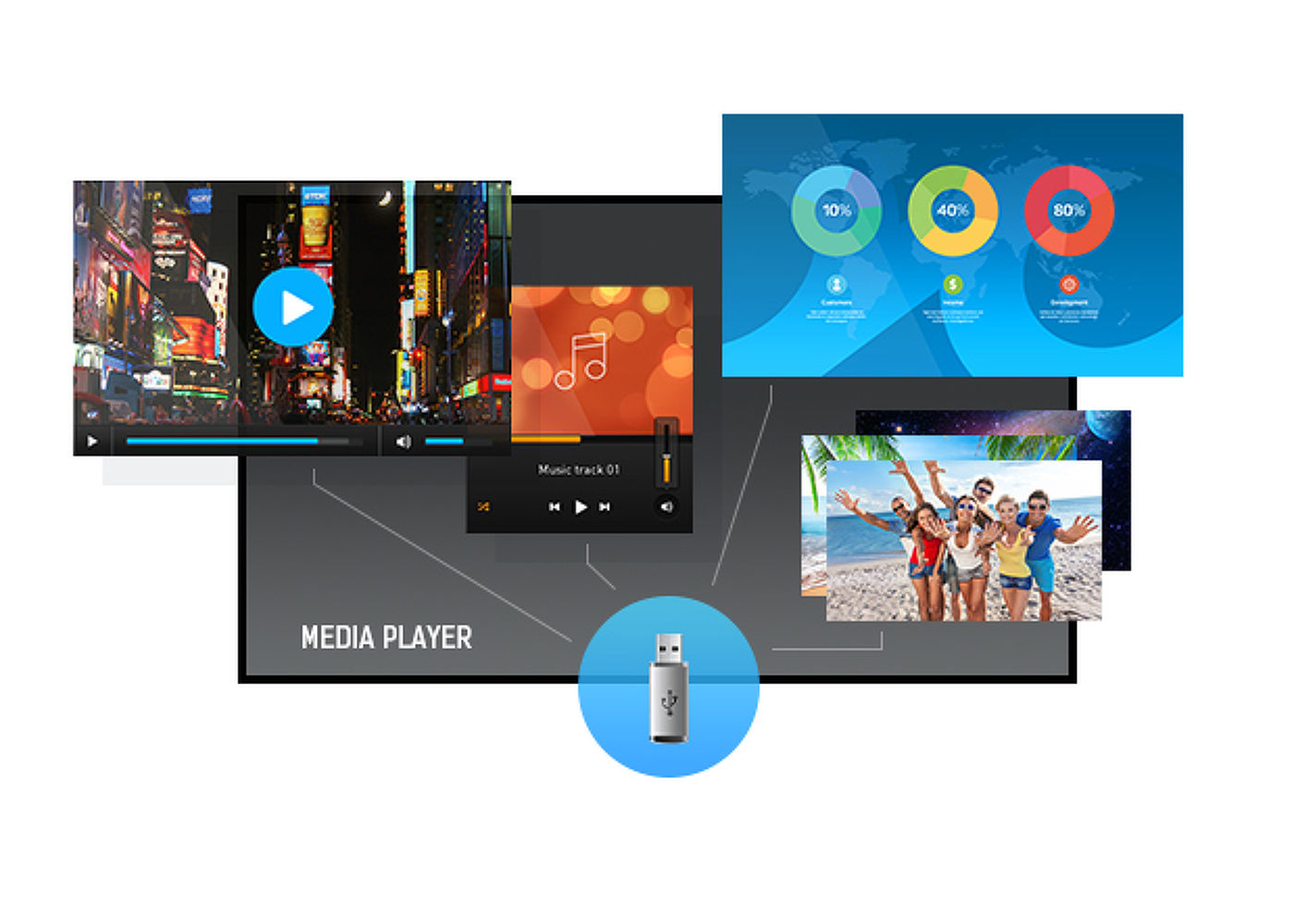

Media player

Play your favourite music and show your most beautiful videos, photos and images directly on screen from a flash drive or internal memory with the built-in media player.

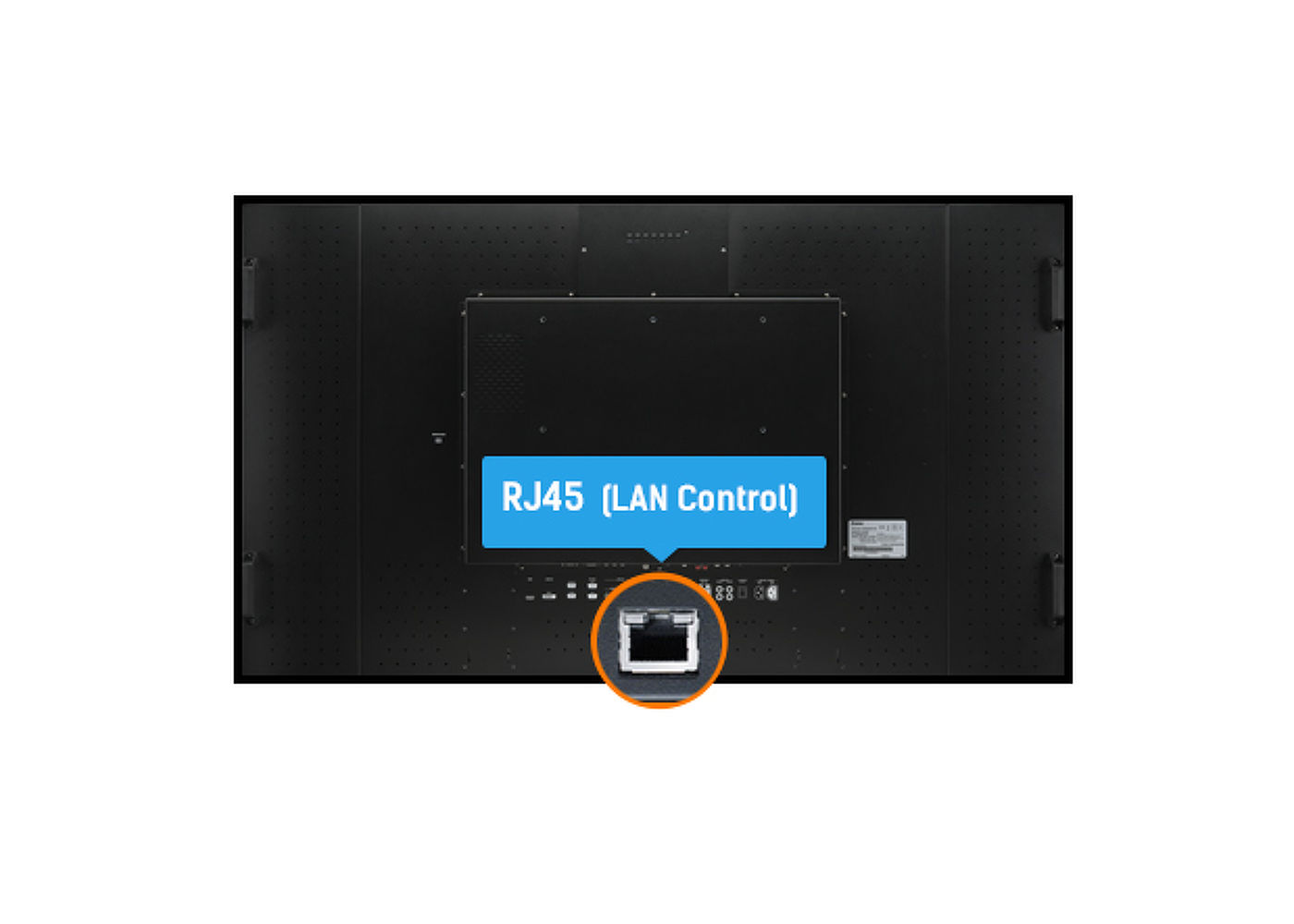

LAN Control

LAN control enables making adjustments in the display OSD menu through your network (software not included).

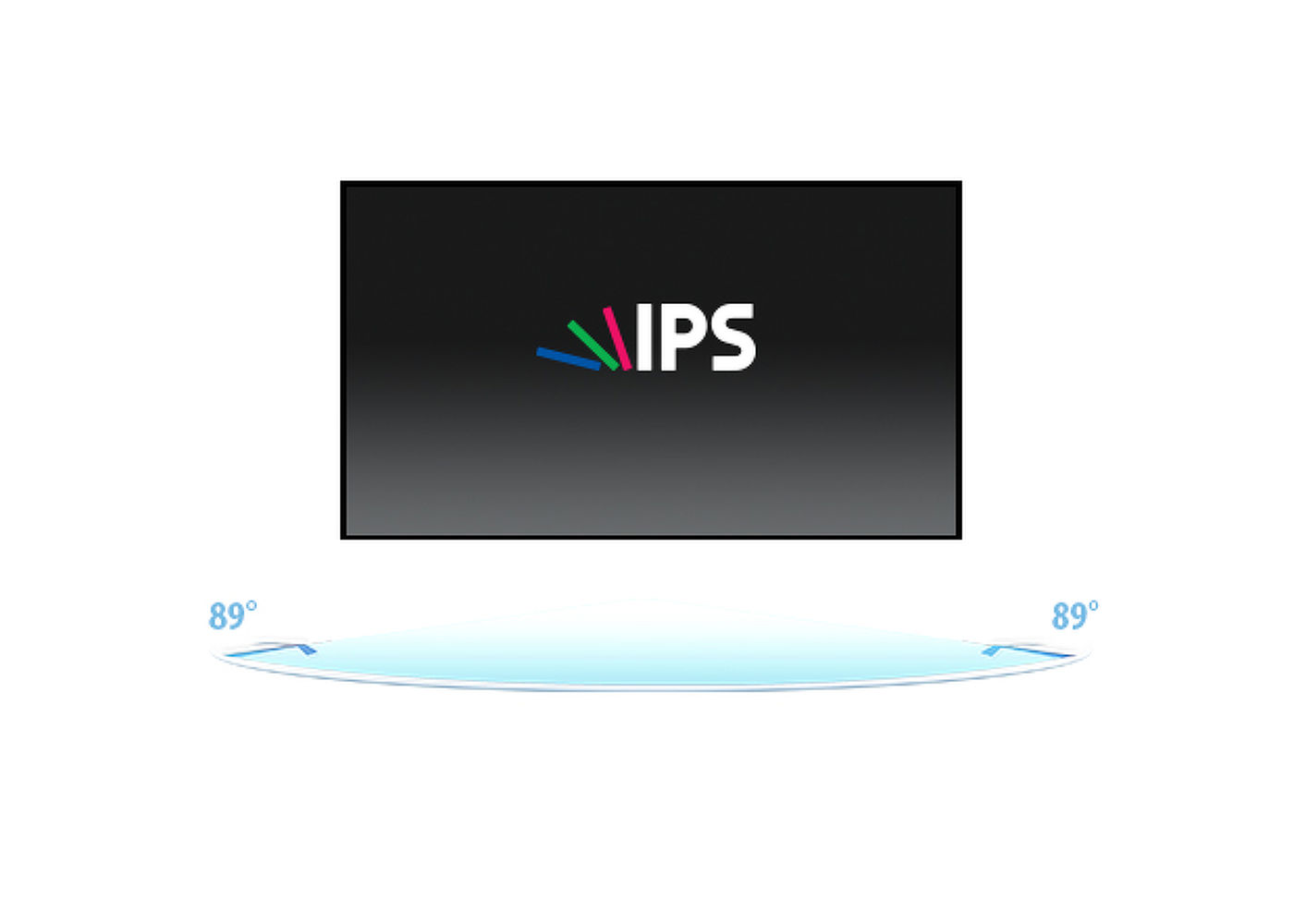

IPS

IPS displays are best known for wide viewing angles and natural, highly accurate colours. They are especially suited for colour-critical applications.





Specifications:

DISPLAY CHARACTERISTICS
Design     Thin bezel
Diagonal     54.6", 139cm
Panel     IPS, haze 1%
Native resolution     3840 x 2160 (8.3 megapixel 4K UHD)
Aspect ratio     16:9
Panel brightness     500 cd/m²
Static contrast     1200:1
Response time (GTG)     8ms
Viewing zone     horizontal/vertical: 178°/178°, right/left: 89°/89°, up/down: 89°/89°
Colour support     1.07B 10bit (8bit + Hi-FRC) (NTSC 72%)
Horizontal Sync     30 - 83kHz
Viewable area W x H     1209.6 x 680.4mm, 47.6 x 26.8"
Bezel width (sides, top, bottom)     14mm, 14,.5mm, 15mm
Pixel pitch     0.3155mm
Bezel colour and finish     black, glossy

INTERFACES / CONNECTORS / CONTROLS
Analog signal input     VGA x1 (max. 1920x1080 @60Hz)
Digital signal input     HDMI x3 (2.0, max. 3840x2160 @60Hz)
Audio input     Mini jack x1
Monitor control input     RS-232c x1
RJ45 (LAN) x1
IR x1
Audio output     RCA (L/R) x1
Speakers 2 x 10W
Monitor control output     RS-232c x1
IR loop through x1
HDCP     2.2
USB ports     x1 (2.0, USB Media Player)

FEATURES
Max. non-stop operating time     24/7
Media playback     yes
Housing (bezel)     metal

GENERAL
OSD languages     EN, DE, FR, ES, IT, CN, RU, JP, CZ, NL, PL, SV, FI, DA, NB
Control buttons     Power
User controls     picture (picture format, colour temp., noise reduction, dynamic contrast, gamma, brightness, black level, colour, contrast, hue, sharpness, RGB range, reset), Sound (treble, bass, balance, speaker, audio output, reset), general settings 1 (menu languages, clock, schedule, HDMI CEC link, HDMI modes, communication setting), screen (auto adjust, clock, phase, H. position, V. position, reset), general settings 2 (auto power off, network standby, power management, auto signal detection, auto play, local KB lock, RC lock, monitor ID, LED, pixel shift, information, factory reset)

MECHANICAL
Orientation     landscape, portrait
Fanless design     yes
VESA mounting     400 x 400mm
Operation temperature range     0°C - 40°C
Storage temperature range     - 20°C - 60°C
MTBF     50000 hours (excluding backlight)

POWER MANAGEMENT
Power supply unit     internal
Power supply     AC 100 - 240V, 50/60Hz
Power usage     139W typical, 0.5W stand by, 0.3W off mode

SUSTAINABILITY
Regulations     CB, CE, TÜV-Bauart, EAC, RoHS support, ErP, WEEE, REACH (RoHS2.0, PFOS)
REACH SVHC     above 0.1%: Lead

DIMENSIONS / WEIGHT
Product dimensions W x H x D     1237.5 x 710 x 55mm
Box dimensions W x H x D     1386 x 845 x 130mm
Weight (without box)     14.3kg
