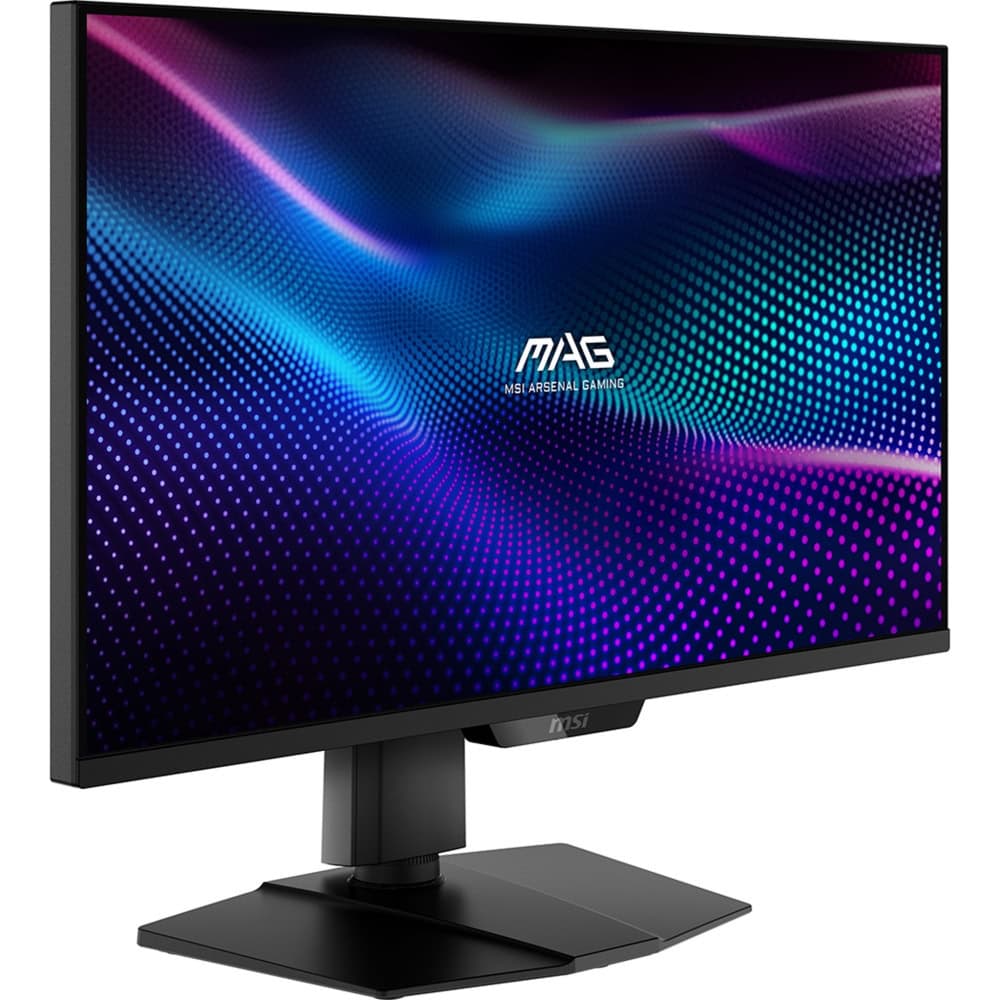

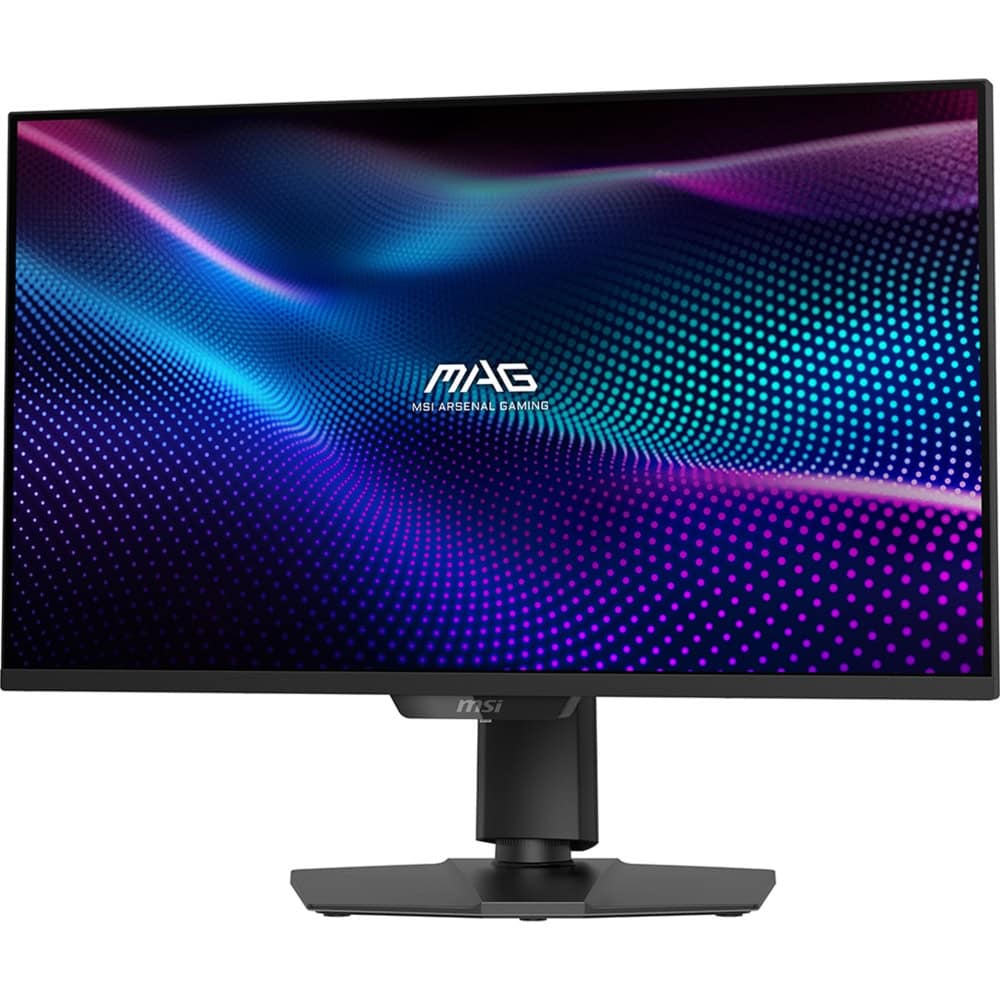

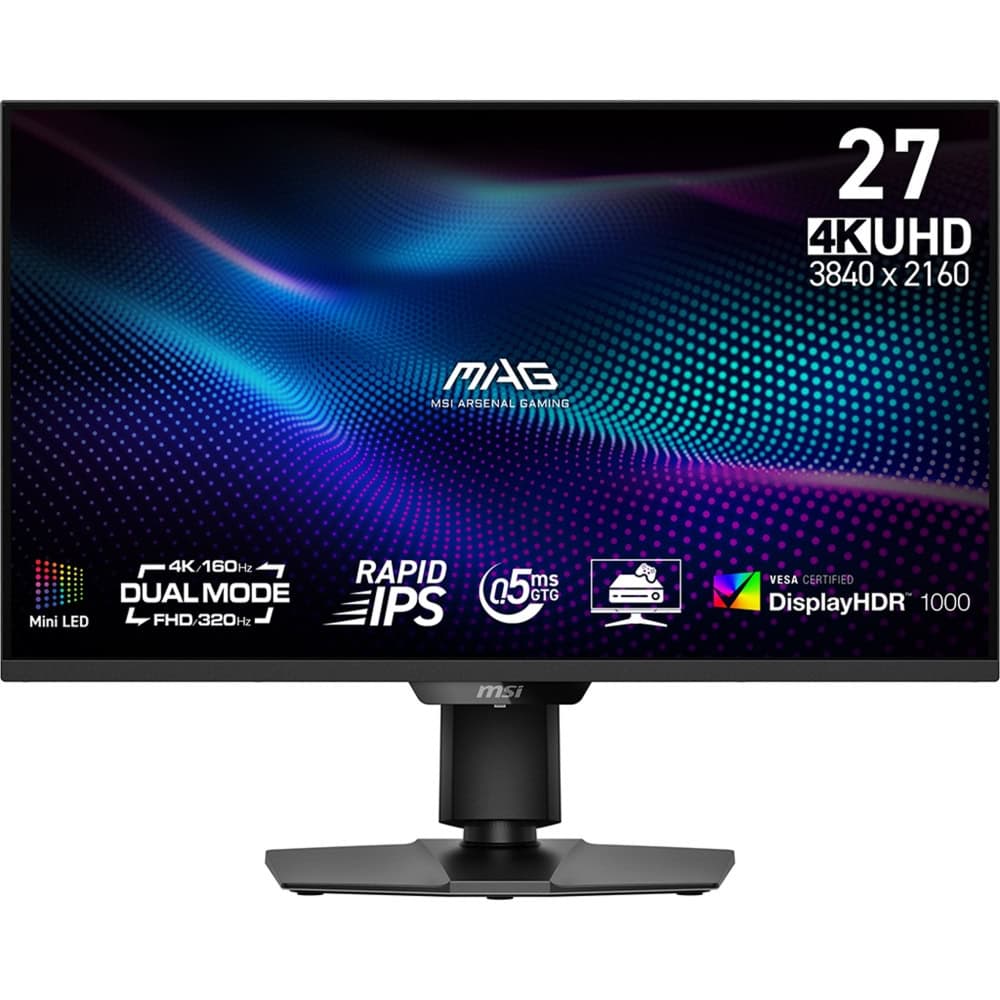

MAG 274UPDF E16M

Mini-LED – Improves HDR with full-array local dimming and 1,152 zones for deeper blacks and brighter highlights.
Dual Mode – Easily switch between different resolutions and refresh rates, allowing user to adjust settings based on the game.
Rapid IPS – Ensures the intensity and purity of colors when gaming.
0.5ms (GtG, Min.) Response Time – Eliminates screen tearing and choppy frame rates.
VESA DisplayHDR 1000 – VESA-certified eye-catching details through precise contrast and shadow adjustment.
Console Mode – Optimized for seamless compatibility with gaming consoles like PS5 and Xbox Series X|S.
Quantum Dot Technology – Delivers over a billion vibrant colors with stunning clarity.
Aspect Ratio Options – Choose between multiple aspect ratios for a more personalized gaming experience.

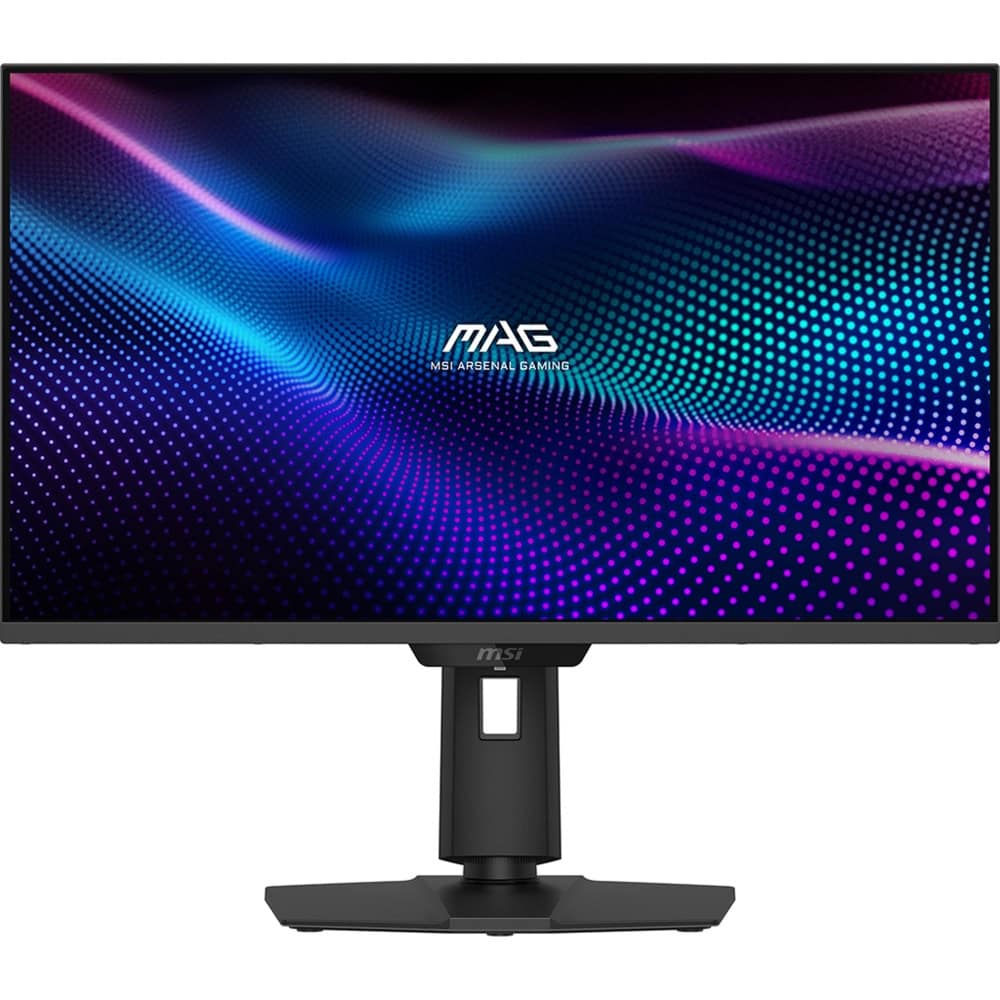

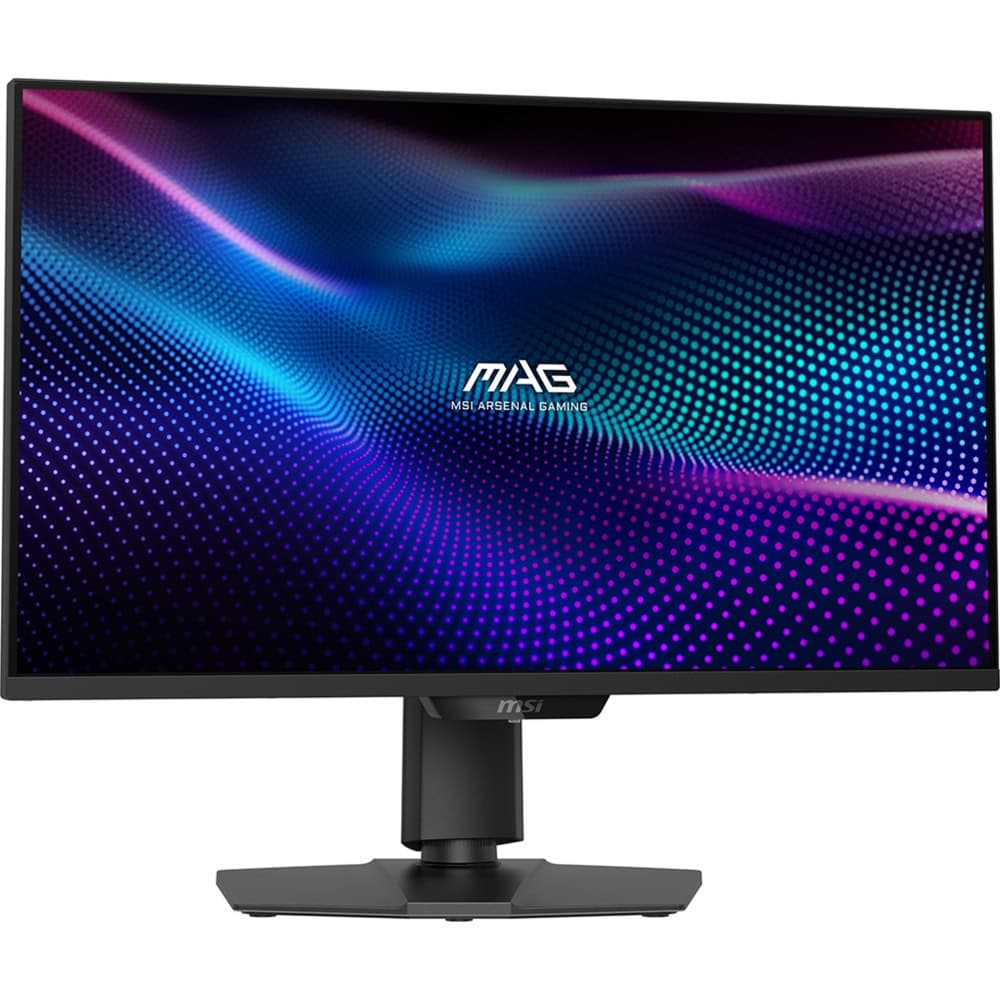

The MSI MAG 274UPDF E16M Gaming Monitor features Mini-LED technology, Dual Mode with UHD 160Hz and FHD 320Hz, and AI Navigator for a boosted gaming experience. Its stunning 27-inch Rapid IPS display with Quantum Dot technology delivers a 0.5ms (GtG, Min.) response time and is VESA DisplayHDR 1000 certified for exceptional visuals. Unleash your full potential.

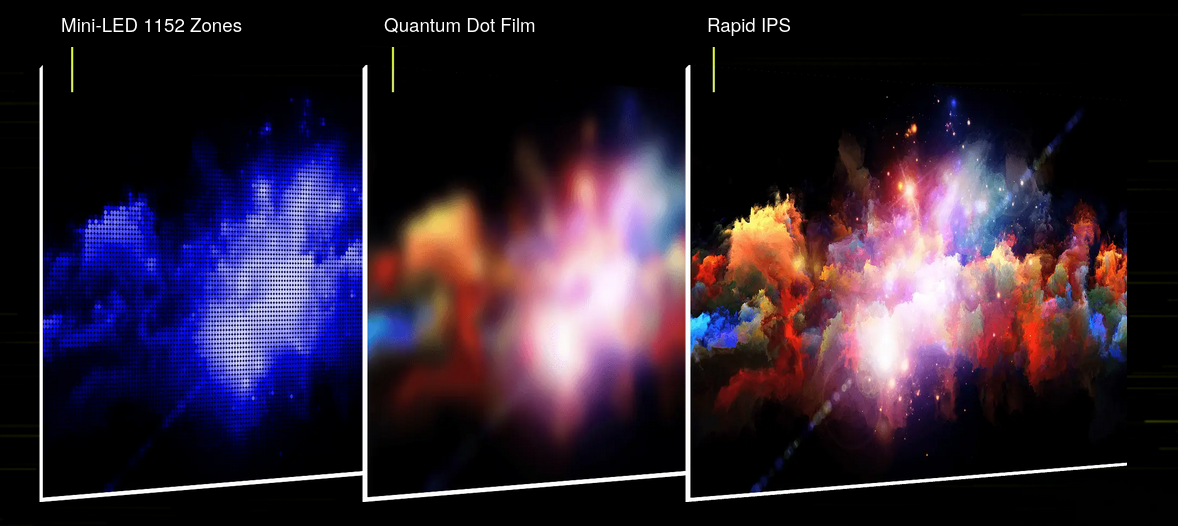

Stunning Mini-LED Visuals

Experience exceptional brightness and precision with Mini-LED technology. Featuring 1,152 full-array local dimming zones, it delivers superior contrast, deeper blacks, and vibrant colors, enhancing HDR performance and providing stunning clarity for an immersive viewing experience.

Brilliance in Every Shade

The monitor features Quantum Dot technology and DisplayHDR 1000 for stunning brightness and deep contrast. With DCI-P3 98% color gamut and Delta E≤2 accuracy, it delivers rich, lifelike colors. Enjoy breathtaking clarity for gaming, content creation, and entertainment.

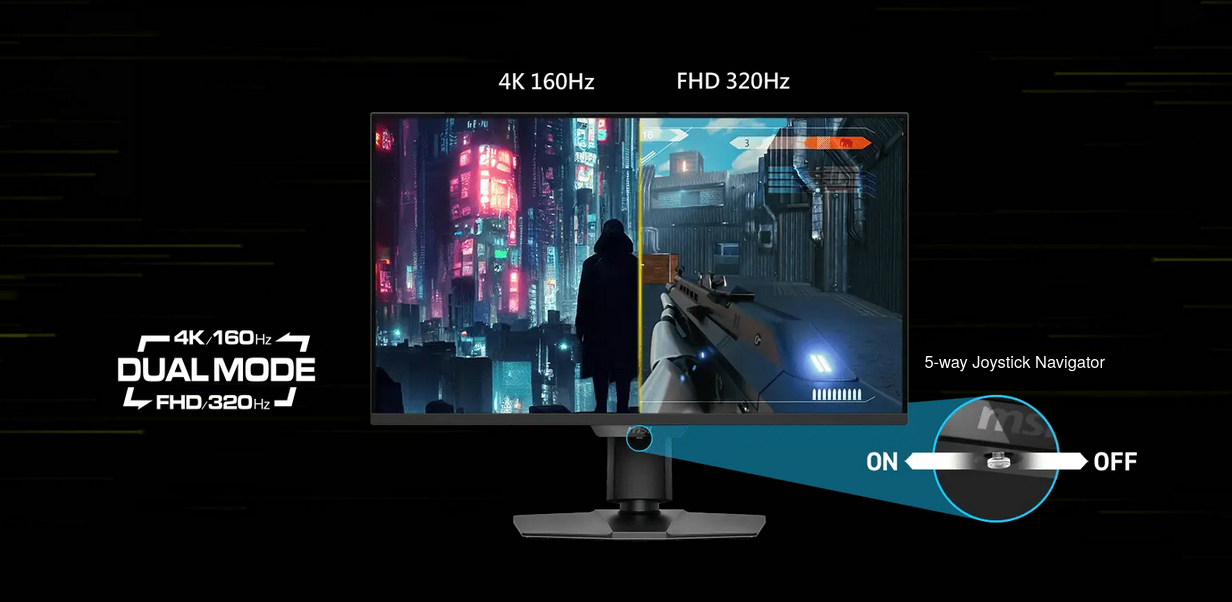

Dual Mode

Dual Mode allows you to select the resolution and refresh rate that best suit your game—choose a higher refresh rate with lower resolution for fast-paced FPS games or enjoy crisp 4K visuals with a lower refresh rate. Designed with a user-centric approach and ergonomic convenience, it features a 5-way Joystick Navigator and a one-click switch button, making it easy to toggle Dual Mode settings and providing a seamless, user-friendly experience.

ASPECT RATIO OPTIONS

Supports a variety of aspect ratios, allowing selection of 24.5” imagery. Choose the size you want at your leisure, and elevate your gaming experience to the utmost.

Specification	Value
Panel Size	27"
Active Display Area (mm)	596.16 (H) x 335.34 (V)
Curvature	Flat
Panel Type	Rapid IPS with Mini-LED (1152 Zones)
Panel Resolution	Normal: 3840 x 2160 (UHD)Dual Mode: 1920 x 1080 (FHD)
Pixel Pitch (H x V)	0.15525 (H) x 0.15525 (V)
Aspect Ratio	16:9
Brightness (nits)	SDR: 400 cd/m²HDR: 1000 cd/m² (Peak)
Contrast Ratio	1000:1 (Typ.)
DCR	100000000:1
Signal Frequency	Normal: 180~356KHz (H) / 48~160Hz (V)Dual Mode: 180~356KHz (H) / 48~320Hz (V)
ACTIVATED RANGE	Normal: 48~160HzDual Mode: 48~320Hz
Refresh Rate	Normal: 160HzDual Mode: 320Hz
Response time	0.5ms (GtG, Min.)
DYNAMIC REFRESH RATE TECHNOLOGY	NVIDIA G-SYNC CompatibleAMD FreeSync™ Premium
HDR Support	VESA DisplayHDR 1000

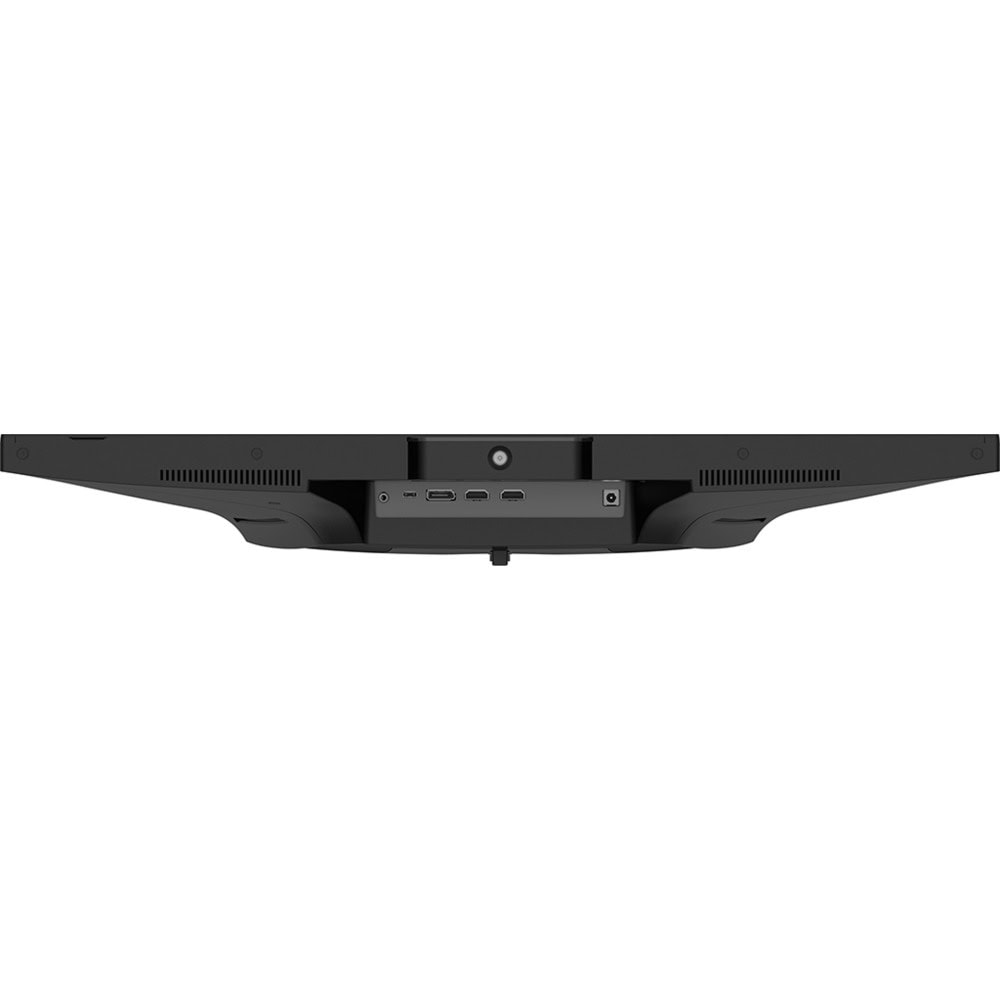

Video ports	1x DisplayPort 1.4a (HBR3)2x HDMI™ 2.1 (UHD@160Hz)1x Type-C (DP alt.) w/ 15W Power Delivery
Audio ports	1x Headphone-out
Viewing Angle	178° (H) / 178° (V)
Adobe RGB / DCI-P3 / sRGB	100% / 98% / 143% (CIE1976 Standard)
Surface Treatment	Anti-glare
Display Colors	1.07B, 10 bits (8 bits + FRC)
Console Mode	Supported Resolution & Refresh Rate:1080p: 60Hz and 120Hz1440p: 60Hz and 120Hz2160p: 60Hz and 120HzHDMI™ CEC: SupportedVRR: PS5 and Xbox Supported
Frameless Design	Yes
PIP / PBP Function	Yes
Power Type	External Adaptor 19V 7.89A
Power Input	100~240V, 50/60Hz

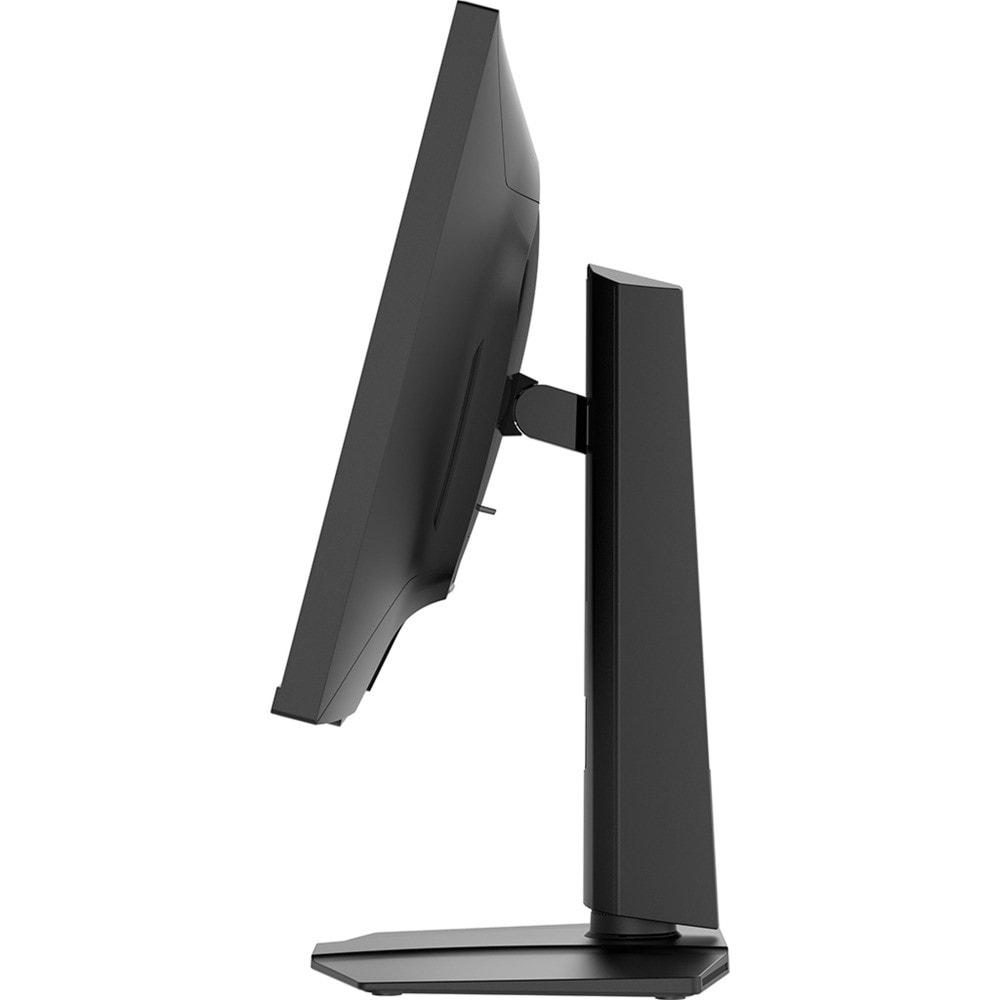

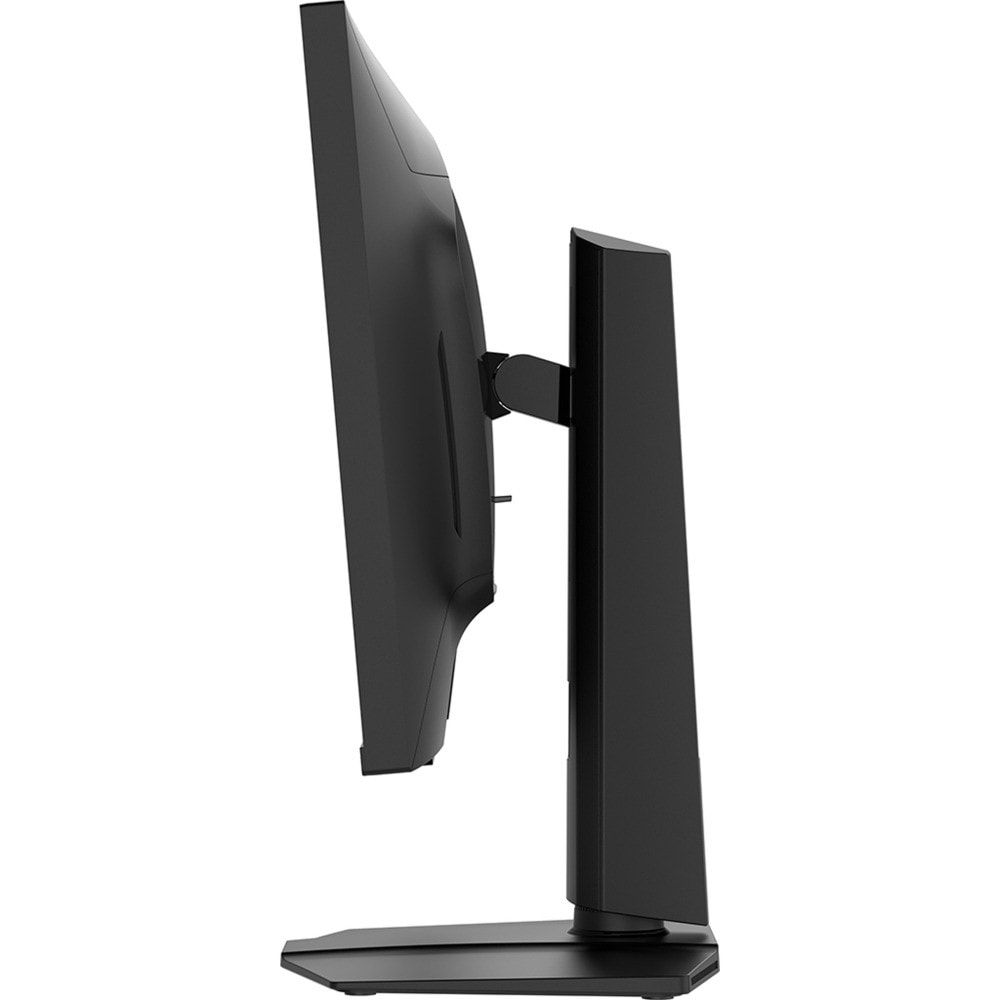

Adjustment (Tilt)	-5° ~ 20°
Adjustment (Swivel)	-30° ~ 30°

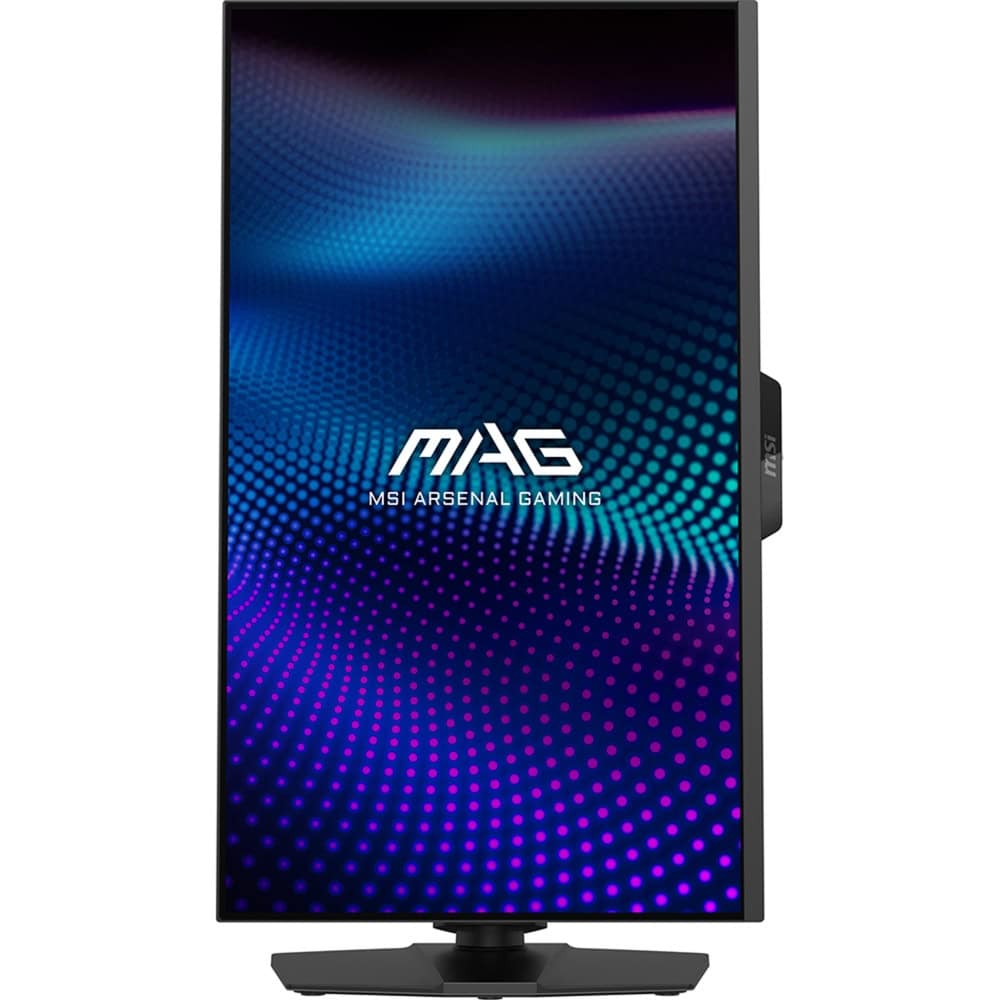

Adjustment (Pivot)	-90° ~ 90°
Adjustment (Height)	0~110 mm
Kensington Lock	Yes

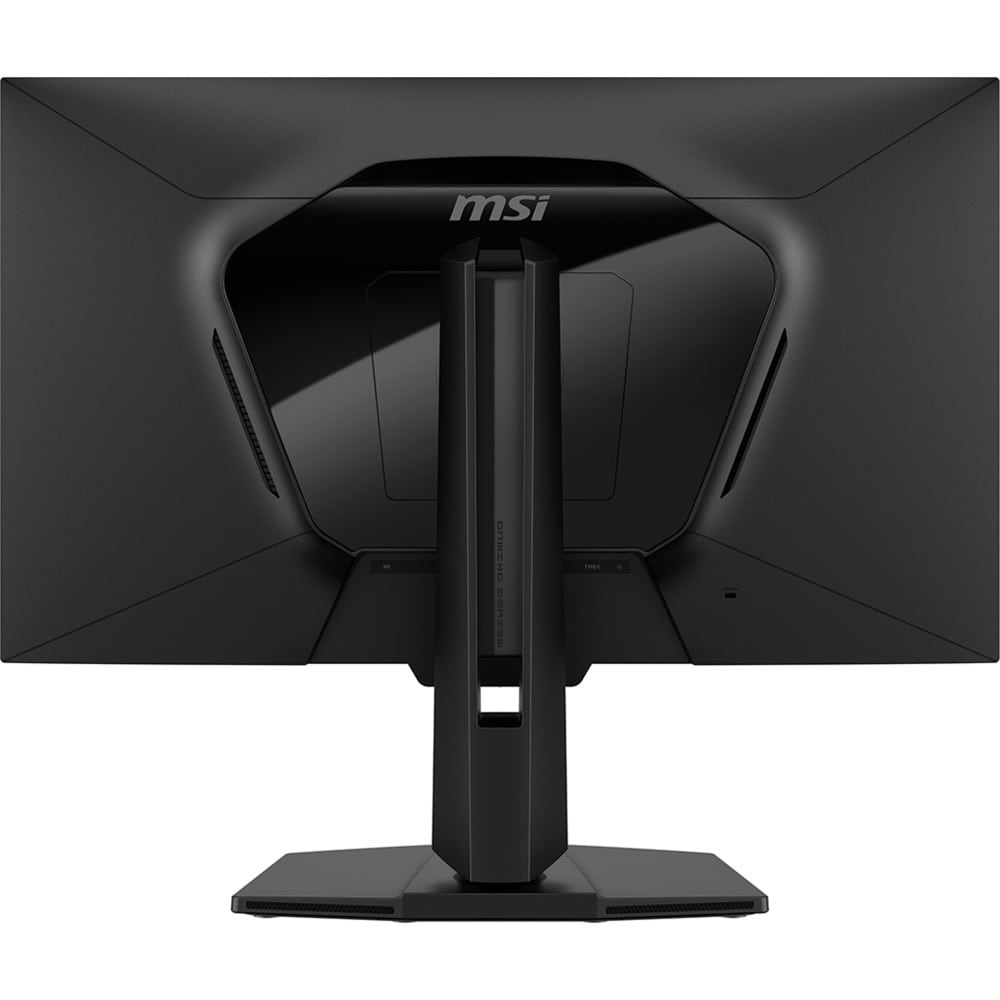

VESA Mounting	100 x 100 mm
Dimension with Stand (W x D x H)	613.10 x 227.90 x 423.53 mm (24.14 x 8.97 x 16.67 inch)
Dimension without Stand (W x D x H)	613.10 x 68.77 x 375.31 mm (24.14 x 2.71 x 14.78 inch)
Weight (NW / GW)	7.5 kg (16.54 lbs) / 11 kg (24.25 lbs)
Carton Dimension (W X D X H)	910 x 170 x 470 mm (35.83 x 6.69 x 18.50 inch)
Note	HDMI™: Normal (UHD): 3840 x 2160 (Up to 160Hz)Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)DisplayPort: Normal (UHD): 3840 x 2160 (Up to 160Hz)Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)Type-C: Normal (UHD): 3840 x 2160 (Up to 160Hz)Dual Mode (FHD): 1920 x 1080 (Up to 320Hz)Support: HDMI™ CEC, PIP/PBP; Non Support: KVM

Виж още Монитори MSI
Виж всички Монитори в категорията

Документация

Технически характеристики

Портове
DisplayPort:	Да
HDMI:	Да
DVI:	Не
Mini DisplayPort:	Не
Thunderbolt:	Не
USB Type-C:	Да
USB Type-А:	Не
VGA (D-Sub):	Не

Гама:	Gaming
Екран размер:	27" (68.58 cm)
Разделителна способност (max):	3840 x 2160
Аспект изображение:	16:9
Тип матрица:	IPS
Честота на опресняване:	320 Hz
Време за реакция:	0.5 ms
Яркост:	400 cd/m²
TV Тунер:	Не
Тъчскрийн:	Не
Вградени колони:	Не
3D:	Не
Цвят:	Черен
Формат екран:	Wide
Извит:	Не
Преносим:	Не
