Смарт зарядно устройство Huawei SCharger-7KS-S0, безжично зареждане на смартфон, зареждане на ел. автомобил, 1400V/6A, Bluetooth, Wi-Fi, защита от пренапрежение, IP54 защита, сиво

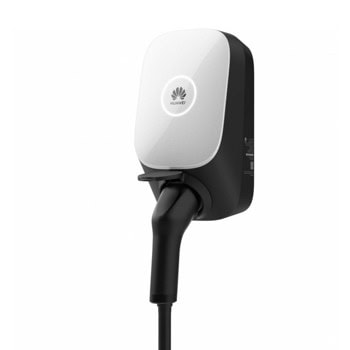

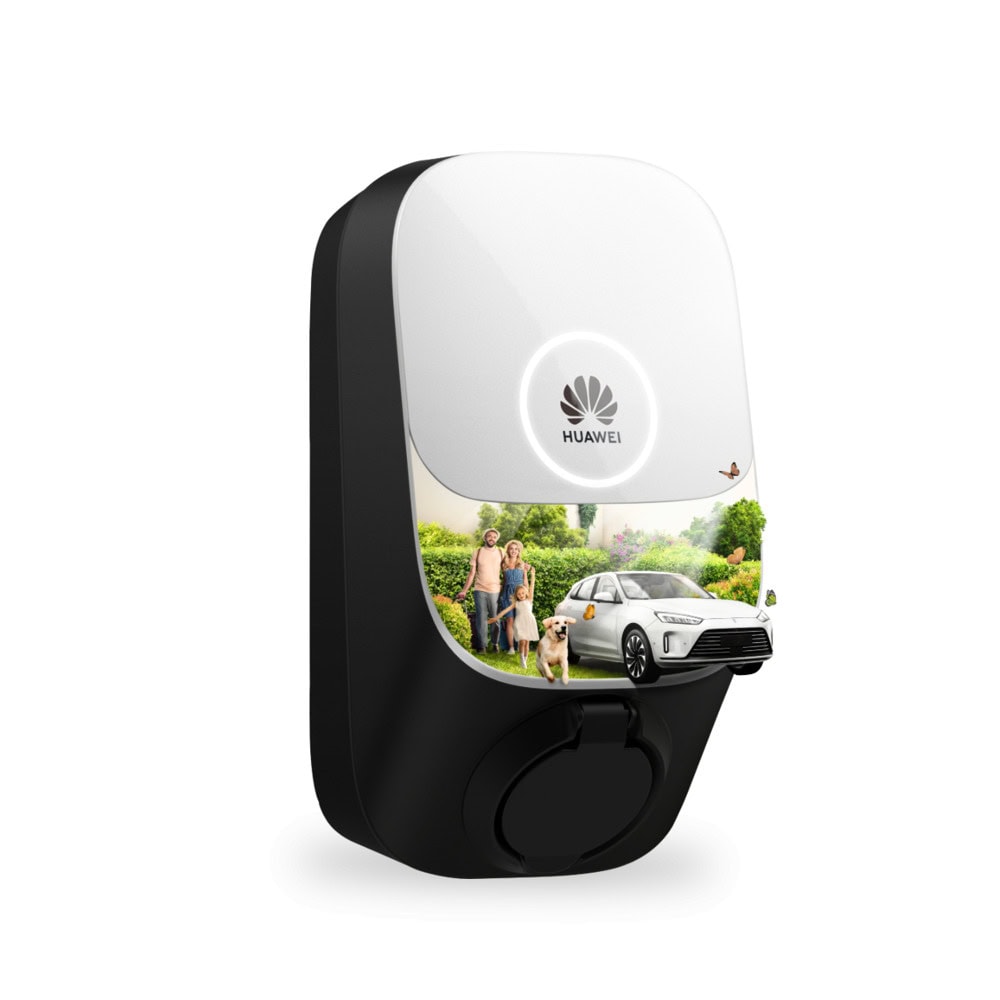

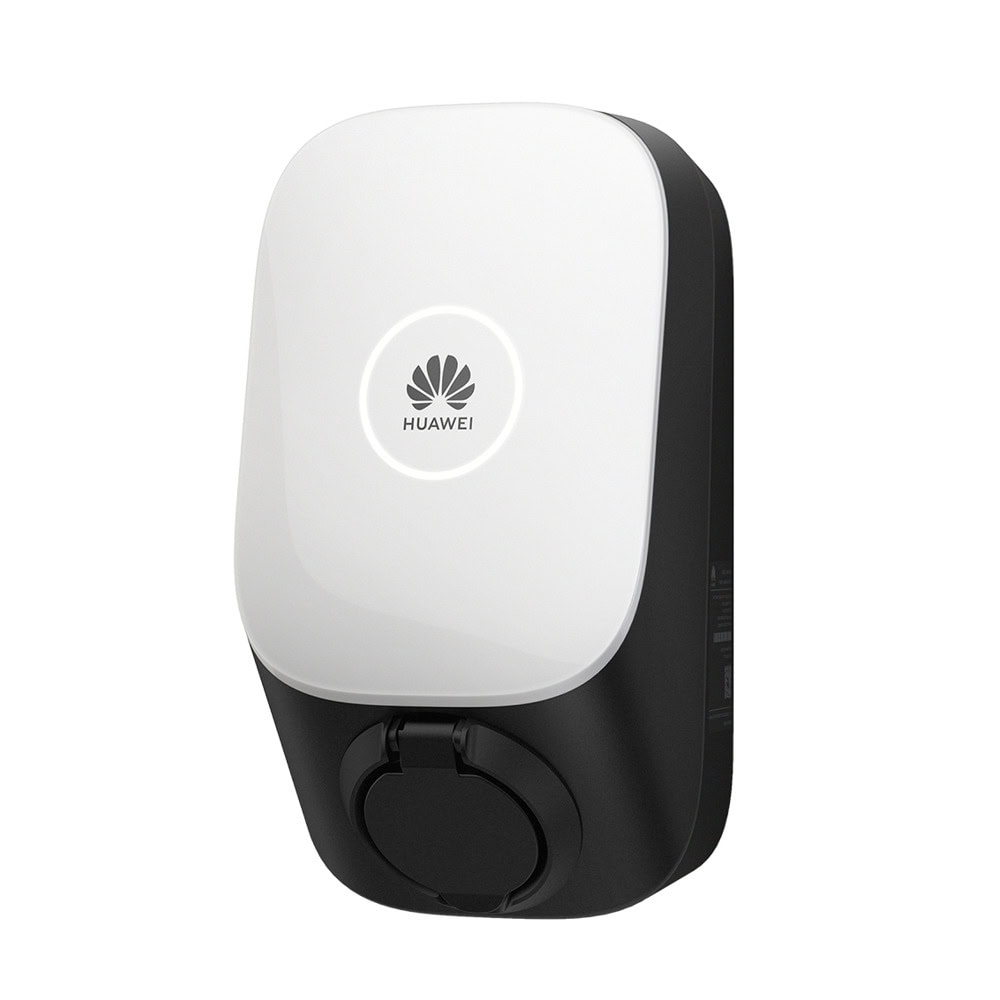

Huawei SCharger-7KS-S0

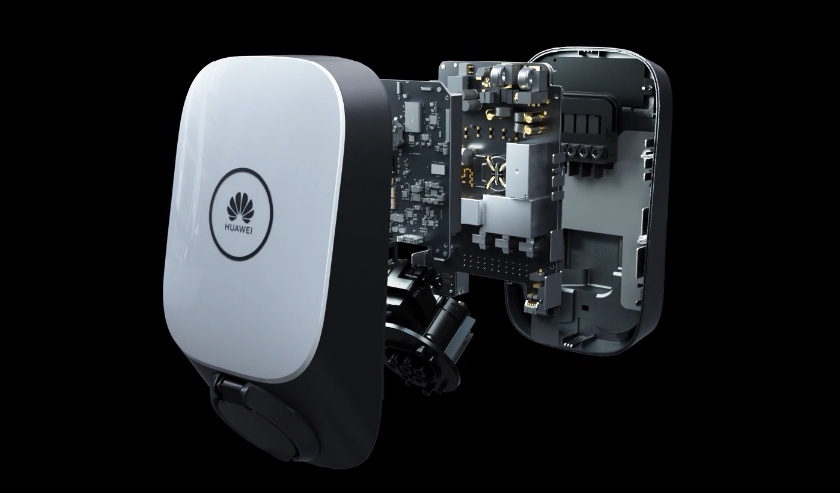

Click-in Design
for Fast Installation in 15 Mins

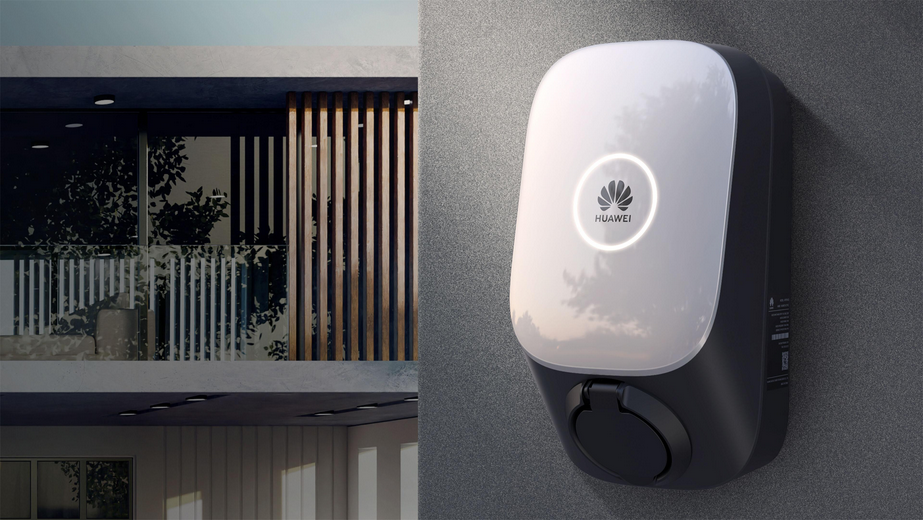

No tedious cable wiring or connection is required with HUAWEI Smart Charger. The click-in design allows a 15-minute installation with only 3 steps. Before activating the charger, mount the rear cover on the wall, with cable routing options either from the top or the bottom. Maintenance can be easily fixed in 4 minutes.

Safety and Ease, Indoors or Outdoors

	Safe Charging for Secure Use Charging should be safe and concern-free from both overheating and leakage. Multiple built-in temperature sensors precisely manage the charger body and prevent unexpected overheating. Type A+DC 6 mA current leakage protection ensures both AC and DC leakage proof safety.

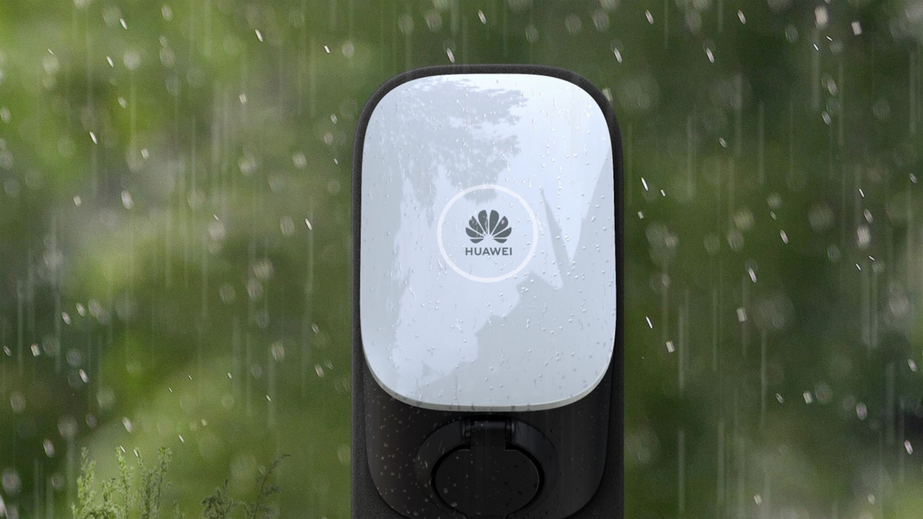

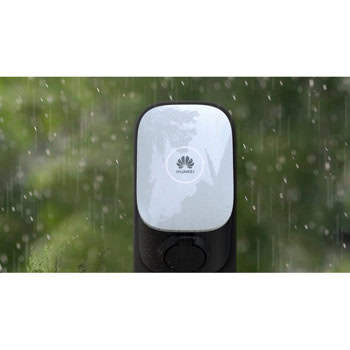

IP54 Protection IP54-rated protection fully seals the complete circuits against water and dust ingress. The waterproof maze pattern on the rear cover and CATII-rated lightning protection ensure reliable outdoor charging.

Flexible Charging, Exclusively for you

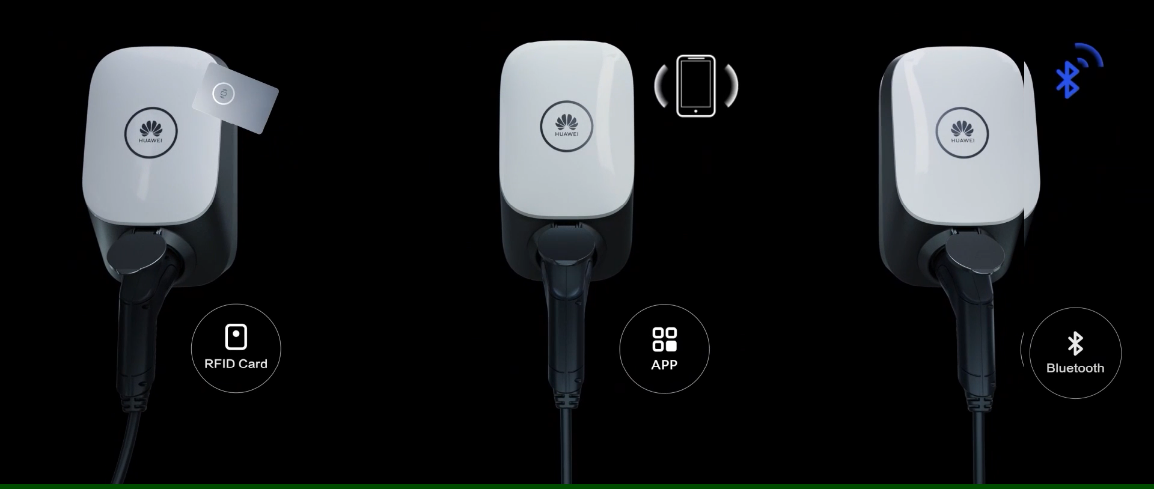

3 authentication modes including FusionSolar app, RFID card, and Bluetooth enable you to flexibly connect your EV to the Smart Charger, enjoying an exclusive service.
Whether it's a neighbour, friend, or someone else, you can grant your charging permission to them on FusionSolar app by account authorization.

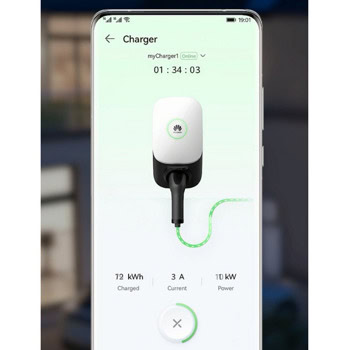

Intelligent Charging Management on FusionSolar App FusionSolar app displays the intuitive and real-time charging status and key indicators at a glance. By showcasing charging data with charts, tracking energy history and power consumption is simple and easy.

One-stop Solution, Go Green on the Road

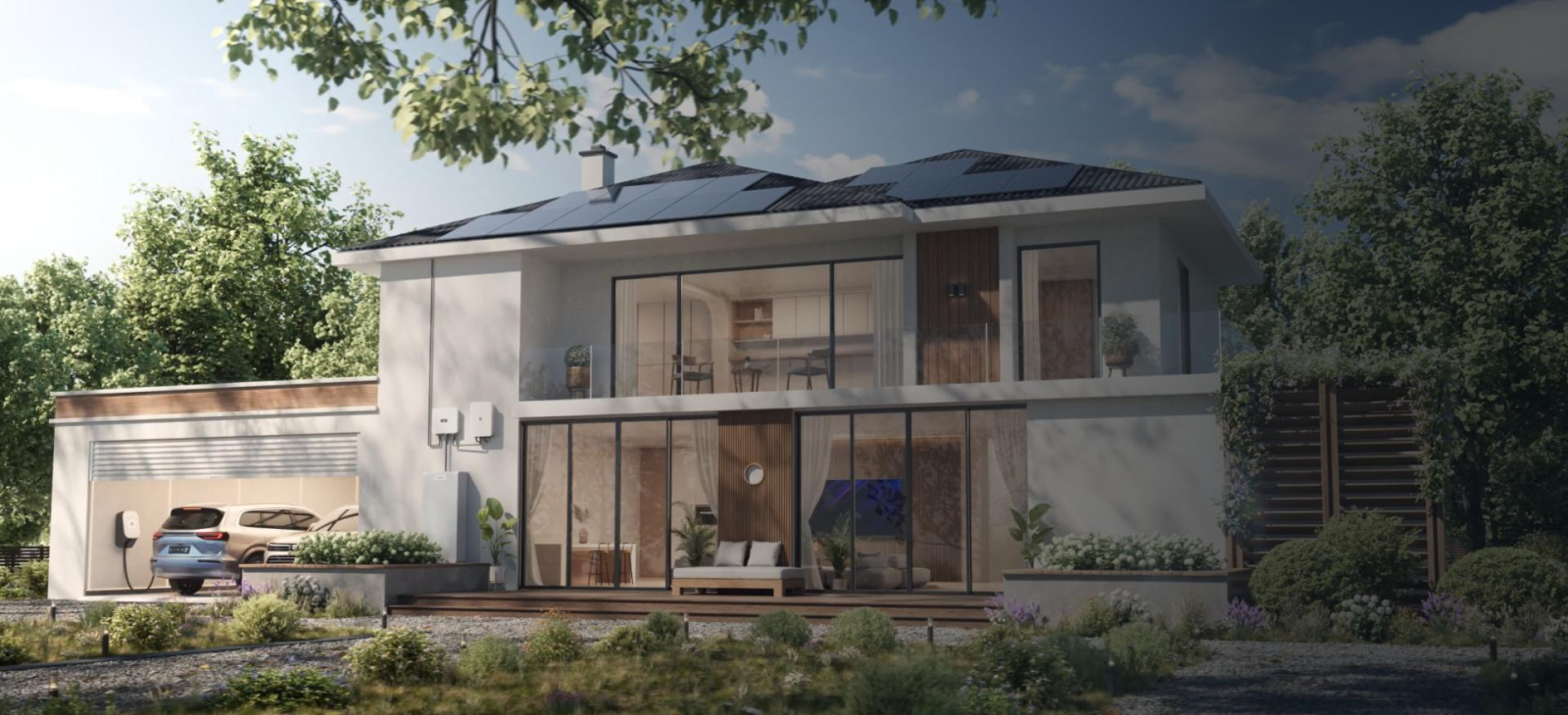

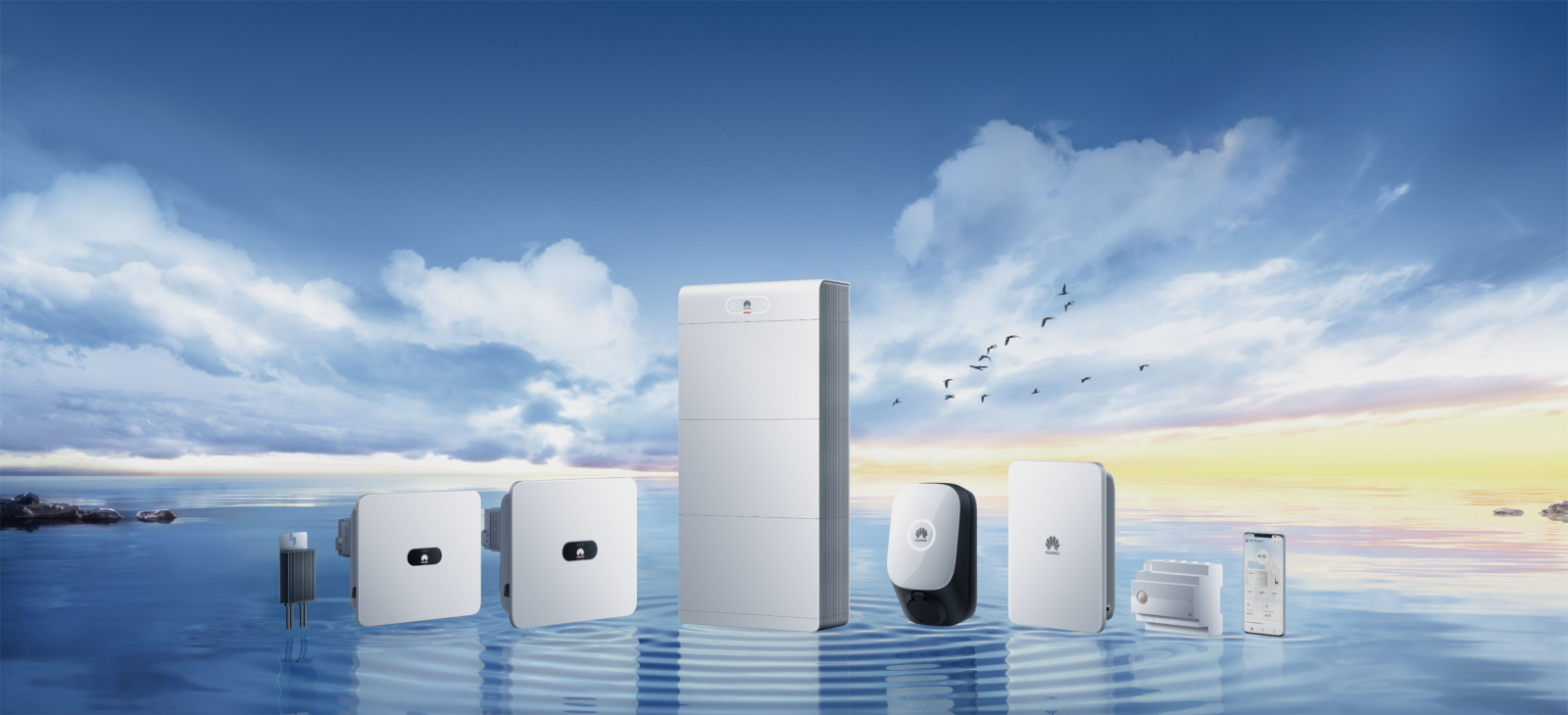

By integrating Smart PV, ESS, and Smart charger, we offer Huawei offers a one-stop power solution to yield green electricity, lower home energy bills, and support green power consumption on the road.

Applicable to All European-standard EVs

Smart Charger fits the bill for all European-standard electric car models. Provided you have a car to carry a 50 kWh battery, only 7 hours* is approximately needed to have it fully fed with the max. power of 7 kW at single phase or 2.3 hours* with the max. power of 22 kW at three-phase.

Specifications

Inputs And Outputs
Charge power (configurable)
1.4 kW to 7.4 kW
Nominal voltage
230 V ± 20% (1-phase)
Nominal current (configurable)
6 - 32 A (1 - phase)
Nominal frequency
50 Hz / 60 Hz ± 1 Hz
Vehicle connection
Type 2 socket
Cable cross-sectional area
Up to 10 mm2
Network types
TN, TT, IT

User Interface & Communications
Protocol
Modbus TCP, OCPP 1.62
Communication
Wi-Fi / Ethernet
Charger status information
WRGB LED and app
Authentication
RFID (ISO-14443-A), app, Bluetooth
Remote control & monitoring
App
Working mode
Normal Charge
Scheduled Charge
PV Power Preferred
Next Trip

Protection
Cable protection
Cable E-Lock via app
Residual current protection (RCD)
Type A (30 mA) + DC 6 mA integrated
Fire class
UL94
Overcurrent protection
IEC 61851-1
Over-temperature protection
Yes
Surge protection
CAT II

General Specification

Operating temperature range
–35 °C to +45 °C
Application environment
Outdoor / Indoor
Storage temperature
–40 °C to +70 °C
Relative humidity
5% - 95% RH
Altitude
≤ 2000 m (Derated between 2000 - 4000 m)
Dimensions (H x W x D)
335 mm x 180 mm x 145 mm
Weight
3 kg
Installation mode
Wall-mounted
IP rating
IP54
Impact protection level
IK10
Standby self-consumption
< 6 W

Standards Compliance (More Available Upon Request)

Safety & Health
EN IEC 61851-1 2019, EN 62311 2008, EN IEC 62311 2020, EN 50665 2017, EN 50364 2018
EMC
EN IEC 61851-21-2 2021, EN 301 489-1 V2.2.3 2019, EN 301 489-3 V2.1.1 2019, EN 301 489-17 V3.2.4 2020
Radio
ETSI EN 300 328 V2.2.2, ETSI EN300 330 V2.1.1
RoHS
EN IEC 63000:2018
