Name: WiFi реле Shelly 1 Gen3, за контакт, изисква неутрала, волтметър, Bluetooth, синьо
Brand: Shelly
SKU: HOAUSHELLYS3SW001X16EUSINGLE
Price: 38.31 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси

Shelly 1 Gen3

Versatile Automation for Any Project

Our bestseller - now even more powerful, equipped with our own Shelly chip. Perfect for automating lighting, managing garage doors, and modernizing old appliances, Shelly 1 Gen3 is the ideal choice for creating a more efficient, connected home and office. Its versatility makes it suitable for a wide range of automation projects.

Wi-Fi Operated

Connect Shelly 1 Gen3 to your Wi-Fi network. No HUB required!

Bluetooth

Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.

Dry contacts

Use it to control a wide range of devices and appliances.

Low and high voltage support

Use a wide range of output voltage levels. Supports low voltages.

Smart schedules

Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.

Smart scenes

Set custom scenes by combining Shelly 1 Gen3 with your other Shelly devices.

Specifications

Environmental

Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft

Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall console
Shell material:	Plastic

Electrical

Power supply:	110-240 V~ 24-48 V⎓ 12 V⎓
Power consumption:	< 1.2 W
External protection:	Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3)

Output circuits ratings

Max. switching voltage:	240 V~ 30 V⎓
Max. switching current:	16 A/240 V~ 10 A/30 V⎓

Sensors, meters

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:	802.11 b/g/n
RF band:	2401 - 2483 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:	4.2 with BLE
RF band:	2400 - 2483.5 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Microcontroller unit

CPU:	ESP-Shelly-C38F
Flash:	8MB

Firmware capabilities

Schedules:	20
Webhooks (URL actions):	20 with 5 URLs per hook
Scripting:	Yes
MQTT:	Yes

Виж още Смарт автоматизация Shelly
Виж всички Смарт автоматизация в категорията

Технически характеристики

Тип:	Реле
Вид:	Включващо устройство
Приложение:	Захранване

Добави Ревю / Въпрос

Оцени продукта или задай въпрос?

0.00 от 0 ревюта

Добави ревю | Задай въпрос

5

0 ревюта
4

0 ревюта
3

0 ревюта
2

0 ревюта
1

0 ревюта

Свързани продукти и тагове:

Евтини Смарт домашна автоматизация цени до 60 лв (182)

Виж повече

Smart irrigation Using Shelly 1 Gen3, you can effortlessly set up your irrigation system to water your garden on sunny days and skip watering on rainy days. Using its advanced scripting capabilities or the Shelly Smart Control App Premium, you can configure the device to take weather forecasts into account, ensuring optimal watering schedules based on real- time weather conditions. For optimal precision in your automation, you can also use the Shelly Plus Add-on with a soil moisture sensor.
Control Your Garage Door Remotely Automate your garage door and gain control from anywhere in the world! Shelly 1 Gen3, with its operational voltages of 12V DC and 24-48V DC, is ideally suited for managing garage doors. By using the Shelly Plus Add-on and a Reed switch, you can also know the current state (open/closed).

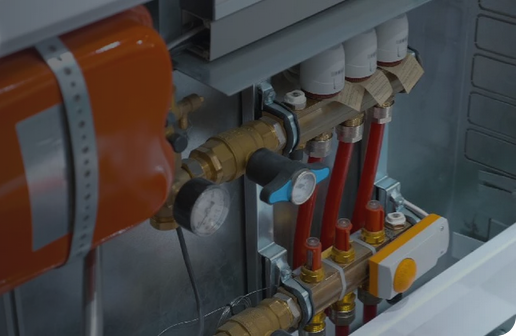

Optimal Heating and Cooling With Shelly 1 Gen3, you can effortlessly control valves and heating/cooling manifolds in your home, ensuring precise water flow management for optimal temperature regulation and energy efficiency. Using it together with Shelly BLU H&T for each area, you can create schedules and scenes to open valves for hot water distribution when temperatures drop and switch between heating and cooling modes based on the current temperature. This setup maintains a comfortable climate year-round, reduces manual intervention, and allows remote adjustments.
Smart Lighting Automate your lights to turn on at sunset and off at bedtime, ensuring your home is always well-lit when needed. Using Shelly 1 Gen3's scheduling capabilities, you can create custom lighting schedules and scenes to match your daily routine. Whether you're home or away, control your lights remotely and save energy by ensuring lights are never left on unnecessarily. And don't worry - light switches can still be used manually to suit the needs of everyone in your home.
