Control and Monitor

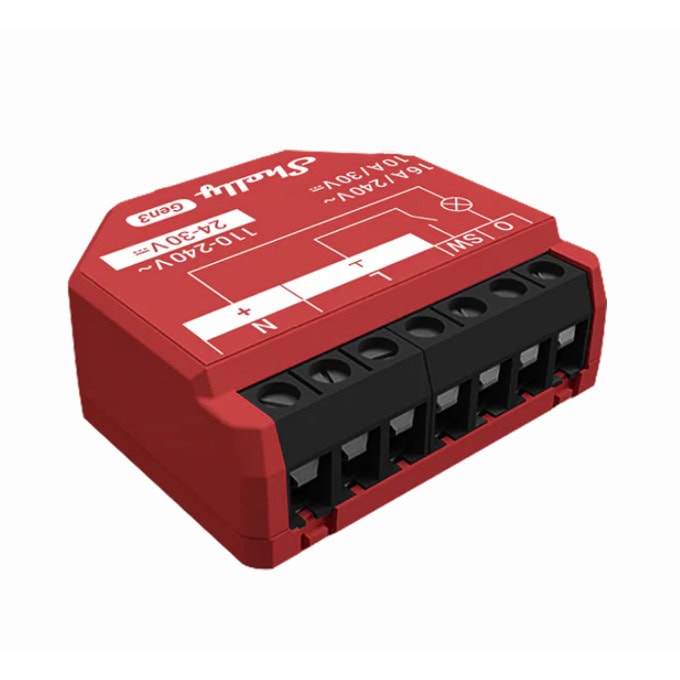

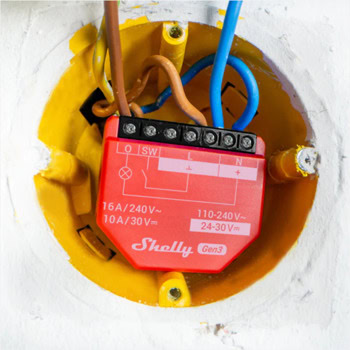

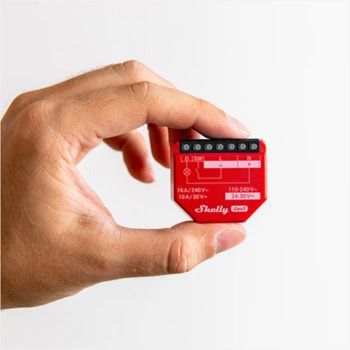

Shelly 1PM Gen3 – the smart switch for efficient appliance control and energy savings, now even more powerful with the new Shelly chip. Perfect for automating lighting, controlling space heaters, and monitoring appliances, Shelly 1PM features precise power metering and free data storage for detailed analysis of your energy consumption.
Wi-Fi Operated
Connect Shelly 1PM Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Add devices quickly and easily via Bluetooth connection, using Shelly Cloud App.
Power monitoring
Shelly 1PM Gen3 provides precise monitoring of power consumption.
Wide range of voltage support
Use it to control a wide range of devices and appliances.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly 1PM Gen3 with your other Shelly devices.
Specifications
Environmental
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | Wall console |
| Shell material: | Plastic |
Electrical
| Power supply: |
|
| Power consumption: | < 1.2 W |
| External protection: | Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
Output circuits ratings
| Max. switching voltage: |
|
| Max. switching current: |
|
Sensors, meters
| Internal-temperature sensor: | Yes |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n |
| RF band: | 2401 - 2483 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 4.2 with BLE |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP-Shelly-C38F |
| Flash: | 8MB |
Firmware capabilities
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
