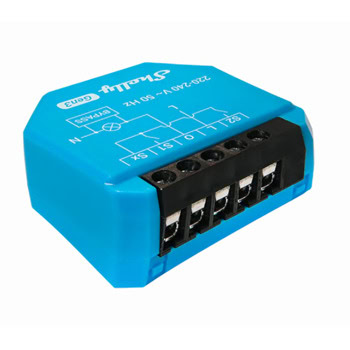

Shelly 1L Gen3
Come home to welcoming lights
With Shelly 1L Gen3, your front door lights can automatically switch on as you arrive home, and paired with Shelly BLU Motion sensor, you’ll never have to enter a dark room again. Plus, manual control is always available, ensuring flexibility and convenience for everyone in your household. Just that easy!
Smart Lighting Control, No Neutral Wire Needed
Shelly 1L Gen3 turns any standard wall switch into a smart switch without requiring a Neutral wire, new cables, or rewiring—just install it behind your existing switch! Compatible with LED, CFL, incandescent, halogen, and luminescent lights, Shelly 1L Gen3 makes automation easy for any lighting setup.
Smart Lighting Without a Neutral Wire
Shelly 1L Gen3 is a Wi-Fi smart relay for lighting control that requires no neutral wire, making it compatible with all installations. Easy to install in under 10 minutes, it allows you to control your lights remotely, set schedules, and save energy. Perfect for any home or building, it ensures you never leave lights on by mistake, offering convenience and peace of mind.
Wi-Fi operated
Connect Shelly 1L Gen3 to your Wi-Fi network. No HUB required!
Bluetooth
Quick inclusion via Bluetooth or use it as a Bluetooth gateway.
Perfect to retrofit

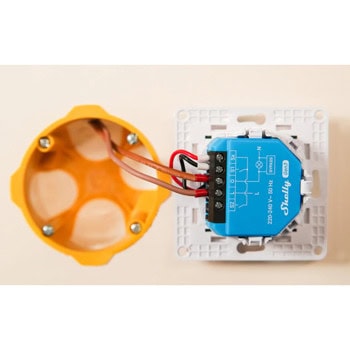

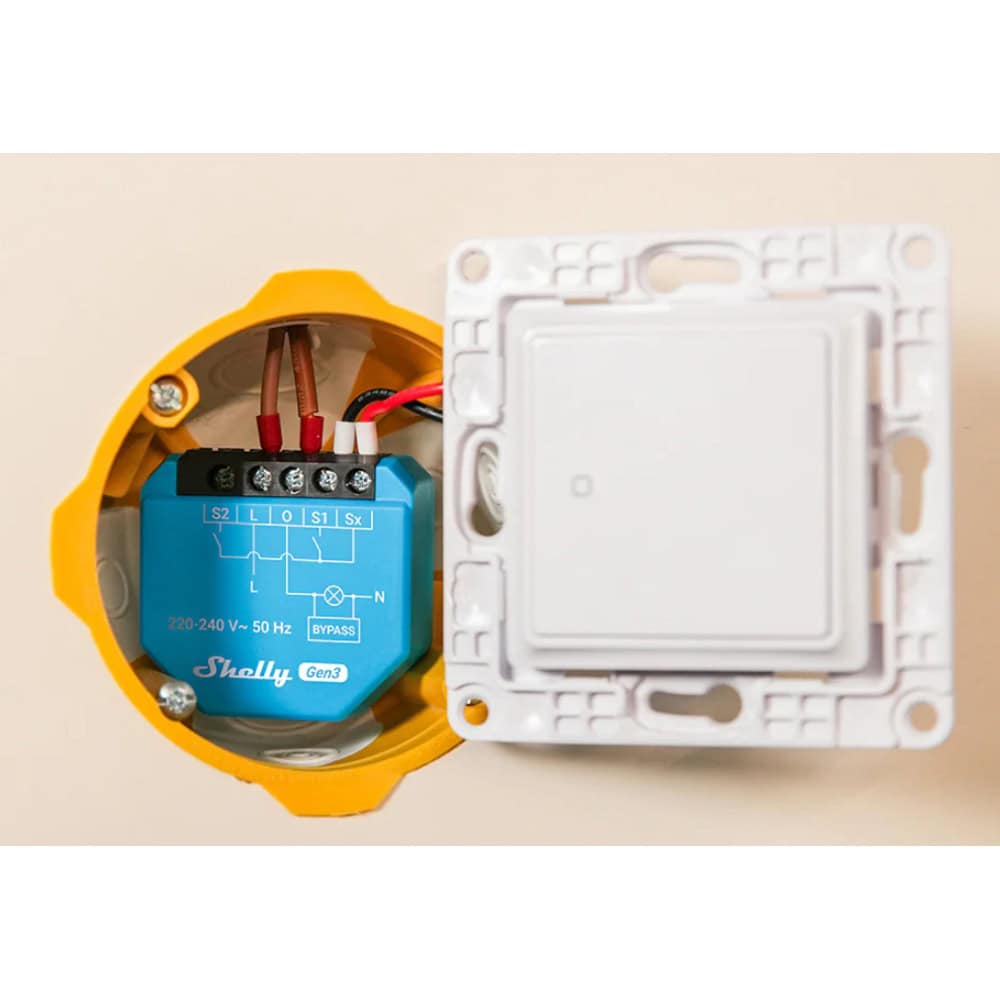

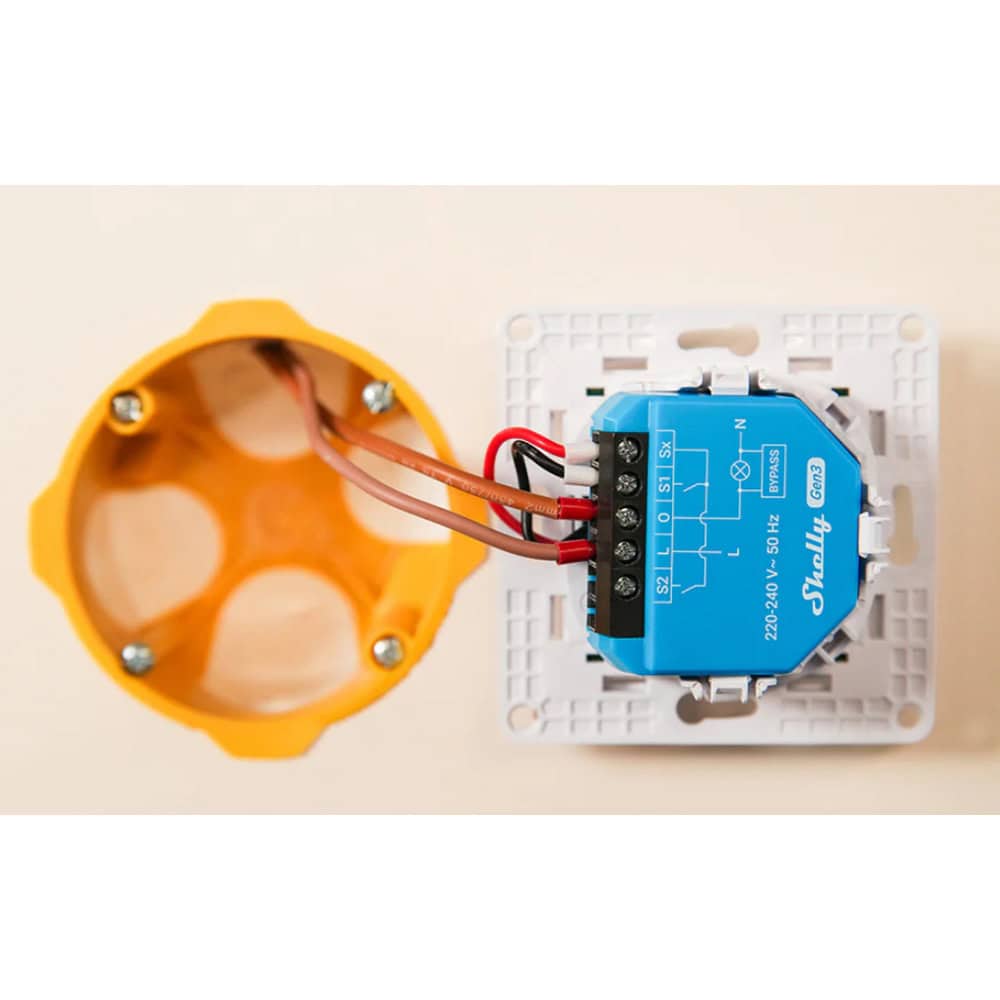

Shelly 1L Gen3 is designed for installation in limited spaces, such as wall switches.
No Neutral wire required!
Power and control your lights, or other connected appliances using just a Live wire, with no need to connect a Neutral wire to the device.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly 1L Gen3 with your other devices.
Specifications
Environmental
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Storage temperature: | 10°C to 40 °C |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | In-wall |
| Shell material: | Plastic |
Electrical

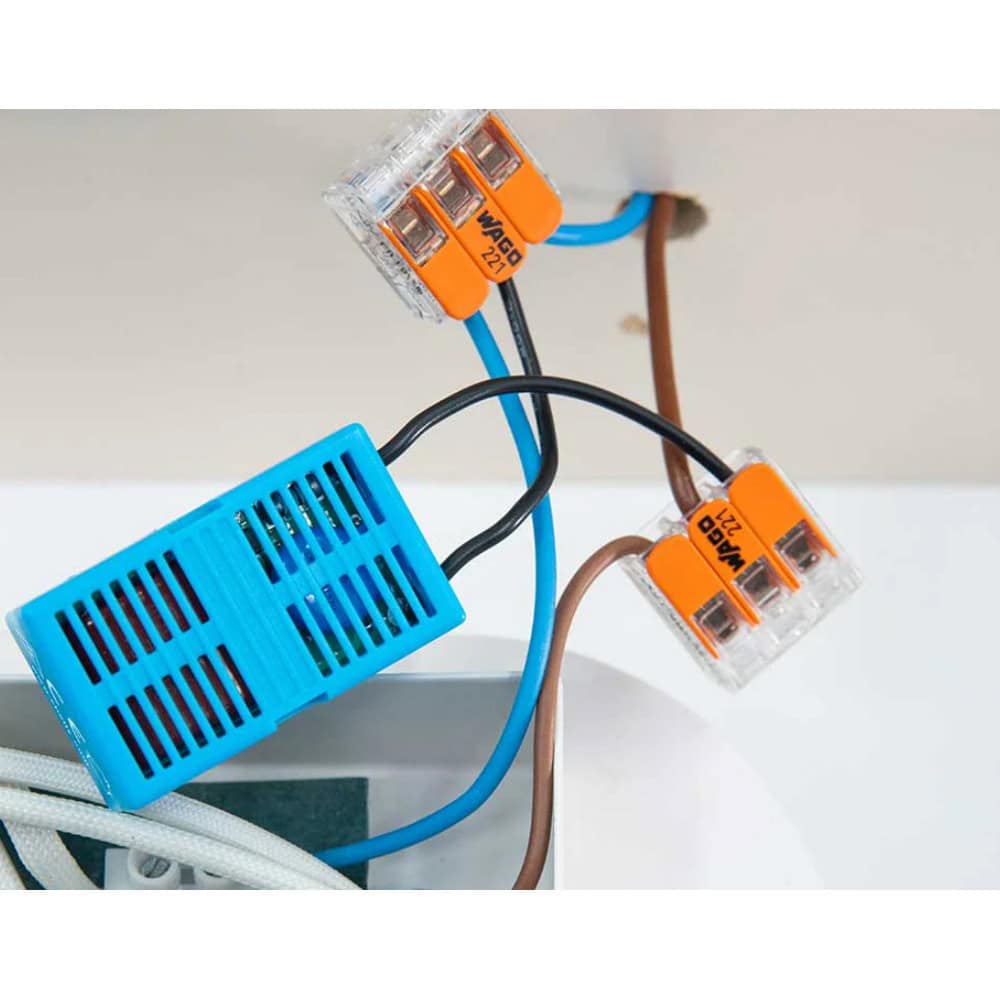

| Power supply: | 220-240 V~ 50Hz (Shelly Bypass is required) |
| Shelly Bypass included | Yes |
| Power consumption: | < 1.2 W |
| Neutral not needed: | Yes (Shelly Bypass is required for the load at O) |
| Min. load without neutral and without a Bypass: | No (Shelly Bypass is required for the load at O), for all LED lights. No, Bypass is not needed for incandescent lights. |
| External protection: | 10 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
Output circuits ratings
| Max. switching voltage: | 240 V~ 50 Hz |
| Max. switching power: | 200 W |
Sensors, meters
| Internal-temperature sensor: | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n |
| RF band: | 2401 - 2495 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 4.2 |
| RF band: | 2400 - 2483.5 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP-Shelly-C38F |
| Clock frequency: | 160 Mhz |
| RAM: | 512 KB |
| Flash: | 8 MB |
Firmware capabilities
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
