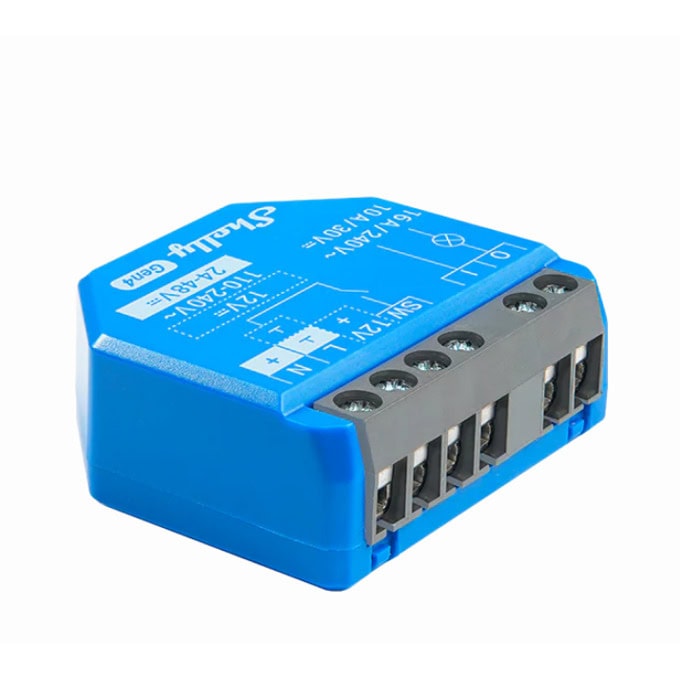

Shelly 1 Gen4
Irrigation that Follows the Weather
With Shelly 1 Gen4, you can set up your irrigation system to water your garden on sunny days and skip it on rainy days. Using advanced scripting or the Shelly Smart Control App Premium, you can sync your watering schedule with real-time weather forecasts. For even more precision, combine it with a Shelly Plus Add-on and a soil moisture sensor.

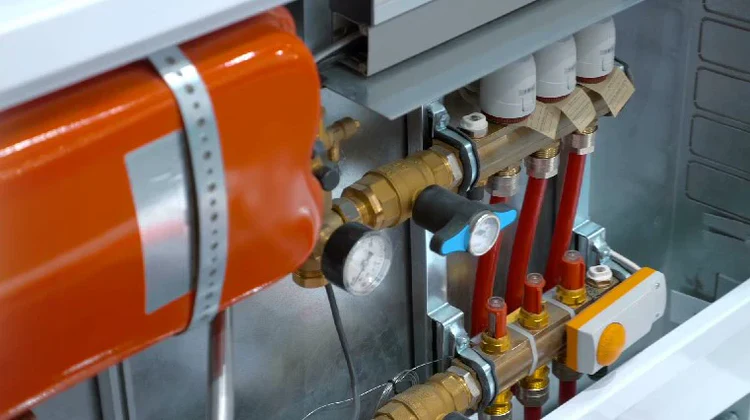

Optimal Heating and Cooling
Shelly 1 Gen4 makes it easy to control valves and heating/cooling manifolds, ensuring precise water flow and temperature regulation. Combine it with Shelly BLU H&T to create schedules and scenes for hot water distribution or switch between heating and cooling modes based on current temperatures, maintaining a comfortable climate all year round.
Remote Garage Door Control
Shelly 1 Gen4 lets you automate and control your garage door from anywhere. Ideal for 12V DC and 24-48V DC setups, it works seamlessly for garage door management. Add a Reed switch with the Shelly Plus Add-on to monitor whether your garage door is open or closed.
Make your lights smart
Automate your lighting with Shelly 1 Gen4 to turn lights on at sunset and off at bedtime. You can create custom schedules and scenes to fit your routine, control your lights remotely, and ensure they’re never left on unnecessarily. Manual control is still available, making it easy for everyone in your home to adjust the lighting as needed.
Smarter, Faster, and More Connected

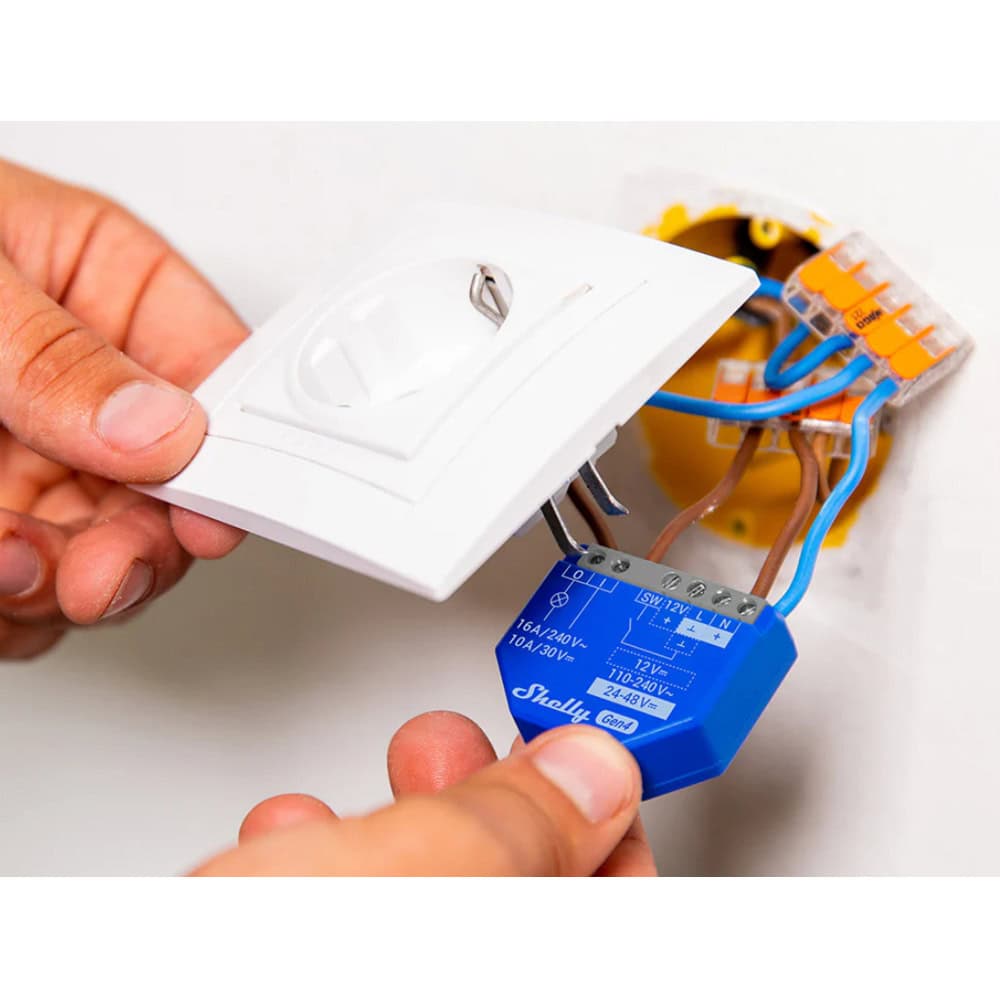

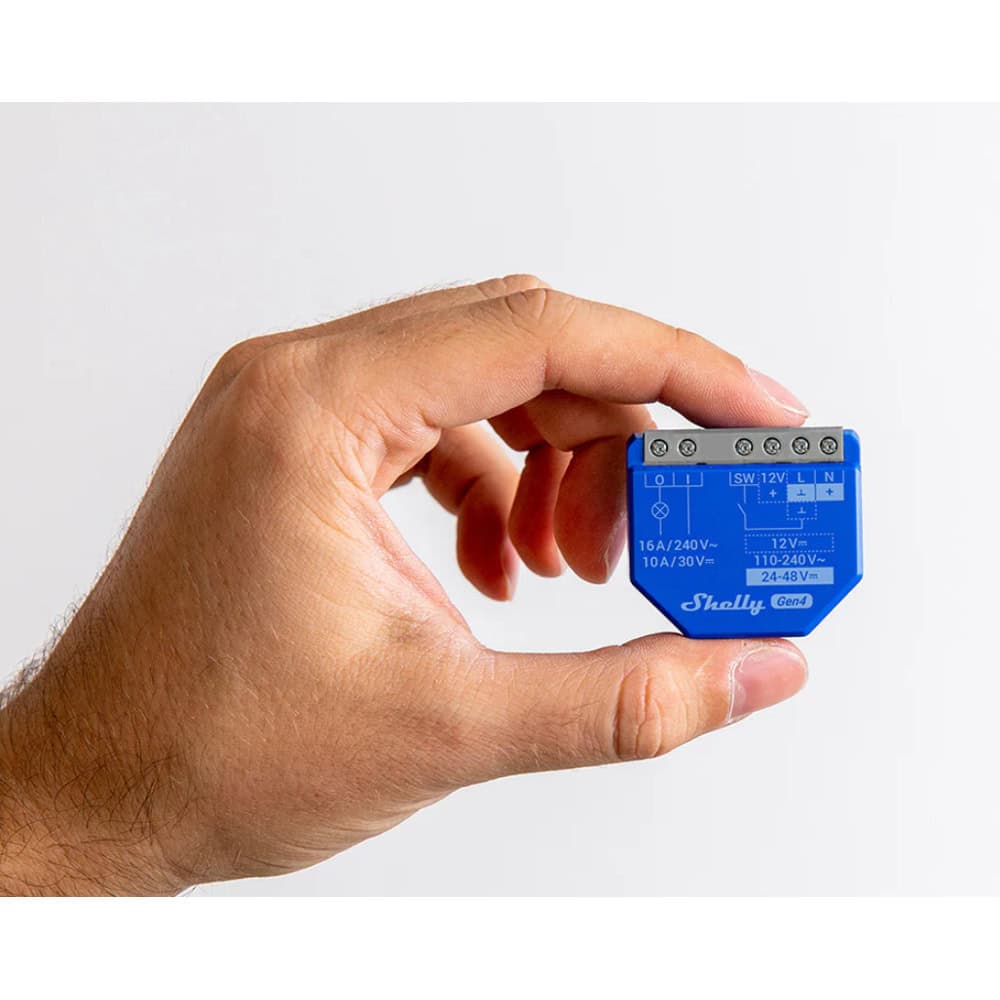

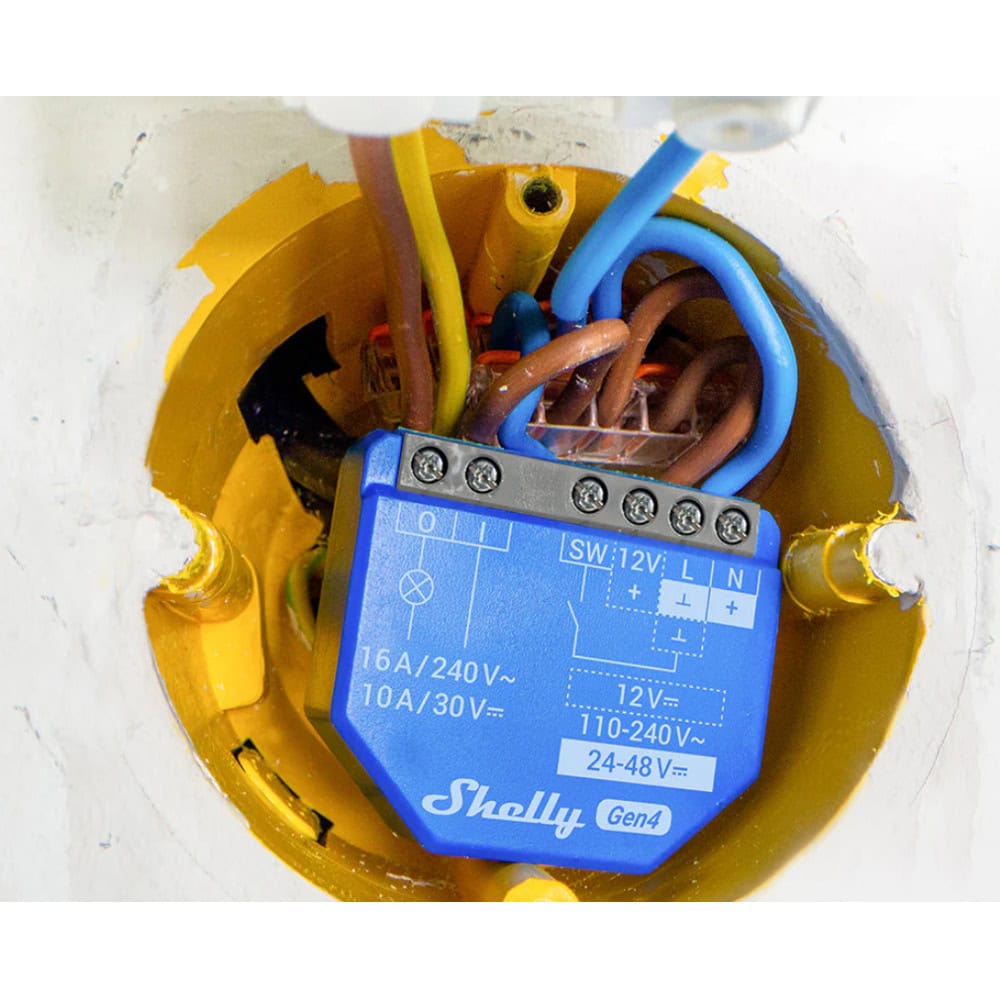

Shelly 1 Gen4 brings powerful upgrades to the popular Shelly 1 device. With new multiprotocol connectivity, you can choose the protocol that best suits your home network - Zigbee, Matter, Wi-Fi, or Bluetooth. An improved processor ensures faster responses and smoother performance of your automations. Shelly 1 Gen4 continues to be the perfect retrofit solution for your lights and appliances, now with enhanced compatibility and speed, all in its usual compact and easy-to-install design.
Multiprotocol connectivity
Highly compatible! Choose the best protocol for your smart home—Zigbee, Matter, Wi-Fi, or Bluetooth
Low and high voltage support
Use a wide range of output voltage levels. Supports low voltages.
Dry contacts
Use it to control a wide range of devices and appliances.
Matter Certified
Integrates into any Matter ecosystem
Smart schedules
Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly 1 Gen4 with your other devices.
Specifications
Environmental
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | Wall console |
| Shell material: | Plastic |
Electrical
| Power supply: |
|
| Power consumption: | < 1 W |
| Neutral not needed: | No |
| External protection: | Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
Output circuits ratings
| Max. switching voltage: |
|
| Max. switching current: |
|
Sensors, meters
| Internal-temperature sensor: | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 5 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Zigbee
| Protocol: | 802.15.4 |
| Zigbee repeater: | Yes |
| RF bands: | 2400 to 2483.5 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP-Shelly-C68F |
| Flash: | 8MB |
Firmware capabilities
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
