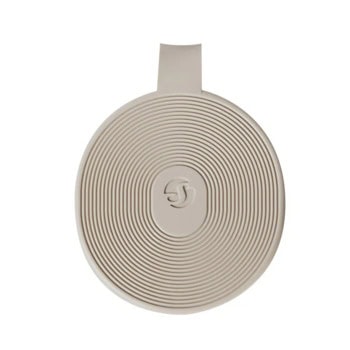

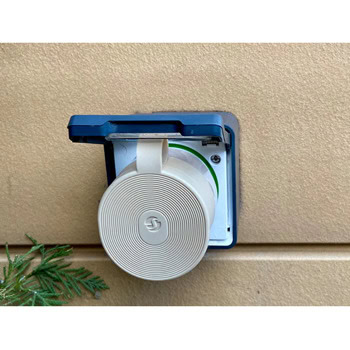

Shelly Outdoor Plug S Gen3
Easy outdoor automation
Make your BBQ area or patio a fully automated space. Control everything from lights and fans to heaters and portable appliances from your phone. With remote control, you can set the perfect atmosphere from anywhere. Turn on the lights, preheat the grill, or activate your outdoor heater and enjoy a cozy environment.

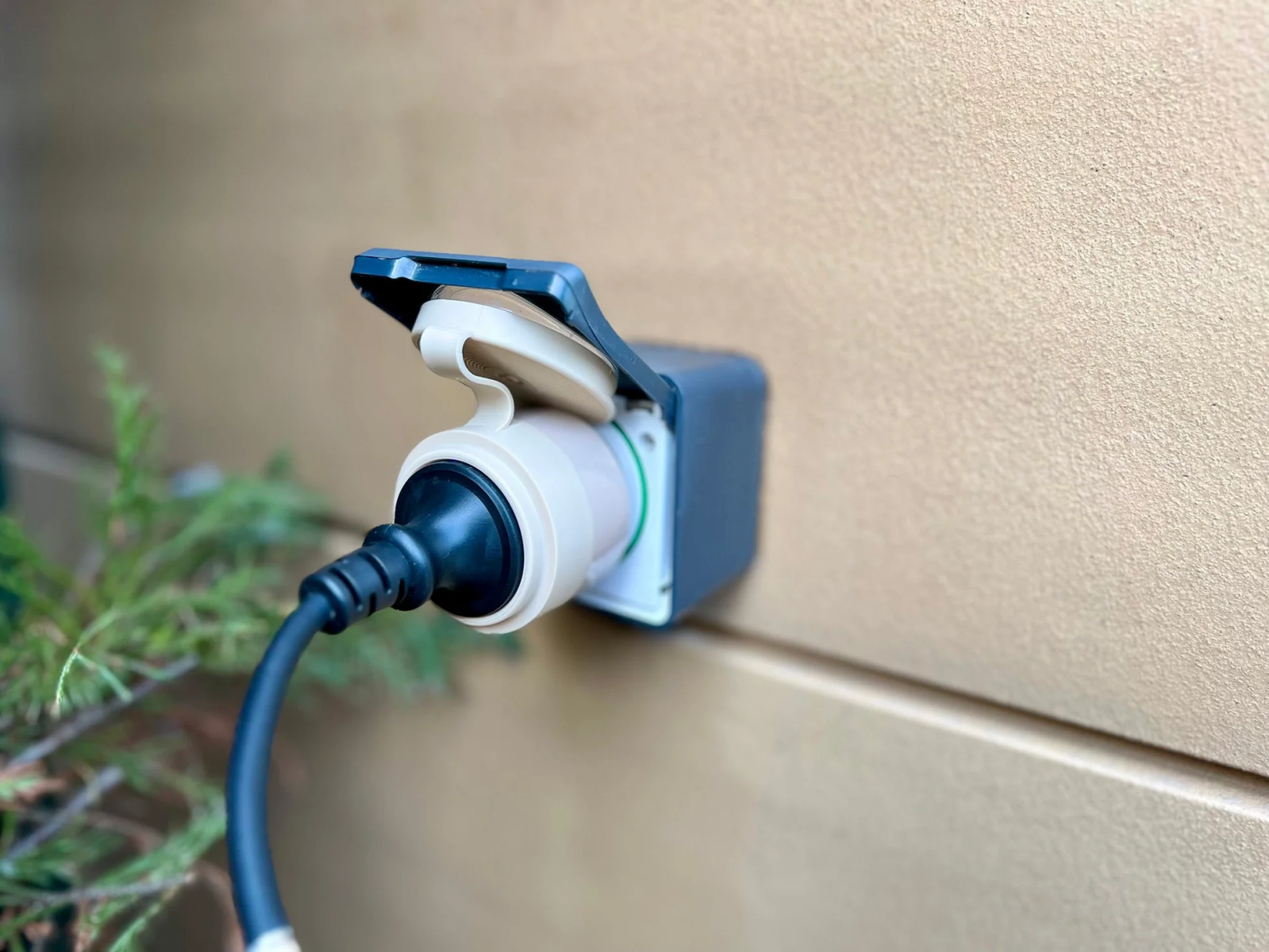

Monitor energy usage in real-time
With our outdoor smart plug, you can track the energy consumption of your outdoor appliances in real-time. The power metering feature helps you stay on top of energy use, ensuring you never forget appliances running and giving you insights into when an appliance might be damaged or nearing the end of its life. Save energy and avoid surprises.
Outdoor lighting
Designed for all weather conditions, the device makes holiday lighting setup easier, smarter, and more magical than ever. With Shelly’s remote control and scheduling features, you can set your lights to turn on automatically at dusk, creating a warm, festive glow as night falls, and power down at bedtime to save energy. Control your lights from anywhere, or schedule them to turn on alongside your outdoor decorations with just a tap.
Specifications
Environmental
| Ambient temperature: | -25°C to 51°C / -13°F to 125°F |
| Humidity | 15% to 85% RH |
| Max. altitude | 2000m / 6562 ft |
| Glow-wire temperature: | 750°C |
| Ingress Protection: | IP44 |
| Required forced cooling: | No |
Electrical
| Power supply: | 230 V~ 50/60 Hz |
| Power consumption: | < 1 W |
| Rated impulse-withstand voltage: | 2500 V |
Output circuits ratings
| Max. switching voltage: | 230 V~ |
| Max. switching current: | 12 A |
| Max. output power: | 2500 W (resistive load only) |
| Number of switching cycles: | 10000 |
| Overvoltage category: | II |
| Duty-type: | S1 |
| Switch type: | One-way |
| Switch configuration: | SPNO (single-pole, normally-open) |
| Type of circuit disconnection: | Micro |
| Compatible sockets: | CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E) |
| Compatible plugs: | CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17 |
| Shell material: | Plastic with Silicone Ruber Protective Cover for the Outlet |
Sensors, meters
| Internal-temperature sensor: | Yes |
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Power and energy meters: | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n |
| RF band: | 2401-2473 MHz |
| Max. RF power: | <10 dBm |
| Wi-Fi Range: | Up to 50 m / 164 ft outdoors, up to 30 m / 98 ft indoors (depending on local conditions) |
Bluetooth
| Protocol: | 4.2 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 30 m / 98 ft outdoors, up to 10 m / 33 ft indoors (depending on local conditions) |
Microcontroller unit
| CPU: | ESP-Shelly-C38F |
| Flash: | 8 MB |
Firmware capabilities
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
| CoAP: | No |
