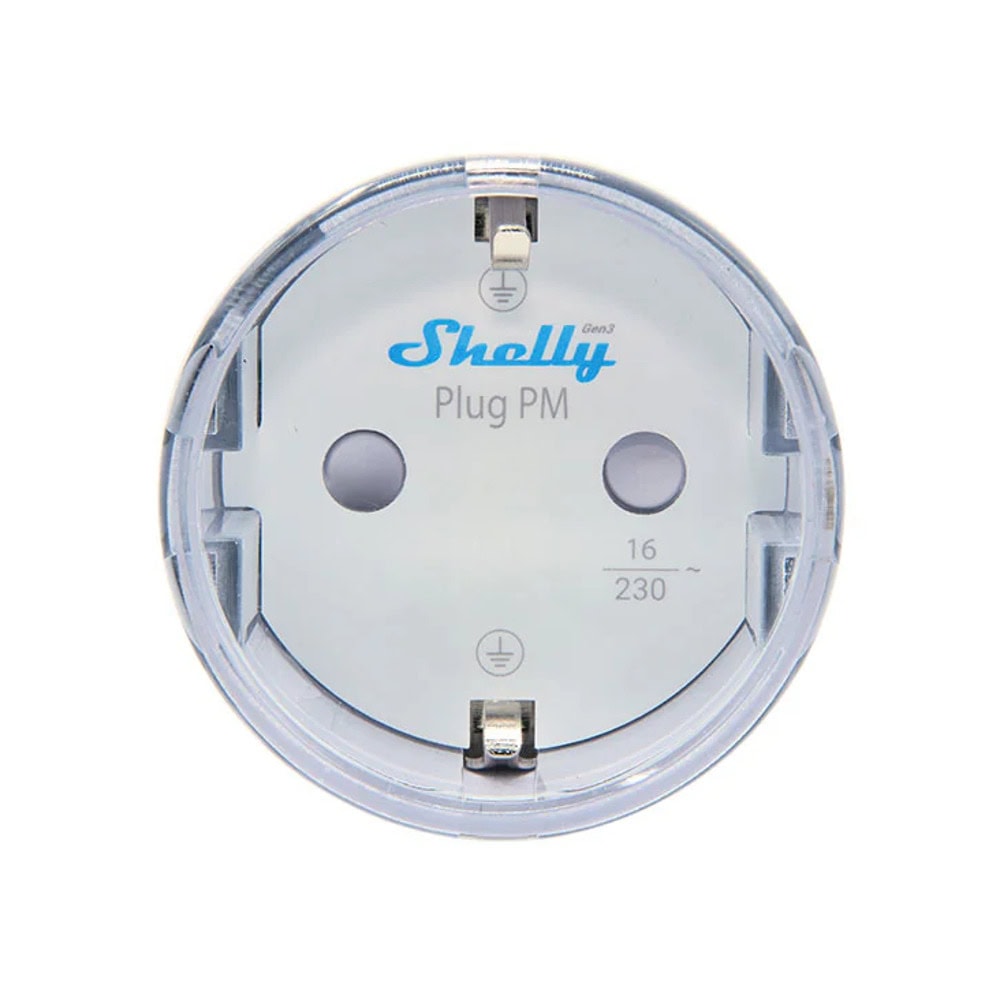

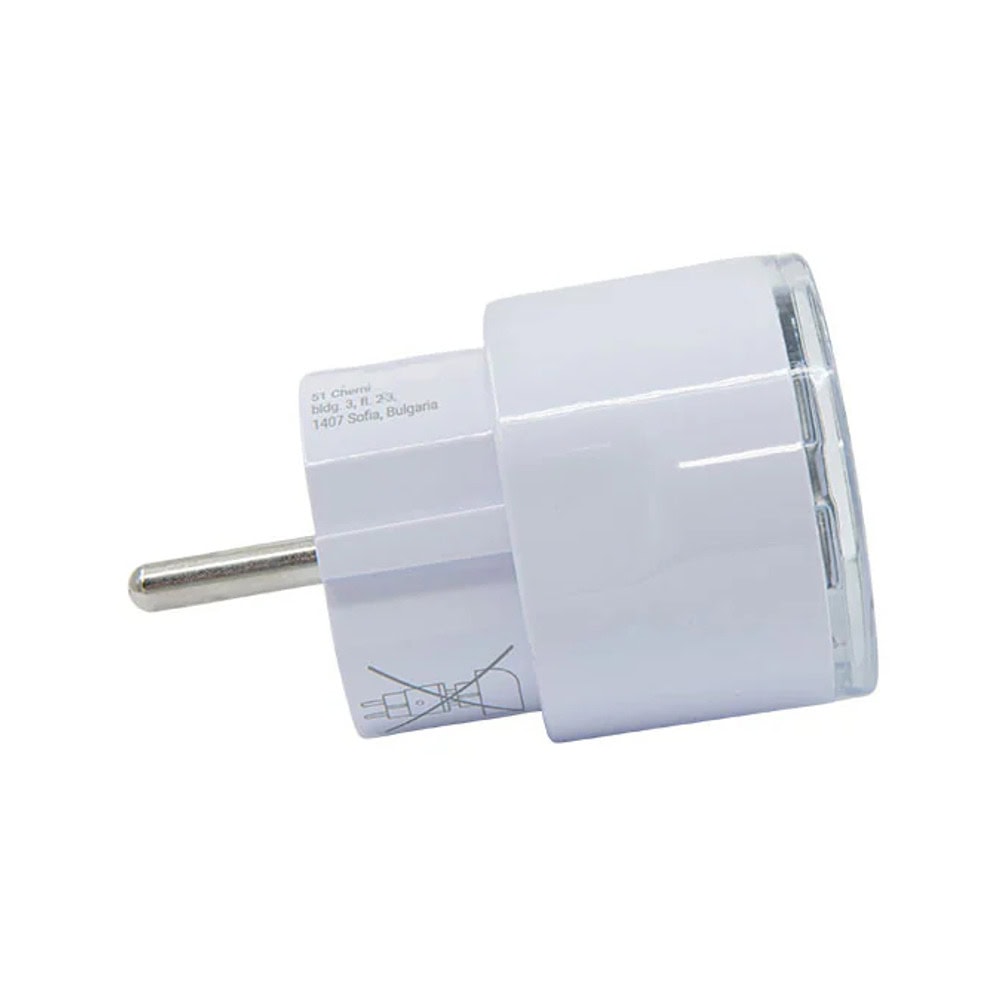

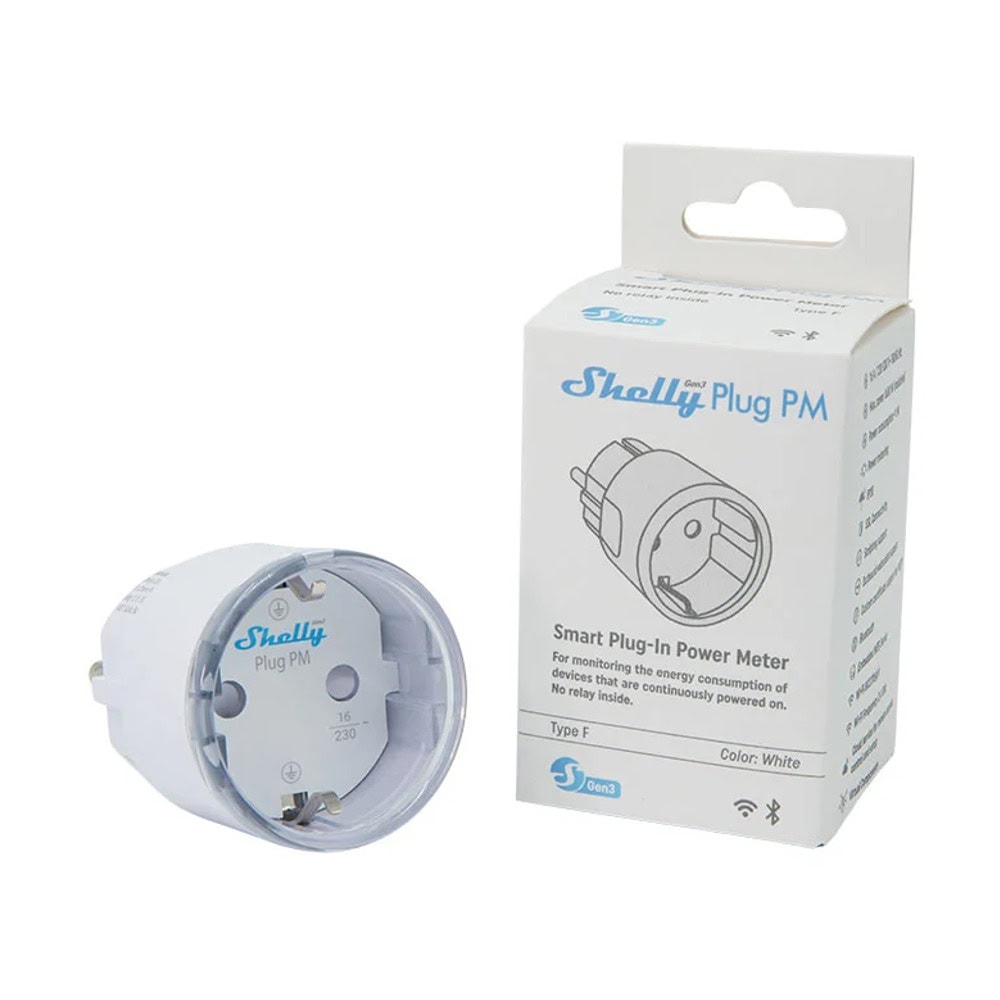

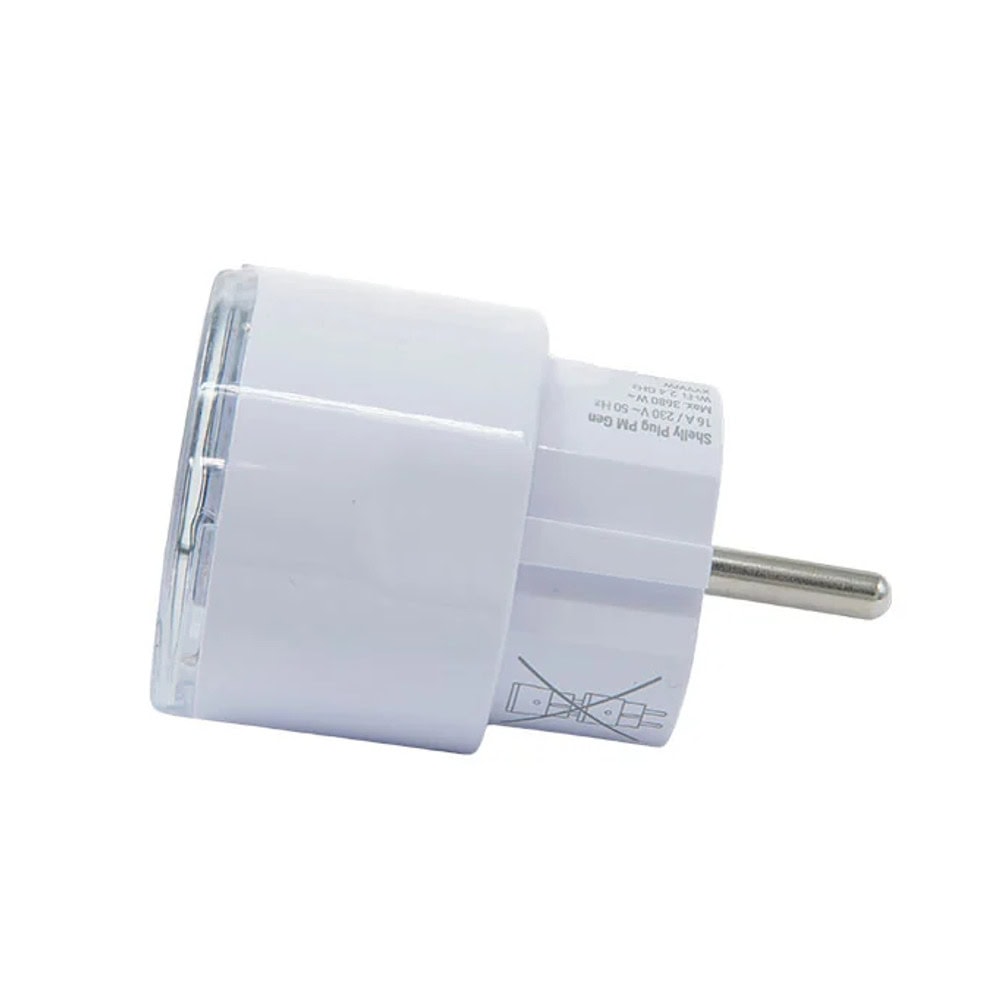

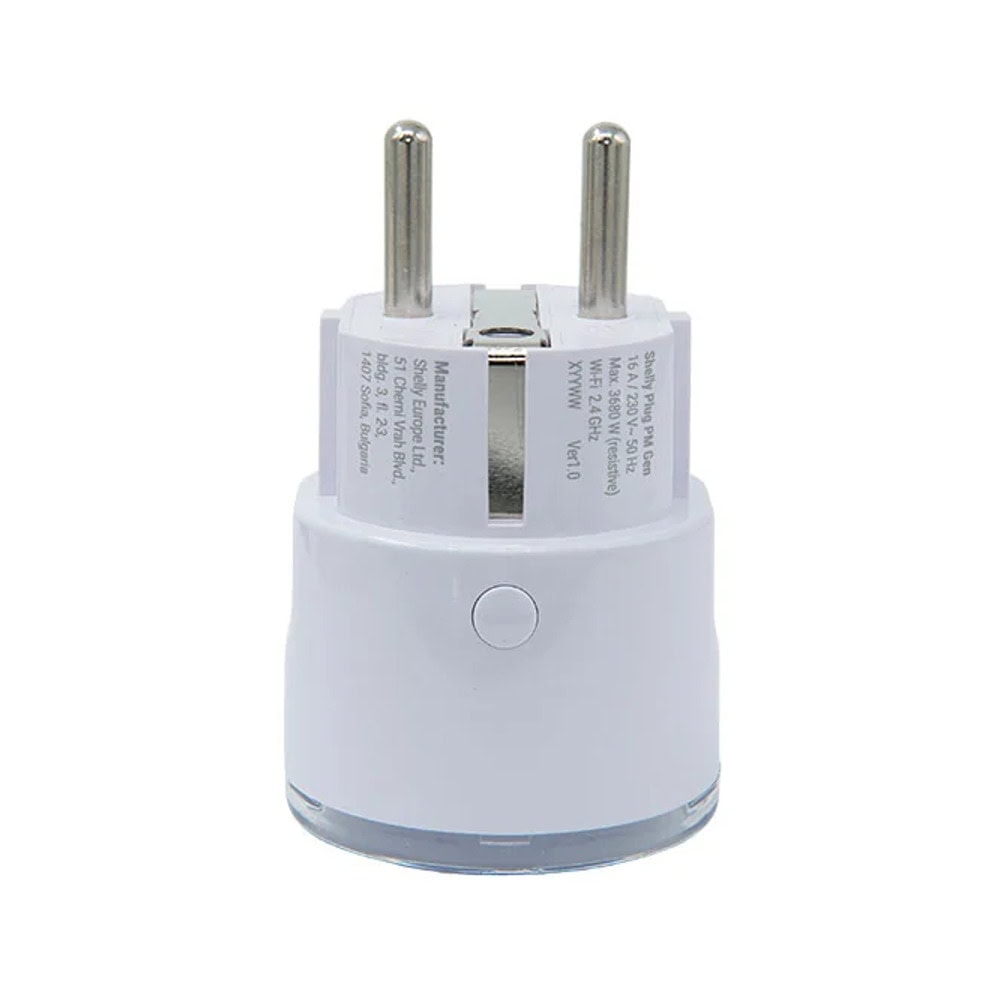

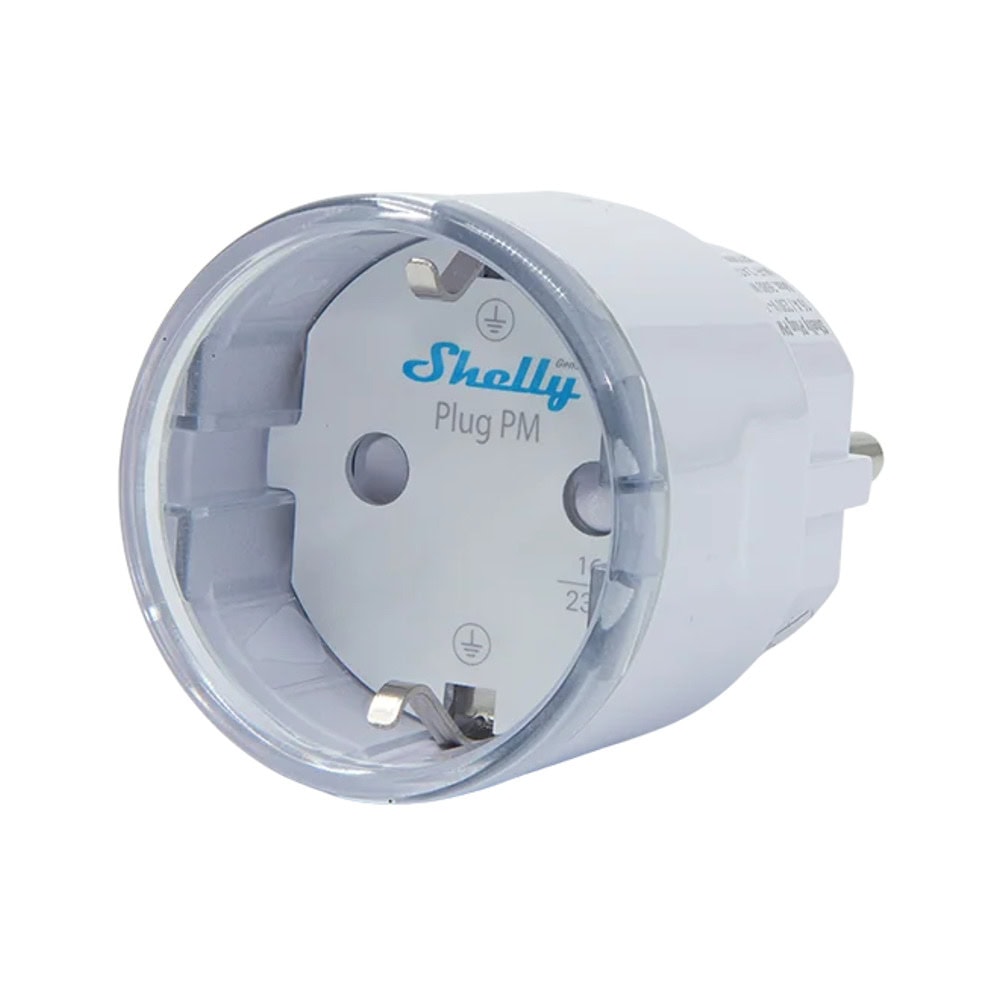

Смарт контакт Shelly Plug PM Gen3, волтметър, амперметър, Wi-Fi, бял

Energy Monitoring

Track the real-time energy consumption of essential devices-such as refrigerators, freezers, heaters, or indoor PV systems. Identify high-energy consumers and optimize their usage without risking accidental shutdown.

Usage Analysis

Monitor your energy consumption trends over time to make informed decisions about appliance usage and identify opportunities to upgrade to more energy-efficient models.

Overload Detection & Instant Notifications

Protect your appliances and electrical system by receiving alerts when a connected device exceeds its safe power threshold. Avoid overheating, prevent potential damage, and maintain operational safety with proactive monitoring.

Cost Estimation

Understand the real cost of running each appliance. Shelly Plug PM Gen3 provides valuable consumption data to help you estimate monthly operational costs-giving you control over budgeting and energy expenses.

Specifications

Physical

Size (HxWxD):

44x44x70 ±0.5 mm / 1.73x1.73x2.75 ±0.02 in

Weight:

48 ±1 g / 1.69 ±0.04 oz

Compatible sockets:

CEE 7/1, CEE 7/3 (Type F / Schuko) or CEE 7/5 (Type E)

Compatible plugs:

CEE 7/2, CEE 7/4 (Type F / Schuko), CEE 7/7, CEE 7/16 (Type C) or CEE 7/17

Shell material:

Plastic

Environmental

Ambient temperature:

-20 °C to 40 °C / -5 °F to 105 °F

Humidity

30 % to 70 % RH

Max. altitude

2000 m / 6562 ft

Glow-wire temperature:

750°C

Pollution degree:

2

Required forced cooling:

No

Electrical

Power supply:

230 V~ 50 Hz

Power consumption:

< 1 W

Rated impulse-withstand voltage:

2500 V

Max. current:

16 A

Output circuits ratings

Max. output power:

3680 W (resistive load only)

Overvoltage category:

II

Sensors, meters

Internal-temperature sensor:

Yes

Voltmeter (AC):

Yes

Ammeter (AC):

Yes

Power and energy meters:

Yes

Wi-Fi

Protocol:

802.11 b/g/n

RF band:

2412-2484 MHz

Max. RF power:

<10 dBm

Wi-Fi Range:

-

Microcontroller unit

CPU:

ESP-Shelly-C38F

Flash:

8 MB

Firmware capabilities

Webhooks (URL actions):

20 with 5 URLs per hook

Scripting:

Yes

MQTT:

Yes
