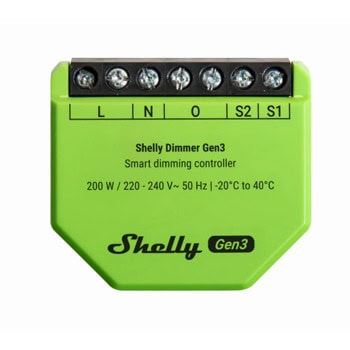

Shelly Dimmer Gen3
Automated Lighting Schedules for Perfect Ambiance
Shelly Dimmer Gen3 helps you tailor your lighting to match your day-to-day rhythm. Set up smart schedules so your lights gradually brighten in the morning or dim in the evening, creating a cozy, energy-efficient atmosphere. Whether you're looking for morning energy or evening relaxation, your lighting adapts to your routine with ease.
Instant Dimming Control with a Single or Double Press
Simplify your lighting control with Shelly Dimmer Gen3’s intuitive button functionality. With just a single or double press, you can easily dim lights up or down to your desired brightness level. This feature lets you quickly adjust the ambiance in any room without needing to open an app, giving you fast and convenient control right at your fingertips. Whether you're setting the mood or fine-tuning lighting for specific activities, it's all done effortlessly with a simple press.
Night Mode: Soft Lighting for Peaceful Nights
Ensure a peaceful, dimly lit environment for late-night activities without disturbing your sleep cycle. With Shelly Dimmer Gen3's night mode, lights automatically reduce to a softer brightness during night hours. Enjoy the perfect balance between convenience and comfort, without harsh light disrupting your rest.

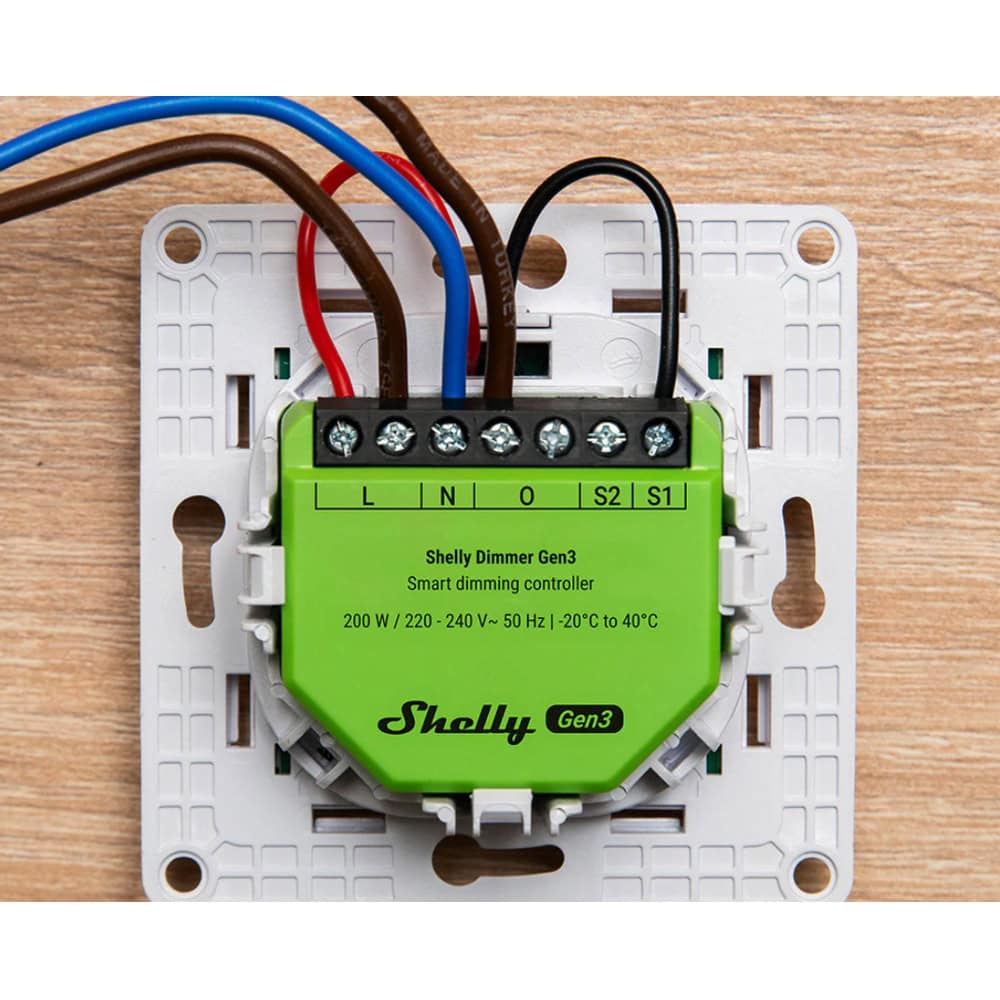

.png) | Effortless Lighting Retrofit—No Neutral Wire Needed Transform your home's lighting without major electrical changes! Shelly Dimmer Gen3 is designed for easy integration into existing systems, even when there's no neutral wire. Continue using your current switches and setup, but with the added benefit of smart dimming and remote control. It's a simple way to modernize your lighting without costly rewiring or replacement. |
Smart Dimming, Anytime, Anywhere
Shelly Dimmer Gen3, powered by our own Shelly chip, offers precise and reliable dimming control. It works with or without a neutral wire and allows for easy adjustment of brightness through the app or a simple button press. With features like smart scheduling and night mode, it helps you customize dimming for different times of day and activities. Take full control of your dimmable lighting and quickly enhance comfort and efficiency.
Wi-Fi operated
Connect Shelly Dimmer Gen3 to your Wi-Fi network. No HUB required!
Night Mode
Create comfortable ambient lighting and automatically adjust to your predefined brightness during specific hours of the day.
No neutral required
Shelly Dimmer Gen3 doesn't require a neutral line to provide a full set of dimming functionalities.
Flexible input control
Use it with your existing switches and/or buttons for a fast and convenient control.
Smart scenes
Set custom scenes by combining Shelly Dimmer Gen3 with your other Shelly devices
Smart schedules
Set custom schedules based on your daily agenda, or follow the sunrise/sunset and control your lighting accordingly.
Specifications
Environmental
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 5 to 6 mm / 0.20 to 0.24 in |
| Mounting: | In-wall |
| Shell material: | Plastic |
Electrical
| Power supply: | 220-240 V~ 50 Hz |
| Power consumption: | < 1.5 W |
| Neutral not needed: | Yes |
| Min. load without neutral and without a Bypass: | 20 W |
| Dimming type | Trailing edge |
| External protection: | 16 A, tripping characteristic B or C, 6 kA interrupting rating, Energy limiting class 3 |
| Short circuit protection | Yes |
Output circuits ratings
| Max. output power: | 200 W |
Sensors, meters*
| Voltmeter range (AC): | 180 V - 240 V |
| Voltmeter accuracy: | ± 5 % (when used with neutral) |
| Ammeter range (AC) | 0 A - 3 A, |
| Ammeter accuracy: | ± 5 % (when used with neutral) |
| Internal-temperature sensor: | Yes |
*Precise measurement is possible only when used with neutral.
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n |
| RF band: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 4.2 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP32 C3 STM32 G051 |
| Clock frequency: | ESP32 C3: 40 Mhz |
| Flash: | 8 MB |
Firmware capabilities
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook… |
| Scripting: | Yes |
| MQTT: | Yes |
| Advanced schedules: | Yes |
| KVS (Key-Value Store): | Yes |
