Name: WiFi реле Shelly 1 Mini Gen4, за контакт, изисква неутрала, 5 гнезда, сензор за вътрешна температура, до 100m обхват, Bluetooth, синьо
Brand: Shelly
SKU: HOAUSHELLYS4SW001X8EUSINGLE
Price: 39.32 BGN
Availability: InStock

Описание Характеристики Ревюта / Въпроси

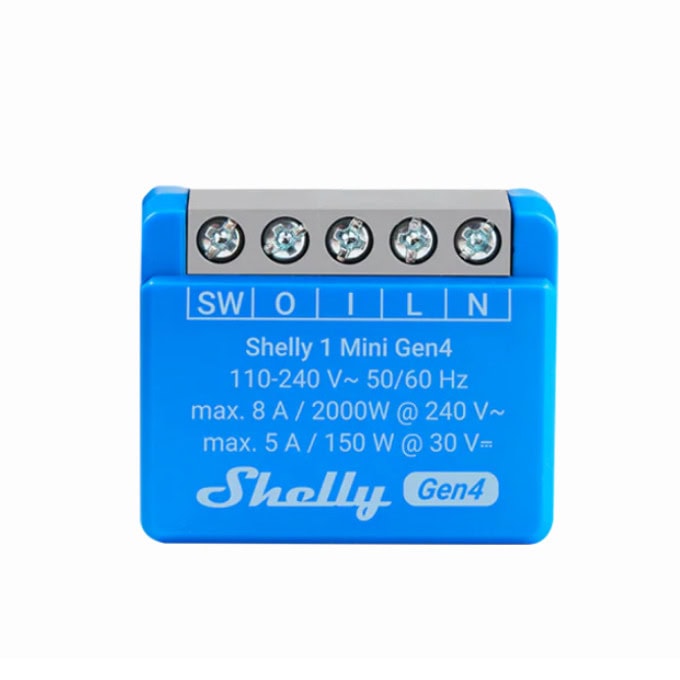

Shelly 1 Mini Gen4

Control your garage door

Shelly 1 Mini Gen4's compact design allows for flexible placement options, enabling you to install it directly within the garage door opener's housing or even near the motor. Its 8 A power handling capability ensures reliable garage door control, allowing you to conveniently operate your garage door remotely without the need for bulky external modules.

Make any small electrical appliance smart

Transforming old electrical appliances into smart devices becomes even more accessible with Shelly 1 Mini Gen4. Its 8 A limit is perfect for transforming small to medium-sized appliances into smart devices, such as lamps, coffee makers, and others. Place it in the socket or fit it discreetly inside the appliance's casing, avoiding the need for additional external wiring.

Lighting Control Wherever You Need It

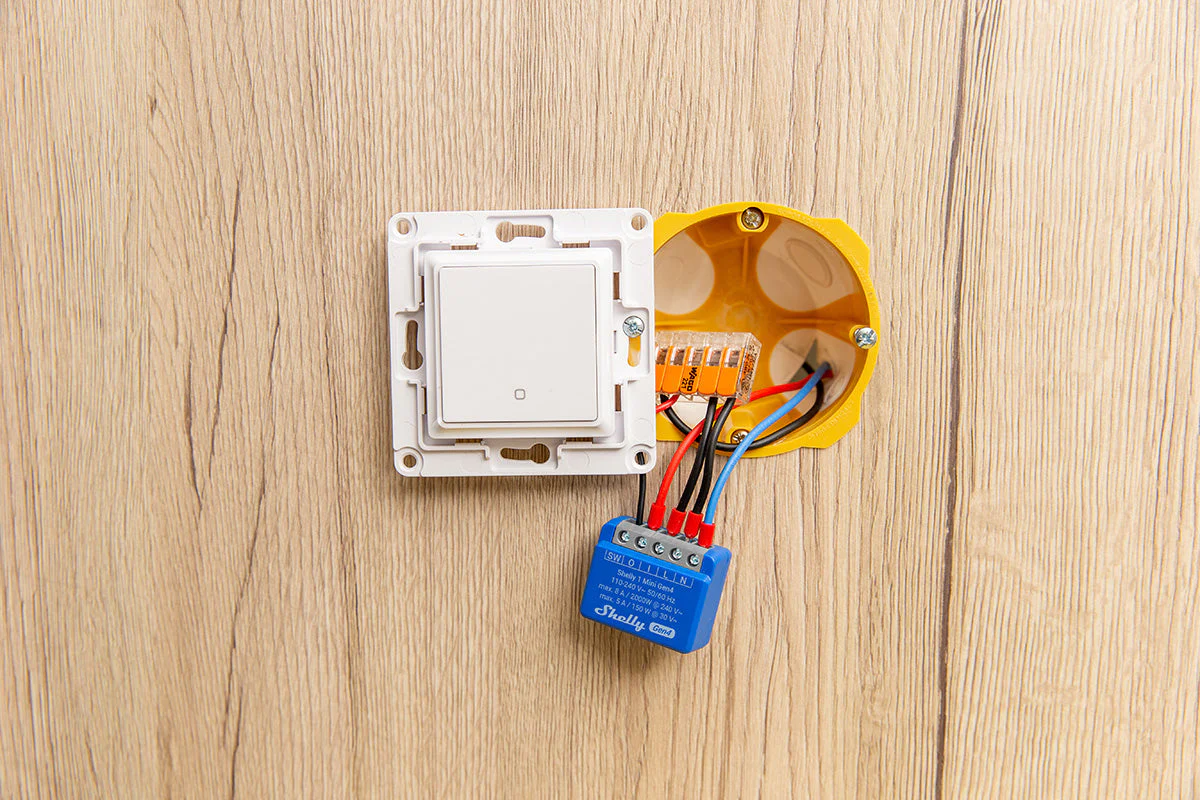

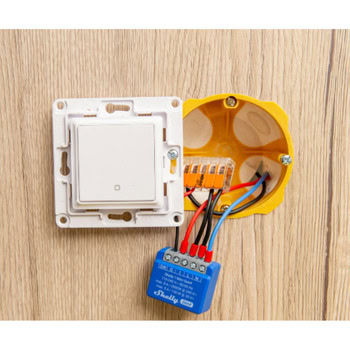

Thanks to its compact size, Shelly Mini 1 Gen4 can discreetly fit within the ceiling rose of your lamp or in jammed wall boxes. Once installed, Shelly Mini 1 Gen4 enables you to effortlessly control your lights or other appliances using the Smart Control App, your preferred platform, or voice assistant. Easily customize your lights according to your daily routine with personalized schedules and save on energy. Set your hallway lights to automatically switch off past your family's bedtime, ensuring a peaceful night's sleep. And don't worry - you can still use your light switches manually to suit the needs of everyone in your home.

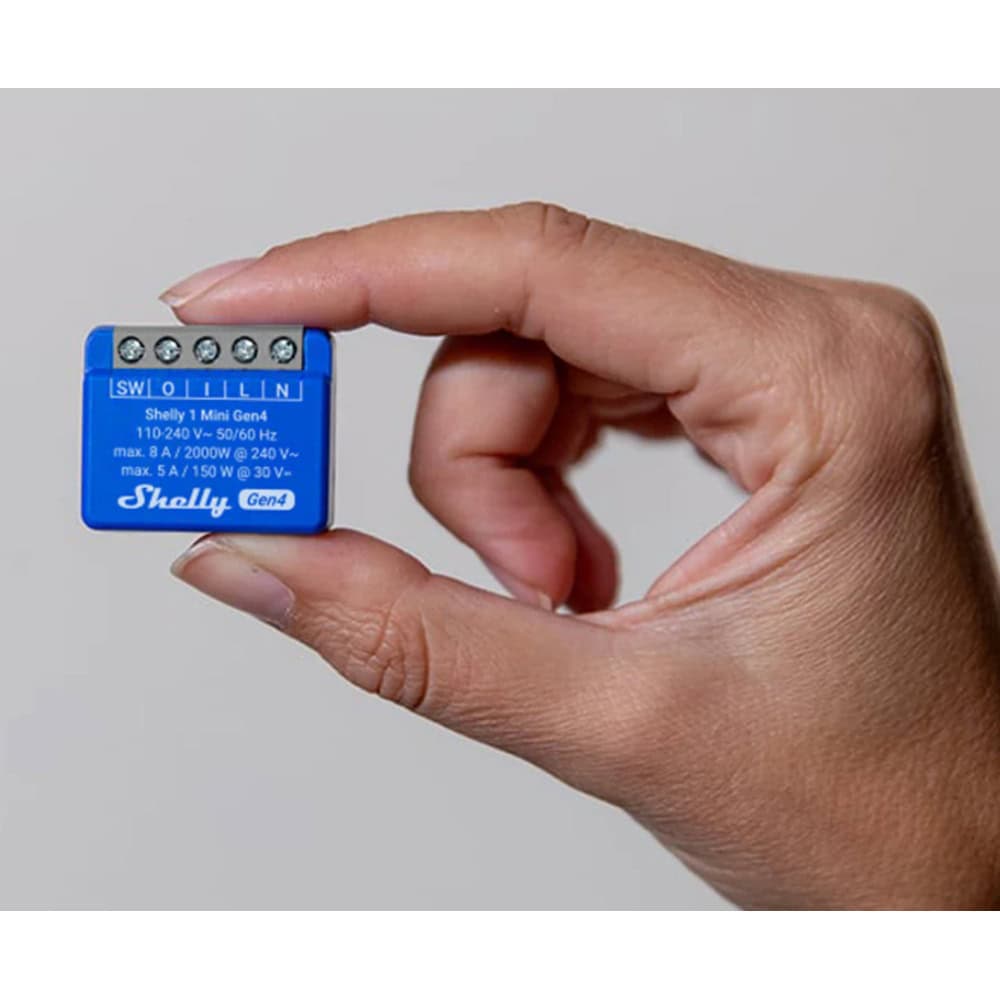

Small size, big impact!

Designed with convenience in mind, these mini devices have all the capabilities of Shelly's standard smart devices fit into a compact form factor.

With an improved processor and 8 MB of memory, the devices deliver enhanced efficiency, responsiveness, and seamless operation.

Each Mini Gen4 device is Matter-certified and supports multi-protocol connectivity, allowing greater flexibility within your smart home setup.

Multiprotocol connectivity

Highly compatible! Choose the best protocol for your smart home—Zigbee, Wi-Fi, or Bluetooth

Matter certified

Integrates into any Matter ecosystem

Low and high voltage support

Use a wide range of output voltage levels. Supports up to 8 A at 240 VAC and 5 A at 30 VDC

Dry contacts

Use it to control a wide range of devices and appliances

Smart schedules

Set custom schedules based on your daily agenda

Smart scenes

Set custom scenes by combining Shelly 1 Mini Gen4 with your other devices

Specifications

Environmental

Ambient working temperature:	-20 °C to 40 °C / -5 °F to 105 °F
Humidity:	30 % to 70 % RH
Max. altitude:	2000 m / 6562 ft

Screw terminals max torque:	0.4 Nm / 3.5 lbin
Conductor cross section:	0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules)
Conductor stripped length:	6 to 7 mm / 0.24 to 0.28 in
Mounting:	Wall box
Shell material:	Plastic

Electrical

Power supply:	110 - 240 V~
Relay:	Dry, NO contact, 1-pole, µ contact
Power consumption:	< 1.2 W
External protection:	Tripping characteristic B or C, max. 10A max. rated current, min. 6 kA interrupting rating, energy limiting class 3

Output circuits ratings

Max. switching voltage:	240 V~ 30 V⎓
Max. switching current:	8 A/240 V~ 5 A/30 V⎓
Max. output power:	2000 W/240 V~ 150 W/30 V⎓
Voltage protection / Cutoff:	No
Current protection / Cutoff:	No
Max power protection / Cutoff:	No

Sensors, meters

Internal-temperature sensor:

Yes

Radio

Wi-Fi

Protocol:	802.11 b/g/n/ax
RF band:	2412 - 2472 МHz
Max. RF power:	< 20 dBm
Range:	Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions)

Bluetooth

Protocol:	5.0
RF band:	2402 - 2480 MHz
Max. RF power:	< 4 dBm
Range:	Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions)

Zigbee

Protocol:	802.15.4
RF bands:	2400 to 2483.5 MHz
Max. RF power:	< 20 dBm
Range:	Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions)

Microcontroller unit
