Shelly 1PM Gen4
Energy Monitoring of Appliances
Utilize Shelly 1PM Gen4's energy metering to monitor real-time power consumption of connected appliances, like water heaters, kitchen appliances or your washing machine. Identify high-energy appliances and adjust usage patterns to improve overall energy efficiency.
Lighting Control
Automate your home lighting with Shelly 1PM Gen4. Set schedules, control remotely, monitor energy usage, and ensure lights are only on when needed, enhancing convenience and reducing electricity costs.

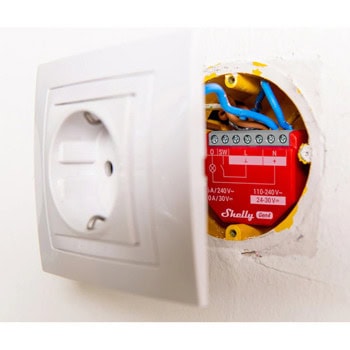

Smart Socket Control
Install Shelly 1PM Gen4 behind any socket to easily automate and manage appliances based on your schedule and usage. Remotely turn on a space heater to pre-warm a room or power off devices during the night. With power monitoring features, you can track the energy consumption of each appliance, allowing you to identify energy hogs and reduce overall power usage.
Same Great Device, More Compatibility
A smart switch designed for optimal appliance control and energy savings. With new multiprotocol connectivity, you can choose the protocol that best suits your home network - Zigbee, Matter, Wi-Fi, or Bluetooth. Shelly 1PM Gen4 features built-in power monitoring to track real-time energy consumption and optimize usage, helping you save energy and reduce electricity costs. Enjoy enhanced compatibility and speed, all in its usual compact and easy-to-install design.
Multiprotocol connectivity
Highly compatible! Choose the best protocol for your smart home—Zigbee, Matter, Wi-Fi, or Bluetooth
Power monitoring
Shelly 1PM Gen4 provides precise monitoring of power consumption and free data storage.
Matter certified
Integrates into any Matter ecosystem
Wide range of voltage support
Use it to control a wide range of devices and appliances.
Smart schedules
Set custom schedules based on your daily agenda or follow the sunrise/sunset and control your lighting accordingly.
Smart scenes
Set custom scenes by combining Shelly 1PM Gen4 with your other devices.
Specifications
Environmental
| Ambient working temperature: | -20 °C to 40 °C / -5 °F to 105 °F |
| Humidity: | 30 % to 70 % RH |
| Max. altitude: | 2000 m / 6562 ft |
| Screw terminals max torque: | 0.4 Nm / 3.5 lbin |
| Conductor cross section: | 0.5 to 4 mm² / 20 to 11 AWG (solid, stranded, and bootlace ferrules) |
| Conductor stripped length: | 6 to 7 mm / 0.24 to 0.28 in |
| Mounting: | Wall console |
| Shell material: | Plastic |
Electrical
| Power supply: |
|
| Power consumption: | < 1 W |
| Neutral not needed: | No |
| External protection: | Cable protection switch in accordance with EN60898-1 (tripping characteristic B or C, max. 16 A rated current, min. 6 kA interrupting rating, energy limiting class 3) |
Output circuits ratings
| Max. switching voltage: |
|
| Max. switching current: |
|
Sensors, meters
| Voltmeter (AC): | Yes |
| Ammeter (AC): | Yes |
| Internal-temperature sensor: | Yes |
Radio
Wi-Fi
| Protocol: | 802.11 b/g/n/ax |
| RF band: | 2412 - 2472 МHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 30 m / 100 ft indoors and 50 m / 160 ft outdoors (Depends on local conditions) |
Bluetooth
| Protocol: | 5.0 |
| RF band: | 2402 - 2480 MHz |
| Max. RF power: | < 4 dBm |
| Range: | Up to 10 m / 33 ft indoors and 30 m / 100 ft outdoors (Depends on local conditions) |
Zigbee
| Protocol: | 802.15.4 |
| Zigbee repeater: | Yes |
| RF bands: | 2400 to 2483.5 MHz |
| Max. RF power: | < 20 dBm |
| Range: | Up to 100 m / 328 ft indoors and 300 meters / 984 ft outdoors (Depends on local conditions) |
Microcontroller unit
| CPU: | ESP-Shelly-C68F |
| Flash: | 8MB |
Firmware capabilities
| Schedules: | 20 |
| Webhooks (URL actions): | 20 with 5 URLs per hook |
| Scripting: | Yes |
| MQTT: | Yes |
