Name: Суич HikVision DS-3T1506HP-SI-4P2F, 1000Mbps, 6 порта, 4x 10/100/1000Mbps RJ-45 PoE, 2x SFP
Brand: Hikvision
SKU: NTLHHIKVISIONDS3T1506HPSI4P2F
Price: 192.63 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

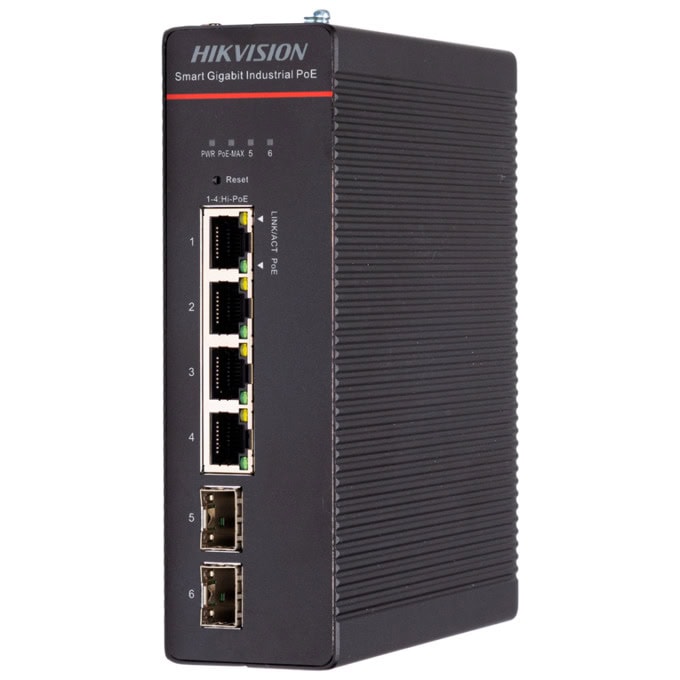

HikVision DS-3T1506HP-SI-4P2F

Industrial Smart Managed POE Switch

4 x Gigabit Hi-PoE RJ45 Ports, 2 × Gigabit SFP Fiber Optical Ports
Support 802.1Q VLAN.
Support 802.3bt Hi-PoE, up to 90 W for ports 1 to 4.
Support STP/RSTP/ERPS loop prevention and storm control.
Support cable detection to locate failure.
Support SNMP, QoS, and DHCP snooping.
6 kV Surge Protection
Wider Temperature (-40 °C to 75 °C) Design
Up to 300 m Long-range Transmission

Parameter	Specification
Shell Material	Metal, IP40
Net Weight	0.88 kg (1.94 lb)
Gross Weight	1.25 kg (2.75 lb)
Dimensions (W × H × D)	155.00 mm × 46.00 mm × 130.00 mm (6.10″ × 1.81″ × 5.12″)
Operating Temperature	-40 °C to 75 °C (-40 °F to 167 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	48 V DC, 57 A; 52 V–57 V recommended; Dual power inputs with hot backup
Installation Mode	Desk-Mounted, Rail
Max. Power Consumption	303 W
Power Consumption (Idle)	3 W
Surge Protection	6 kV
Ports	4 × Gigabit PoE ports, 2 × Gigabit fiber optical ports
MAC Address Table	8K
Switching Capacity	Whole Device: 20 Gbps; Per Port: 12 Gbps
Packet Forwarding Rate	Whole Device: 14.88 Mpps; Per Port: 8.93 Mpps
Internal Cache	4.1 Mbits
PoE Standard	IEEE 802.3bt
PoE Power Pin	8-pin power: 1/2(-), 3/6(+), 4/5(-), 7/8(+)
Max. Port Power	90 W
PoE Ports	Hi-PoE: Ports 1–4
PoE Power Budget	300 W
Long Range	Ports 1–4: up to 300 m (depends on camera/cable)
Port Isolation	Ports 1–6; isolated ports cannot communicate with each other
PoE Watchdog	Ports 1–4 auto detect and restart cameras
Link Aggregation	Static LAG; up to 8 aggregation groups
Loop Prevention	802.1D STP, 802.1w RSTP, G.8032 ERPS
VLAN	802.1Q; VLAN ID 1–4094; Trunk/Access modes
QoS	Port-based priority; SP & WRR scheduling
HPP (Hik-Partner Pro)	Remote management, monitoring, topology, alarms, upgrades
System Maintenance	Web management, DHCP Client, Super IP (10.180.190.200), Hik-Central Pro, LLDP, SNMP v1/v2c, port mirroring, cable detection
Port Rate Limiting	Bandwidth adjustment per port
Storm Control	Broadcast, multicast, unknown unicast rate limiting
DHCP Snooping	Blocks unauthorized DHCP servers (disabled by default)
ACL	Up to 64 ACL entries; 128 rules total
IPSG	Port/MAC/IP binding; 256 security entries
