Name: Суич HikVision DS-3E2528-HI-24T4F, 1000Mbps, 28 порта, 24x 10/100/1000Mbps RJ-45, 4x SFP
Brand: Hikvision
SKU: NTLHHIKVISIONDS3E2528HI24T4F
Price: 305.10 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

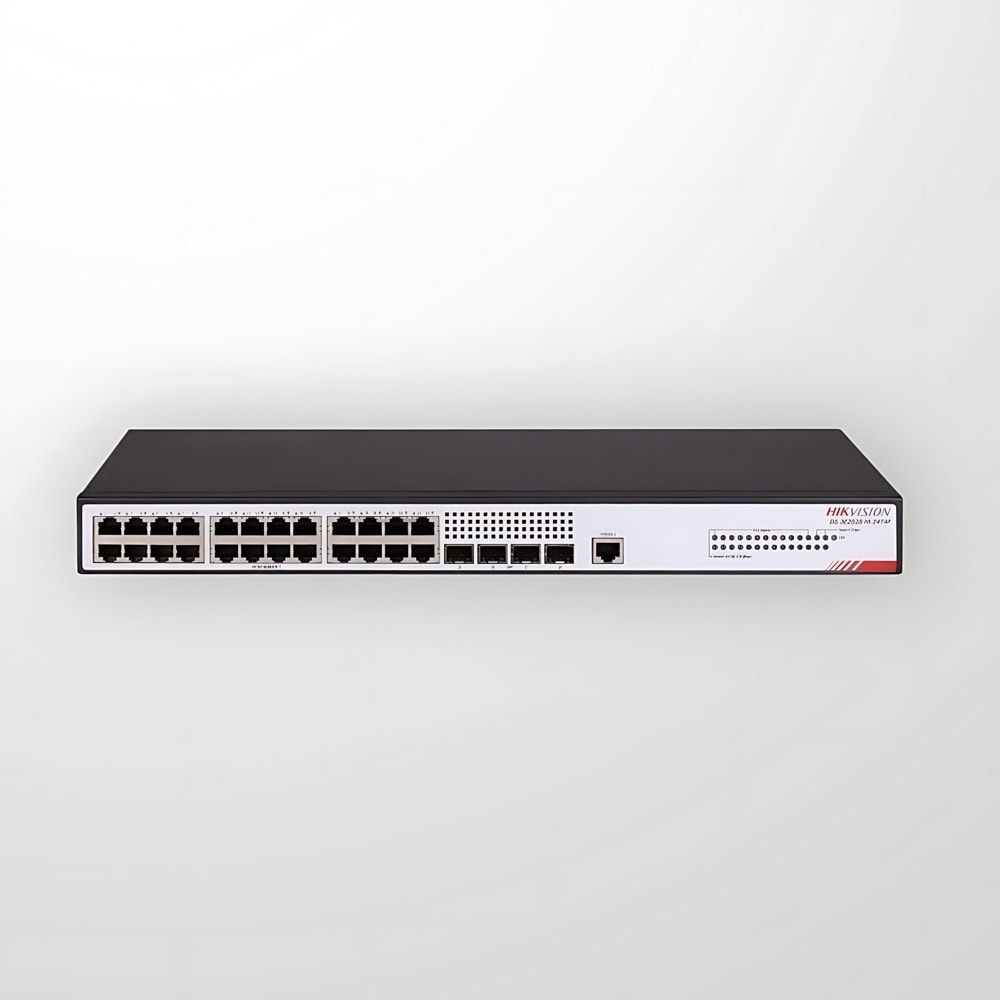

HikVision DS-3E2528-HI-24T4F

24 GE RJ45, 4 GE SFP, Smart L2+ Switch

DS-3E2500-HI series supports the combination of "Ethernet port + optical port" to meet networking requirements of various scenarios, which is convenient for users to build a flexible network. It offers 24-port, and 48-port access and all ports support Gigabit wire speed forwarding capabilities to meet users' needs.
The virtualization technology allows each slave device in the stack to serve as the backup of the master, creating control and data link redundancy, as well as uninterrupted layer-3 forwarding. This improves the reliability, avoids unplanned business downtime and serves to improve overall performance. When the master device fails, traffic remains uninterrupted.
Support ARP Detection, which can prevent hackers or attackers from implementing "ARP spoofing attacks" through ARP packets. Support IP Source Guard, which can prevent illegal address spoofing including MAC spoofing, IP spoofing, MAC/IP spoofing, and DoS attacks. Support DHCP Snooping, which can prevent private DHCP servers and ensure the authenticity and consistency of the DHCP environment. Support port security features, which can prevent MAC address-based attacks and realize traffic permit/limit based on a MAC address.
Support speed limit on port and traffic to prevent malicious invasion of network bandwidth and provide multiple granular management tools. Support SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR queue scheduling algorithms, and support multi-priority data transmission. Support rich IPv6 services and multiple IPv6 management tools.
Support CLI command line, Web network management, and Telnet, making device management more convenient. And support SSH2.0 and other encryption methods, making management more secure. Support remote upgrade of devices through FTP and TFTP, SNMP v1/v2c/v3
Energy-saving design greatly reduces device power consumption and trouble spots. Radiation is reduced to reach the standard for household electrical appliances and is harmless to humans.

Parameter	Specification
Shell	Metal
Net Weight	2.10 kg (4.63 lb)
Gross Weight	2.90 kg (6.39 lb)
Dimensions (W × H × D)	440.00 mm × 160.00 mm × 43.60 mm (17.32" × 6.29" × 1.71")
Operating Temperature	-5 °C to 45 °C (23 °F to 113 °F)
Storage Temperature	-40 °C to 70 °C (-40 °F to 158 °F)
Operating Humidity	10% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	AC 100 V–240 V, 50/60 Hz
Installation Mode	Rack (equipped with mounting ears)
Max. Power Consumption	21 W
Power Consumption (Idle)	14 W
Surge Protection	6 kV
Ports	24 × Gigabit RJ45 ports, 4 × Gigabit fiber optical ports
MAC Address Table	16K
Internal Cache	1.5 Mbits
Switching Capacity	Whole-device: 56 Gbps; Per-port: 56 Gbps
Packet Forwarding Rate	Whole-device: 41.66 Mpps; Per-port: 41.66 Mpps
Ethernet	LLDP; Static MAC configuration; MAC learning limit (16K); Port mirroring; Traffic mirroring; Port aggregation (24 groups, 8 ports/group); Port isolation; STP/RSTP/MSTP; IEEE 802.3ad (dynamic & static aggregation)
VLAN	802.1Q (up to 4K VLANs); Protocol-based VLAN; MAC-based VLAN; Guest VLAN; VLAN mapping; MVRP
IP Routing	Static routing; RIP; OSPF
DHCP	DHCP Relay; DHCP Client; DHCP Snooping
Multicast	IGMP V1/V2/V3 snooping; PIM Snooping; Multicast VLAN; IPv6 multicast settings
QoS	SP/WRR/SP+WRR scheduling; 802.1p & DSCP priority mapping; Port speed limit
ACL	Layer 2/3/4 ACL; IPv4 & IPv6 ACL; VLAN ACL
Security	Hierarchical user management; SSH; IP-based FTP logging; ARP/broadcast/unicast/multicast attack prevention; MAC limit; IP+MAC+PORT binding; IEEE 802.1x; Radius & AAA; SNMPv3; Broadcast suppression
System Management	CLI via console/AUX/Telnet/SSH; FTP/TFTP/Xmodem/SFTP file transfer; SNMP V1/V2c/V3; sFlow; NTP; System logs
IPv6	IPv6 static routing & dual-stack; DHCPv6 Client & Snooping; ND & PMTU; IPv6 Ping/Telnet/SSHv2/DNS
Reliability	Hot patch; In-service patch upgrade
HPP Management	One-click activation and remote management via Hik-Partner Pro (port rate, bandwidth utilization, topology, alarms, restart ports/devices, remote upgrade)
