Name: Суич HikVision DS-3E1524-EIV3, 1000Mbps, 24 порта, 24x 10/100/1000Mbps RJ-45
Brand: Hikvision
SKU: NTLHHIKVISIONDS3E1524EIV3
Price: 154.93 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

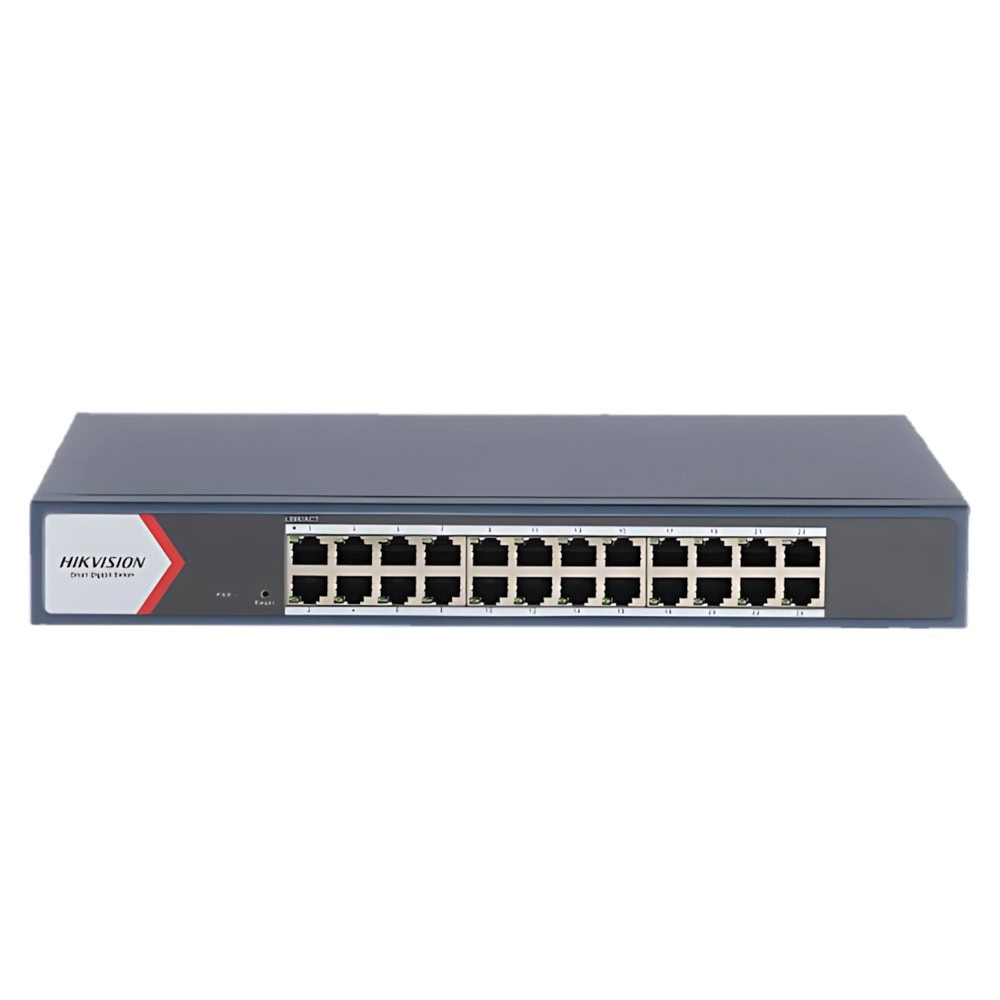

HikVision DS-3E1524-EIV3

24 × gigabit RJ45 ports.
Support IEEE 802.3az
Support STP/RSTP loop prevention with storm control
Support cable detection to locate failure
Support DHCP snooping
Support 6 kV surge protection

Parameter	Specification
Shell	Metal material, IP40
Net Weight	1.62 kg (3.57 lb)
Gross Weight	2.545 kg (5.61 lb)
Dimensions (W × H × D)	335.00 mm × 44.50 mm × 175.80 mm (13.19" × 1.75" × 6.92")
Operating Temperature	0 °C to 45 °C (0 °F to 113 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	220 V AC, 50/60 Hz, Max. 0.7 A
Installation Mode	Rack (equipped with mounting ears)
Max. Power Consumption	13 W
Power Consumption (Idle)	5 W
Surge Protection	6 KV
Ports	24 × Gigabit RJ45 ports
MAC Address Table	8 K
Switching Capacity	56 Gbps
Packet Forwarding Rate	41.66 Mpps
Internal Cache	4.1 Mbits
Link Aggregation	Supports static link aggregation; up to 8 aggregation groups
HPP (Hik-Partner Pro)	Remote management, port rate & bandwidth monitoring, topology display, alarm status, port/device restart, firmware upgrade
Port Isolation	Ports 1–24 isolation; isolated ports cannot communicate with each other but can communicate with non-isolated ports
QoS	Port-based priority; SP and WRR scheduling modes
Loop Prevention	Supports 802.1D STP and 802.1w RSTP; disabled by default
VLAN	802.1Q; VLAN ID 1–4094; Trunk & Access modes; max 32 VLANs
System Maintenance	Web management, DHCP client, Super IP (default 10.180.190.200), Hik-Central Pro, Hik-Partner Pro, cable detection, 802.1ab LLDP, port mirroring
DHCP Snooping	Prevents unauthorized DHCP servers; allows DHCP packets only from trusted ports; disabled by default
