Name: Суич HikVision DS-3E1506P-EI, 1000Mbps, 6 порта, 4x 10/100/1000Mbps RJ-45 PoE, 2x 10/100/1000Mbps RJ-45
Brand: Hikvision
SKU: NTLHHIKVISIONDS3E1506PEI
Price: 66.15 EUR
Availability: InStock

Описание Характеристики Ревюта / Въпроси Документация

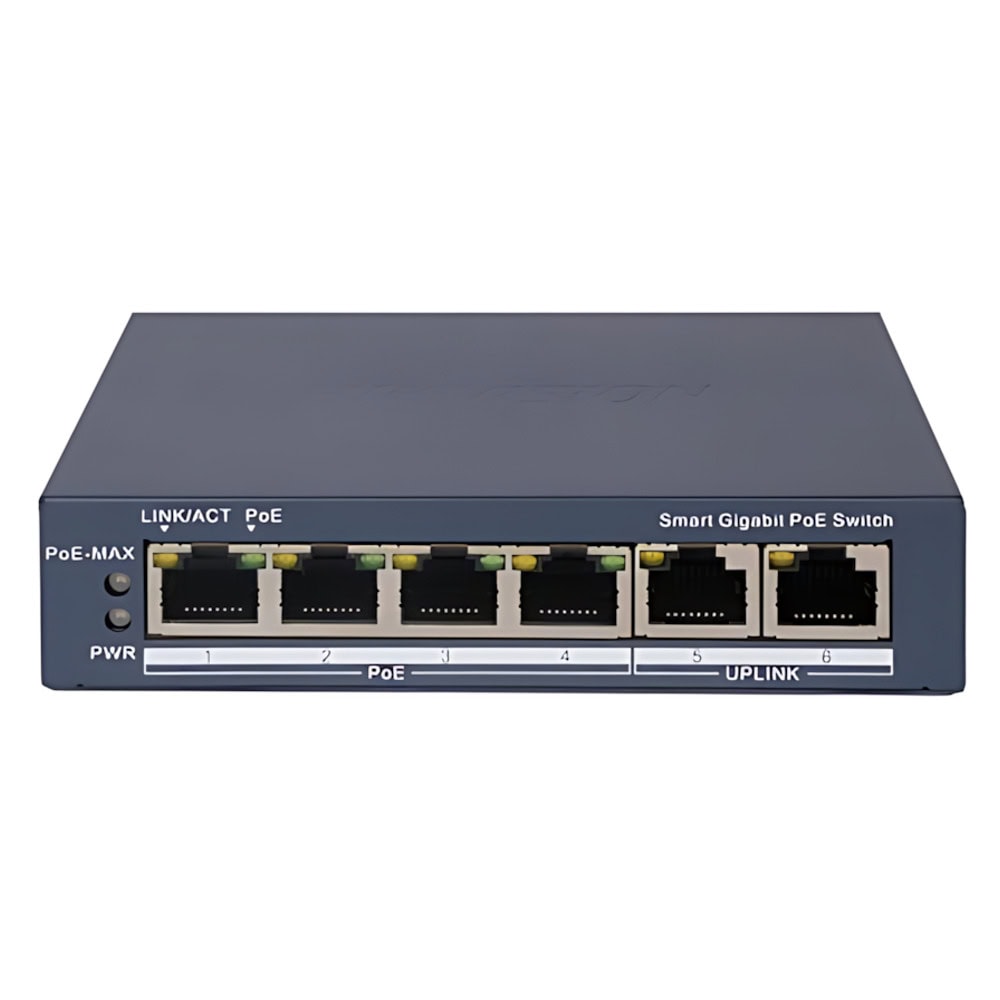

HikVision DS-3E1506P-EI

4 Port Gigabit Smart POE Switch

4 × Gigabit PoE port,2 × Gigabit RJ45 port
Total PoE Power Budget 60W
Support 802.1Q VLAN
Support PoE watchdog to detect and restart the cameras that do not respond
Support STP/RSTP Loop prevention
Support cable detection to locate failure
Up to 300 m Long Range PoE Transmission
6KV Surge Protection

Parameter	Value
Shell	Metal material
Net Weight	0.27 kg (0.6 lb)
Gross Weight	0.77 kg (1.7 lb)
Dimensions (W × H × D)	121.1 mm × 27.6 mm × 83.1 mm (4.77'' × 1.09'' × 3.27'')
Operating Temperature	0 °C to 40 °C (32 °F to 104 °F)
Storage Temperature	-40 °C to 85 °C (-40 °F to 185 °F)
Operating Humidity	5% to 95% (no condensation)
Relative Humidity	5% to 95% (no condensation)
Power Supply	54VDC, 1.2A
Installation Mode	Desk-Mounted, Wall-Mounted
Max. Power Consumption	65 W
Power Consumption in Idle	1.6 W
Surge Protection	6 KV
Ports	4 × Gigabit PoE port, 2 × Gigabit RJ45 port
MAC Address Table	2 K
Switching Capacity	14 Gbps
Packet Forwarding Rate	10.42 Mpps
Internal Cache	1 Mbits
Long Range	Ports 1 to 4: up to 300 m. Long range performance may vary depend on camera model or cable condition.
Port Isolation	Ports 1 to 4: port isolation mode to improve network security. Ports in an isolation group cannot communicate with each other, but they can communicate with ports outside the isolation group.
PoE Watchdog	Ports 1 to 4: auto detect and restart the cameras that do not respond.
Link Aggregation	Used to aggregate multiple physical ports into a logical port for load balancing, bandwidth expansion, and port protection. Supports static link aggregation and 2 aggregation groups.
Loop Prevention	Prevents switching network loops that can affect communication. Disabled by default. Supports 802.1D STP and 802.1w RSTP.
VLAN	Used for network scale planning and network health improvement. Supports 802.1Q. Configurable VLAN ID from 1–4094. Supports Trunk and Access port modes. Supports max. 32 VLANs.
HPP	Supports one-click activation and remote management via Hik-Partner Pro. Functions supported: Display port rate, bandwidth utilization, PoE power usage, topology information, alarm status; restart ports and devices; enable port long-range mode; remotely upgrade the device.
System Maintenance	Supports device management via web; DHCP Client (enabled by default); Super IP (10.180.190.200) for direct access; management via Hik-Central Pro and Hik-Partner Pro; cable detection (open circuits, short circuits, cable length); 802.1ab LLDP for peer device discovery; port mirroring for fault locating.
PoE Standard	IEEE 802.3af, IEEE 802.3at
PoE Power Pin	End-span: 1/2(-), 3/6(+)
PoE Port	PoE: Ports 1 to 4
Max. Port Power	30 W
PoE Power Budget	60 W
